Security

Contains the forms in the Security tab of the Commander Configuration Client.

Security Tab

Manage Users

Configure Users

Use Security > Manage Users > Configure Usersto add, edit, or remove users. The current users are listed on the left side of the form.

Field/Button	Allowable Value/Function
Add	Click to add a new user.
Delete	Select an existing user and click Delete to remove the user from the Users list.
Name	Enter the name of the user (number of characters are unlimited).
Disallow Login	Select to disallow the selected user to login to Configuration Client.
Employee	Assign an employee type to the user by selecting from the Employee drop-down list. The employee types with security levels are created using Security > POS Security > Employees form.
Roles	Roles are set up on the Configure Roles tab. The roles assigned to the selected user are displayed in this box.
Edit	Click to display the available roles. Select one or more roles for the user and click Done.
Password Settings
Min Length	Enter a minimum length for the user’s password (7 - 30).
Max Length	Enter a maximum length for the user’s password (8 -30).
# of Days to Expire	Enter the number of days until the password expires. The password should be changed before it expires.
Force Change on Next Login	Select to make the user change their password the next time they log in.
New Password	Enter the user’s new password. The new password should meet the requirements of the password guideline.
Confirm New Password	Enter the password again to confirm.
Password Guidelines	Click to display password guidelines.
Secure User Settings ‘Secure user’ is a user who can access PA-DSS sensitive Card Holder Data (CHD) in ‘EPS Secure Reports’ from POS via the Network Manager’ menu. POS prompts for secure employee ID and secure user password prior to processing this menu item. To avoid having to type username on POS keyboard, this feature allows associating a POS employee ID to a user. When POS prompts, secure user must enter their ‘secure employee ID’ and the PA-DSS compliant ‘user’ password. On successful validation, PA-DSS sensitive Card Holder Data (CHD) is exposed in the EPS reports. If validation fails, masked PAN is provided in the EPS Reports. Secure Admin is a ‘secure user’ who can manage ‘secure user’ as well as ‘secure admin’ accounts. The 'Secure User Administration' section is displayed when you log in as 'manager' (the default secure user admin account) or any user that is configured as a secure admin.
Secure User ID	Enter the Secure User ID.
Secure User Administration	Enable if the user has secure user administration rights.
Verifone C-Site Management The Verifone C-Site Management application allows remote configuration of data for the POS system through the web. Without visiting each location changes and updates can be done remotely for any or all locations. These updates can be done selectively or all at once for all the POS devices from the web application. OTP is a one-time password generated by the Verifone Commander for accessing certain menus. Verifone C-Site Management now supports remote generation and retrieval of OTP. Passwords generated this way are sent to the email address associated with the Verifone C-Site Management user login. Refer to the Verifone C-Site Management User Reference documentation for more information on this feature.
User ID	Add the same Verifone® C-Site Management Email address that was configured as part of OTP settings in the Verifone® C- Site Management application and Click Save.

Configure Roles

Use Security > Manage Users > Configure Rolesto assign permissions, add new roles, edit and delete current roles, and add and delete functions from each role. These roles are assigned to users.

The current roles are listed on the left side of the form.

Addition, removal, or modification of the roles can only be performed by a secure administrator. The “Secure Role” attribute allows secure administrators to specify

whether a role's access should be limited only to secure users. If this attribute is set, the role can only be assigned to a secure user.

To Edit a Role

1. Select the role from the Roles list.

2. Click Editat the Functions box.

3. Change the name in the Role Name text box.

4. To edit the function assignment to the role, enable or disable the functions in the Functions form.

5. Click Donein the Functions form.

6. Click Save.

To Add Role and Add Functions to Role

1. Click New.

2. Enter the name in the Role Name text box.

3. Click Editat the Functions box to assign functions to the role.

4. Select the function(s) for the role from the Functions form.

5. Click Donein the Functions form.

6. Click Save.

To Delete a Role

1. Select the role from the Roles list.

2. Select Delete.

3. Click Save.

Role Function Description

The following is the list of role functions and their descriptions:

Function	Description	Additional Info
allowAllCsrRpts	Allow all cashier reports view	Allow user to view all cashier reports that are available
allowOpenCsrRpts	Allow open cashier reports view	Allow user to view open cashier reports (current and/or reports with MOP amounts not yet filled)
allowRestricted	Allow Restricted Access
bypassEmployeeId	Bypass employee id validation	Bypass employee id validation in POS security functions
cbeginupgrade	Request Auto Upgrade Engine to begin upgrade
ccarwashdisable	Disable Car Wash
ccarwashenable	Enable Car Wash
cclosedaynow	Close Day Now
ccwpaypointinit	Initialize Carwash Paypoint
ccwpdclose	Carwash Paypoint Period Close	Performs Period Close On Carwash Paypoint
cdcrdriverinit	Initialize DCR Driver
cdcrinit	Initialize DCR	Initialize DCRs
cdisablelogin	Disable Helpdesk Login
cenablelogin	Enable Helpdesk Login
cfeatureenablement	Update a feature	Update Licensed Features
cFPDinit	Init FP Display Config
cfueldrvinit	Initialize Fuel Driver
cfuelinit	Initialize Fuel
cfuelprices	Download Fuel Prices
changepasswd	Change Password
cping	Pings a given destination.
crefreshcfg	Refresh Configuration
crefreshepsconfig	Refresh Eps Config
cswupgradepkg	Update software
diagdeleteclass	Delete Diagnostic Class	Delete a previously loaded dynamic diagnostic classfile
diagloadclass	Load Diagnostic Class	Load a classfile to be run as dynamic diagnostic
diagrunclass	Run Diagnostic Class	Execute a dynamic diagnostic class
findfilename	View report period filename
getPLUsFromGempro	Send plu.dat to NEWPRO	Send plu.dat from GEMPRO to NEWPRO
notifyamber	Notify amber alert updates	Notify Controller of amber alert updates
releaseCredential	Release the credential
repeatEvent	Repeat last event	Notify specified event listener of the last occurrence of the specified event
sendPLUsToGempro	Send plu.dat to GEMPRO	Send PLU data from NEWPRO to GEMPRO
uagevalidationcfg	Update age validation config
ubannercfg	Update banner config
ubluelawcfg	Update blue law config
ucarwashcfg	Update carwash config
ucashaccsite	Update cash acceptor config
ucashierenddraweramts	Update Cashier End Drawer Amounts
ucashierreportreviewstatus	Update Cashier Report Review Status
ucashiertrackingcfg	Update cashier tracking configuration
ucouponfamcfg	Update coupon family config
ucurrencycfg	Update currency config	Update currency dataset configuration
ucwpaypointcfg	Update carwash paypoint config
udatetime	Set Time and Date	Set the internal clock on Controller, including timezone and daylight savings time parameters
udcrheadercfg	Update DCR header config
udcridlescreencfg	Update DCR Idle Screen config	Update DCR Idle Screen dataset configuration
udcrmessagecfg	Update DCR message config
udcrtrailercfg	Update DCR trailer config
udiscountdenomcfg	Update discount denom config
uecheckcfg	Update Echeck Config
uemvcfg	Update EMV Configuration	Update All EMV Configuration Settings
uemvinit	Update EMV Initialization	Update All EMV Initialization Settings
uepsprepaidcfg	Update EPS Prepaid Card Config
uesafecfg	Update Esafe Config
ufeecfg	Update fee config	Update fee dataset config
ufepcardcfg	Update Fep's card configuration parameters	Update Fep's card configuration parameters like various limits, enable/disable card
ufepcardtypecfg	Update Fep's card configuration parameters based on card Type	Update Fep's card configuration parameters based on card Type like limits, enable/Disbale etc.
ufepcfg	Update Fep's configuration parameters	Update Fep's configuration parameters like network, cashback etc
ufoodservicecfg	Update Food Service Config
uFPDcfg	Update FP Display Config
ufuelcfg	Update Fuel Site Configuration	Update the fueling dispensers, products, mops, tanks, and prices for the site
ufuelprices	Update Fuel Prices	Update the fueling prices for the site
ufueltaxex	Update Fuel Tax Exemption Config
ufunctionlist	Refresh function list
ugrouplist	Update Group List Configuration	Update available report groups
uifsfcfg	Update IFSF Network Config
uinhouseacctcfg	Update in-house account config	Update in-house account dataset config
ukioskorder	Commit kiosk order
ulogocfg	Update logo config	Update logo dataset config
uloyaltycardcfg	Update Loyalty Card Configuration
uloyaltycardtypecfg	Update Loyalty Card Type Configuration
uloyaltyglobalcfg	Update Global Loyalty parameters
uMaintenance	Update NAXML maintenance dataset	Update configuration datasets as NAXML maintenance documents
umaintfprht	Update maint fprht
umaintpostal	Update maint postal
umaintregistrationkey	Update maint registration key
umainttelephone	Update maint telephone
umainttotalizers	Update maint totalizers
umanagedcfg	Update Managed Configuration
umanagedmodulecfg	Update Configuration	Update Module Configuration
umanageradjustment	Update Manager Adjustments
umanagercorrection	Update Manager Corrections
umenucfg	Update menu config	Update menu dataset config
umobilecfg	Update Mobile Configuration
umopcfg	Update MOP config	Update MOP dataset config
umwscashmovementreport	Update MWS Cash Movement Info
unetposcfg	Update Network Configuration	Update POS related Network Configuration
unetworkcfg	Update Network Settings	Update Network Settings(IP, route, etc..)
unetworkpartcfg	Update network settings
upaymentcfg	Update payment config	Update payment dataset config
upinpadmsgcfg	Update Pinpad Idle and Swipe messages
uPLUCacheList	Update PLU cache list	Update the list of PLUs cached on POS
uplupromocfg	Update PLU Promo config	Update PLU Promo dataset config
uPLUs	Update PLU dataset
upolicycfg	Update policy config
upopcfg	Update pop config
uposcfg	Update POS config	Update POS dataset config
upospaymentconfig	Update POS Payment Configuration
upossecurity	Update POS security config	Update POS security dataset config
uprepaidcfg	Update Prepaid Card Config
upscdcrcfg	Update DCR config	Update DCR dataset config
upscdcrkeycfg	Update DCR Key config	Update DCR Key dataset config
uregistercfg	Update register config	Update register specific dataset config
ureportcfg	Update Report Configuration
ureportlist	Update Report List Configuration	Update the order of available reports
ureportstatus	Update Manager Review Status
urestrictionscfg	Update restriction config	Update restriction dataset config
usalescfg	Update sales config
usapphireprop	Update Controller system properties
uscreencfg	Update POS Screen Configuration
usecuritylogservercfg	Update Security Log Server IP Address
uslogancfg	Update slogan config	Update slogan dataset config
usoftkeycfg	Update softkey config	Update softkey dataset config
utaxratecfg	Update tax rate config	Update tax rate dataset config
utlssite	Update TLS config
utriggerpullcfg	Update Trigger Pull Configuration	Update All Trigger Pull Configuration Settings
uuseradmin	User Administration	User admin update
uvendingmachinecfg	Update Vending Machine config	Update Vending Machine dataset config
uvipercfg	Update Viper's site level Config	Update Viper's site level Config like various limits, and pop configuration
vagevalidationcfg	View age validation config
validate	Validate the credential
vappcfg	View App Specific Config
vAppInfo	View App Info	View App Version Info
vappmodules	View App Module Names	View the list of Application noted module names.
vbannercfg	View banner config
vbluelawcfg	View blue law config
vcarwashcfg	View carwash config
vcashaccsite	View cash acceptor config
vcashierpdlist	View cashier report period list	View list of cashier report periods available
vcashierrept	Cashier Reports	View the cashier period reports
vcashiertrackingcfg	View cashier tracking configuration
vcashiertrackingrept	View cashier tracking report
vcouponfamcfg	View coupon family config
vcurrencycfg	View currency config	View currency dataset config
vcwpaypointcfg	View carwash paypoint config
vcwpaypointpdlist	View cw paypoint period list	View list of cw paypoint periods available
vcwpaypointpdrept	View cw paypoint period report
vdatetime	Get Time and Date	View the Controller internal time
vdcrheadercfg	View DCR header config
vdcridlescreencfg	View DCR Idle Screen config	View DCR Idle Screen dataset config
vdcrmessagecfg	View DCR message config
vdcrtrailercfg	View DCR trailer config
vdiscountdenomcfg	View discount denom config
vecheckcfg	View Echeck Config
vemvcfg	View EMV Configuration	View All EMV Configuration Settings
vemvinit	View EMV Initialization	View All EMV Initialization Settings
vepsprepaidcfg	View EPS Prepaid Card Config
vepssiteassetdata	View Site Asset Data of EPS
vesafecashierrept	ESafe Cashier Reports	View the cashier period reports
vesafecfg	View Esafe Config
veventset	Register event listener	Register {alias, url} pair as event listener for a specific event type
veventunset	Unregister event listener	Unregister the specified event listener for a specific event type
vfeaturelist	View feature list	View list of installed features
vfeecfg	View fee config	View fee dataset config
vfepcardcfg	View Fep's card configuration parameters	View Fep's card configuration parameters like various limits, enable/disable card
vfepcardtypecfg	View Fep's card configuration parameters based on card Type	View Fep's card configuration parameters based on card Type like limits, enable/Disbale etc
vfepcfg	View Fep's configuration parameters	View Fep's configuration parameters like network, cashback etc
vfepdetails	View Basic Fep Details	View Basic Fep Details like the available commands, enabled, is primary etc
vfoodservicecfg	View Food Service Config
vFPDcfg	View FP Display Config
vfuelcfg	Update Fuel Site Configuration	Update the fueling dispensers, products, mops, tanks, and prices for the site
vfuelposstat	View fueling position status
vfuelprices	View In-effect Fuel Prices	View the in-effect fueling prices for the site
vfuelrtcfg	In-effect Fuel Site Configuration	View the in-efectfueling dispensers, products, mops, tanks, and prices for the site
vfuelrtprices	View In-effect Fuel Prices	View the in-effect fueling prices for the site
vfueltaxex	View Fuel Tax Exemption Config
vfueltotals	Fuel Totals Report	View the electronic dispenser report for a given period
vfueltotalsz	Compressed Fuel Totals Report	View the electronic dispenser report for a given period (gzip)
vgrouplist	View Group List Configuration	Review available report groups
vifsfcfg	View IFSF Network Config
vinhouseacctcfg	View in-house account config	View in-house account dataset config
vlogocfg	View logo config	View logo dataset config
vloyaltycardcfg	View Loyalty Card Configuration
vloyaltycardtypecfg	View Loyalty Card Type Configuration
vloyaltyglobalcfg	View Global Loyalty parameters
vMaintenance	View NAXML maintenance datasets	View configuration datasets as NAXML maintenance documents
vmaintfprht	View maint fueling point running hose totals
vmaintpostal	View maint postal code
vmaintregistration	View maint registration
vmainttelephone	View maint telephone number
vmainttotalizers	View maint totalizers
vmanagedcfgstatus	View Managed Update Status
vmanagedmodulecfg	View Configuration	View Current Module Configurations
vmenucfg	View menu config	View menu dataset config
vmobilecfg	View Mobile Configuration
vmobilehostlist	View Hosts List	View Mobile Hosts List
vmobilereport	View Mobile Report
vmobilereportlist	View Reports List	View Mobile Reports List
vmoddescmap	View Module/Descriptions map	View mapping of module names to their descriptions.
vmodulecfg	View a Module Configuration	View Configuration of a given named module.
vmodulecfgref	View Module Referentials
vmopcfg	View MOP config	View MOP dataset config
vMovement	View NAXML movement reports	View reports as NAXML movement documents
vmwscashierdraweramts	View Cashier Drawer Amounts
vmwscashmovementreport	View MWS Cash Movement Report
vmwslog	Manager workstation event logs	Report to indicate Manager workstation event logs
vmwsposjournal	View manager work station event in POSJournal reports	View manager workstation related posjournal reports
vnetposcfg	View Network Configuration	View POS related Network Configuration
vnetworkcfg	View Network Settings	View Network Settings(IP, route, etc..)
vnetworkmenu	View Network Menu xml
vpaymentcfg	View payment config	View payment dataset config
vpayrollpdlist	View payroll period list	View list of payroll periods available
vpayrollpdlist2	View payroll period list	View list of payroll periods available
vpayrollrept	Payroll Reports	View the payroll period reports
vpayrollrept2	Payroll Reports (new format)	View the payroll period reports (new format)
vpendmdlcfg	View Pending Configurations
vperiodlist	View period list	View list of periods for which reports are available
vpinpadmsgcfg	View Pinpad Idle and Swipe messages
vPLUCacheList	View PLU cache list	View the list of PLUs cached on POS
vplupromocfg	View PLU Promo config	View PLU Promo dataset config
vPLUs	View PLU dataset
vPLUUpdateStatus	View PLU Update status	View PLU Update status info
vpolicycfg	View policy config
vpopcfg	View pop config
vposcfg	View POS config	View POS dataset config
vposjournal	View NAXML POSJournal reports
vpospaymentconfig	View POS Payment Configuration
vpossecurity	View POS security config	View POS security dataset config
vprepaidcfg	View Prepaid Card Config
vproprietarynetworkmenu	View Proprietary Network Menu xml
vpscdcrcfg	View DCR config	View DCR dataset config
vpscdcrkeycfg	View DCR Key config	View DCR Key dataset config
vpsinfo	View process table - Text	View process table and thread specific process table - Text
vrefinteg	View support doc	View referential integrity support document
vregistercfg	View register config	View register specific dataset config
vreportcfg	View Report Configuration
vreportlist	View Report List Configuration	Review the available reports
vreportpdlist	View report period list	View list of report periods available
vreportstatus	View Manager Review Status
vrestrictionscfg	View restriction config	View restriction dataset config
vrubyrept	Ruby Reports	View the processed reports for the site organized by period
vsalescfg	View sales config
vsalesnetworkmenu	View Sales Network Menu xml
vsapphireprop	View Controller system properties
vscreencfg	View POS Screen Configuration
vsecuritylogservercfg	View Current Security Log Server IP Address
vsiteassetdata	View Site Asset Data
vslogancfg	View slogan config	View slogan dataset config
vsoftkeycfg	View softkey config	View softkey dataset config
vsyslog	View system log - Text	View system log (syslogd)- Text
vsysresourcesmap	View System Resource Mappings
vtaxratecfg	View tax rate config	View tax rate dataset config
vthemecfg	View Screen Themes
vtilleventreport	View Till Event Reports
vtlogpdlist	View T-Log period list	View list of periods for which reports are available
vtlssite	View TLS config
vtransset	Period Reports with fully masked card holder data	Review reports for the site - fully masked card holder data
vtranssetz	Compressed Period Reports with fully masked card holder data	Review reports for the site (gzip) - fully masked card holder data
vtriggerpullcfg	View Trigger Pull Configuration	View All Trigger Pull Configuration Settings
vupgradesummary	View Upgrade Summary Report
vuseradmin	View User configuration	User admin view
vvendingmachinecfg	View Vending Machine config	View Vending Machine dataset config
vvipercfg	View Viper's site level Config	View Viper's site level Config like various limits, and pop configuration
vviperpdlist	Allow Viper period list view	View available periods on Viper
vviperrept	Viper reports	View network reports from Viper

Manage Devices

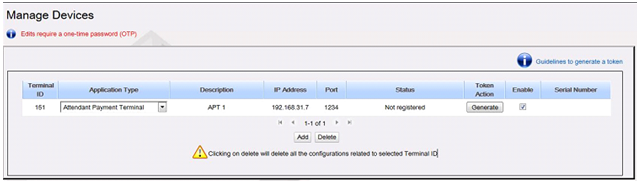

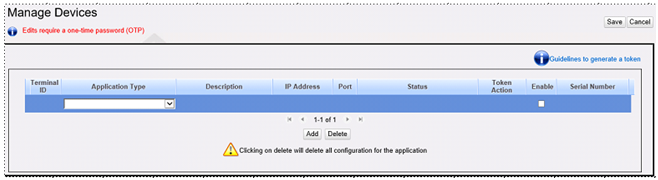

The Manage Devices form is used to add and enable external POS devices like the Attendant Payment Terminal and Carbon Verifone Commander Workstation.

Refer to the Attendant Payment Terminal and Carbon Verifone Commander Workstation Feature References for more information on this feature.

1. In Verifone Commander Config Client, go to Security > Manage Devices.

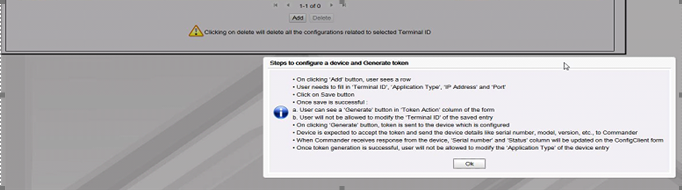

2. Click on Guidelines to generate a token, to read the guidelines.


3. Click Add to start adding the terminals.


4. Enter the external POS ID in the Terminal ID field. The ID should be between 151 and 199. Each application type should have a unique ID. This terminal ID should be entered as the POS ID for the terminal while configuring the terminal from Devices > Attendant Payment Terminal > Terminal.

5. Select the application type from Application Type drop-down.

6. Add a description for the terminal to help identify the terminal.

7. Get the IP address and port for the terminal from the IT team.

8. Select Enable to enable the device.

9. Click Save. A one-time password (OTP) is required to save the configuration.

10. Click Generate OTP and enter the OTP generated on the Verifone Commander display.


11. After save is successful,

12. User can see a ‘Generate’ button in ‘Token Action’ column of the form.

13. User will not be allowed to modify the ‘Terminal ID’ of the saved entry.

14. On clicking ‘Generate’ button, token is sent to the corresponding device that is configured from Devices > Attendant Payment Terminal > Terminal.

15. APT device is expected to accept the token and send the details like serial number, model, version, etc. to Verifone Commander.

16. When the Verifone Commander receives a response from the device, ‘Serial number’ and ‘Status’ columns are updated on the Config Client form

17. Once token generation is successful, user will not be allowed to modify the ‘Application Type’ of the device entry

POS Security

Employees

Use to edit, add, and delete employees. In addition to logging in and out of the register, this employee information is used for the Payroll Report, Summary by Register Report, and Summary by Cashier Report. The current employees are listed on the left side of the form.

Field/Button	Allowable Value/Function
Name	Assign a name for employee. Alphanumeric, 1 - 30 characters.
Employee Number	Assign a unique employee number, such as a company assigned ID, to identify the employee for internal and payroll purposes. Alphanumeric, 1 - 15 characters. The Employee Number is used for the Employee Number Login functionality and for security validation when a cashier does not have a high enough security level to complete a function such as applying a discount.
Security Level	Select the employee’s security level. The employee has access to all functions that have a security level less than or equal to the security level assigned.
Can Cashier	Select to allow the employee to perform cashier functions when in Sales mode.
New Password	Enter the password that the employee must use to clock in or out. Alphanumeric, 1 - 8 characters. To pick up a draggable item, press the space bar. While dragging, use the arrow keys to move the item. Press space again to drop the item in its new position, or press escape to cancel. To pick up a draggable item, press the space bar. While dragging, use the arrow keys to move the item. Press space again to drop the item in its new position, or press escape to cancel.
Confirm New Password	Enter the password again to confirm.
Delete	Select to delete the selected employee information. To pick up a draggable item, press the space bar. While dragging, use the arrow keys to move the item. Press space again to drop the item in its new position, or press escape to cancel. To pick up a draggable item, press the space bar. While dragging, use the arrow keys to move the item. Press space again to drop the item in its new position, or press escape to cancel.

Security Ctrls

Use to assign a security level to submenu items in the list. The Items in the list are reports or non-sales functions. These security levels correspond to the Security levels assigned to each employee. Only the entries in the Security Level column can be changed. Only employees with the assigned security level can view these reports or perform these non-sales functions.

Select a security level from the drop-down list.

Backdoor Login Restriction

Backdoor login access to the POS has been restricted. With the existing implementation, the security level assigned for the backdoor menu is 10. The Device Control and Adjust Screen Saver are the options provided through backdoor entry.

After the backdoor login has been restricted the default security level for Device Control and Adjust Screen Saver is changed to 7.

Sales Functions Security

Use to assign a security level to the following sales functions in the list:

• Apply Updates (MUP)

• Safe Drop Correction (SDC)

• Refund (REF)

• Void Ticket (VTI)

• Void Line (VLI)

• Price Override (POR)

• Discount (MDC)

• Suspend (SUS)

• No Sale (NSA)

• Payout (POU)

• Error Correct

Only employees with the assigned security level can perform these functions.

When the user clicks a security level and Apply Allis selected, the value is applied to all the sales functions.

The user can also configure any of the functions independently. Default value for Pay Out is 7 and Default value for Apply Updates is 7. Default value for all the other functions is 0. 0 indicates that the function does not require a security check and any employee can perform the function.

Site Security

The POS Pairing process establishes a trust relationship between the Verifone Commander and each Verifone POS Workstation and creates secure communication links. It is similar to where a cellphone is paired to a speaker or automobile dash display.

The POS workstation pairing process is strongly recommended by Verifone to be performed on the same day the system is Auto Upgraded. After an auto upgrade, each Verifone POS displays messages that the system needs to be paired.

Refer to the POS Pairing Feature Reference documentation for more information on this feature.

Pairing after the initial Auto Upgrade, Pairing Expired/Revoked

If the POS displays the “Sec. Alert - Pairing Invalid” or the “Sec. Alert - Pairing Required” message, follow these steps to pair the Verifone POS Workstation with the Verifone Commander. The POS Workstation displays one of the two messages below at login to Sales or between each transaction in Sales.

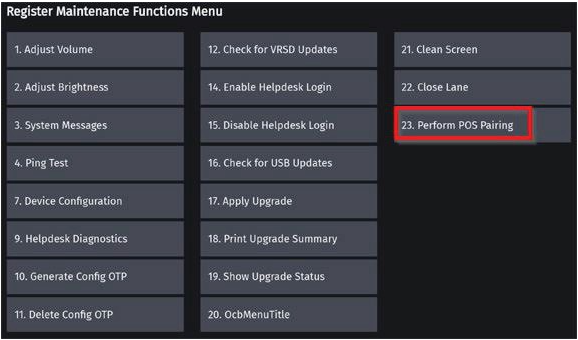

1. On the POS Workstation, navigate to CSR Func > Maintenance Menu. Press [Perform POS Pairing].

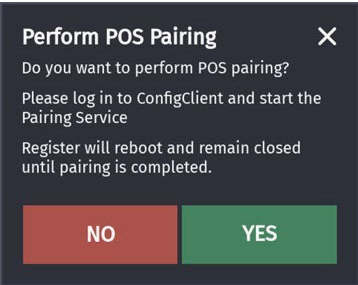

2. A message asking to perform POS pairing displays, press [Yes].

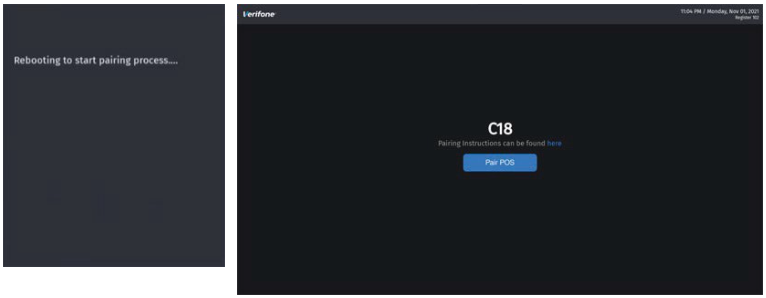

3. A message “Rebooting to start the pairing process...” will briefly display. The POS will reboot and then the “Pair POS” screen displays.


4. At Configuration Client and using the Manager credentials, navigate to Configuration Client > Security > Site Security.

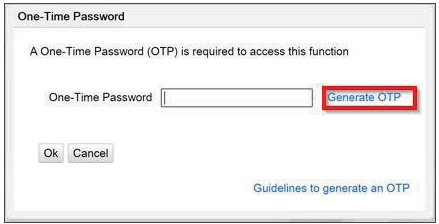

5. An OTP is required to complete the process. Press the **[Generate OTP]**button.

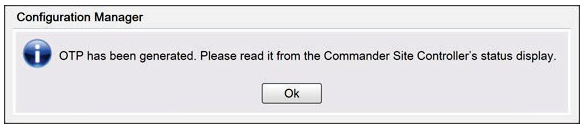

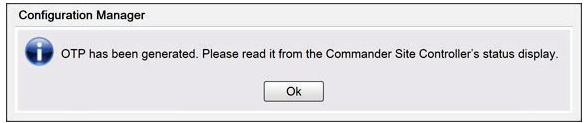

6. The “OTP has been generated. Please read it from the Verifone Commander’s status display.” confirmation message displays. Press **[Ok]**to continue.

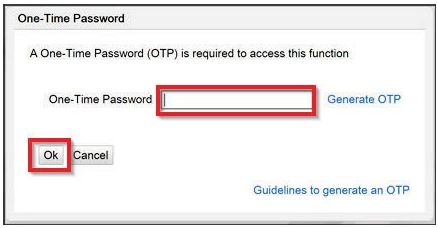

7. Read the OTP digits from the Verifone Commander. Enter the four OTP digits into the text box and then press [OK].

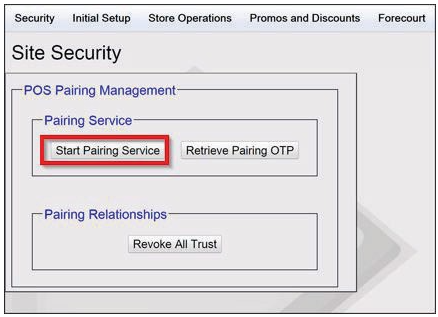

8. The Site Security form opens. Press [Start Pairing Service].


9. A confirmation message stating “Pairing service is started” displays. Press **[OK]**to continue.


10. Go back to the POS Workstation. Press [Pair POS].


11. A Pairing OTP dialog box displays on the POS.

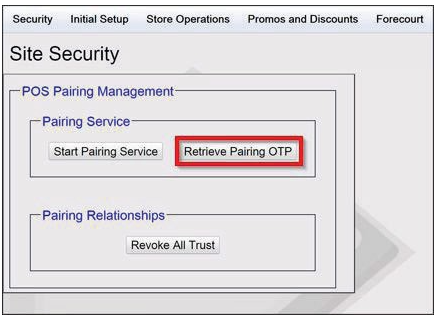

12. Navigate to Configuration Client > Security > Site Security. Press [Retrieve Pairing OTP].


13. A “Pairing session OTP” dialog box displays.


14. Go back to the POS workstation. Enter the 6-digit Pairing session OTP code from Configuration Client into the “Pairing” dialog box.


15. Press [OK]. The message “Processing, please wait...” displays and then after a moment, “Successfully Paired” displays.

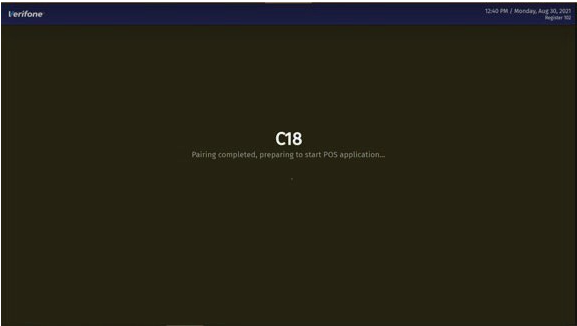

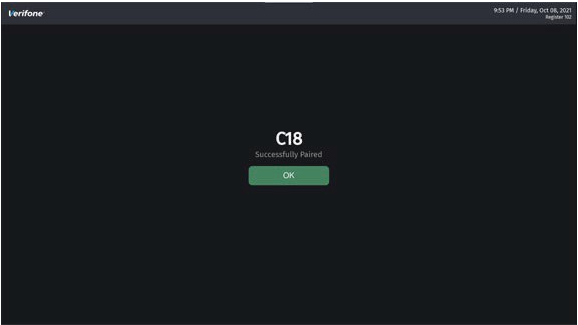

16. Press **[OK]**to continue. A message “Pairing completed, preparing to start POS application...” displays.


17. Repeat these steps if:

• Pairing was not successful

• The site has more than one POS Workstation

Pairing the POS Workstation After New Installation

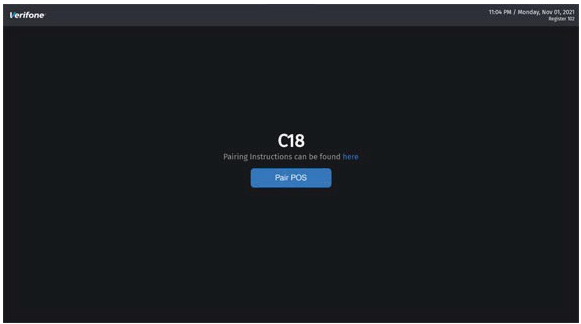

After a new installation, the POS Workstation displays the Pair POS screen below after it boots up. Follow steps 4 to 17 above.

Revoke All Trust

If a workstation needs to be removed for repair or sent to another store, use the following steps to Revoke All Trust from the Pairing Relationship.

1. On the Site Security form at Configuration Client > Security > Site Security.

2. An OTP is required to complete the process. Press the **[Generate OTP]**button.


3. The “OTP has been generated. Please read it from the Verifone Commander’s status display.” confirmation message displays. Press **[Ok]**to continue.


4. Read the OTP digits from the Verifone Commander, Enter the four OTP digits into the text box and then press [OK].

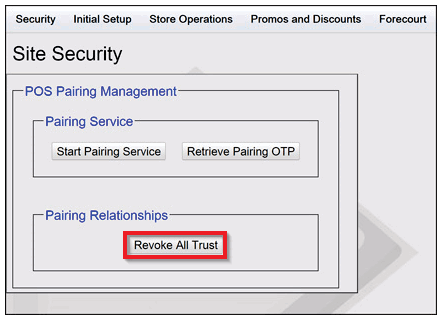

5. The Site Security form opens. Press [Revoke All Trust].

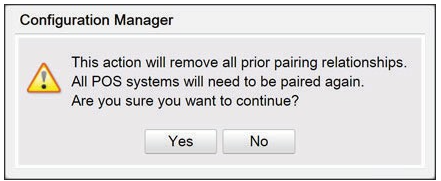

6. A confirmation message stating “This action will remove all prior pairing relationships. All POS Workstations will need to be paired again. Are you sure you want to continue?” displays. Press [Yes].

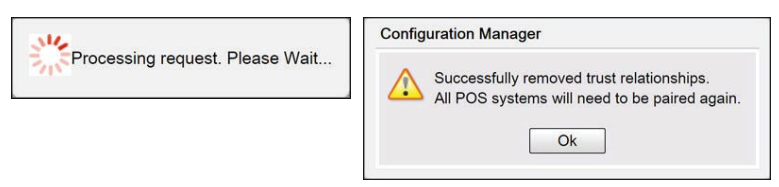

7. The “Processing request. Please Wait...” message displays before the successful message. Press [OK].


8. Follow the steps in **“Pairing after the initial Auto Upgrade, Pairing Expired/ Revoked”**section to pair the other POS Workstations.

Security Log Server

Syslog is a way for network devices to send event messages to a logging server – usually known as a Syslog server. The Syslog protocol is supported by a wide range of devices and can be used to log different types of events. For example, a router might send messages about users logging on to console sessions or a webserver might log access-denied events.

This form is used to report security and OS related events to the configured server. Enter the log server’s IP address in this form.

A one-time password (OTP) is required to open and edit this form. Click Generate OTP and enter the OTP generated on the Verifone Commander display to the One-Time Password form.

The following is how the security logs appear on the server display:

My Profile

Refer to the Password Reset Feature Reference for more information on this feature.

Using this menu, a Config Client user can reset their own password without calling the Helpdesk. The primary benefit of this feature is to reduce the number of calls generated to the Helpdesk.

Setup Challenge Questions

From software release 55.01 and higher, there is no option to skip entering the challenge questions or option to leave any of the questions left blank. By making it compulsory to enter the challenge questions, users can reset passwords themselves by answering the challenge questions.

.

Change Password

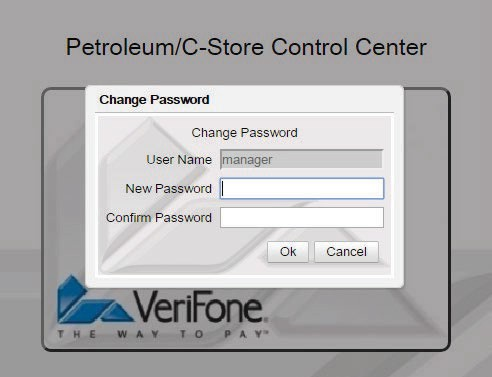

After logging in, a user can change password using the Change Password menu that can be assessed from Security > My Profile.

Forgot Password

“Forgot Password” link on login page of Config Client or Manager Workstation displays a prompt where user must enter the username and click Submit to start the process of resetting password.

If the user doesn’t already have challenge questions set or if the username doesn’t exist, the server shows an error.

If the challenge questions are set, any two of the questions are shown for the user to answer.

On answering the questions right, the user is prompted to enter a new password.
