P630 A Quick Installation Guide

This guide walks you through unboxing, setting up, and taking your first payment with the P630-A payment terminal.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Cover

P630-A Payment Terminal

The payment terminal itself

Quick Setup Guide

1

Unbox the Terminal

Remove the P630-A payment terminal from its packaging.

2

Insert the SAM Cards

1

Open the card cover

Slide the card cover down and off the back of the terminal to expose the SAM card slots.

2

Insert the SAM 1 and SAM 2 cards

Insert the SAM 1 card into the left slot and the SAM 2 card into the right slot, pushing each one up until it is fully seated.

3

Connect and Secure the Battery

1

Connect the battery connector

Align the battery connector with the port inside the compartment and press it down until it is seated.

2

Close the cover

Turn the screw to secure the cover, then slide the cover up until it clicks shut.

4

Connect the Terminal

Choose one of the following connection options.

1

Option A: Connect to a cash register

Plug the cable into the serial adapter, then connect the adapter to your cash register.

2

Option B: Connect to a computer

Plug the cable into the dock, then connect the dock to your computer with the USB cable.

3

Option C: Connect to power and a network

Plug the cable into the dock, connect the power adapter to an electrical outlet, and connect an Ethernet cable from the dock to your network.

5

Take a Payment

1

Swipe a card

Swipe the customer's card through the card reader on the side of the terminal.

2

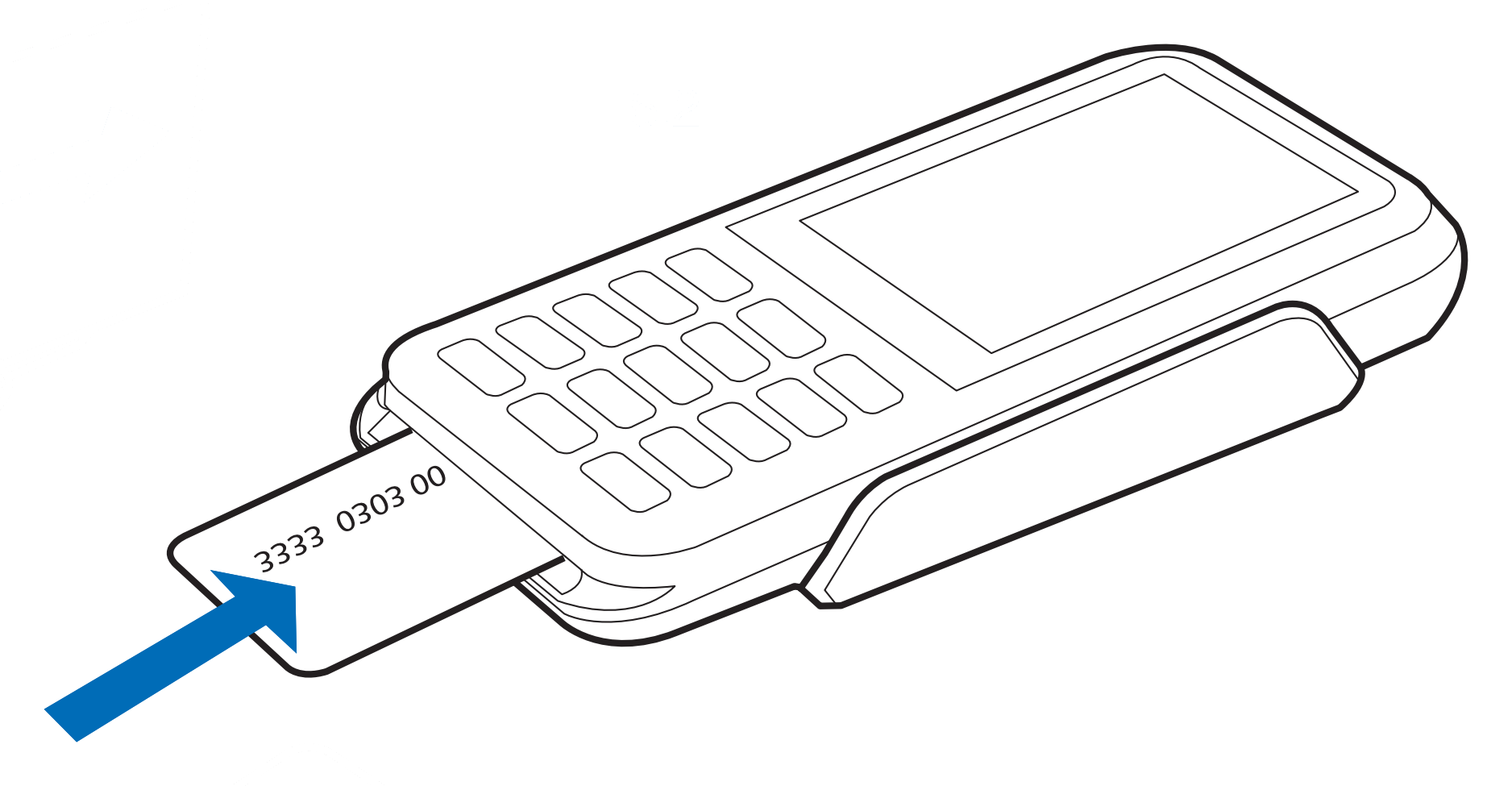

Insert a chip card

Insert the chip card into the card slot at the bottom of the terminal.

3

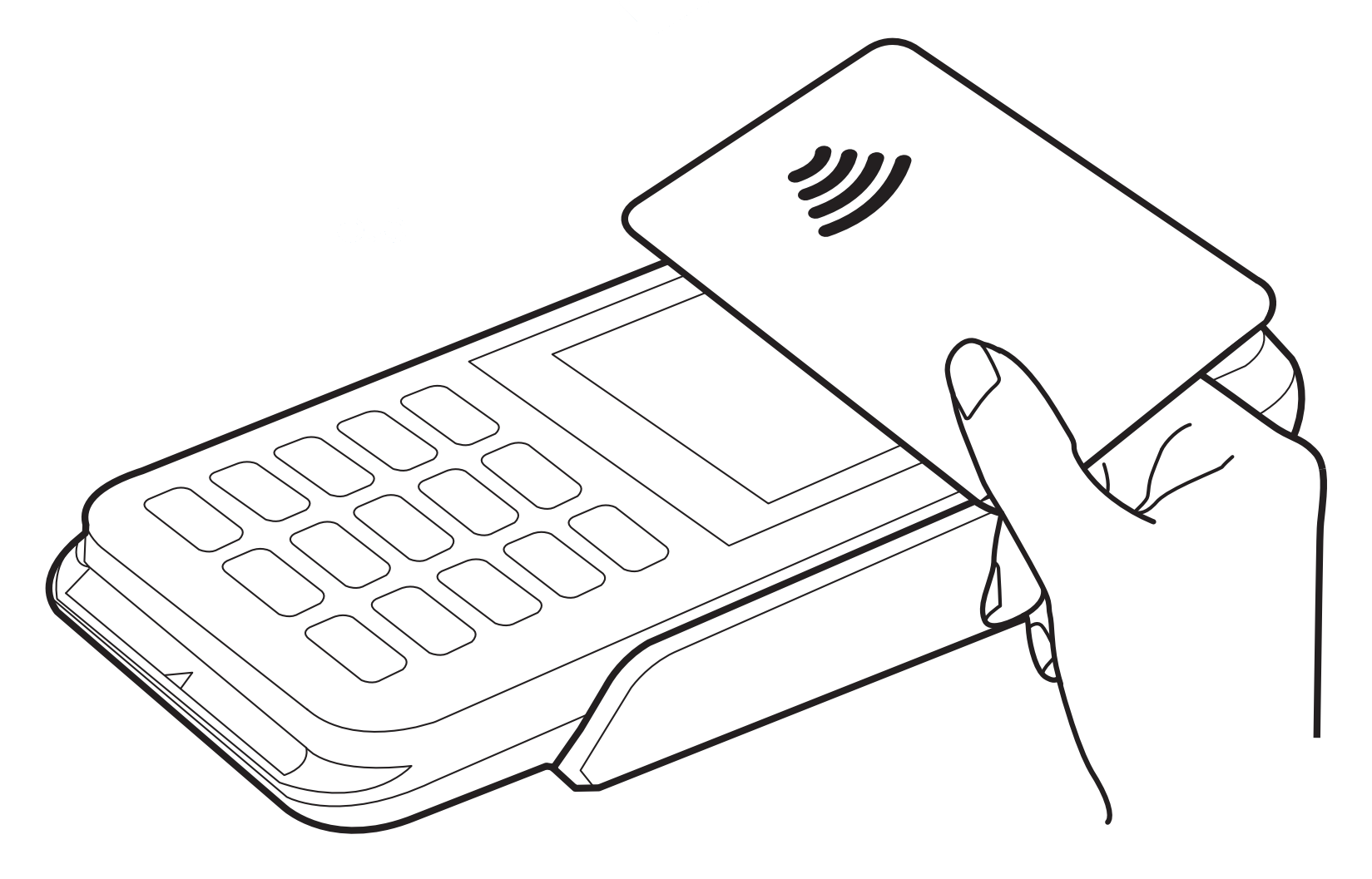

Tap a contactless card

Hold the contactless card near the terminal's screen to complete the tap payment.

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the P630-A Installation Guide, available through Verifone Product Documentation.
