T650m Charging Base Quick Installation Guide

This guide walks you through setting up the T650m Charging Base so it is ready to charge your T650m terminal.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Charging Base

Charging Base

Quick Setup Guide

1

Connect the Power Supply

Turn the base over and connect the power cable to the connector on the underside, routing it through the channel shown, then plug the power adapter into a wall outlet.

Figure 1: Connect the power cable and plug the adapter into a wall outlet

2

Dock the Terminal

Place the terminal onto the base to dock and charge it.

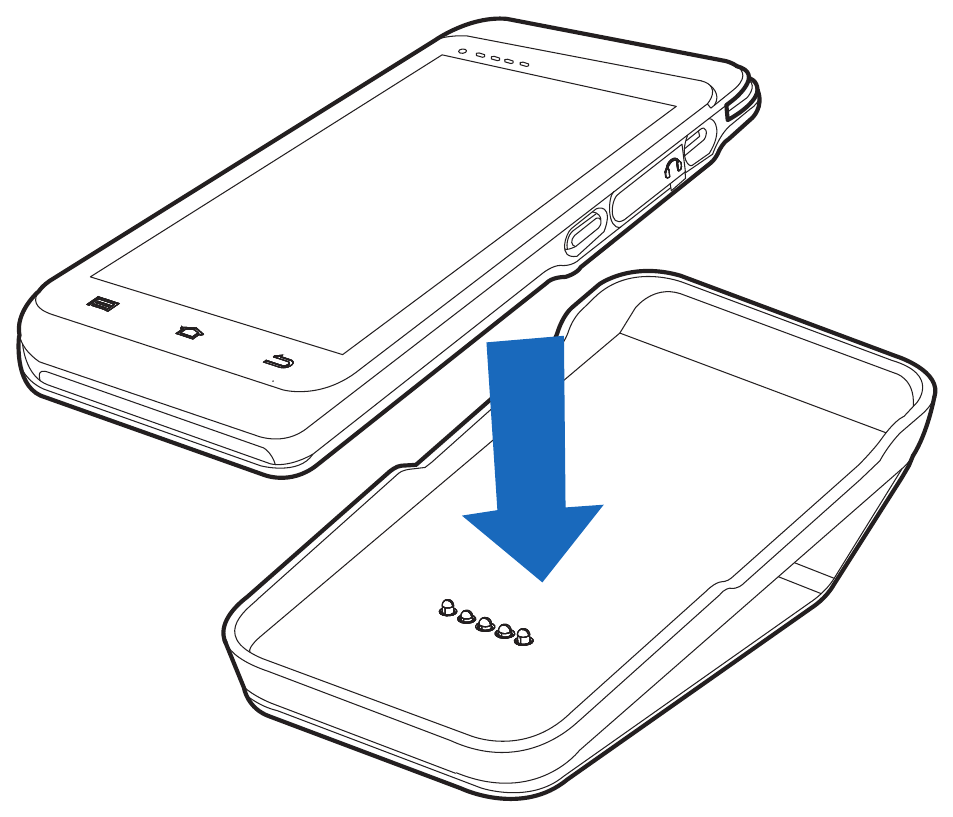

Figure 2: Place the terminal onto the charging base

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the T650m Installation Guide, available on the Verifone product documentation portal.
