# T650m Multi Bookshelf Charger Quick Installation Guide

This guide walks you through mounting and setting up the T650m Multi Bookshelf Charger so it is ready to charge up to four T650m terminals.

Before you begin, confirm you have all devices, cables, and accessories listed below.

## What's in the Box

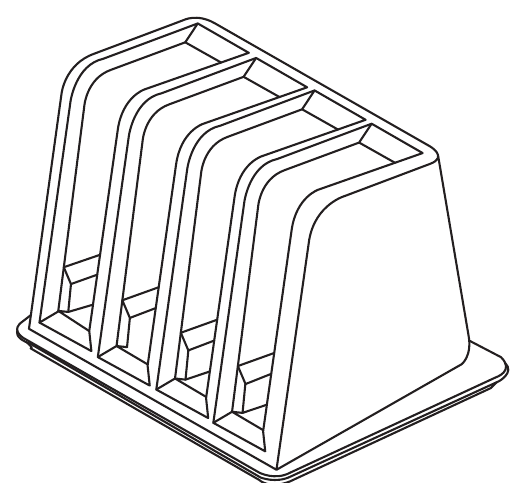

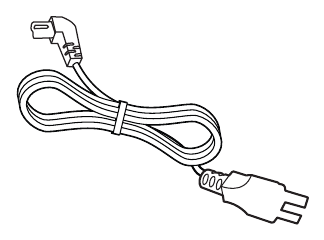

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="image">Cover image</th></tr></thead><tbody><tr><td><h3>Bookshelf Charger</h3></td><td>T650m Multi Bookshelf Charger</td><td data-object-fit="contain"><a href="/files/f71fa7c09cfa1ec26b27af8349666fa0d1ec436a">/files/f71fa7c09cfa1ec26b27af8349666fa0d1ec436a</a></td></tr><tr><td><h3>Power Cable</h3></td><td>Power cable</td><td data-object-fit="contain"><a href="/files/e4bd81675d8c05fc5f68fbe4e2840466fc2e0d40">/files/e4bd81675d8c05fc5f68fbe4e2840466fc2e0d40</a></td></tr></tbody></table>

## Quick Setup Guide

{% stepper %}
{% step %}

### Mount the Charger

{% stepper %}
{% step %}

#### Mark the mounting holes

Hold the mounting plate against the mounting surface and mark the screw positions shown by the arrows.

<figure><img src="/files/fd71cf7a3ecf8c15067098b664e0d8fc9dd2e4eb" alt="" width="375"><figcaption><p>Figure 1: Mark the screw positions on the mounting plate</p></figcaption></figure>
{% endstep %}

{% step %}

#### Attach the mounting plate

Secure the mounting plate to the surface with screws.

<figure><img src="/files/VEntbwgXwrDQ6GF26fDN" alt="" width="361"><figcaption><p>Figure 2: Secure the mounting plate to the surface</p></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Connect the Power Cable

Connect the power cable to the connector on the underside of the charger, as shown in the zoomed detail, then lower the charger onto the mounting plate.

<figure><img src="/files/8ichL0SktWPhPAvHttKy" alt="" width="375"><figcaption><p>Figure 3: Connect the power cable to the charger and lower it onto the mounting plate</p></figcaption></figure>
{% endstep %}

{% step %}

### Attach the Mounting Post

{% stepper %}
{% step %}

#### Lower the charger onto the plate

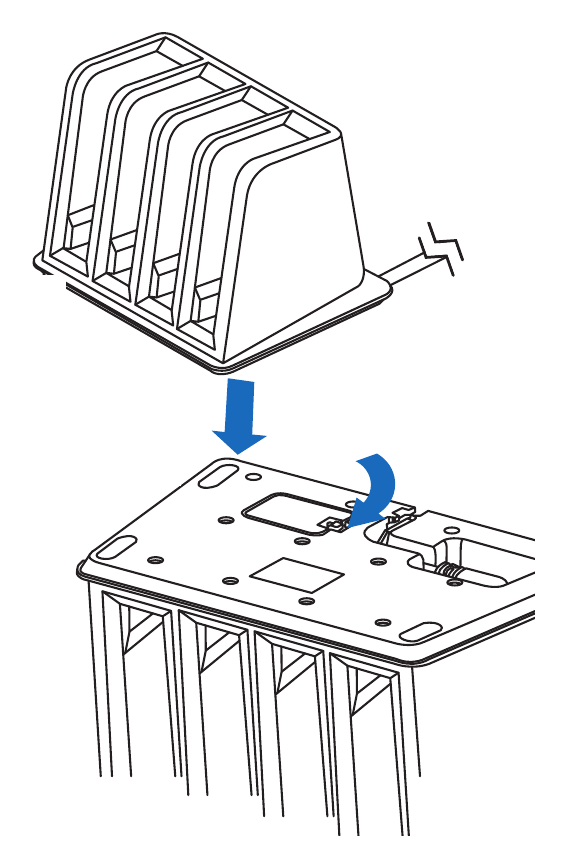

Lower the charger onto the mounting plate and rotate it into place.

<figure><img src="/files/88731b2be6fa0014307ca3ca55330b6f4db677a6" alt="" width="375"><figcaption><p>Figure 4: Lower the charger onto the mounting plate and rotate it into place</p></figcaption></figure>
{% endstep %}

{% step %}

#### Insert the mounting post

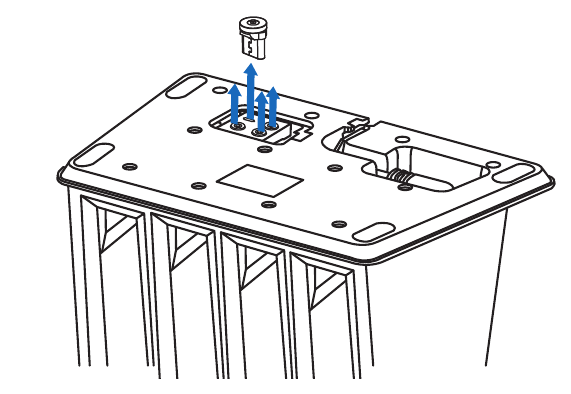

Insert the mounting post into the connector on the underside of the charger.

<figure><img src="/files/784c0bbe7df4a586fbcd788e35a0375cc78332cb" alt="" width="375"><figcaption><p>Figure 5: Insert the mounting post into the connector</p></figcaption></figure>
{% endstep %}

{% step %}

#### Secure the connector

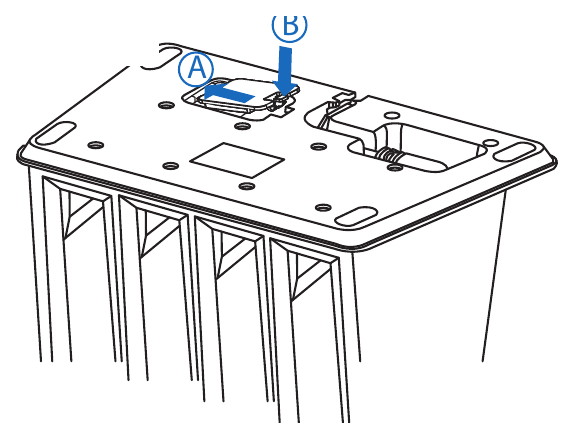

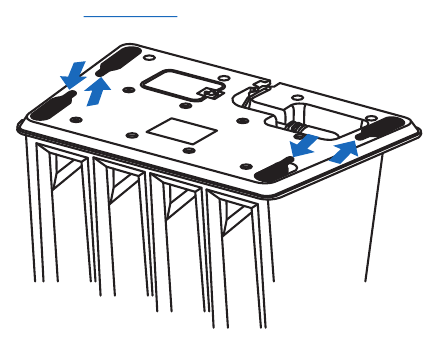

Secure the connector at position A, then press down at position B.

<figure><img src="/files/51fcd34302caa21c34b9598e52c637bf0b77fcd1" alt="" width="375"><figcaption><p>Figure 6: Secure the connector at A, then press down at B</p></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Fit the Terminal into the Case

{% stepper %}
{% step %}

#### Position the case

Position the open protective case ready to receive the terminal.

<figure><img src="/files/2lmyDUcABX9AhP3NhJqd" alt="" width="416"><figcaption><p>Figure 7: Position the open protective case</p></figcaption></figure>
{% endstep %}

{% step %}

#### Slide the terminal into the case

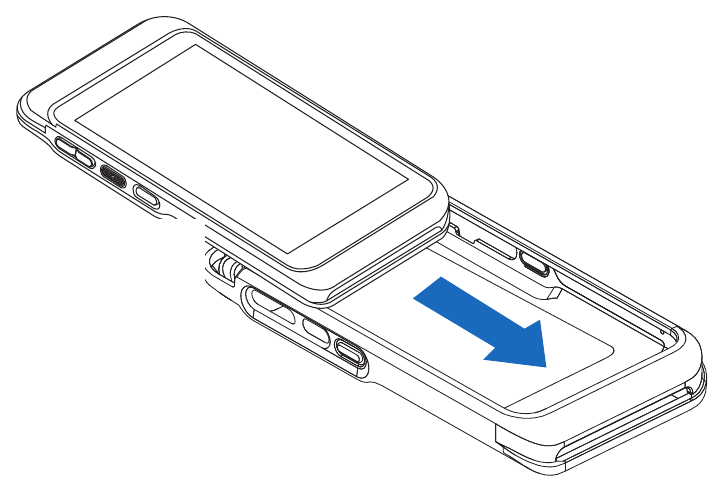

Slide the terminal into the case until it is fully seated.

<figure><img src="/files/c17a5812832eb1b075e11b85703b54782cfc8caf" alt="" width="563"><figcaption><p>Figure 8: Slide the terminal into the case</p></figcaption></figure>
{% endstep %}

{% step %}

#### Confirm the fit

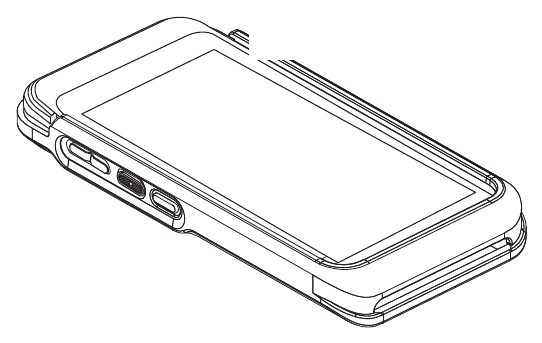

Confirm the terminal is fully seated in the case.

<figure><img src="/files/085ff45ca4fc65070ea0fce0fe2d64ec708dde77" alt="" width="375"><figcaption><p>Figure 9: Terminal fully seated in the case</p></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Attach the Connector Cap

{% stepper %}
{% step %}

#### Insert the connector cap

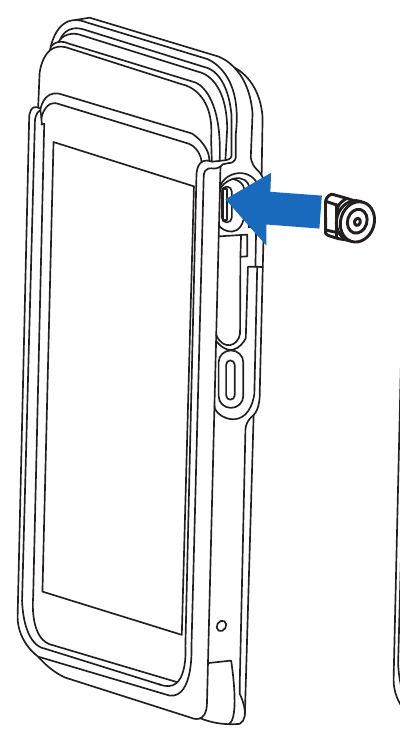

Insert the connector cap into the port on the side of the terminal.

<figure><img src="/files/318f40615d86b1fd9bfe2f91b58eb246fa07fe59" alt="" width="188"><figcaption><p>Figure 10: Insert the connector cap into the port</p></figcaption></figure>
{% endstep %}

{% step %}

#### Confirm the cap is seated

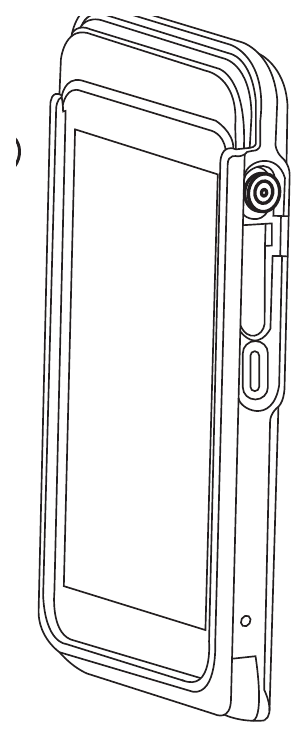

Confirm the connector cap is fully seated in the port.

<figure><img src="/files/f594e23dc5f3d4f6390f238fd9cbd369540444bc" alt="" width="188"><figcaption><p>Figure 11: Connector cap fully seated</p></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Dock a Terminal

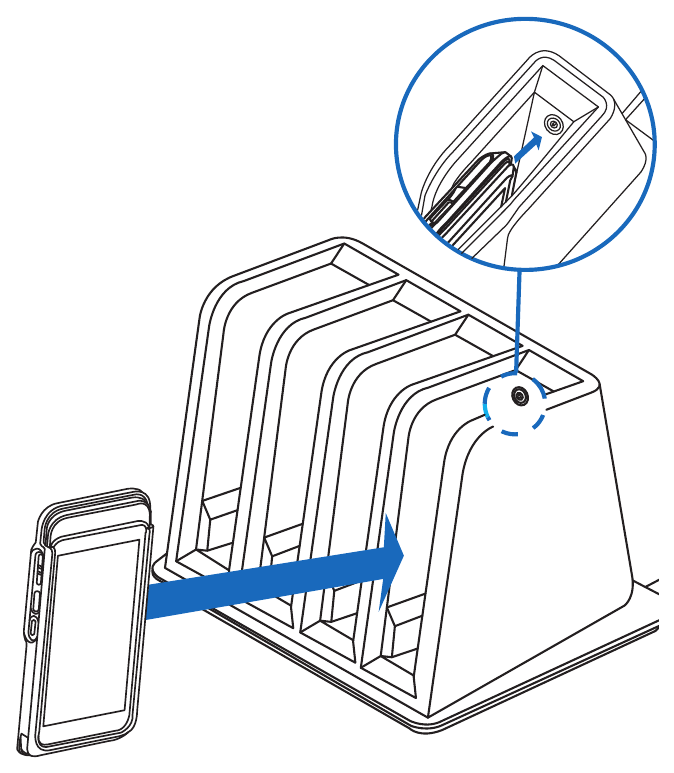

Slide the terminal into an open slot in the charger. Align the connector cap with the pin inside the slot, shown in the zoomed detail.

<figure><img src="/files/ffa0af1fb88dee112bc95ebcd2b6633b8bc5eef4" alt="" width="375"><figcaption><p>Figure 12: Slide the terminal into an open slot in the charger</p></figcaption></figure>
{% endstep %}

{% step %}

### Confirm All Terminals Are Docked

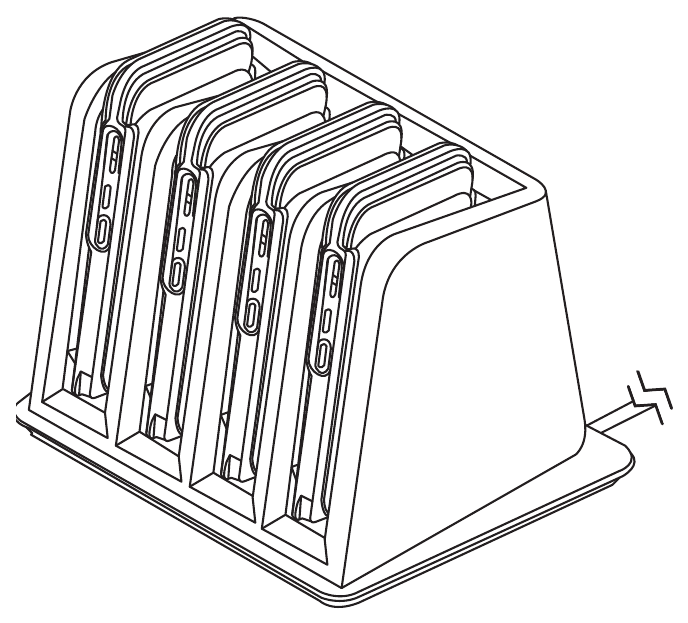

Repeat the previous step for each additional terminal. Confirm all four terminals are fully docked and charging in the multi bookshelf charger.

<figure><img src="/files/652d259590efc6c2d449508cdb893a1f77106e98" alt="" width="375"><figcaption><p>Figure 13: All four terminals fully docked in the charger</p></figcaption></figure>
{% endstep %}
{% endstepper %}

## Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the [T650m Installation Guide](/hardware-products/hardware/android-devices/t650-series/t650m/t650m-installation-guide.md).


---
