T650m Protective Case Quick Installation Guide

This guide walks you through fitting the T650m Protective Case onto your T650m terminal.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Protective Case

Protective Case

T650m Protective Case

Quick Setup Guide

1

Insert the Terminal into the Case

Slide the terminal into the case, screen first, until it is fully seated.

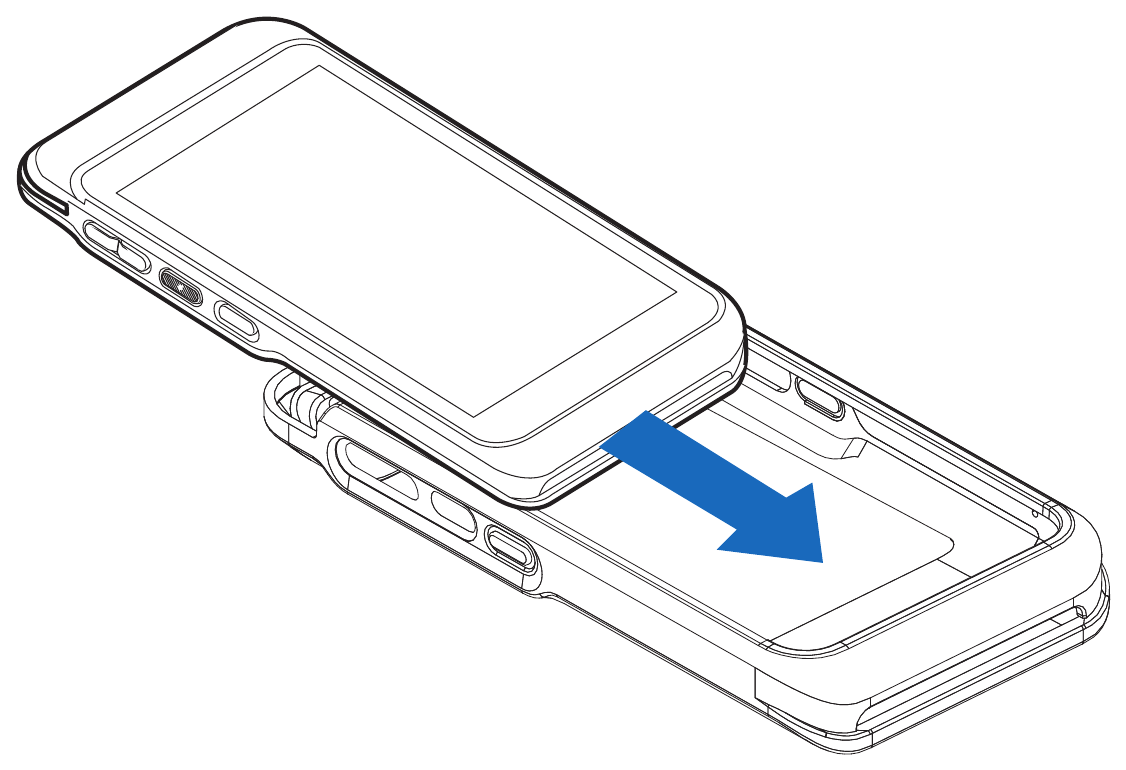

Figure 1: Slide the terminal into the case

2

Confirm the Fit

Confirm the terminal is fully seated in the case, with all ports and buttons accessible.

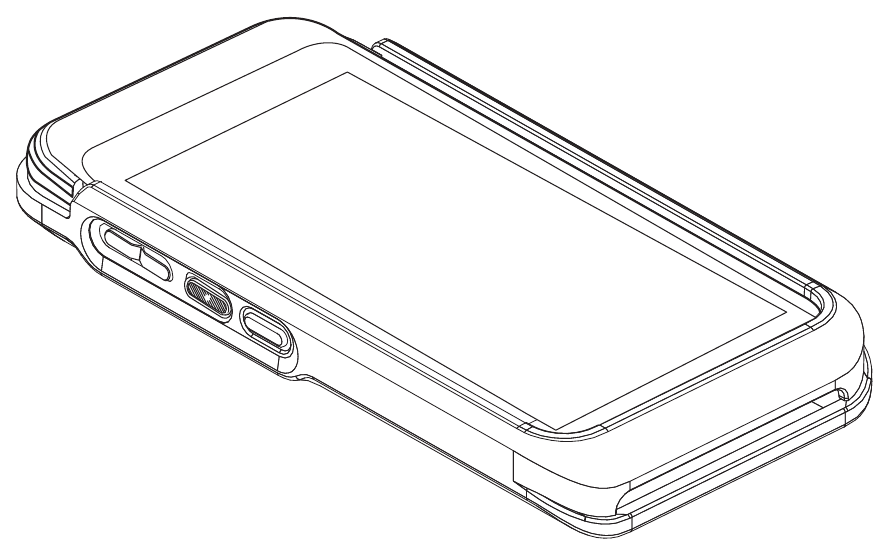

Figure 2: Terminal fully seated in the case

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the T650m Installation Guide, available on the Verifone product documentation portal.
