T650m Quick Installation Guide

This guide walks you through unboxing, inserting cards, charging, and powering on your T650m mobile computer.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Item

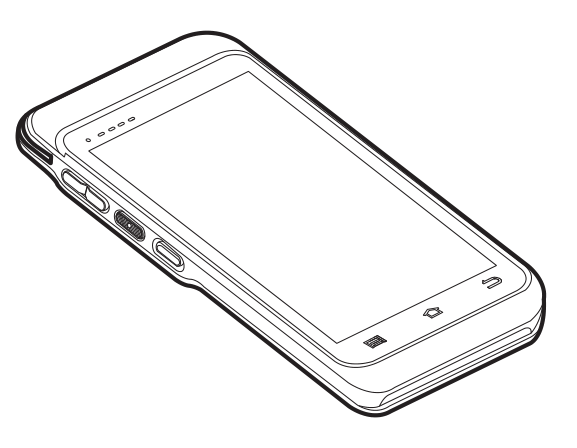

T650m Terminal

Cover image

.gitbook/assets/box-terminal.png

Item

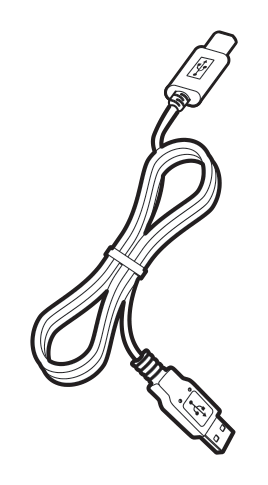

USB Cable

Cover image

.gitbook/assets/box-cable.png

Item

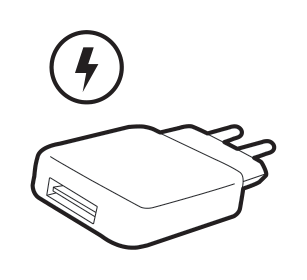

Power Adapter

Cover image

.gitbook/assets/box-adapter.png

Quick Setup Guide

1

Insert the SIM, SAM, and SD Cards

1

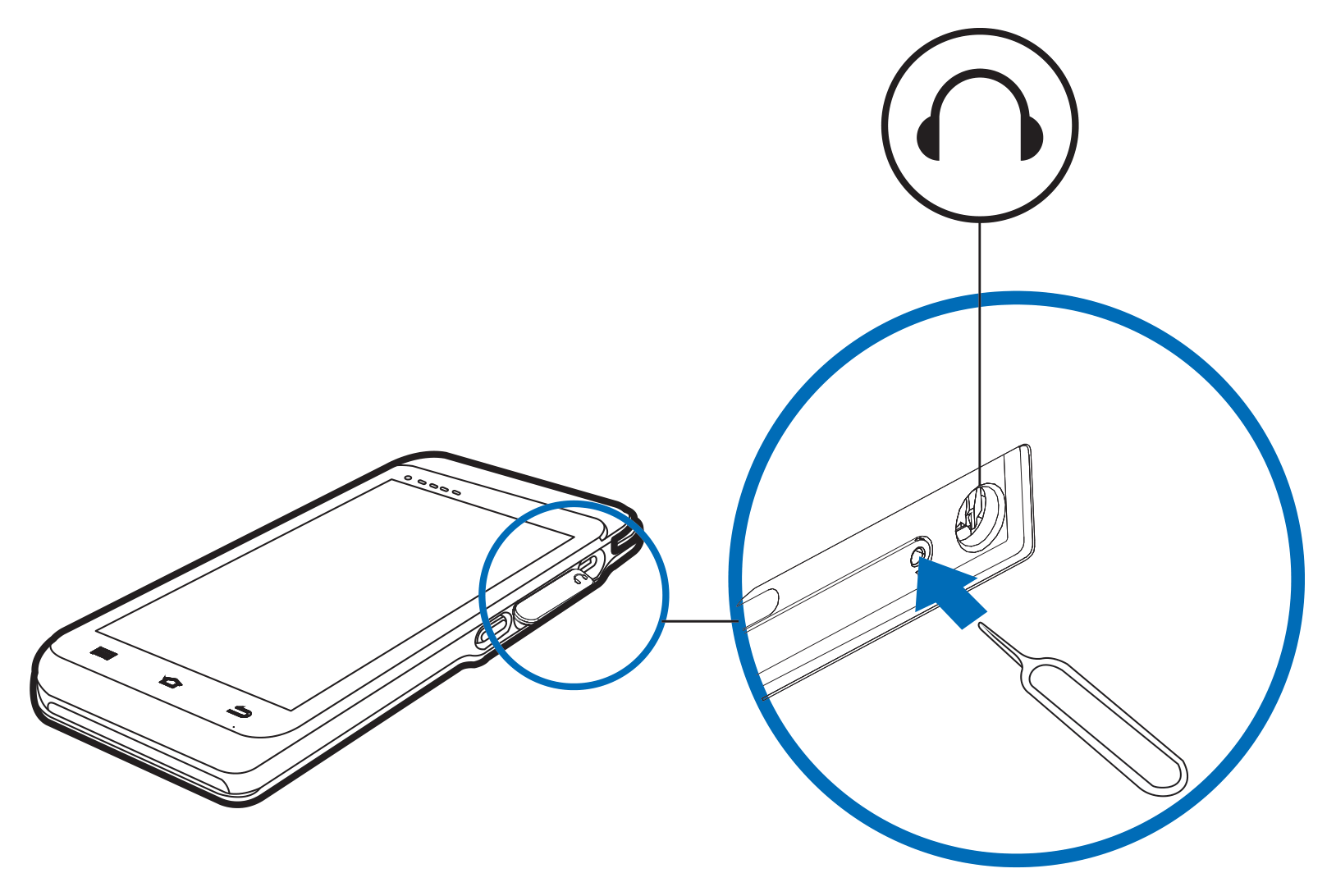

Insert the eject pin

Insert the eject pin into the hole next to the headphone jack and press to release the card tray.

Figure 1: Insert the eject pin

2

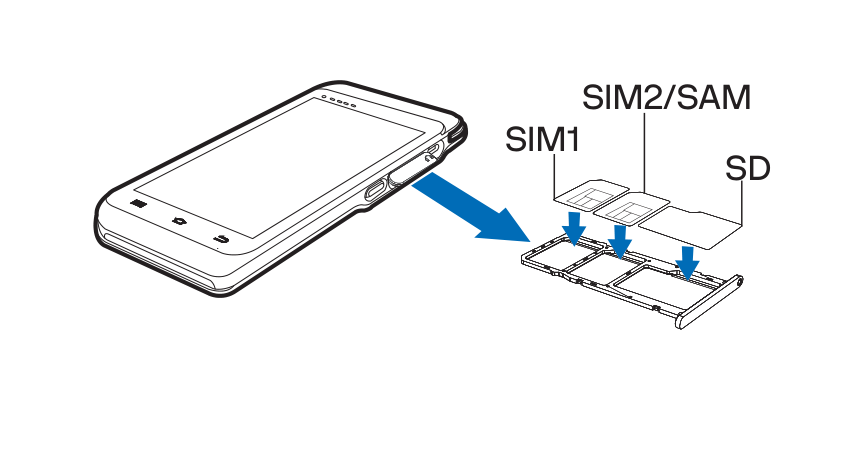

Insert the cards

Pull out the card tray and insert the SIM1, SIM2/SAM, and SD cards into their labeled slots.

Figure 2: Insert the cards

3

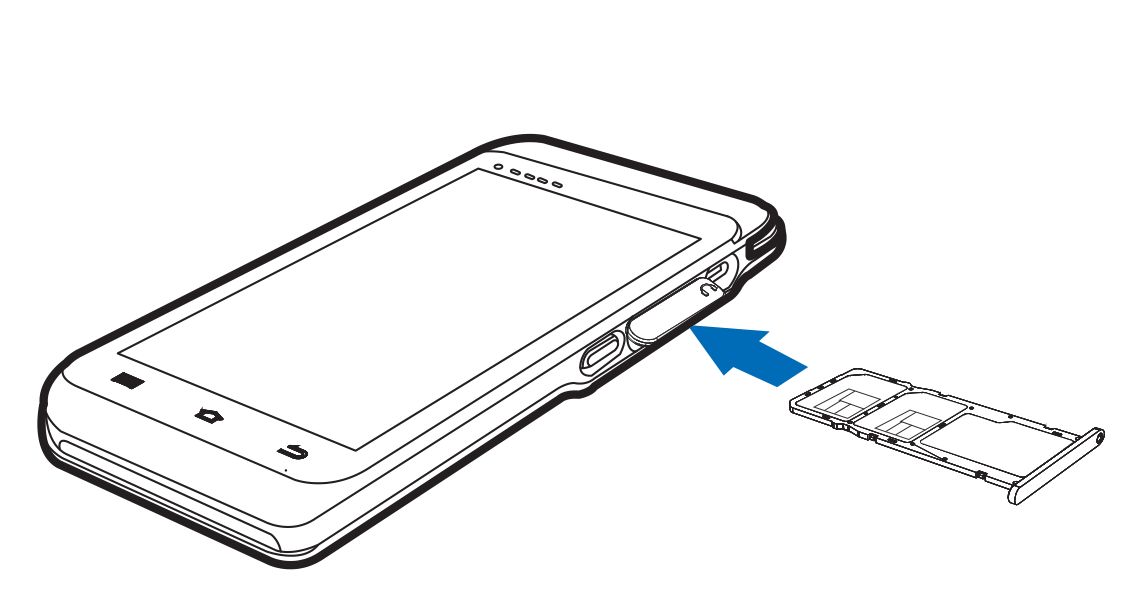

Close the card tray

Slide the card tray back into the terminal.

Figure 3: Close the card tray

2

Attach the Protective Boot

1

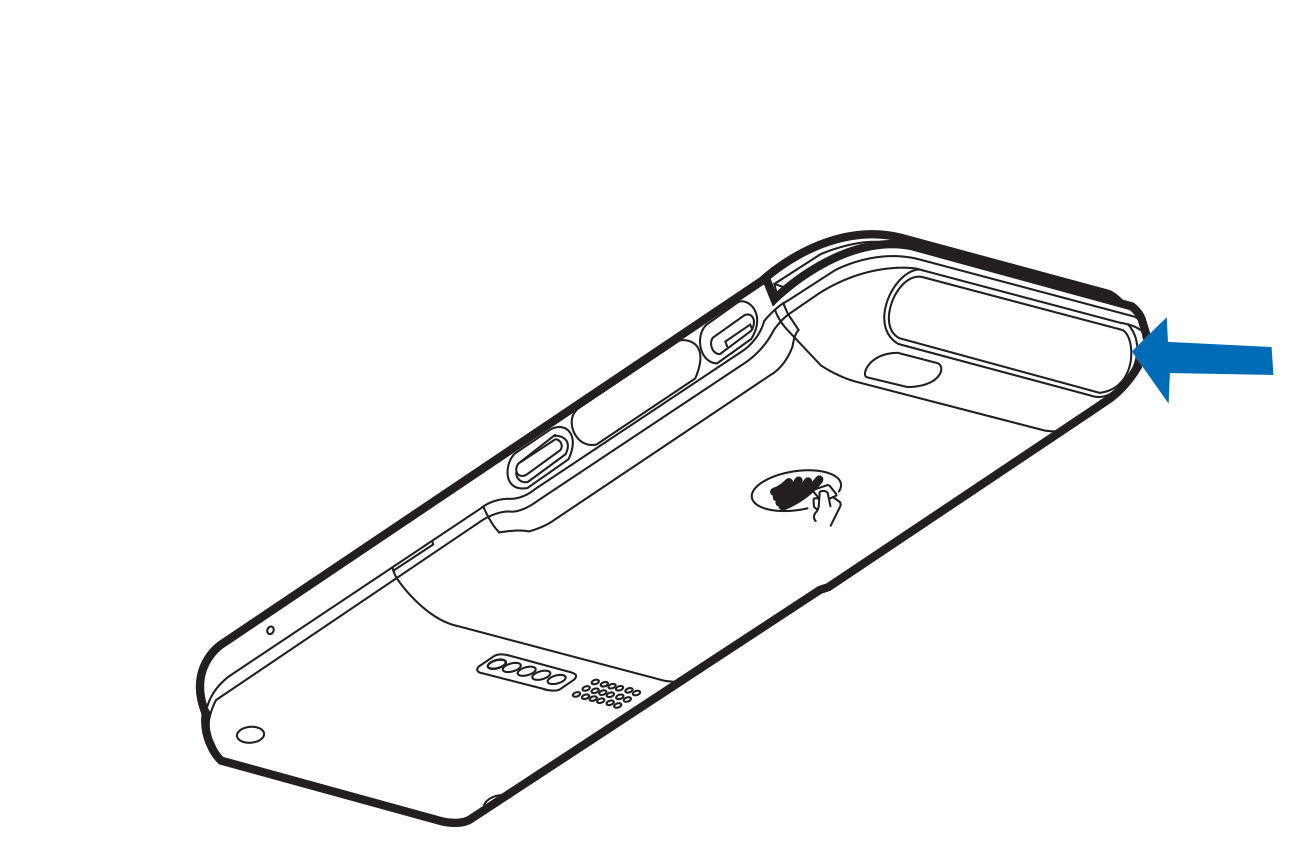

Snap in the boot

Press the corner of the protective boot into place.

Figure 4: Snap in the boot

2

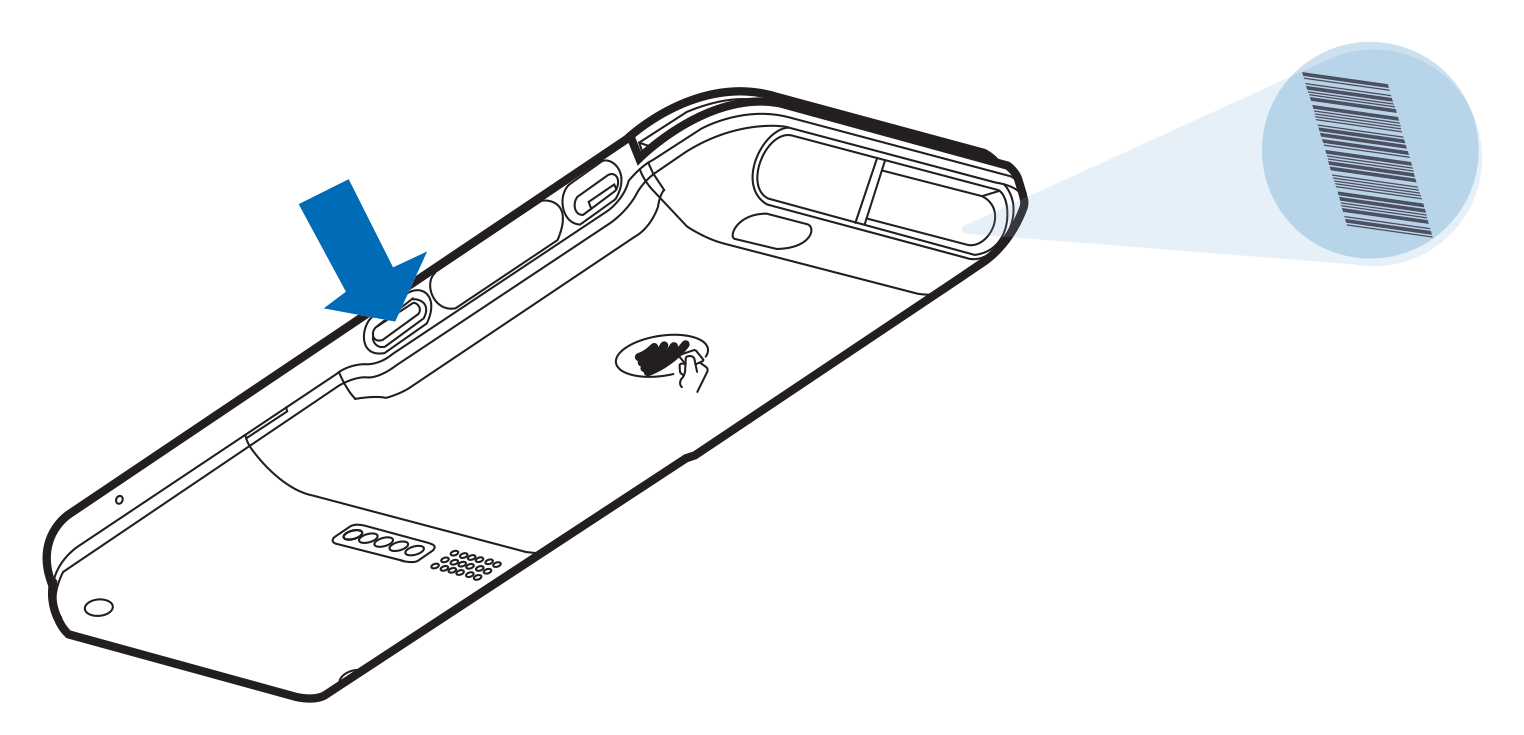

Verify the barcode label

Press in the opposite corner and confirm the barcode label is visible through the boot.

Figure 5: Verify the barcode label

3

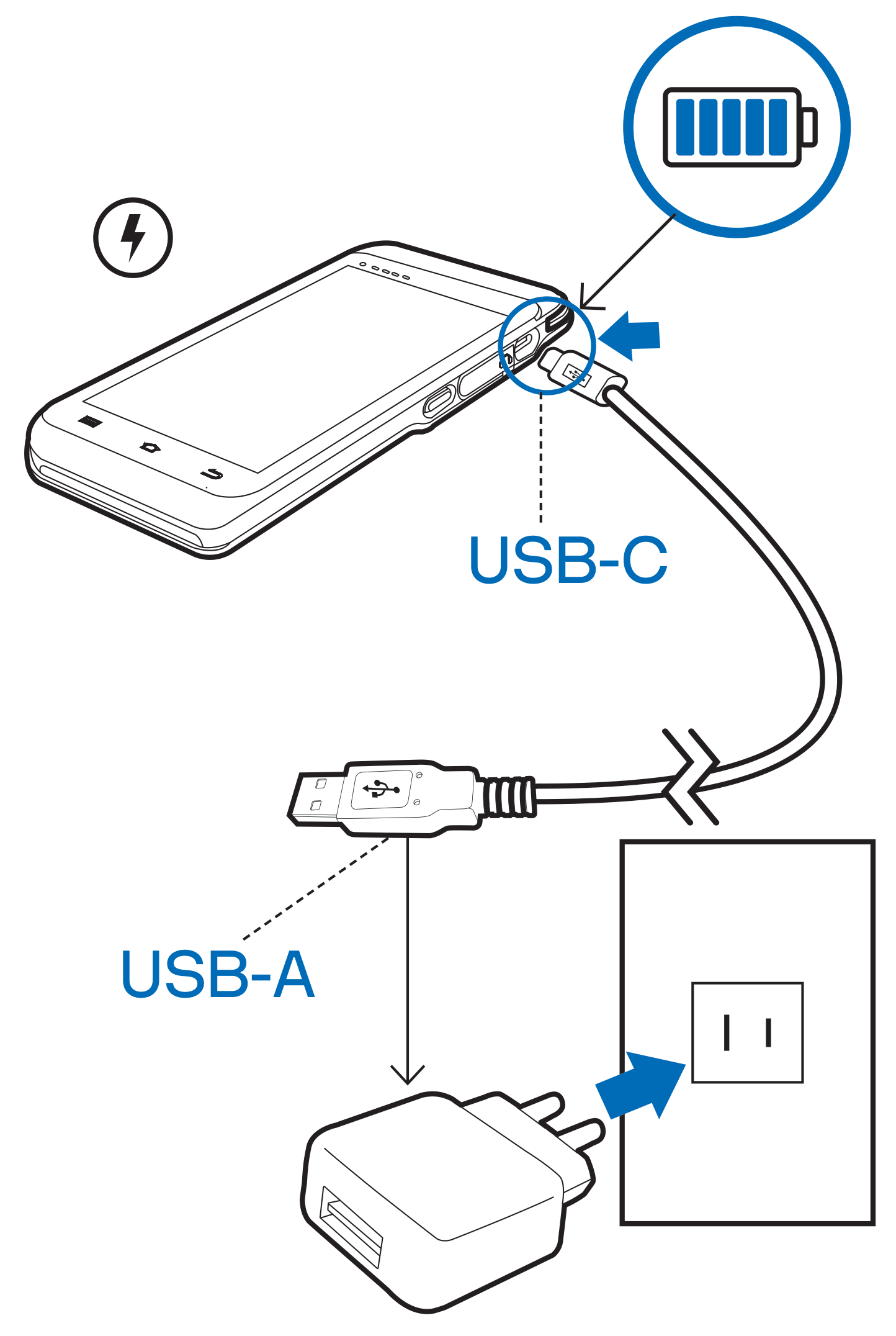

Charge the Terminal

Connect the USB-C end of the cable to the terminal and the USB-A end to the power adapter, then plug the adapter into a wall outlet.

Figure 6: Charge the terminal

4

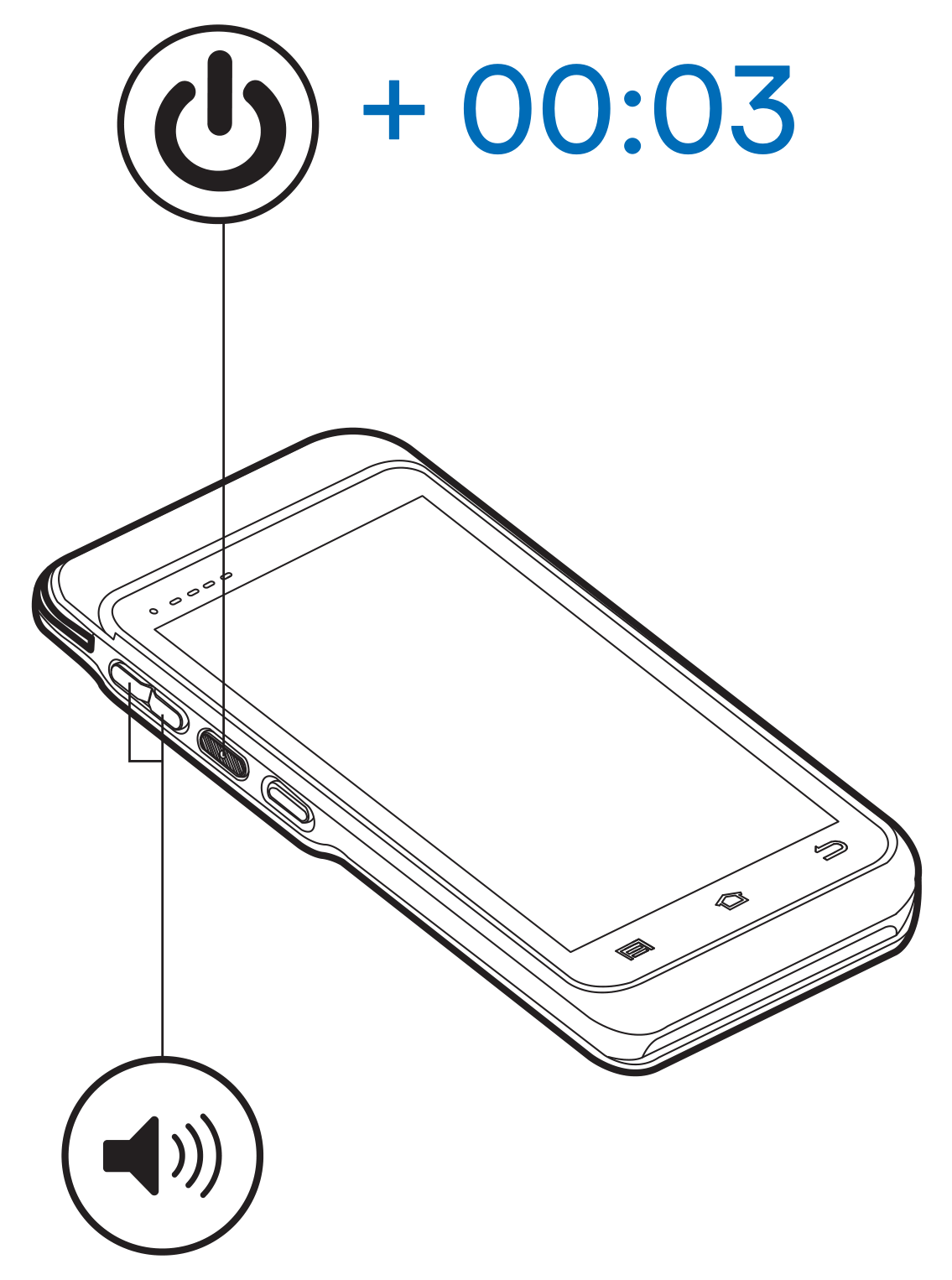

Power On the Terminal

Press and hold the power button for 3 seconds.

Figure 7: Power on the terminal

5

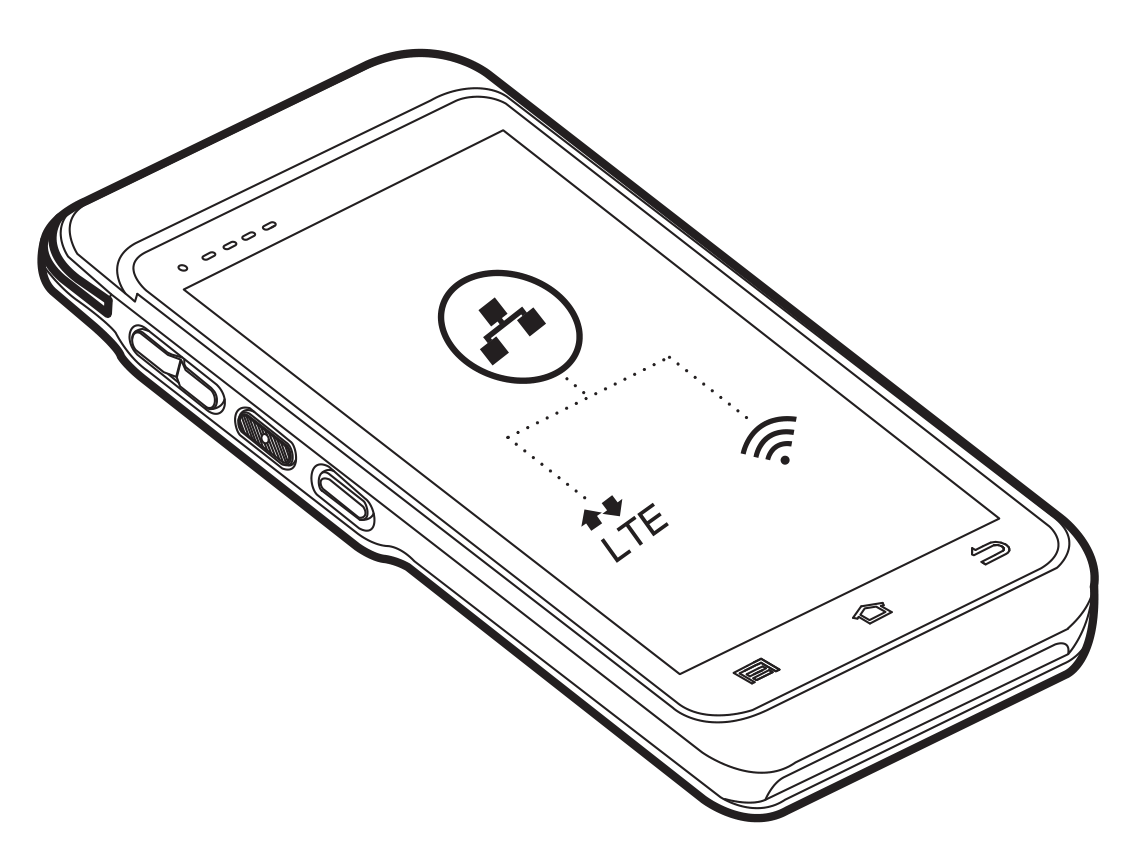

Connect to a Network

Connect the terminal to a Wi-Fi or LTE network.

Figure 8: Connect to a network

6

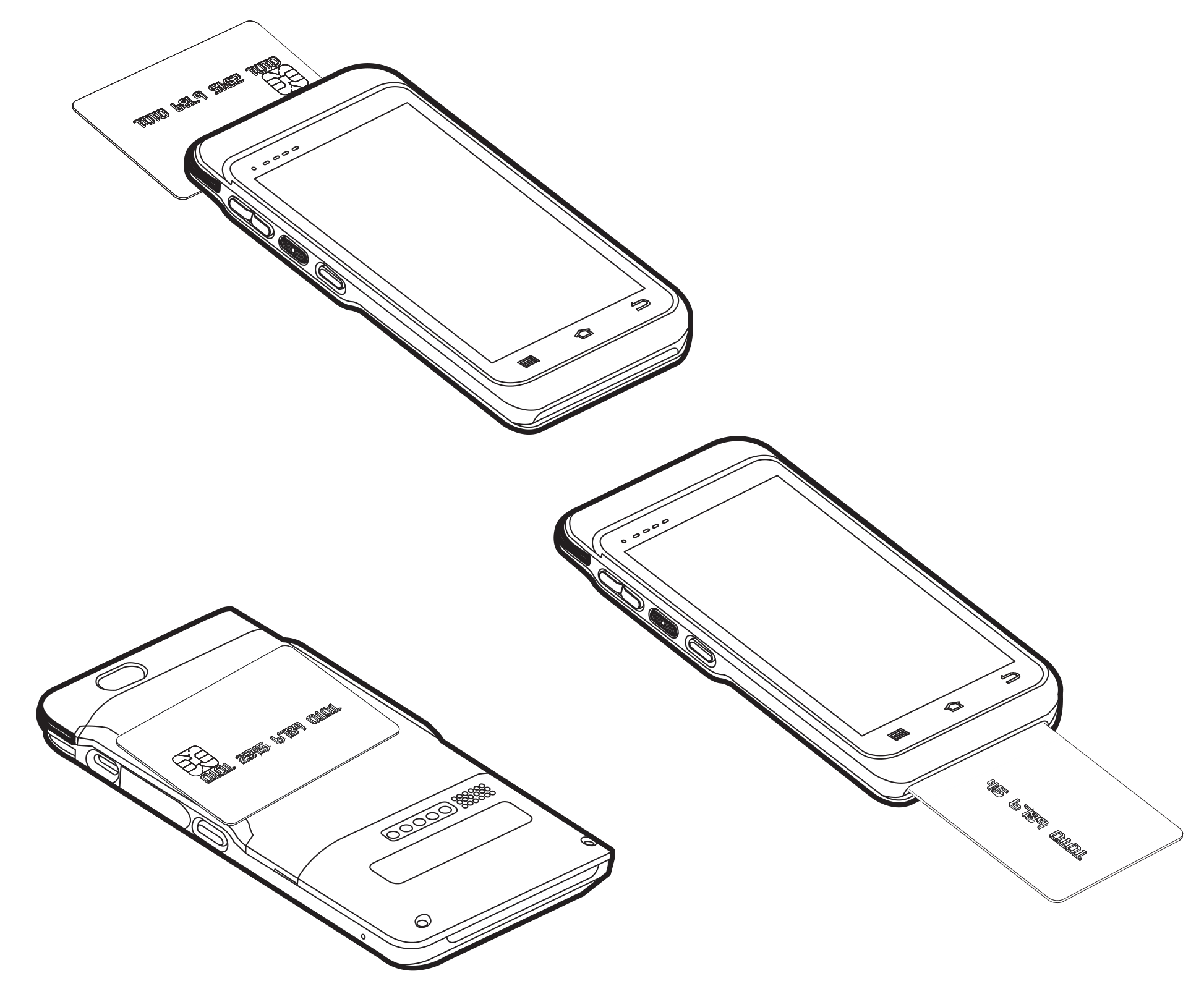

Test the Terminal

Swipe or insert a card to confirm the terminal reads it correctly.

Figure 9: Test the terminal

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the Installation Guide.
