# T650m Single Bookshelf Charger Quick Installation Guide

This guide walks you through mounting and setting up the T650m Single Bookshelf Charger so it is ready to charge your T650m terminal.

Before you begin, confirm you have all devices, cables, and accessories listed below.

## What's in the Box

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="image">Cover image</th></tr></thead><tbody><tr><td><h3>Bookshelf Charger</h3></td><td>T650m Single Bookshelf Charger</td><td data-object-fit="contain"><a href="/files/zwQx9n2umE9UZgqiNHyP">/files/zwQx9n2umE9UZgqiNHyP</a></td></tr></tbody></table>

## Quick Setup Guide

{% stepper %}
{% step %}

### Mount the Charger

{% stepper %}
{% step %}

#### Mark the mounting holes

Hold the mounting plate against the mounting surface and mark the screw positions shown by the arrows.

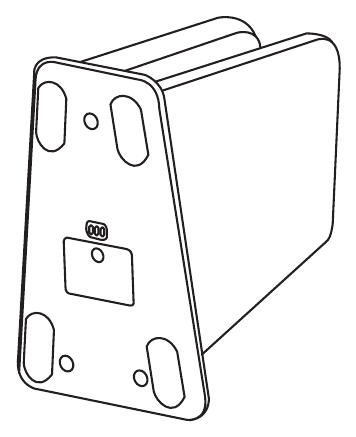

<figure><img src="/files/533AOdjj6ShfADgEavja" alt="" width="265"><figcaption><p>Figure 1: Mark the screw positions on the mounting plate</p></figcaption></figure>
{% endstep %}

{% step %}

#### Attach the mounting plate

Secure the mounting plate to the surface with screws.

<figure><img src="/files/7fe12bf794779e456a1355fe011323d5f5fc4e59" alt="" width="375"><figcaption><p>Figure 2: Secure the mounting plate to the surface</p></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Connect the Power Supply

Connect the power cable to the charger and plug the other end into a USB power source.

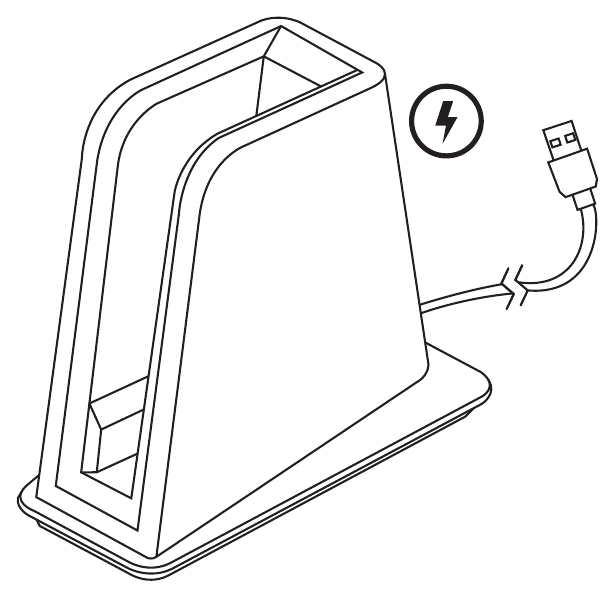

<figure><img src="/files/f432c82a6c1ba7eba92f57d71314faf4382c2942" alt="" width="375"><figcaption><p>Figure 3: Connect the power cable to the charger</p></figcaption></figure>
{% endstep %}

{% step %}

### Fit the Terminal into the Case

{% stepper %}
{% step %}

#### Position the case

Position the open protective case ready to receive the terminal.

<figure><img src="/files/1GcMtfGGbmJEvjyVVU9q" alt="" width="406"><figcaption><p>Figure 4: Position the open protective case</p></figcaption></figure>
{% endstep %}

{% step %}

#### Slide the terminal into the case

Slide the terminal into the case until it is fully seated.

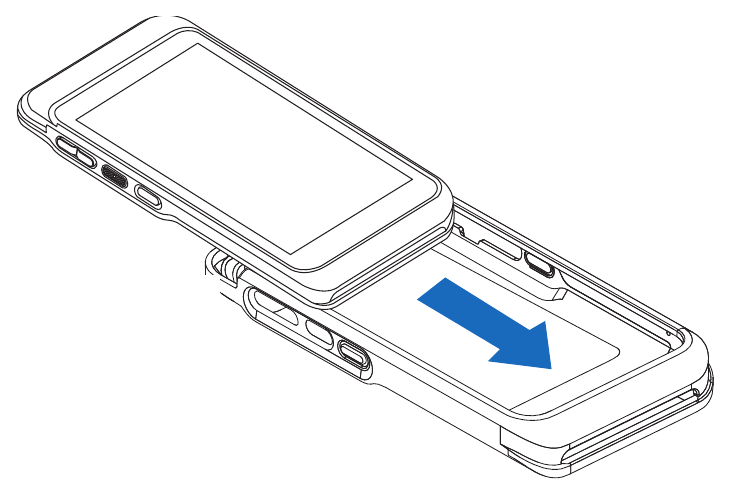

<figure><img src="/files/2968b7be2fc5ded827234df2ce8d99557dc35eba" alt="" width="375"><figcaption><p>Figure 5: Slide the terminal into the case</p></figcaption></figure>
{% endstep %}

{% step %}

#### Confirm the fit

Confirm the terminal is fully seated in the case.

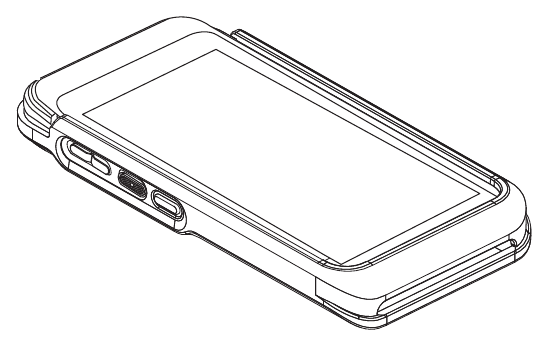

<figure><img src="/files/021dde75e68f562a41bc6ab5a996404c02c34a34" alt="" width="375"><figcaption><p>Figure 6: Terminal fully seated in the case</p></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Attach the Connector Cap

{% stepper %}
{% step %}

#### Insert the connector cap

Insert the connector cap into the port on the side of the terminal.

<figure><img src="/files/LoZqluteolmRp8mstgGv" alt="" width="219"><figcaption><p>Figure 7: Insert the connector cap into the port</p></figcaption></figure>
{% endstep %}

{% step %}

#### Confirm the cap is seated

Confirm the connector cap is fully seated in the port.

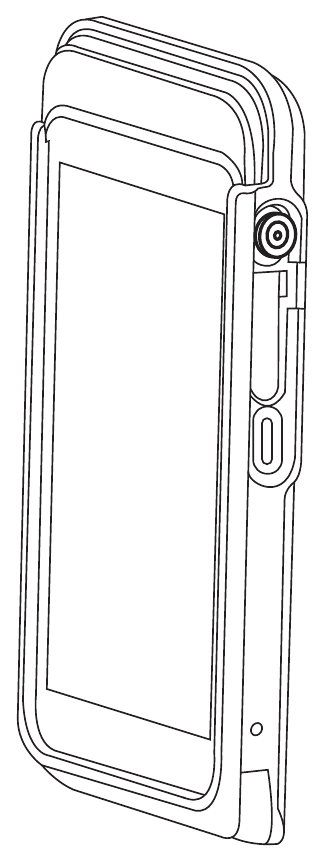

<figure><img src="/files/5a8c2cc762a0f63bcaf21a9707590c0f3f81478b" alt="" width="188"><figcaption><p>Figure 8: Connector cap fully seated</p></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Dock the Terminal

Align the connector cap with the pin inside the charger, then slide the terminal down into the charger until it is fully docked.

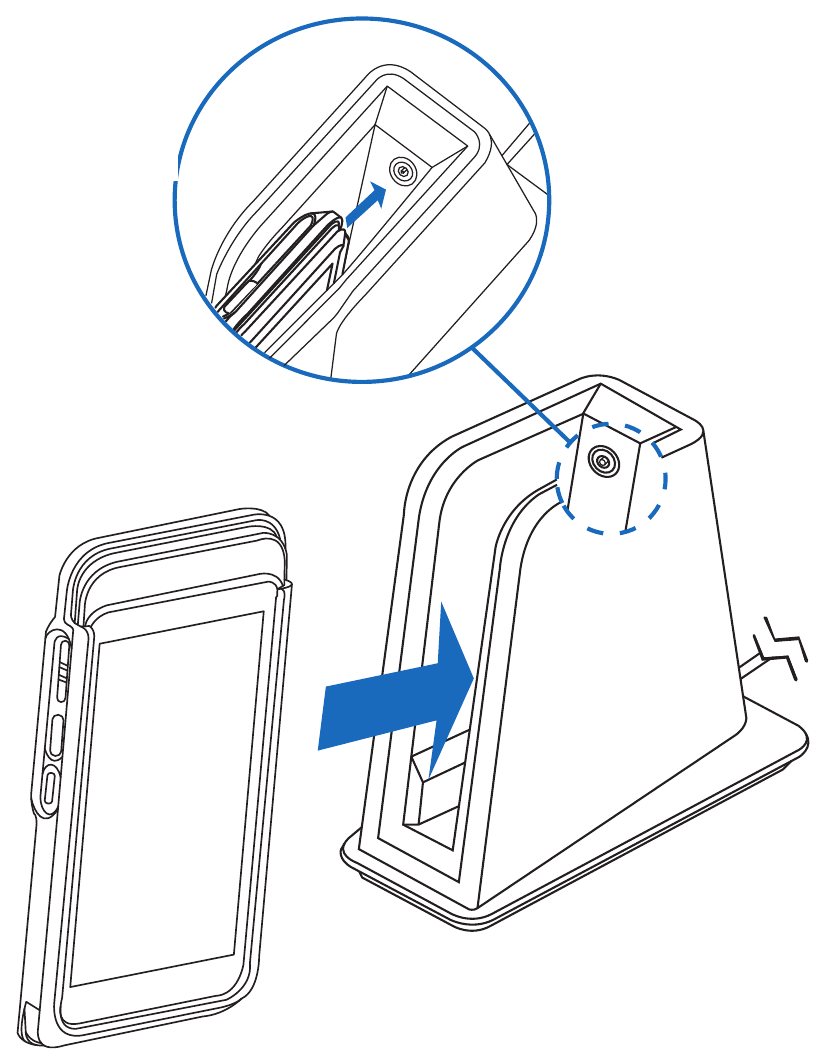

<figure><img src="/files/2cece4db682e4f26ccaa4198f5ea04ae2b7ef683" alt="" width="375"><figcaption><p>Figure 9: Align and slide the terminal into the charger</p></figcaption></figure>
{% endstep %}

{% step %}

### Confirm the Terminal Is Docked

Confirm the terminal is fully docked and charging in the bookshelf charger.

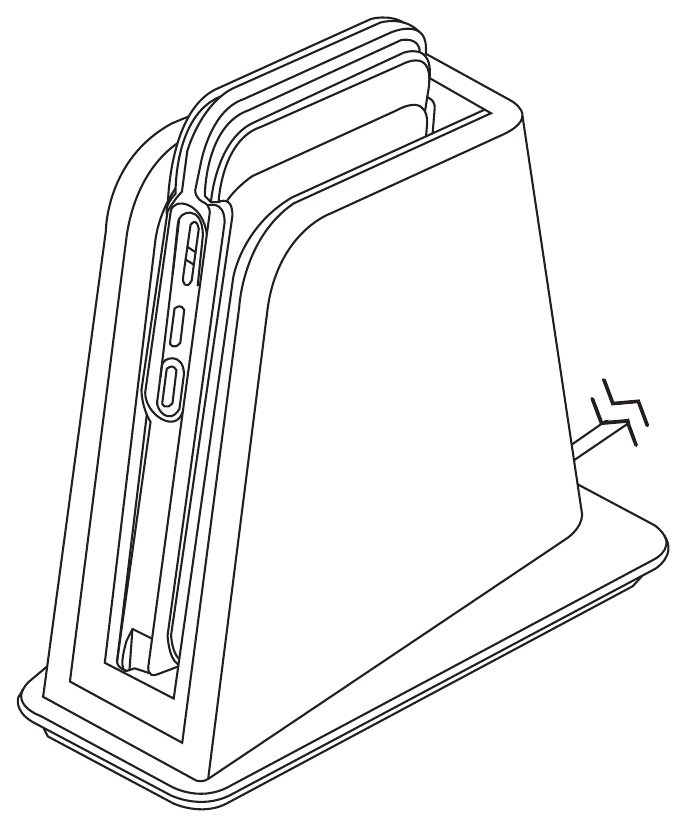

<figure><img src="/files/03050d977cc94fe7cc554ca7195646b565378240" alt="" width="188"><figcaption><p>Figure 10: Terminal fully docked in the charger</p></figcaption></figure>
{% endstep %}
{% endstepper %}

## Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the [T650m Installation Guide](/hardware-products/hardware/android-devices/t650-series/t650m/t650m-installation-guide.md), available on the Verifone product documentation portal.


---
