T650p Charging Base Quick Installation Guide

This guide walks you through setting up the T650p Charging Base so it is ready to charge your T650p terminal.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

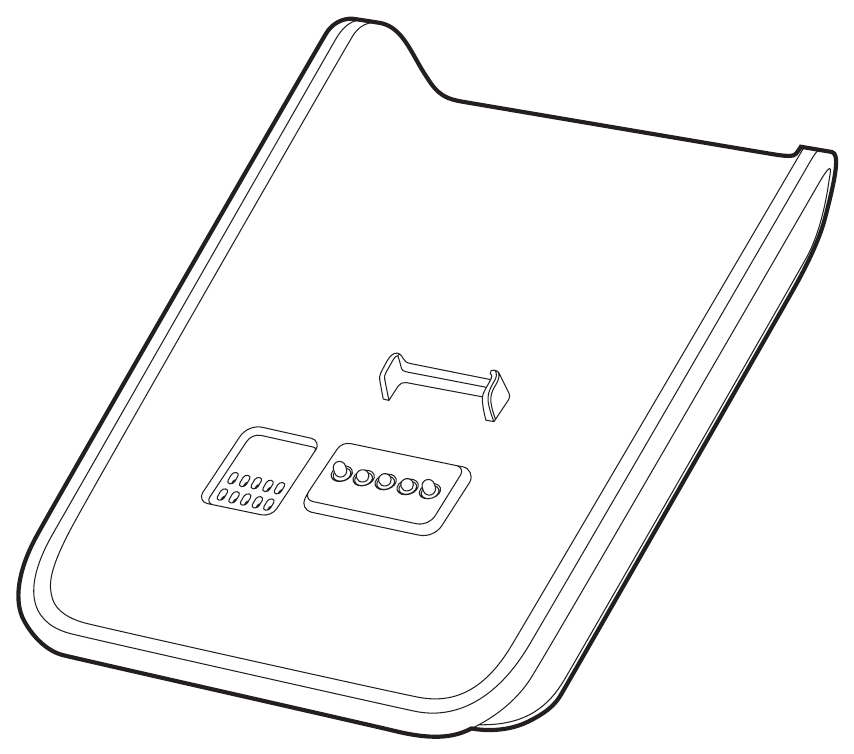

Charging Base

Charging Base

Quick Setup Guide

1

Connect the Power Supply

Turn the base over and connect the USB-C cable to the connector on the underside. Route the cable out through channel A or channel B, then plug the power adapter into a wall outlet.

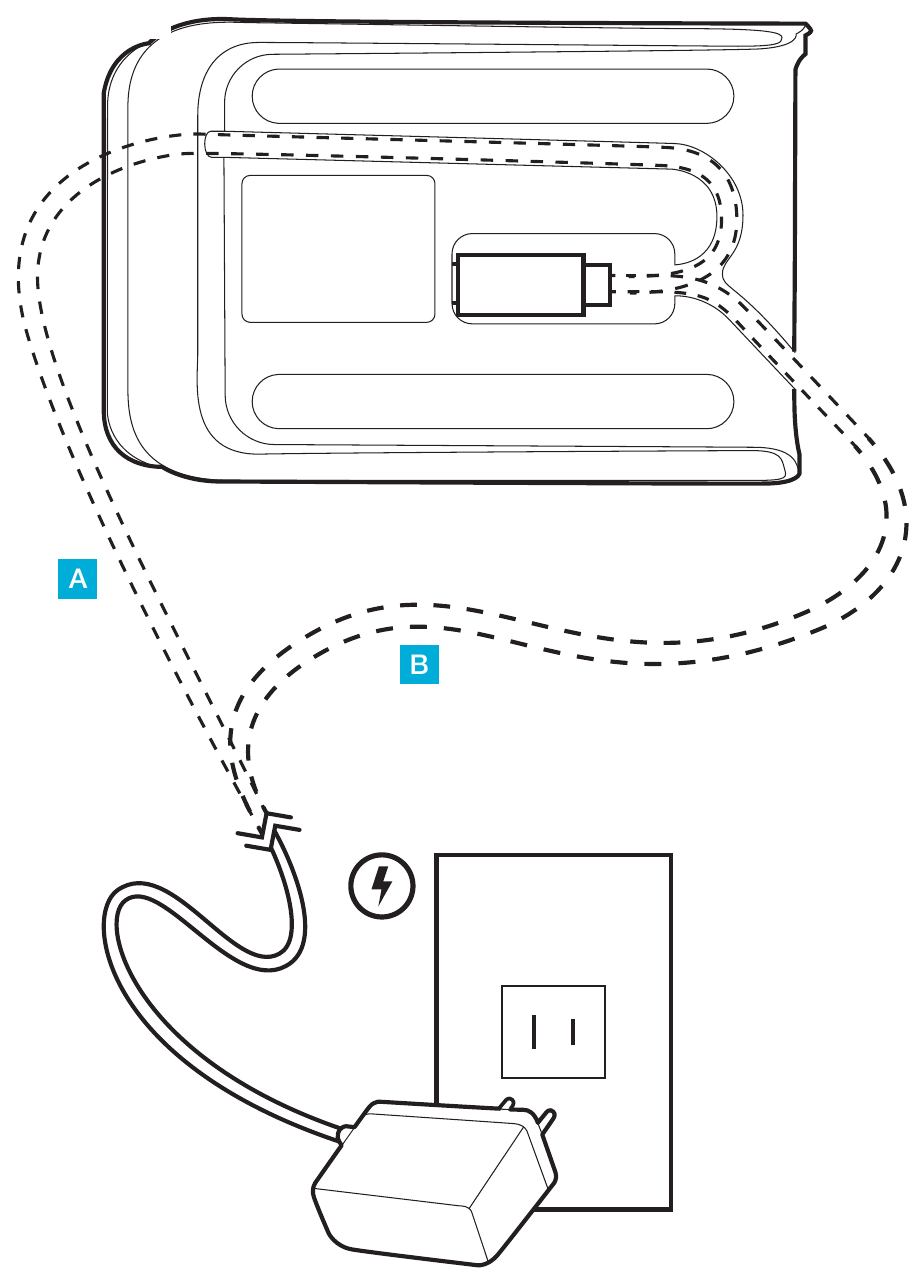

Figure 1: Connect the USB-C cable, route it through channel A or B, and plug the adapter into a wall outlet

2

Dock the Terminal

Place the terminal onto the base to dock and charge it.

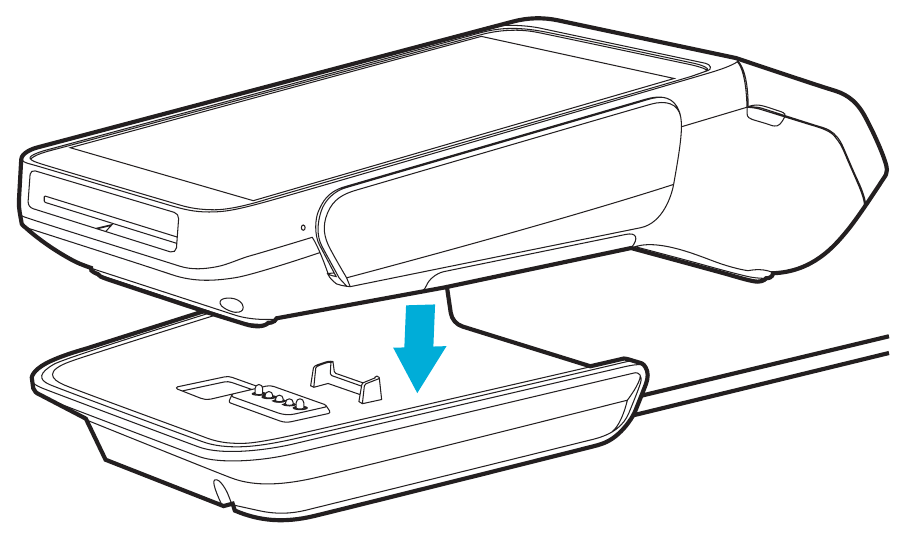

Figure 2: Place the terminal onto the charging base

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the T650p Installation Guide, available on the Verifone product documentation portal.
