T650p Quick Installation Guide

This guide walks you through unboxing and setting up your T650p terminal so it is ready to take payments.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Terminal

T650p payment terminal

USB Cable

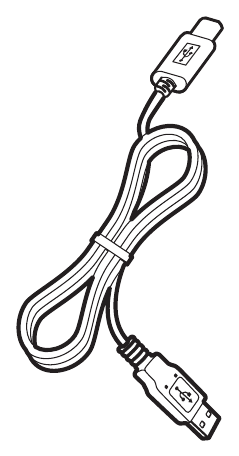

USB-C to USB-A cable

Power Adapter

USB power adapter

Paper Roll

Thermal printer paper roll

Quick Setup Guide

1

Insert the SIM and SAM Cards

1

Remove the battery cover

Release the latch at the bottom of the battery cover and lift the cover away from the terminal.

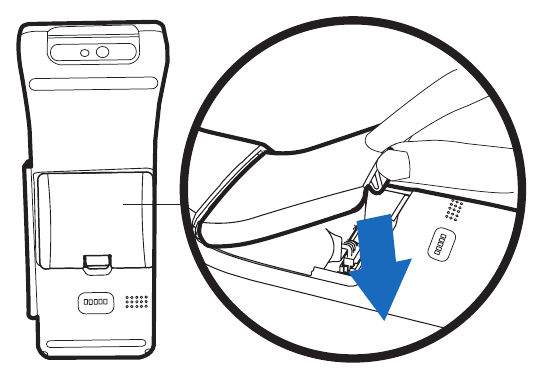

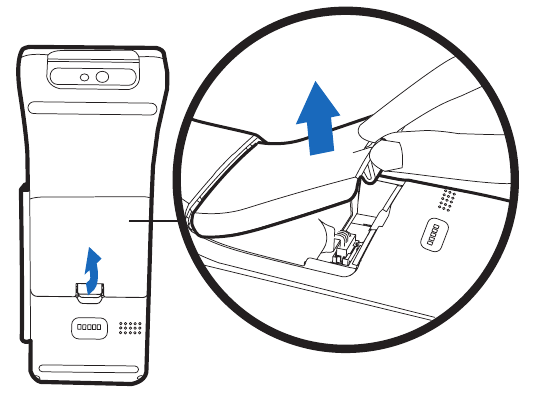

Figure 1: Release the latch and lift the battery cover off

2

Remove the battery

Lift the battery out of its compartment.

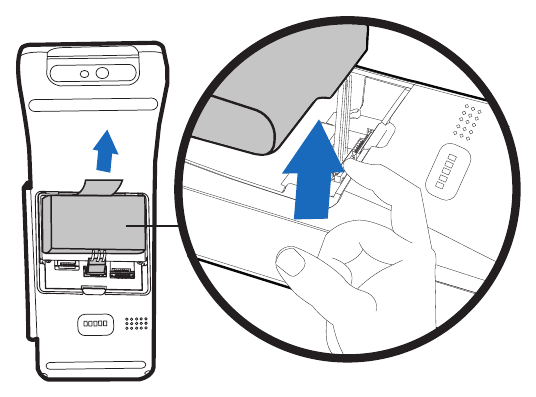

Figure 2: Lift the battery out of the compartment

3

Insert the cards

Insert the cards into the slots shown — PSAM1, PSAM2/SIM2, SIM1, and TF/uSD for a microSD card — in the direction of the arrows.

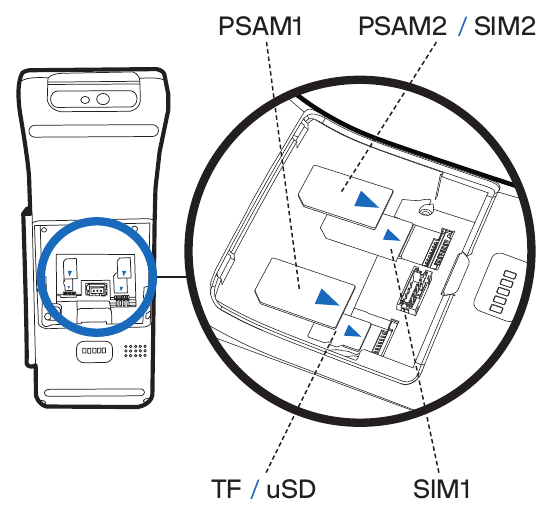

Figure 3: Insert the cards into the PSAM1, PSAM2/SIM2, SIM1, and TF/uSD slots

4

Replace the battery and cover

Replace the battery, then press the battery cover into place until it is secure.

Figure 4: Replace the battery and press the cover into place

2

Load the Paper Roll

1

Open the printer cover

Pull the printer cover latch upward to open the printer compartment.

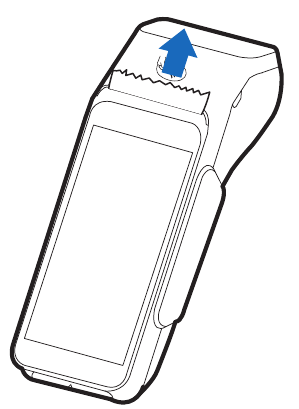

Figure 5: Pull the printer cover latch upward

2

Insert the paper roll

Insert the paper roll into the compartment with the paper feeding out toward the top.

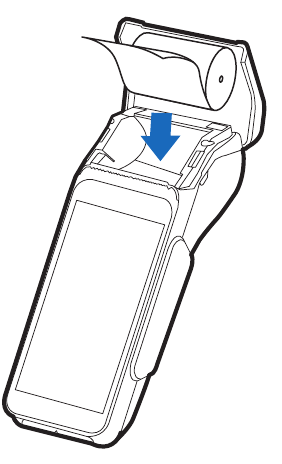

Figure 6: Insert the paper roll into the compartment

3

Close the cover and tear off the paper

Close the printer cover and tear off the excess paper by pulling it upward.

Figure 7: Close the printer cover and tear off the excess paper

3

Charge the Battery

Connect the USB-C end of the cable to the terminal and the USB-A end to the power adapter, then plug the adapter into a wall outlet. The battery indicator shows the charging status.

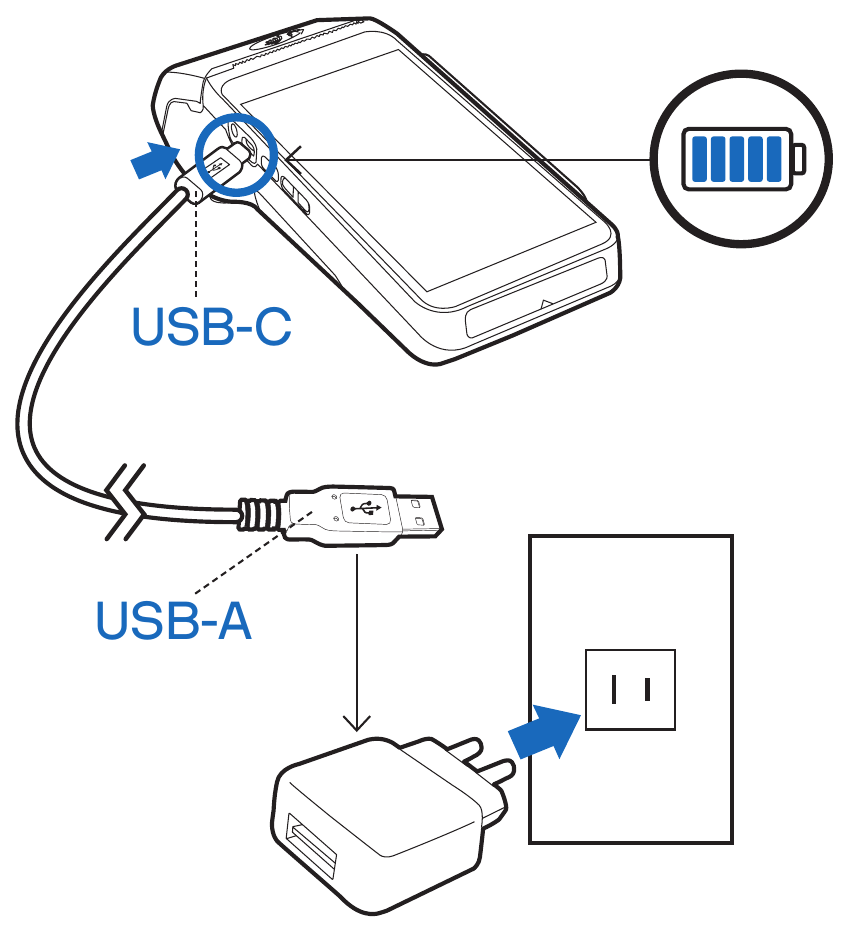

Figure 8: Connect the USB-C cable and plug the power adapter into a wall outlet

4

Power On the Terminal

Press and hold the power button on the side of the terminal for 3 seconds to switch it on.

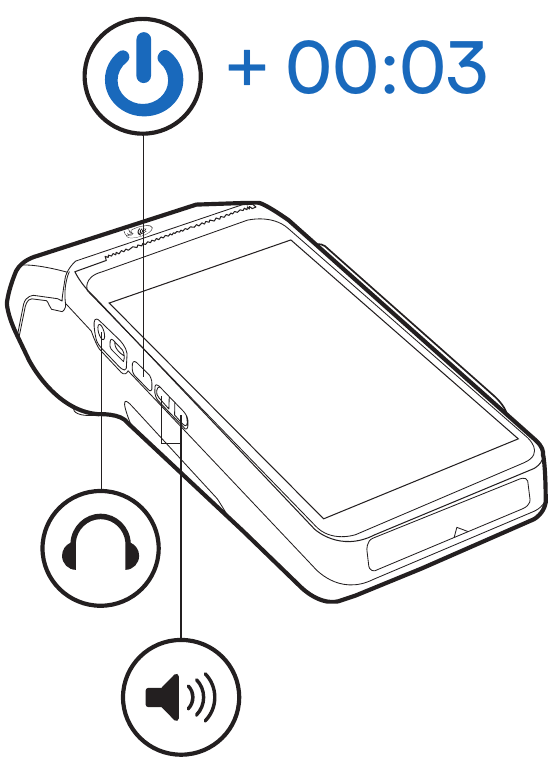

Figure 9: Press and hold the power button for 3 seconds

5

Connect to a Network

Connect the terminal to a network using LTE or Wi-Fi.

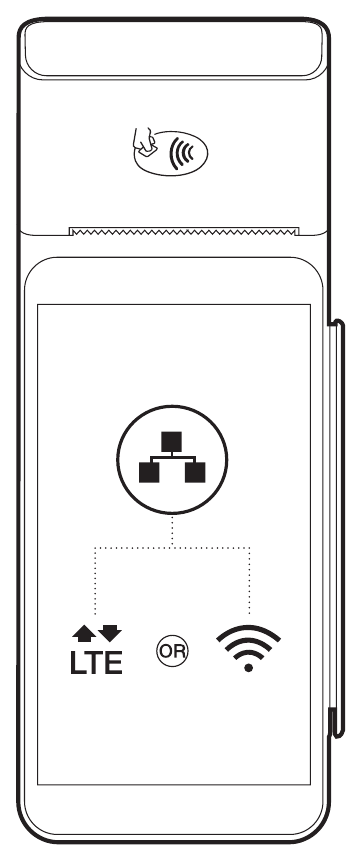

Figure 10: Connect to a network using LTE or Wi-Fi

6

Take a Payment

1

Swipe a card

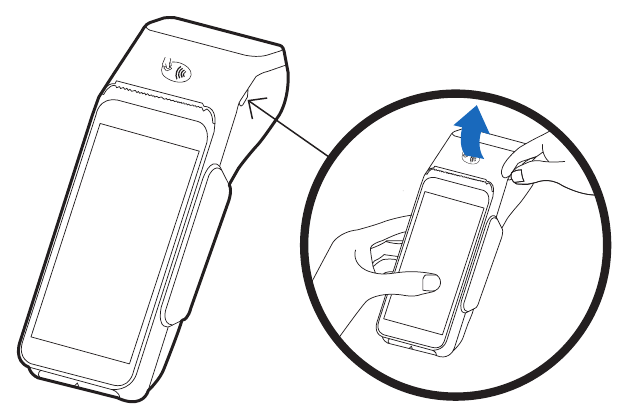

Swipe the card through the magnetic stripe reader on the side of the terminal.

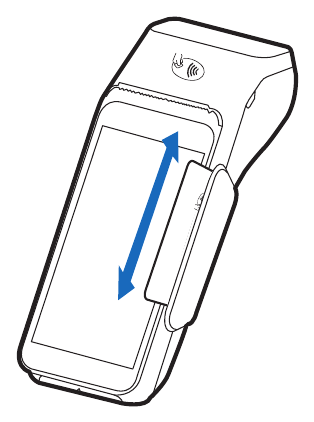

Figure 11: Swipe a card through the magnetic stripe reader

2

Tap a card

Tap the card on the contactless reader at the top of the terminal.

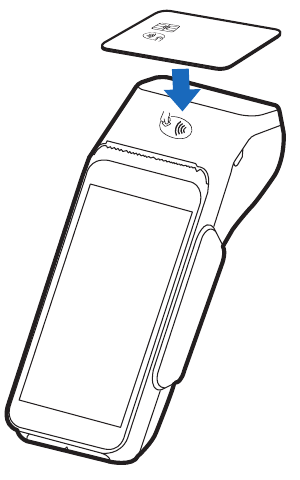

Figure 12: Tap a card on the contactless reader

3

Insert a chip card

Insert a chip card into the card slot at the bottom of the terminal, chip first and facing up.

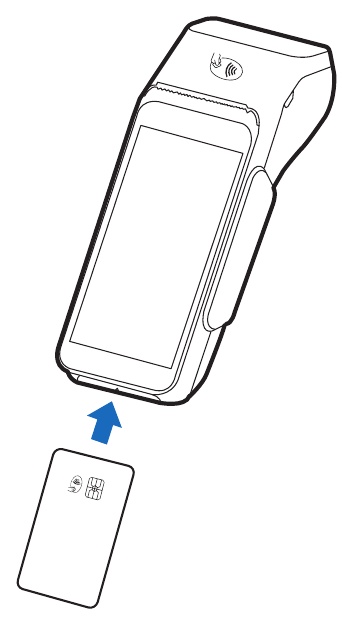

Figure 13: Insert a chip card into the card slot

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the T650p Installation Guide, available on the Verifone product documentation portal.
