T650t Quick Installation Guide

This guide walks you through unboxing, connecting, and powering on your T650T payment terminal.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Cover

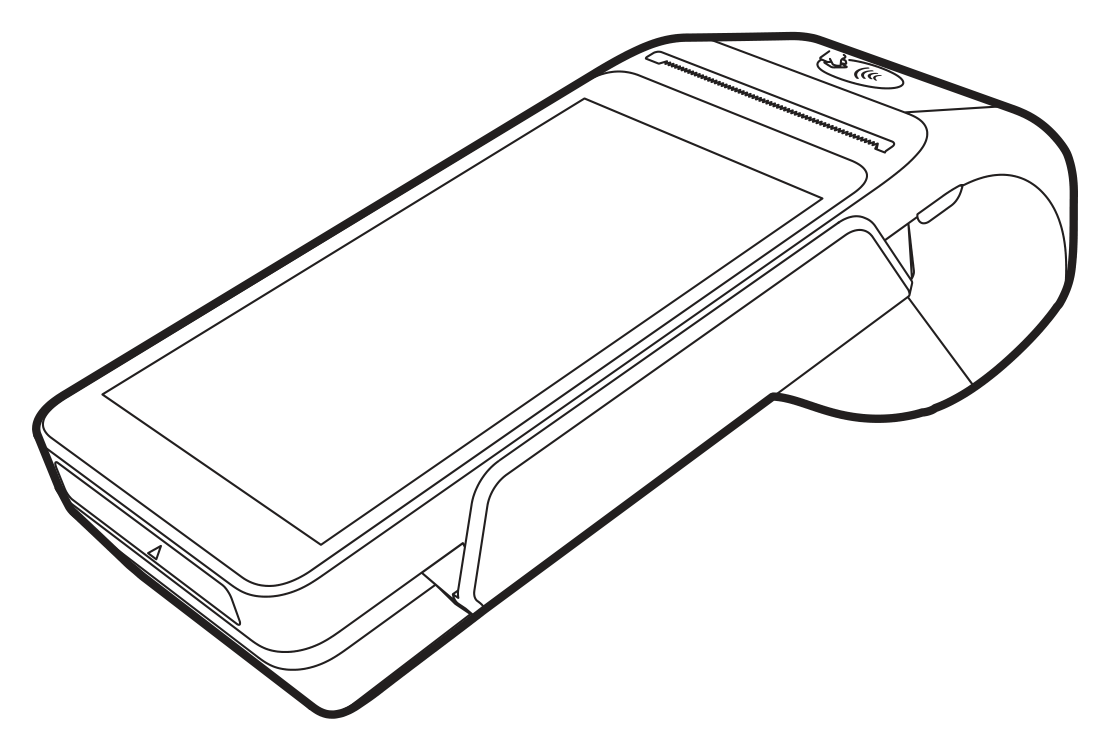

T650t Terminal

Cover

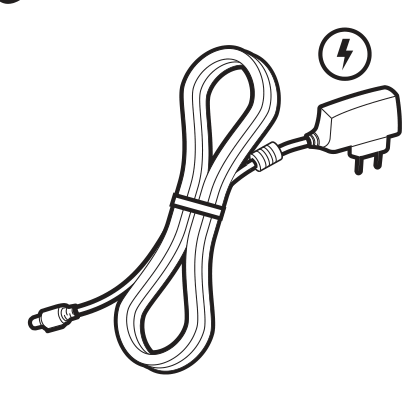

Power Adapter and Cable

Cover

Thermal Paper Roll

Quick Setup Guide

1

Insert the SIM, SAM, and Memory Cards

1

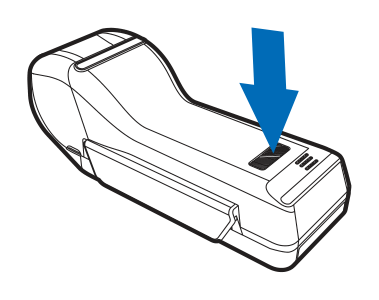

Press the release catch

Press the release catch on the back of the terminal.

2

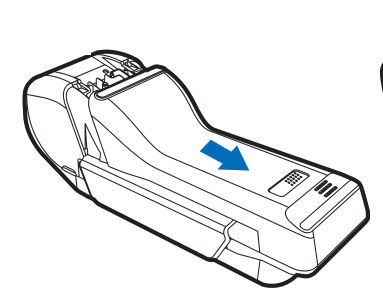

Slide off the back cover

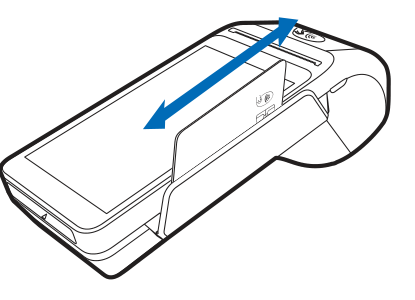

Slide the back cover off in the direction of the arrow.

3

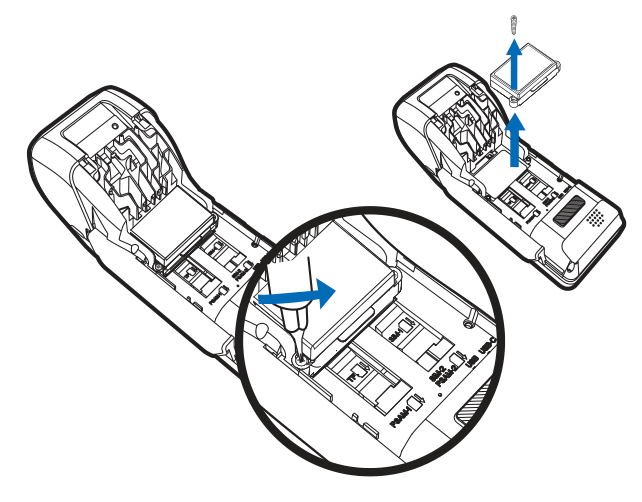

Remove the card holder bracket

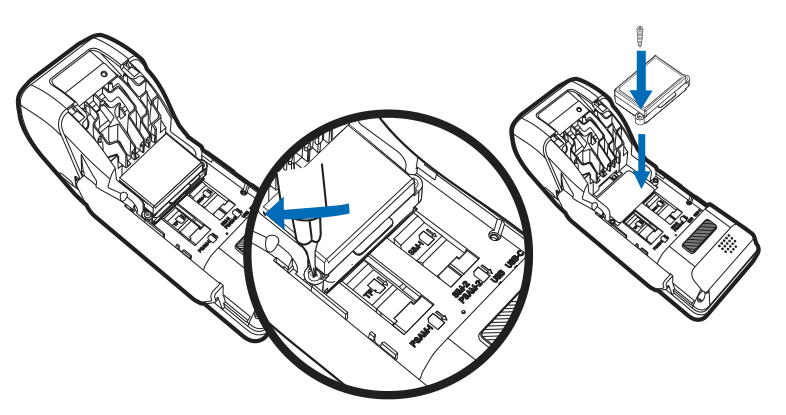

Unscrew the retaining screw and lift out the card holder bracket.

4

Insert the SIM and SAM cards

Loosen the screw to access the SIM and SAM card slots, insert your cards, then replace the bracket and secure the screw.

5

Insert the memory card and 4G SIM card

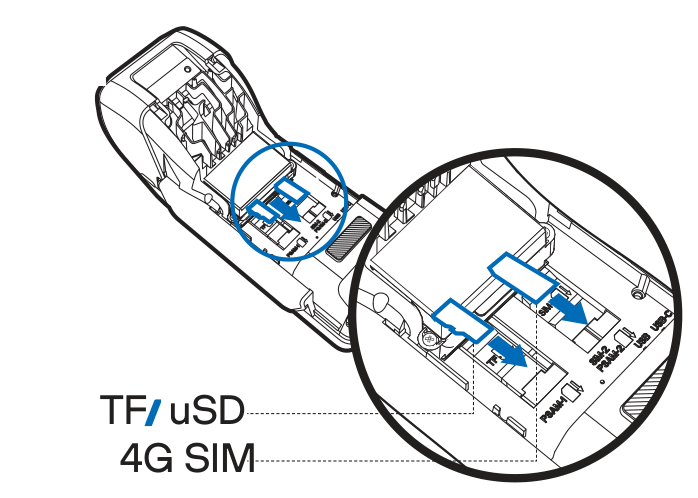

Slide the TF/microSD card and the 4G SIM card into their labeled slots.

2

Connect the Cables

1

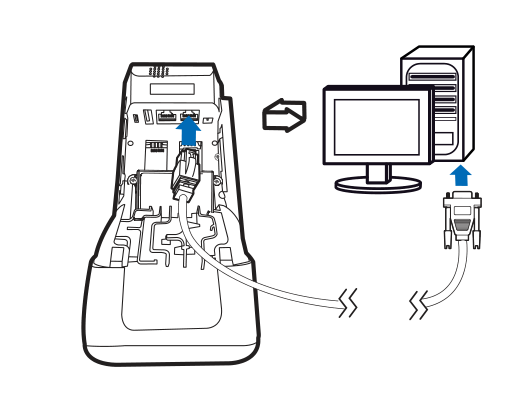

Connect to a PC

Connect the terminal to a PC using the cable and serial adapter.

2

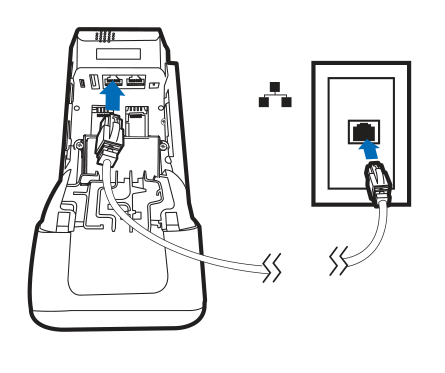

Connect to a network jack

Connect the terminal to a network wall jack using an Ethernet cable.

3

Connect to a base or PIN pad

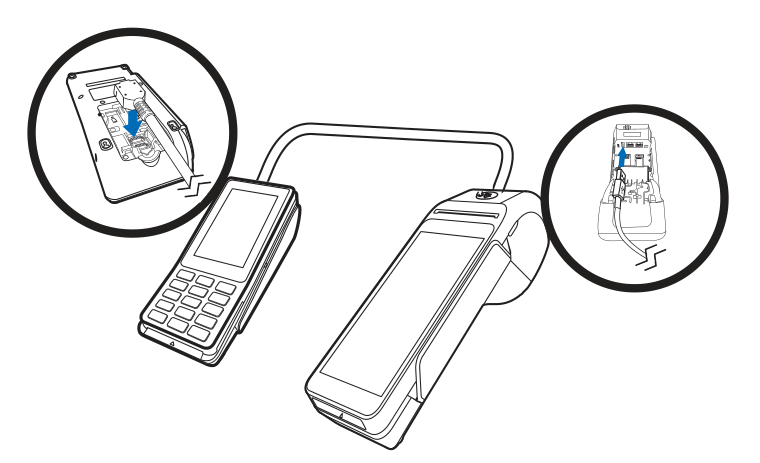

Connect the terminal to a base or PIN pad using the coiled cable.

3

Power On the Terminal

1

Connect the power cable

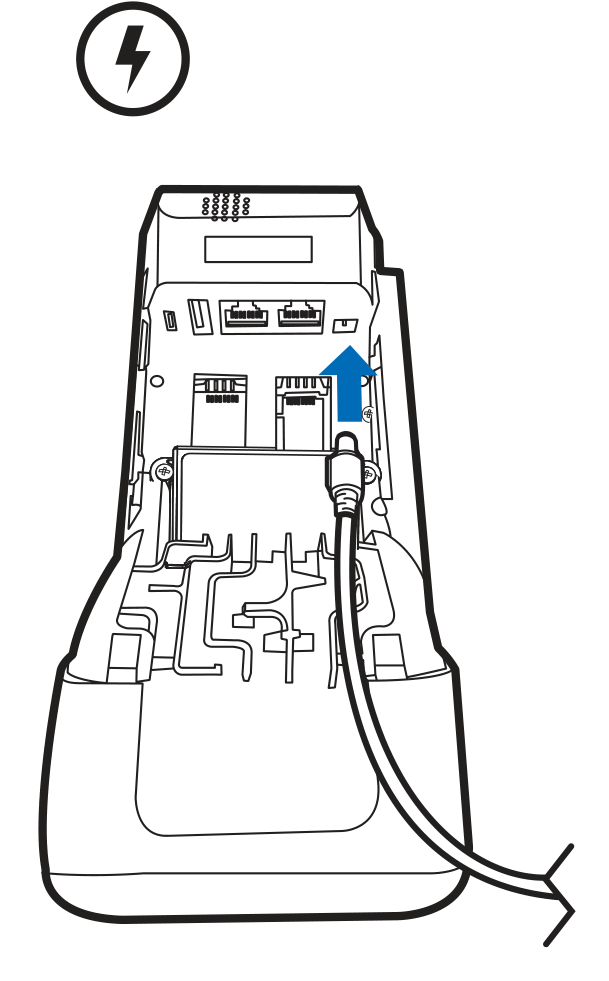

Connect the power cable to the terminal.

2

Plug in the power adapter

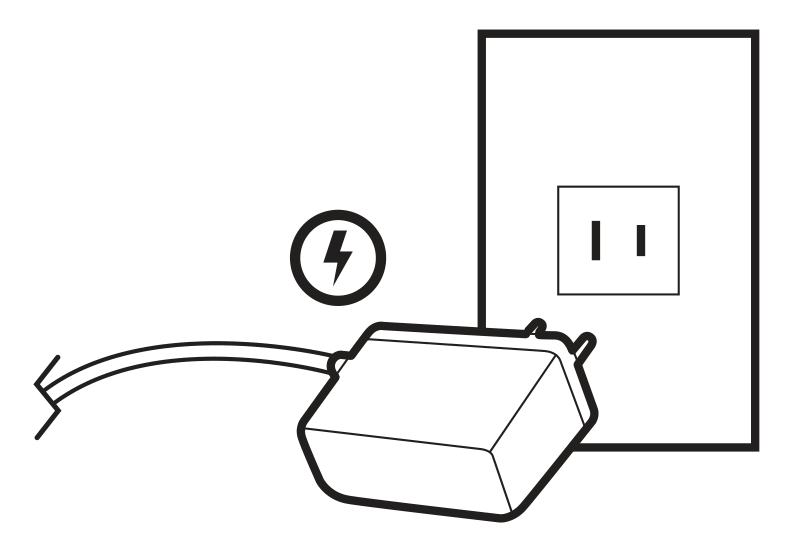

Plug the power adapter into a wall outlet.

3

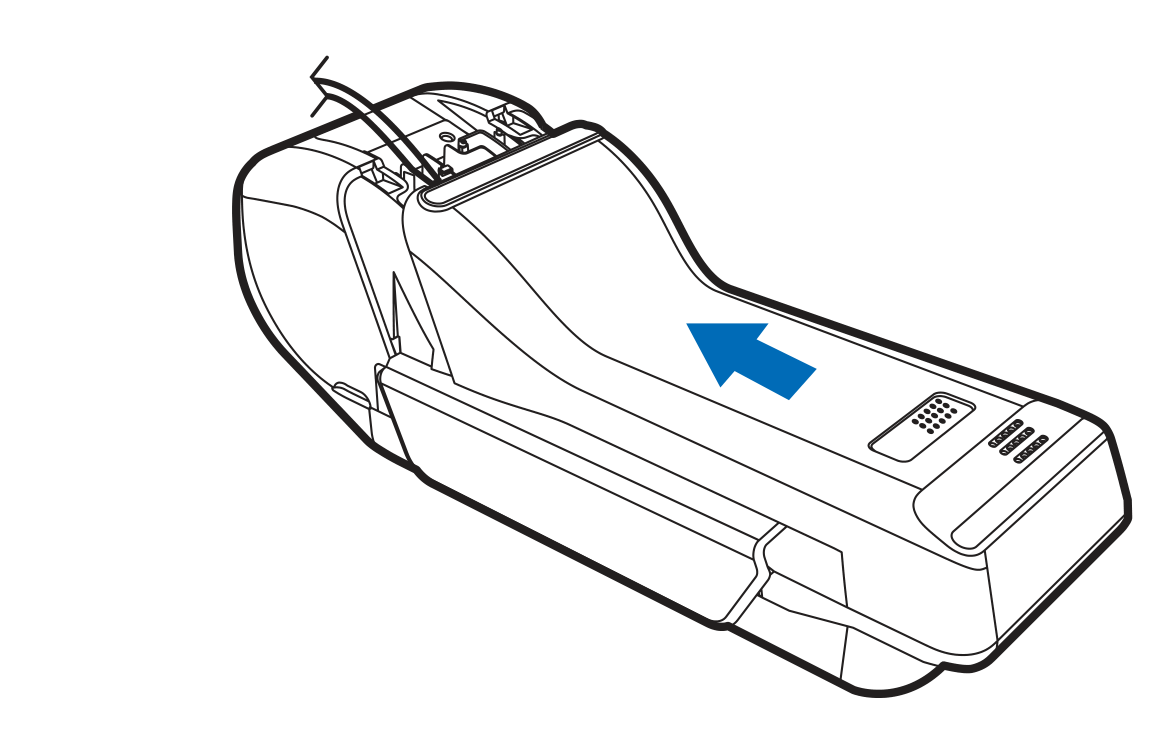

Reattach the back cover

Slide the back cover back onto the terminal.

4

Load the Paper Roll

1

Load the paper roll

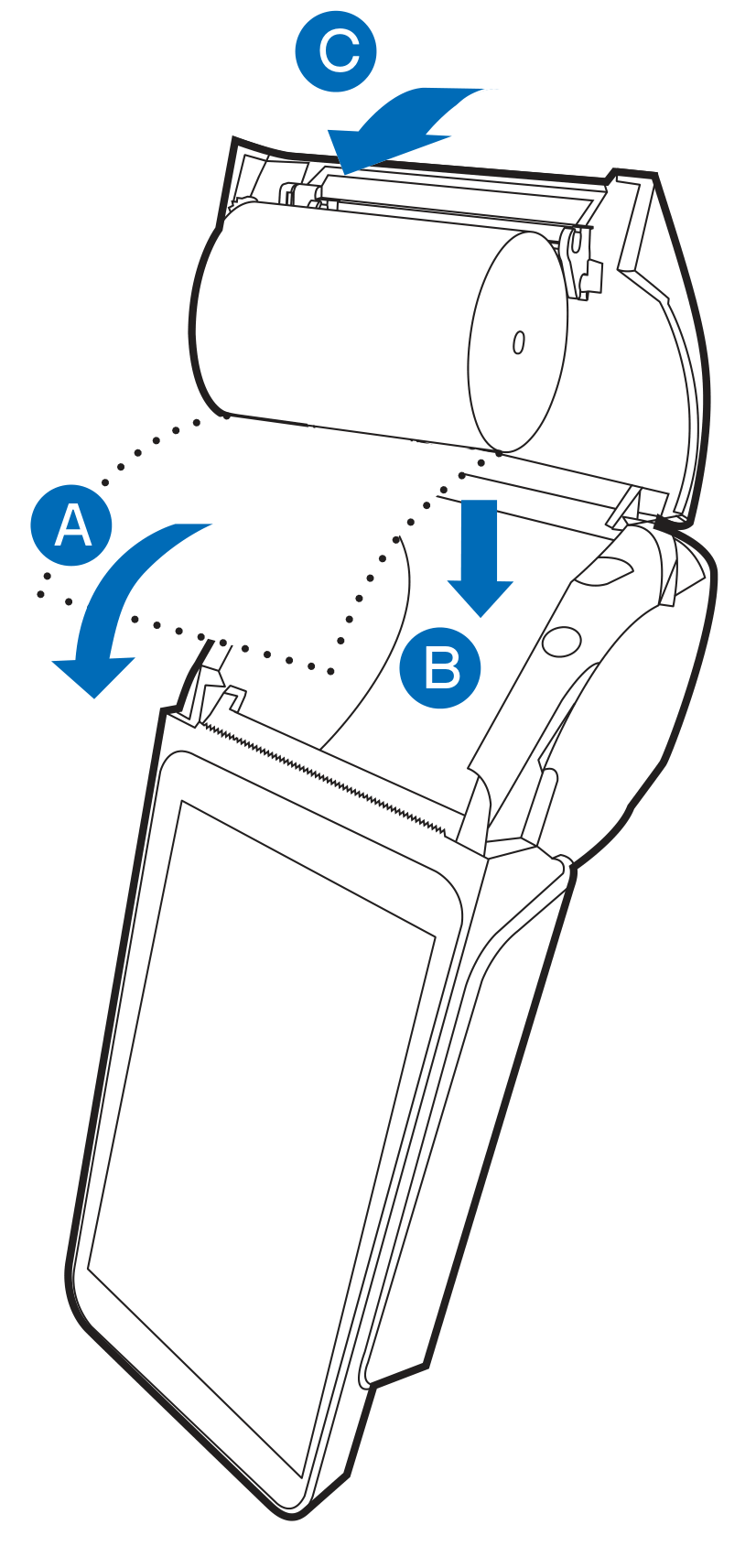

Open the printer lid (A), drop in the paper roll (B), feed the leading edge over the bar, and close the lid (C).

2

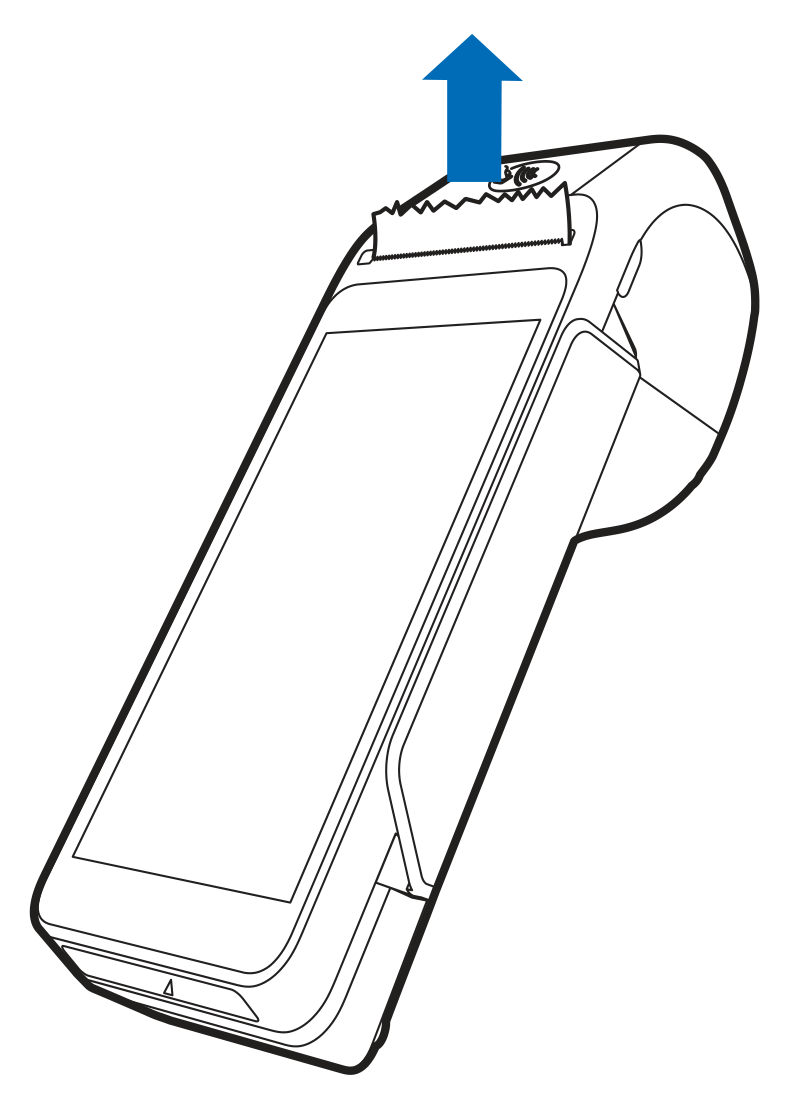

Tear off the paper

Pull the paper strip up and tear it off.

5

Test the Terminal

1

Swipe a card

Swipe a card through the slot at the top of the terminal.

2

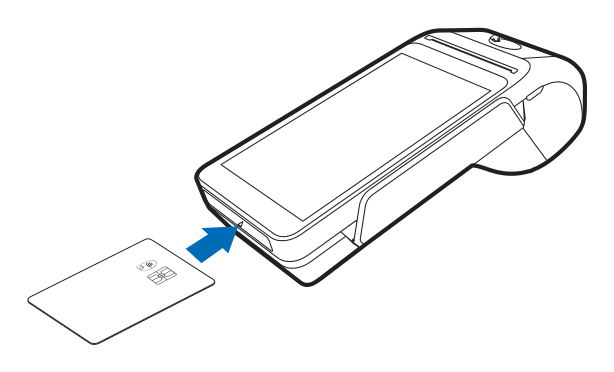

Insert a chip card

Insert a chip card into the slot at the bottom of the terminal.

3

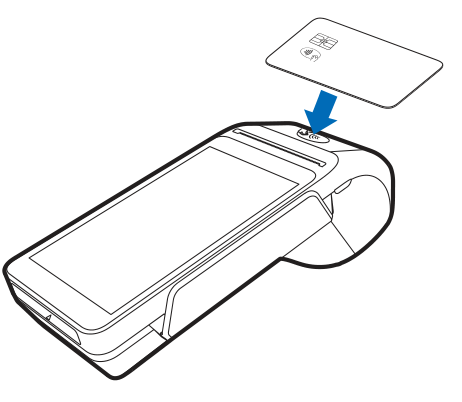

Tap a contactless card

Tap a contactless card on the top of the terminal.

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the T650t Installation Guide (DOC560-030-EN-A).
