UX700 ML Quick Installation Guide

This guide walks you through testing, mounting, and wiring your UX700-ML terminal.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Cover

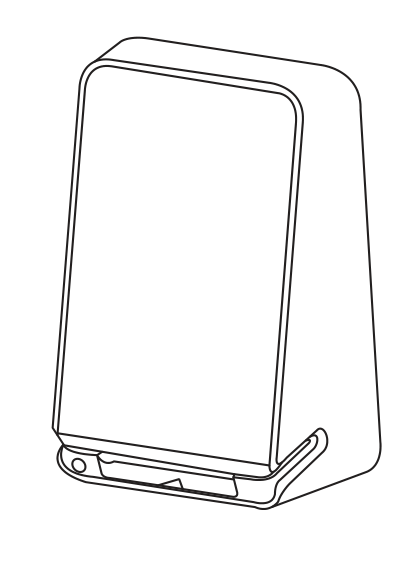

UX700-ML Terminal

Cover

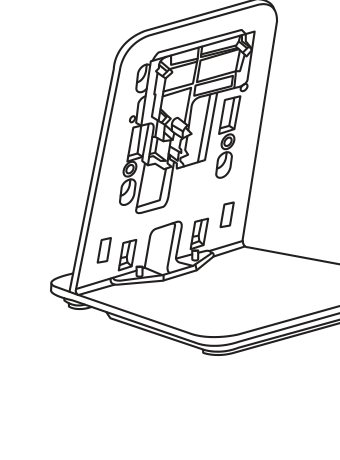

Bracket Base

Cover

Bracket Cover

Cover

Screws (x4)

Cover

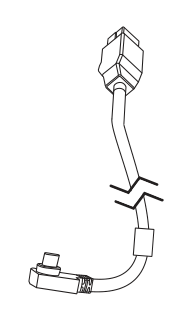

Cable

Quick Setup Guide

1

Test the Terminal

1

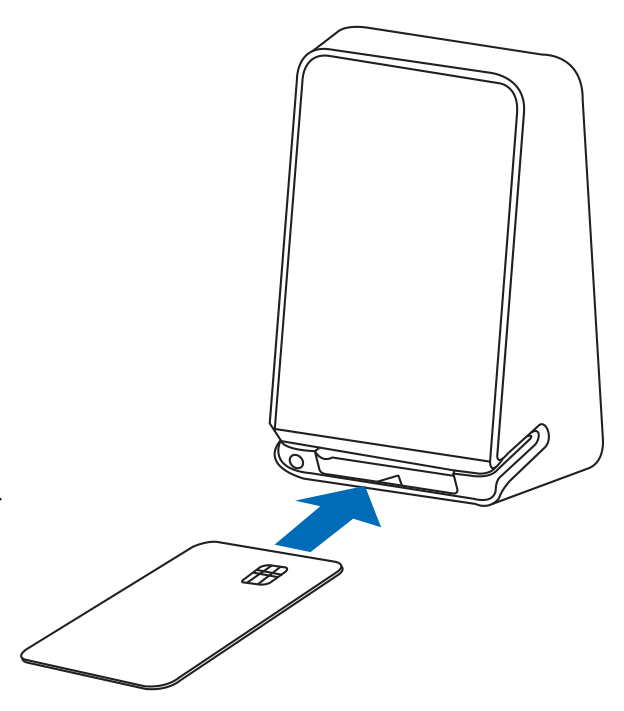

Insert a card

Insert a chip card into the slot at the base of the terminal.

2

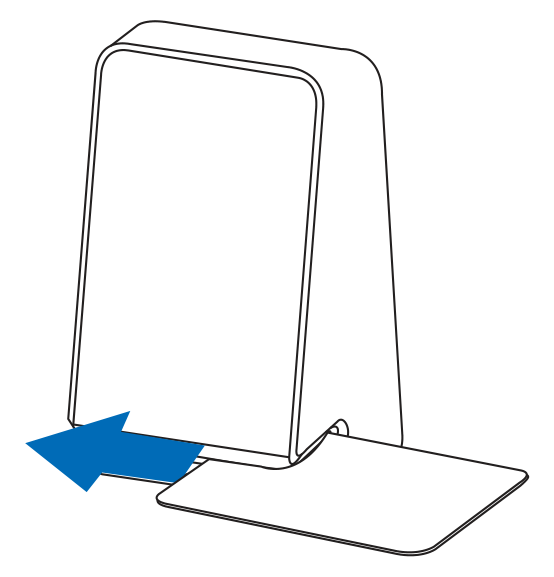

Slide out the base panel

Slide the base panel out in the direction of the arrow.

3

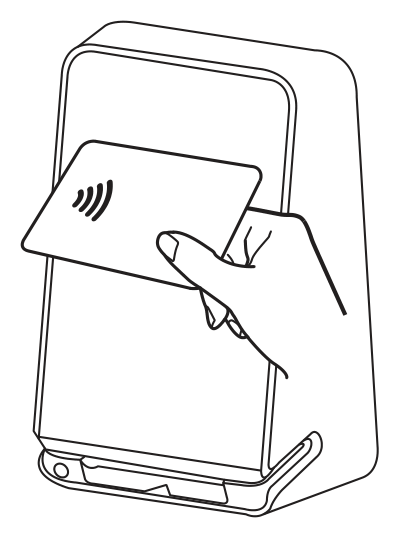

Tap a contactless card

Tap a contactless card on the front of the terminal.

2

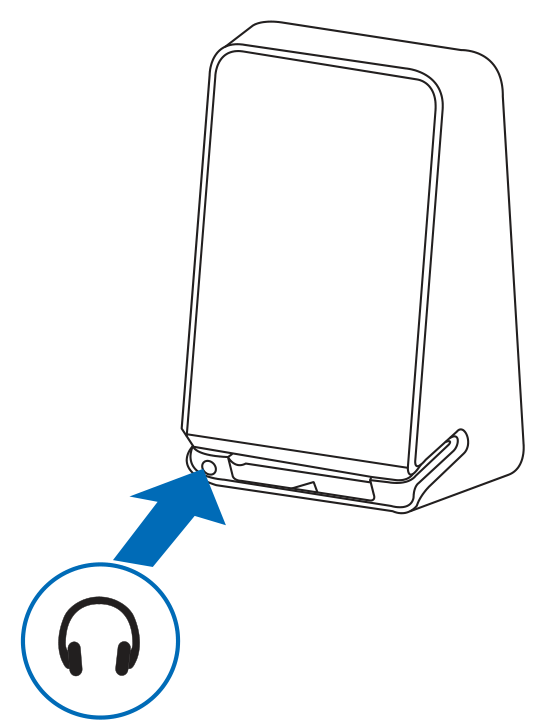

Connect Headphones

Connect headphones to the port at the base of the terminal.

3

Mount the Bracket

1

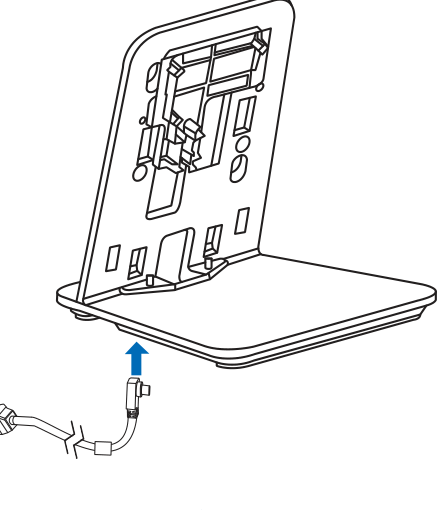

Connect the cable

Connect the cable to the port at the base of the bracket.

2

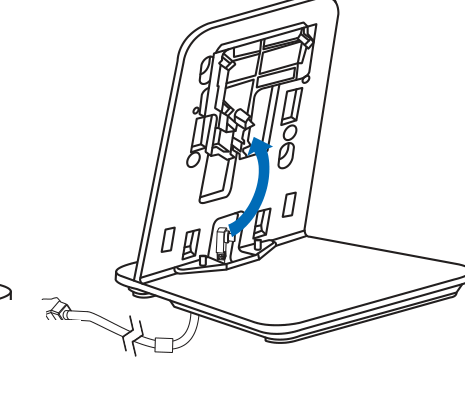

Fold up the bracket clip

Fold the bracket clip up in the direction of the arrow.

3

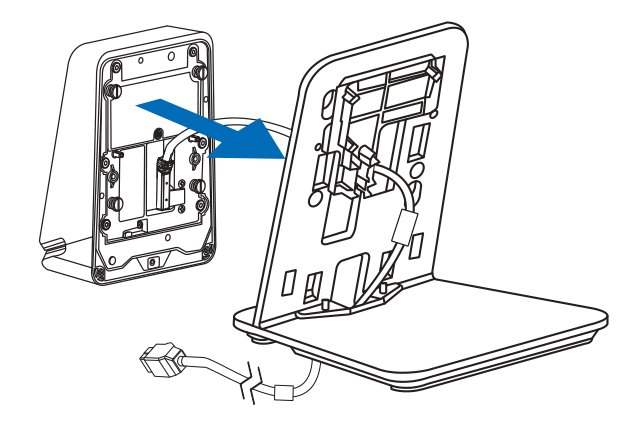

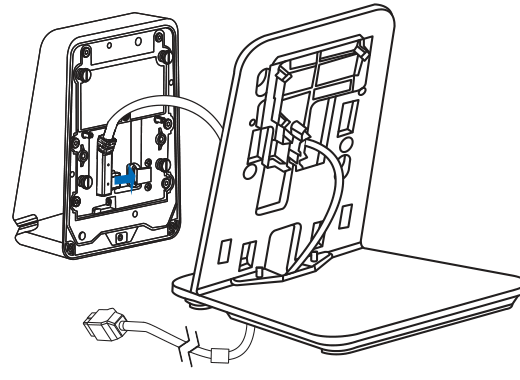

Attach the bracket to the terminal

Route the cable between the bracket and the terminal and bring them together.

4

Detach the cover plate

Pull the cover plate away from the bracket.

5

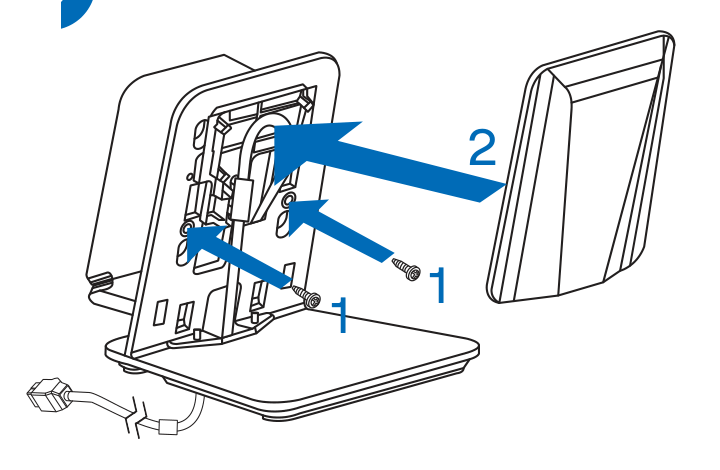

Secure the terminal with screws

Insert the screws (1) and slide the terminal onto the bracket (2).

6

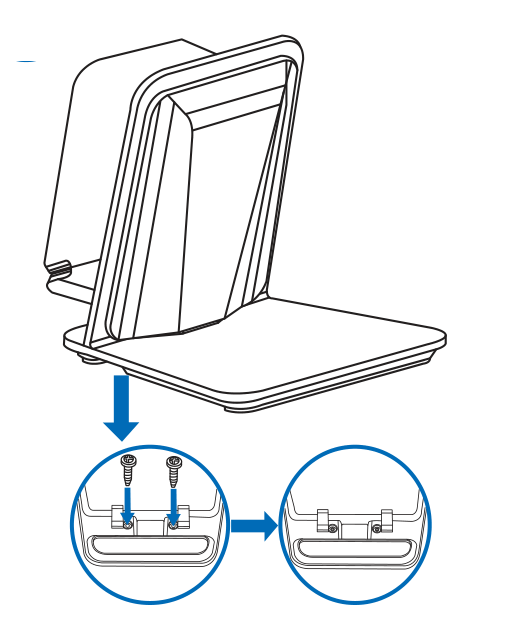

Secure the base

Insert the screws into the base of the bracket.

4

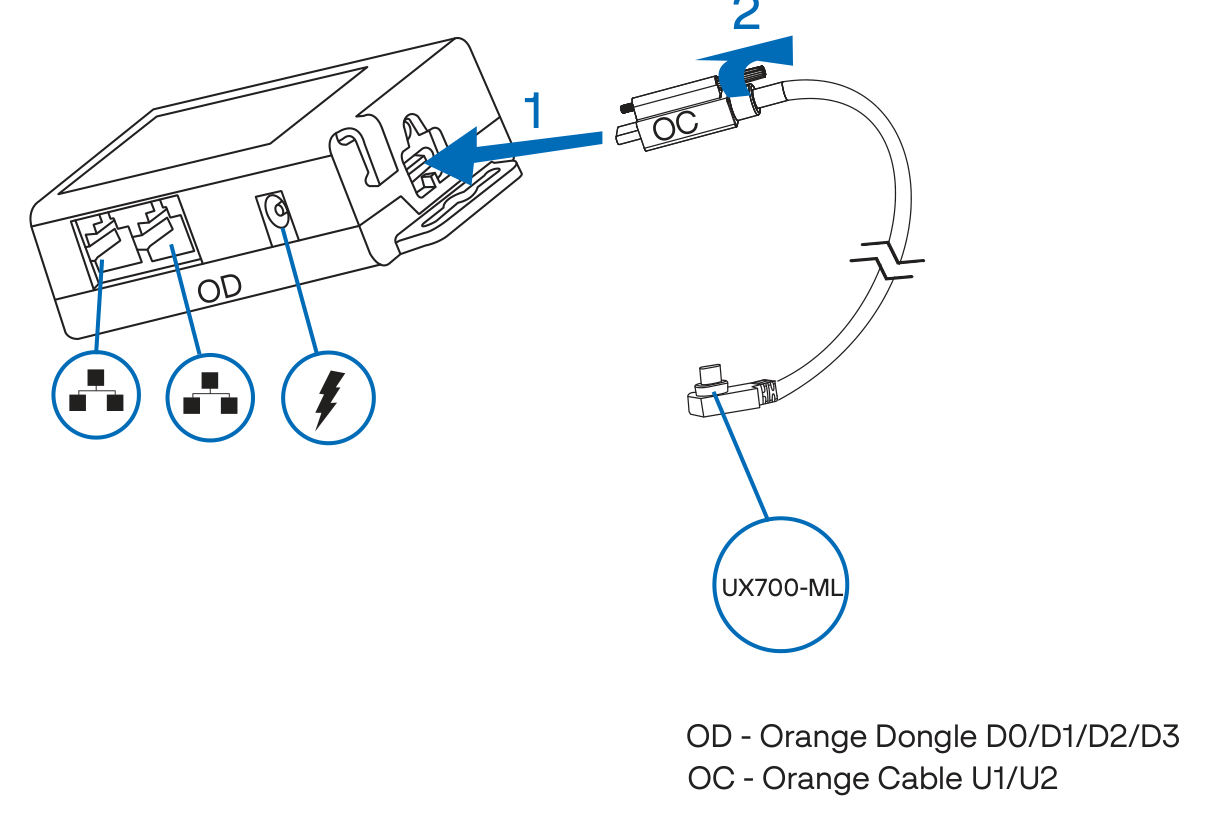

Connect the Network and Power Cables

Connect the OC cable to the OD dongle port (1) and lock it in place (2). Connect the network and power cables to the ports shown, then connect the other end of the OC cable to the terminal.

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the Installation Guide (DOC184-012-EN-A).
