# 640m Quick Installation Guide

This guide walks you through unboxing, inserting cards, charging, and powering on your 640m mobile computer.

Before you begin, confirm you have all devices, cables, and accessories listed below.

## What's in the Box

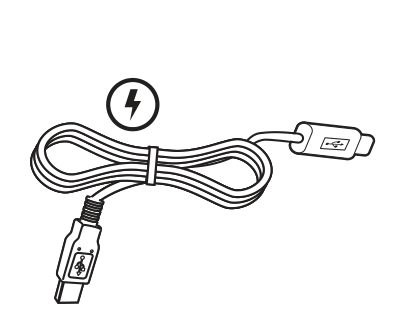

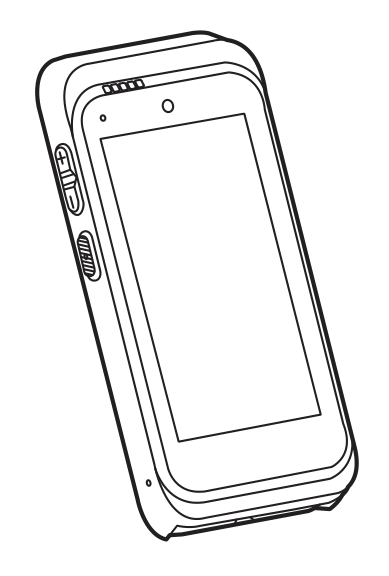

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="image">Cover image</th></tr></thead><tbody><tr><td><h3>640m Terminal</h3></td><td></td><td data-object-fit="contain"><a href="/files/7ee207c72f7439e5ae46f8a11fe38adfbc736312">/files/7ee207c72f7439e5ae46f8a11fe38adfbc736312</a></td></tr><tr><td><h3>Scan Ring</h3></td><td></td><td data-object-fit="contain"><a href="/files/297465099084a58007012a088db88a126468bd5c">/files/297465099084a58007012a088db88a126468bd5c</a></td></tr><tr><td><h3>USB Cable</h3></td><td></td><td data-object-fit="contain"><a href="/files/5ddfa21a662a688bf835ef217439f9806b75073b">/files/5ddfa21a662a688bf835ef217439f9806b75073b</a></td></tr></tbody></table>

## Quick Setup Guide

{% stepper %}
{% step %}

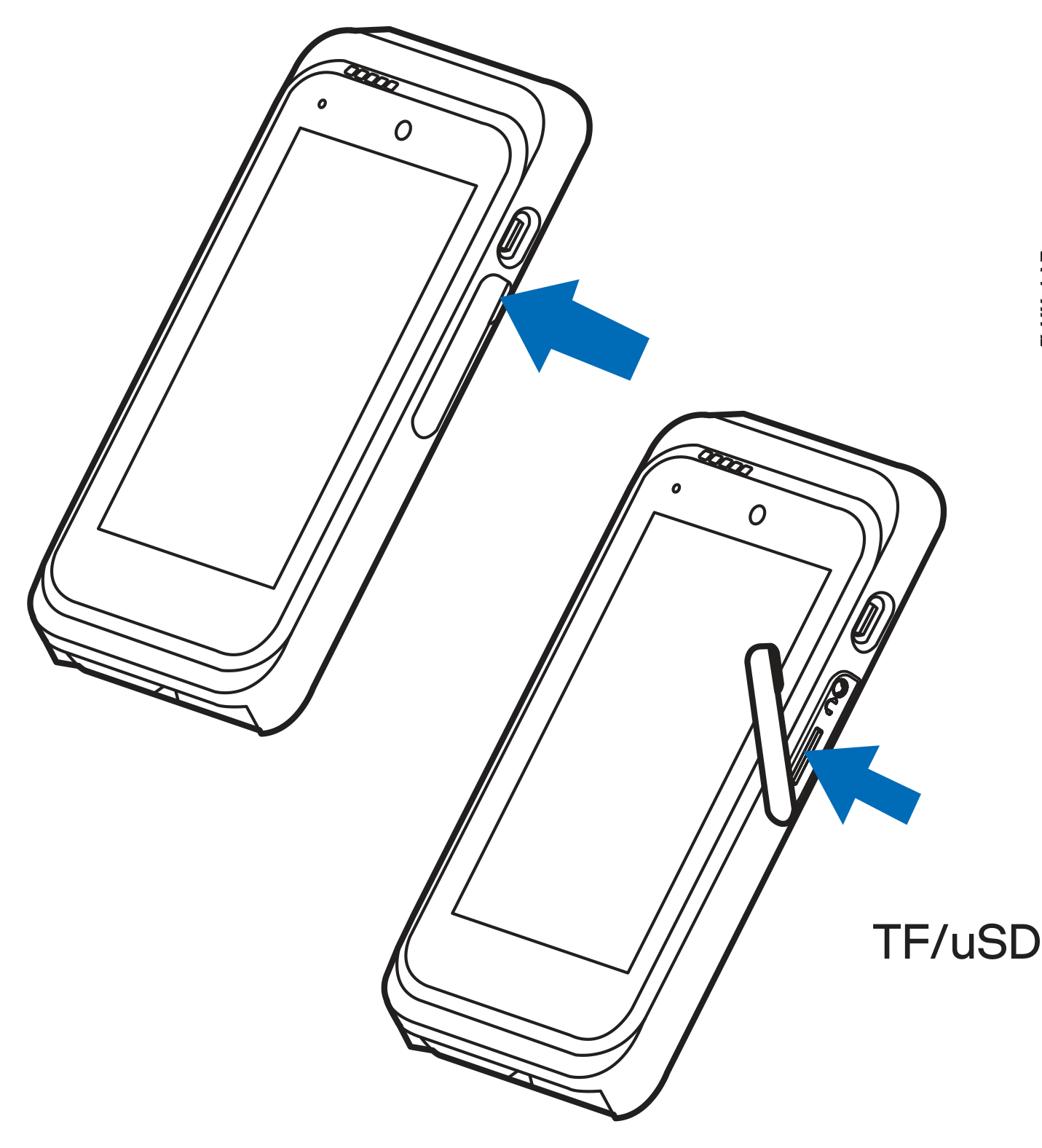

### Insert the TF/uSD Card

Open the card door, then insert the TF/uSD card into the slot.

<figure><img src="/files/37898f1aacb5f788e3cd2cbd746b9c61be2ca9a7" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Attach the Scan Ring and Insert the SIM Cards

{% stepper %}
{% step %}

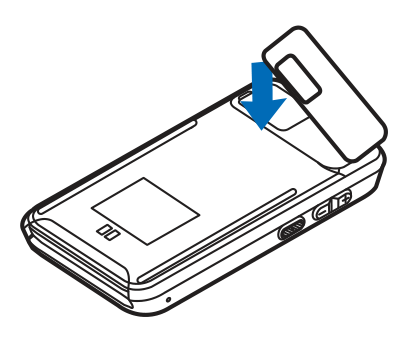

#### Insert the scan ring

Insert the stem of the scan ring into the port on the back of the terminal.

<figure><img src="/files/KOrqNeZcUeWRc7aMFbIt" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Press the scan ring into place

Press down at both (A) and (B) to seat the scan ring evenly.

<figure><img src="/files/5MLCVyJGEEU5YEcVAeaQ" alt="" width="371"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

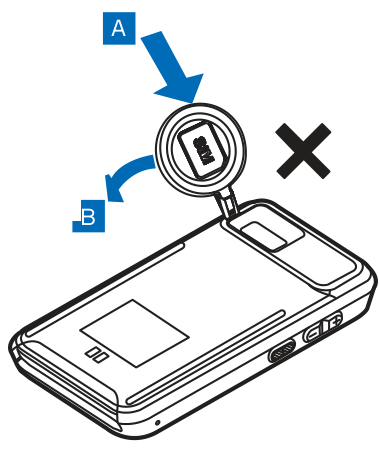

#### Avoid pressing at an angle

Do not press at (A) and rotate at (B) — this seats the scan ring incorrectly.

<figure><img src="/files/5adfca0bcd49ac680159c3a35a1421bf97a0b90e" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

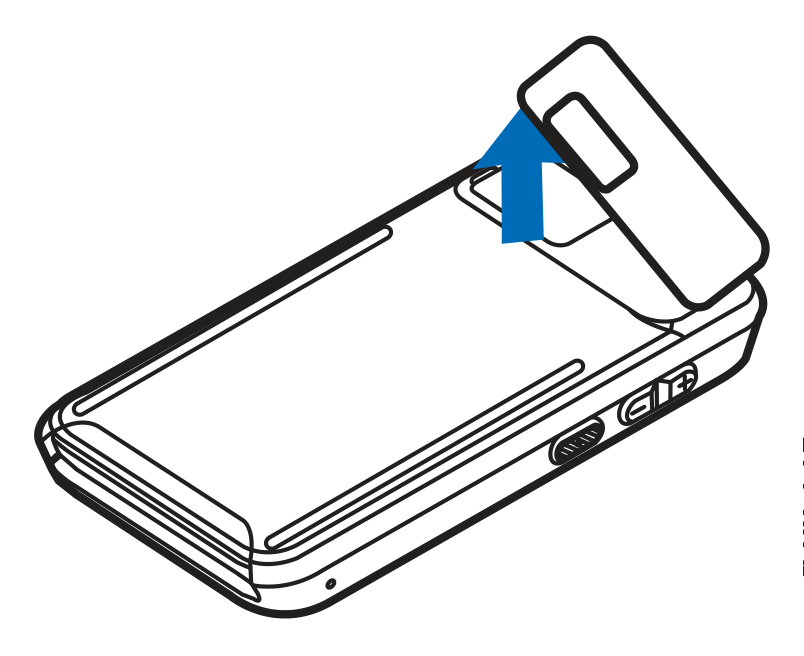

#### Open the card flap

Lift open the card flap on the back of the terminal.

<figure><img src="/files/937506eb9e28d3b5802542fd76d98de708b141c9" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Insert the SIM cards

Insert the SIM2/SAM and SIM1 cards into their labeled slots.

<figure><img src="/files/jyhCTOkSOoXsvwafFTis" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Close the card flap

Close the card flap.

<figure><img src="/files/9f6d1c3d9c16b320a5787dfe7ed9c250e821b469" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

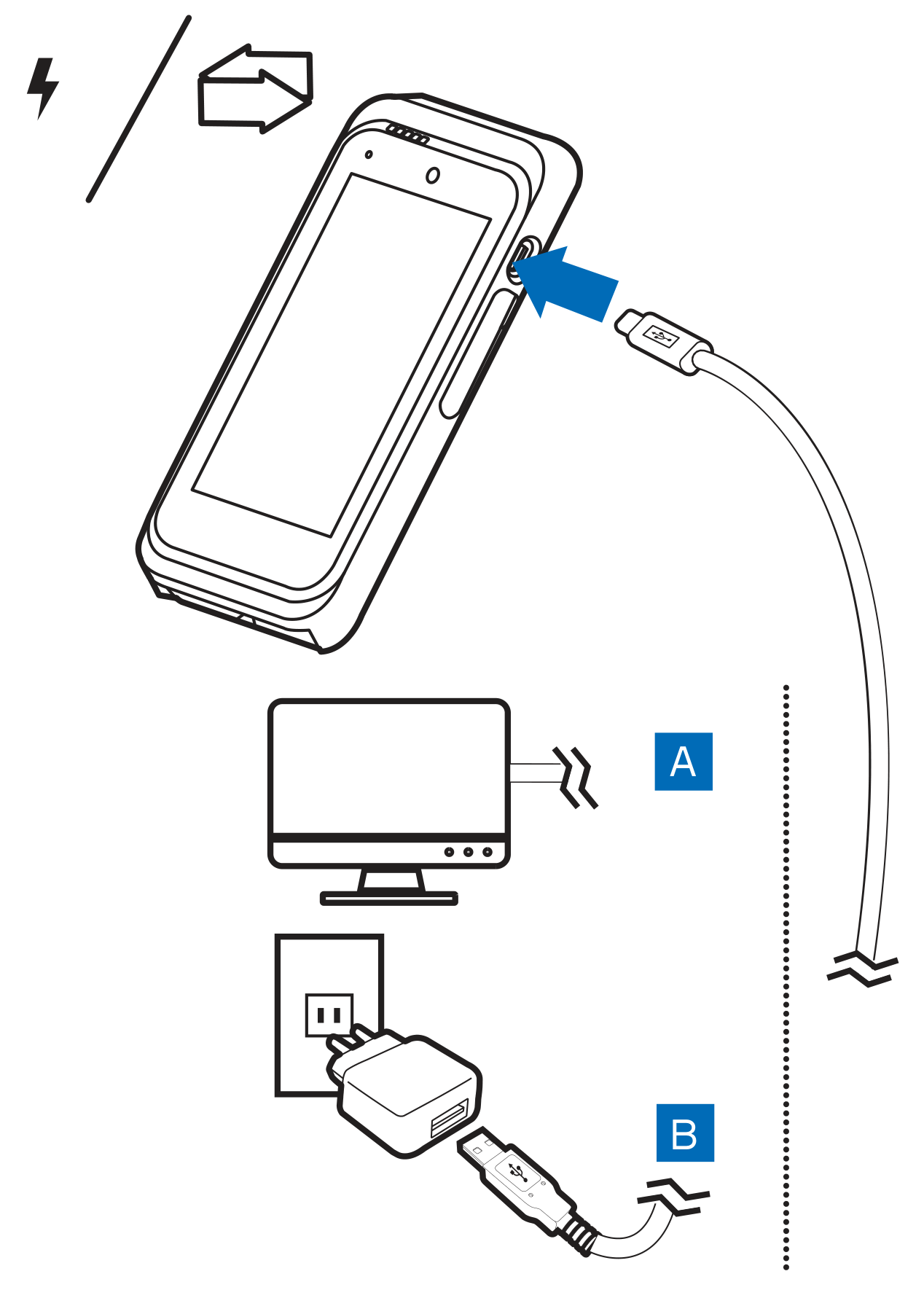

### Charge the Terminal

Connect the USB cable to the terminal, then connect the other end to a computer (A) or a power adapter plugged into a wall outlet (B).

<figure><img src="/files/b9e8fee6860c6740b5d24ca4b48c55a92422aabb" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

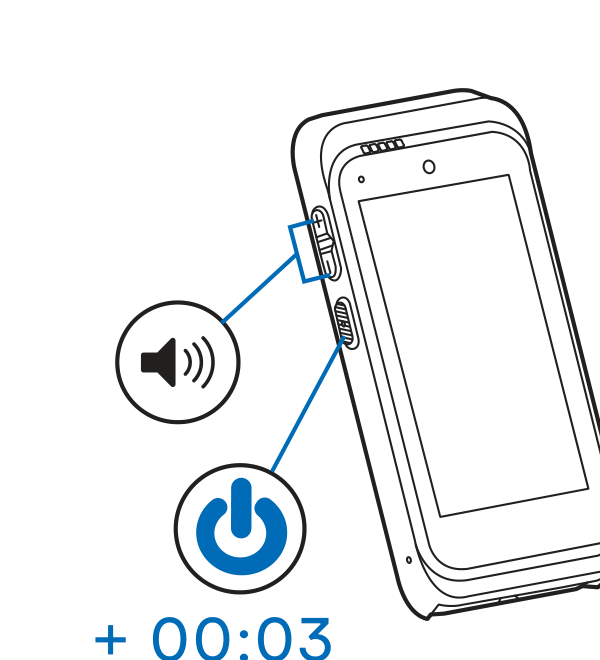

### Power On the Terminal

Press and hold the power button for 3 seconds.

<figure><img src="/files/7cdced8688d605a81f61fdf751b803fffce3e543" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

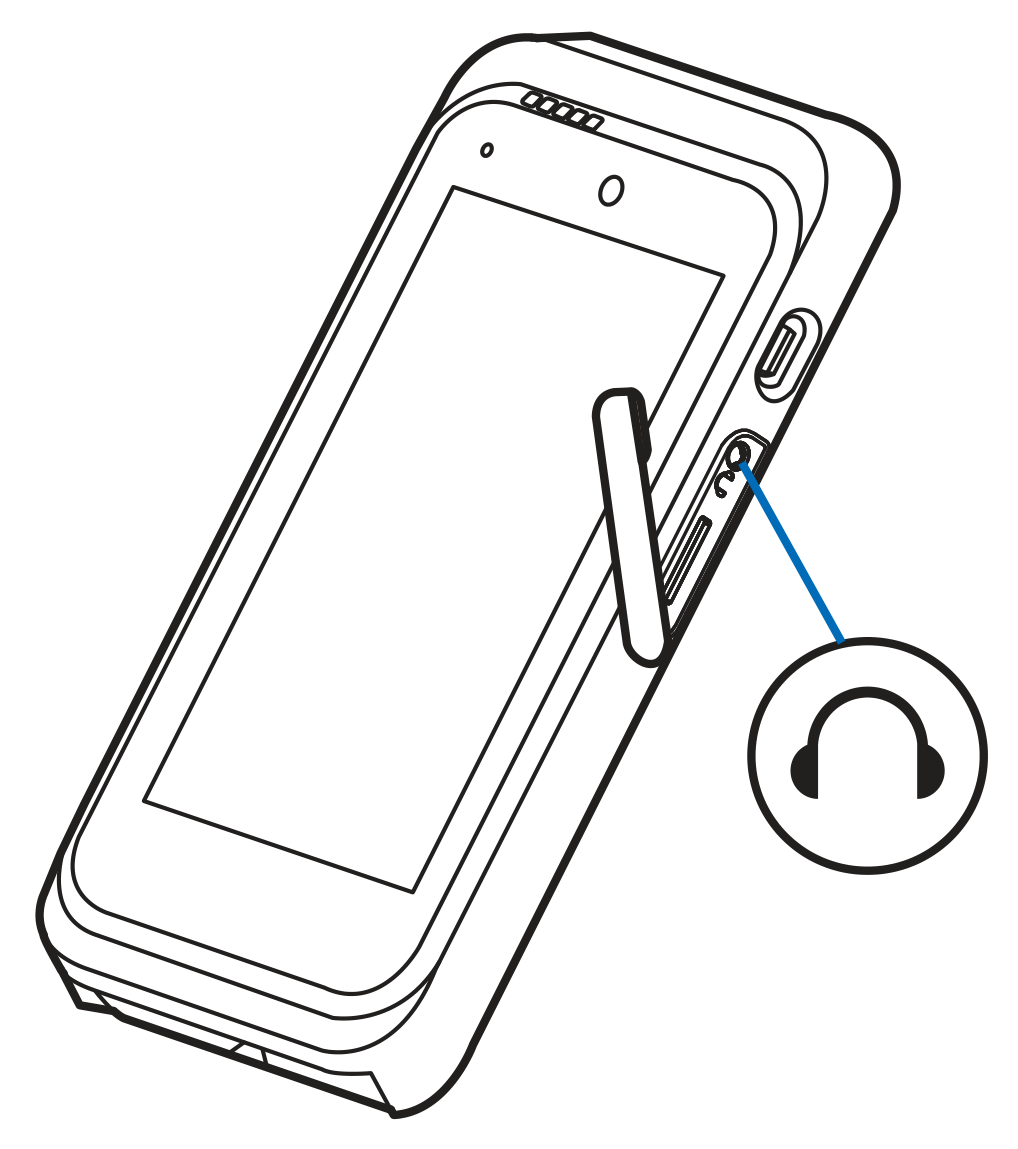

### Connect Headphones

Connect headphones to the port at the side of the terminal.

<figure><img src="/files/f9bb310680a3d73d045d8c533dfc704cf70f73ec" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

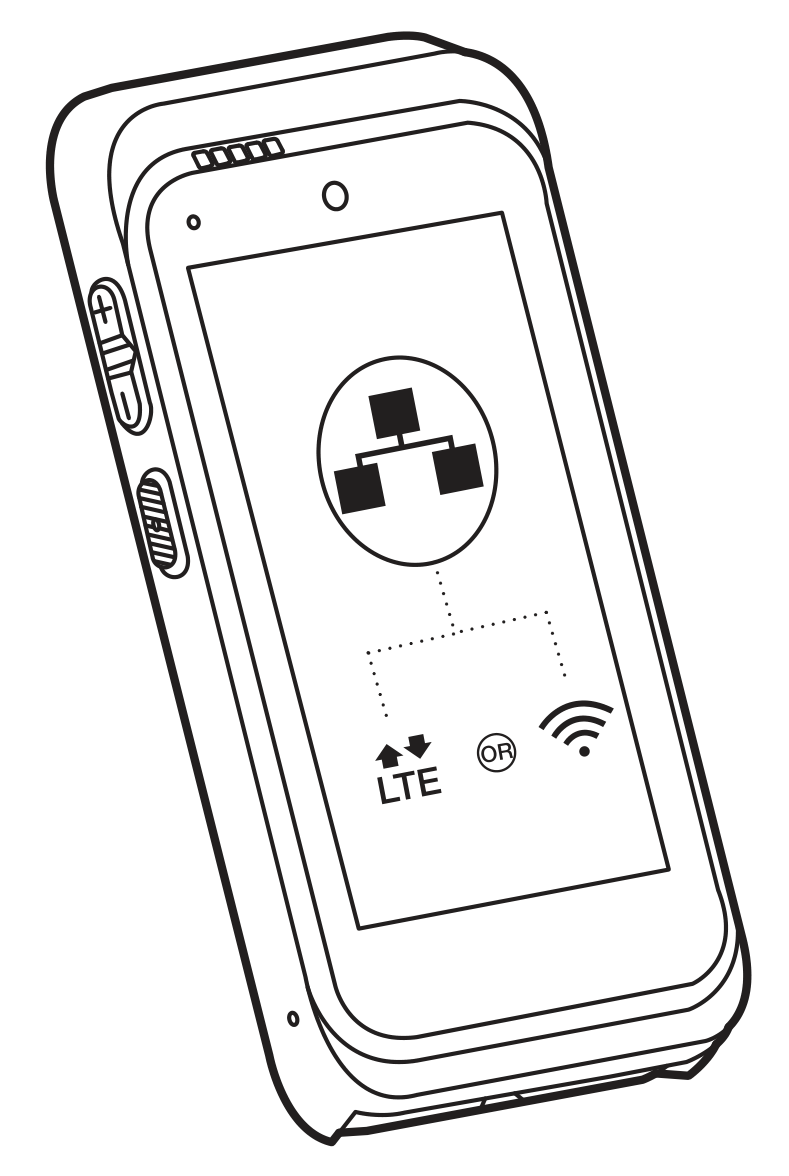

### Connect to a Network

Connect the terminal to an LTE or Wi-Fi network.

<figure><img src="/files/3b7f7623a0547b251f4a040ab98f1b07e662082e" alt="" width="188"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Test the Terminal

{% stepper %}
{% step %}

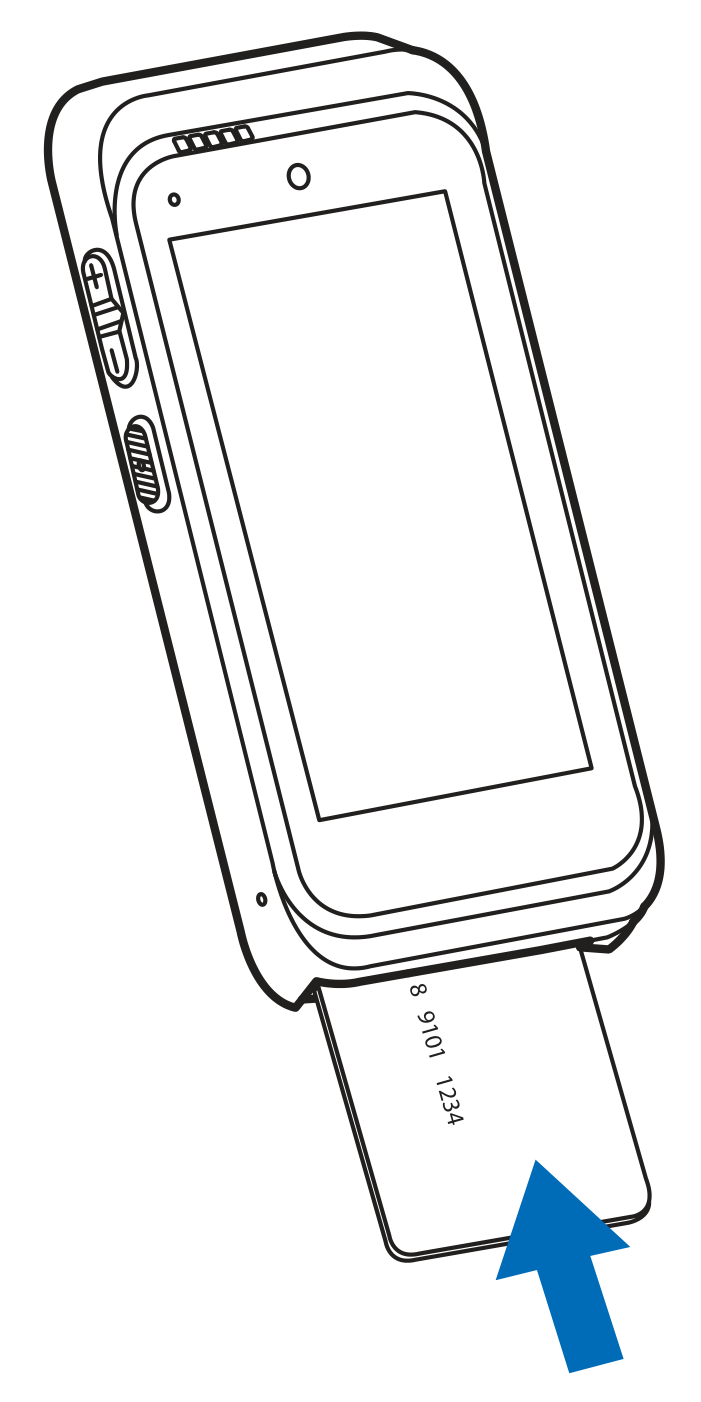

#### Insert a card

Insert a chip card into the slot at the base of the terminal.

<figure><img src="/files/e417c7dbd97fe3b08a8ce4649a11dd56f85400f9" alt="" width="188"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

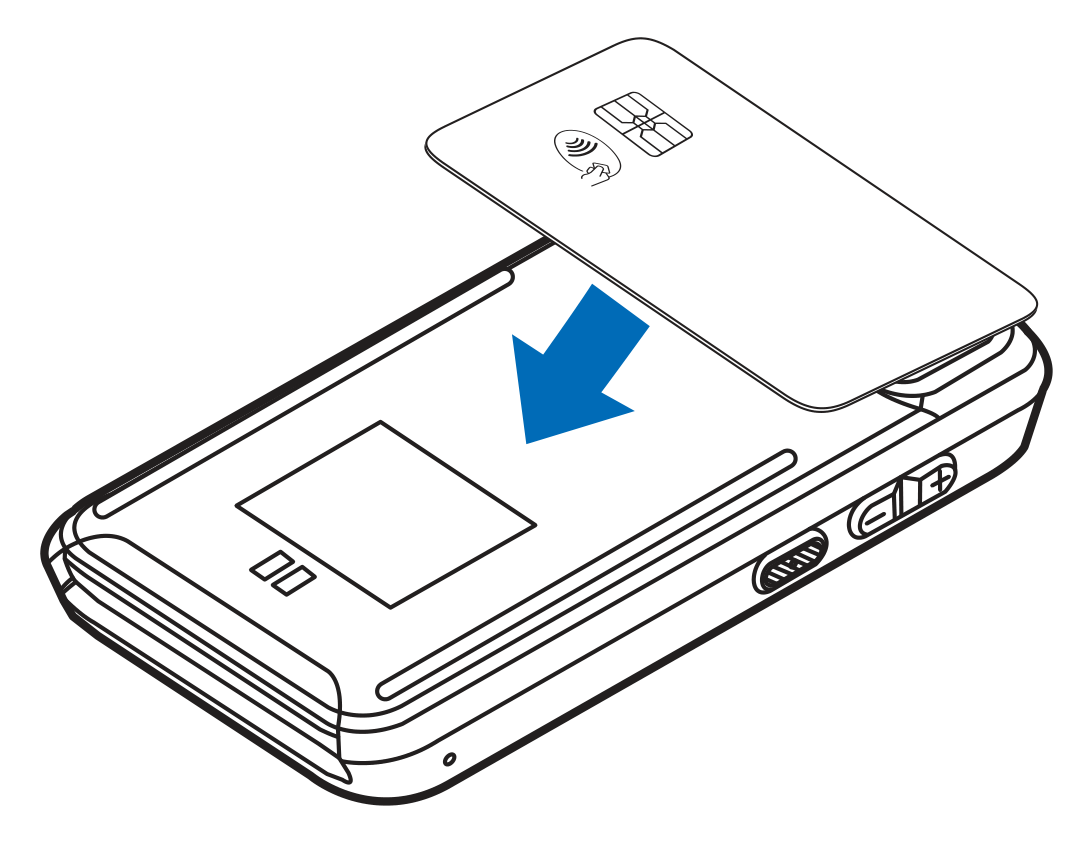

#### Tap a contactless card

Tap a contactless card on the back of the terminal.

<figure><img src="/files/3becdab629794f9240754fcdefd7c50003f6f8c2" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}
{% endstepper %}

## Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the [Installation Guide](/hardware-products/hardware/android-devices/v640-series/v640m/v640m-installation-guide.md) (DOC570-001-EN).


---
