640m Single Bookshelf Charger Quick Installation Guide

This guide walks through unboxing, mounting, and charging the 640m Single Bookshelf Charger.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

640m Single Bookshelf Charger

Quick Setup Guide

1

Unbox the Charger

Remove the charger from the box.

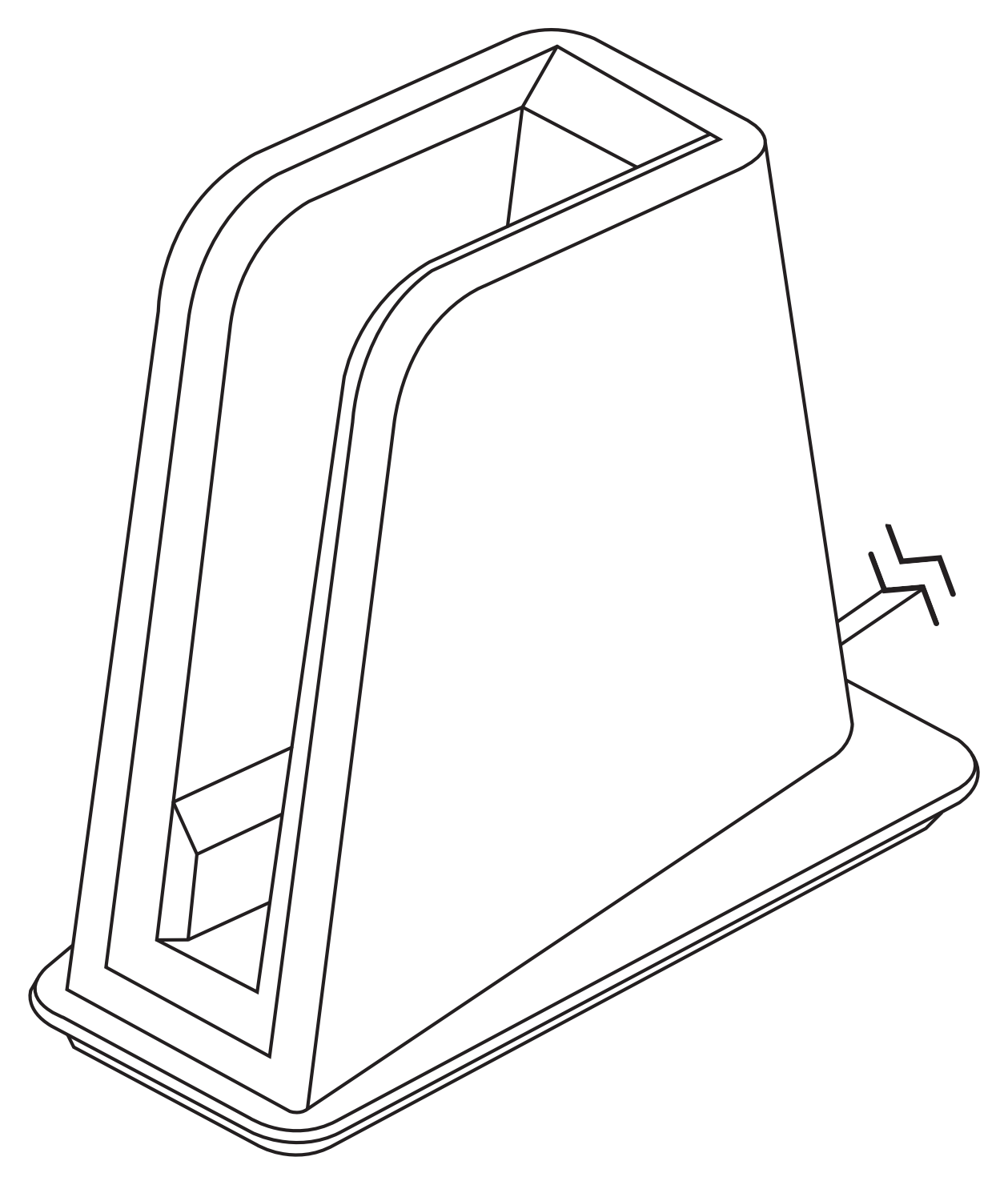

Figure 1: Unboxing the charger

2

Mount the Charger

1

Attach the mounting bracket

Secure the mounting bracket to the underside of the charger using the four screws.

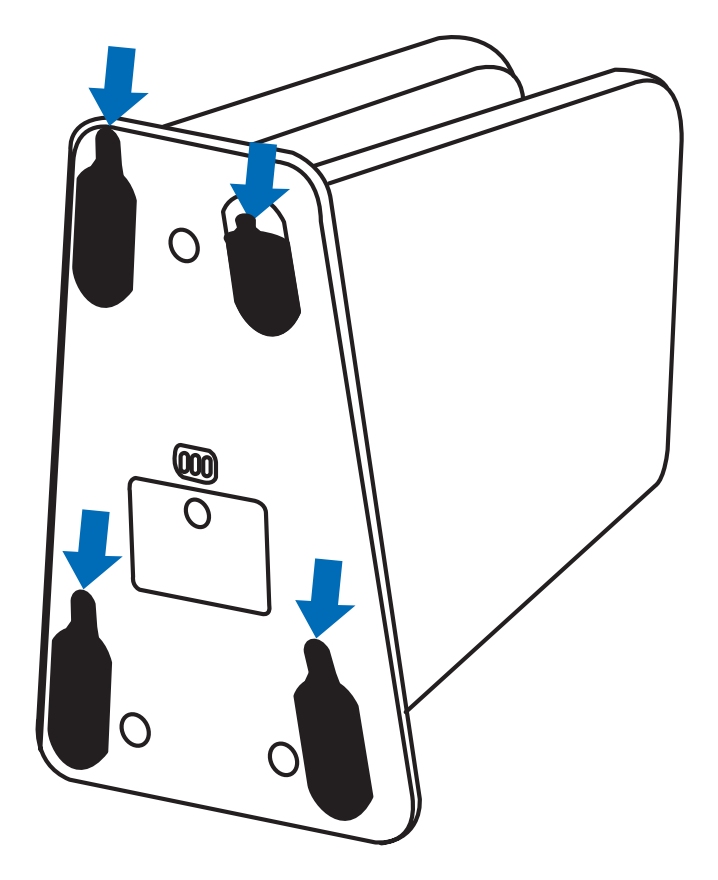

Figure 2.1: Securing the mounting bracket

2

Mount the bracket

Use the bracket's slots to mount the charger to the wall or shelf.

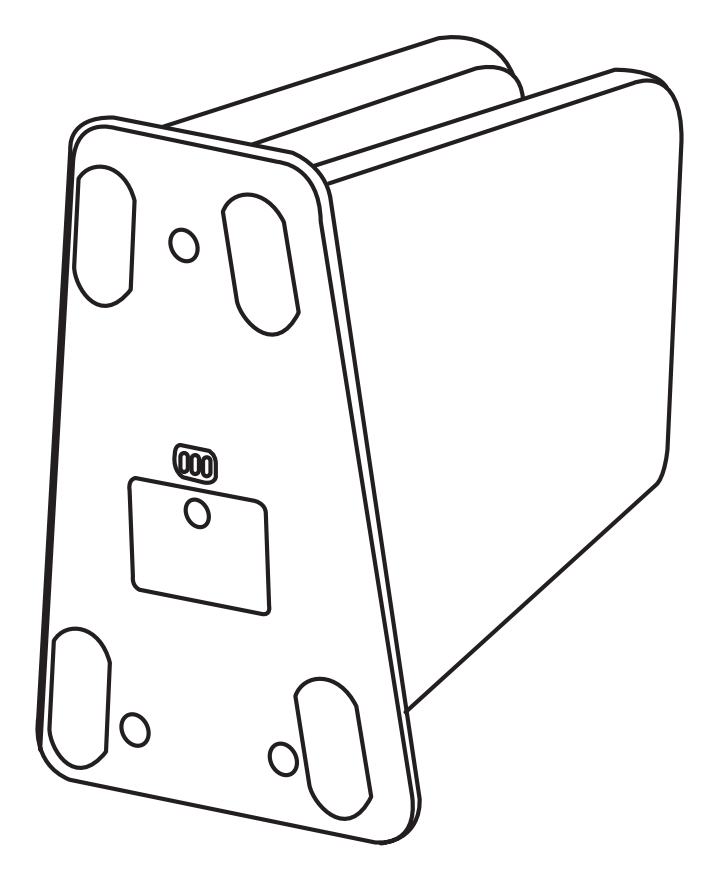

Figure 2.2: Mounting bracket slots

3

Connect the Charging Cable

Connect the USB charging cable to the charger.

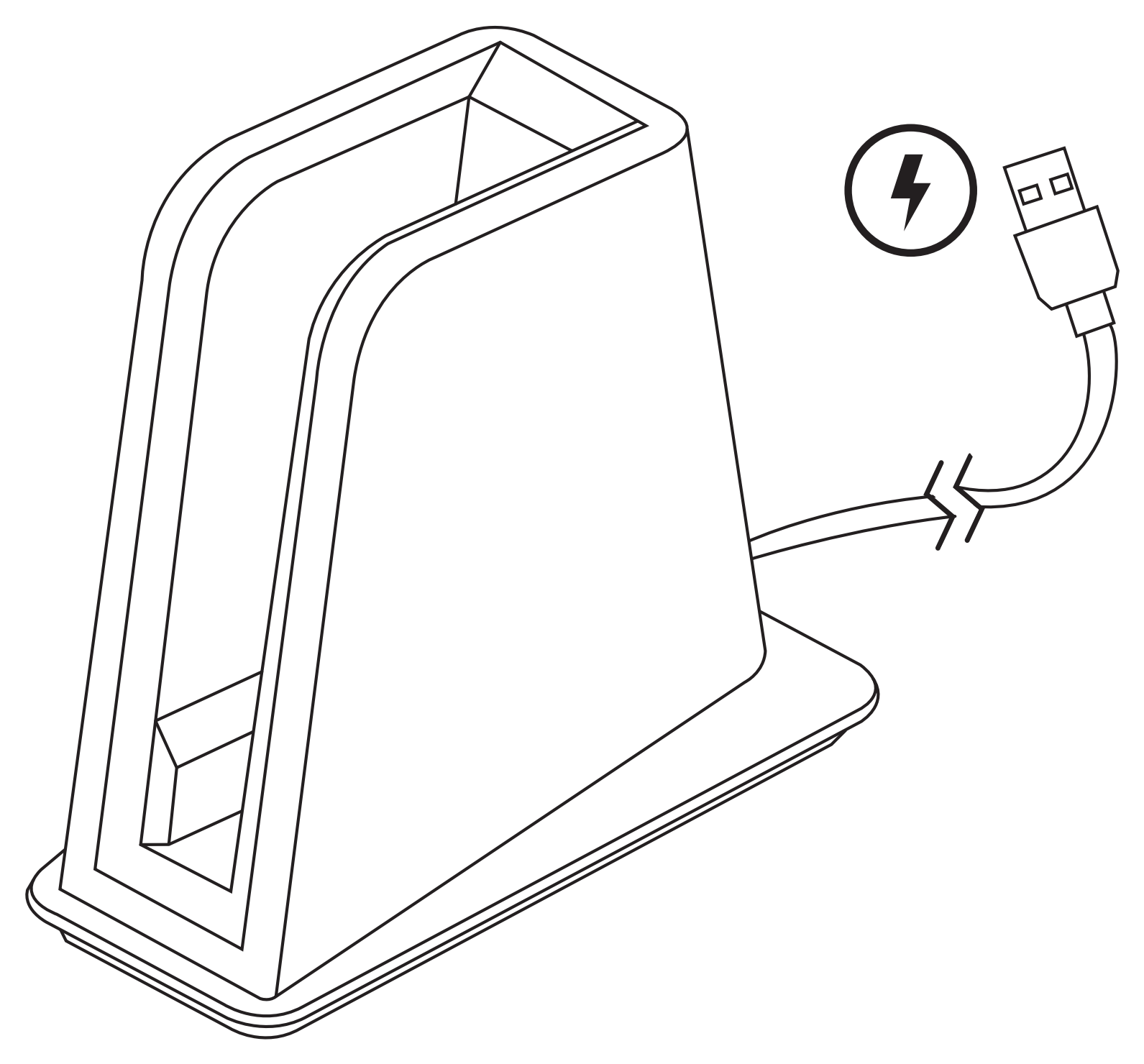

Figure 3: Connecting the charging cable

4

Attach the Connector

Insert the connector into the port on the side of the device.

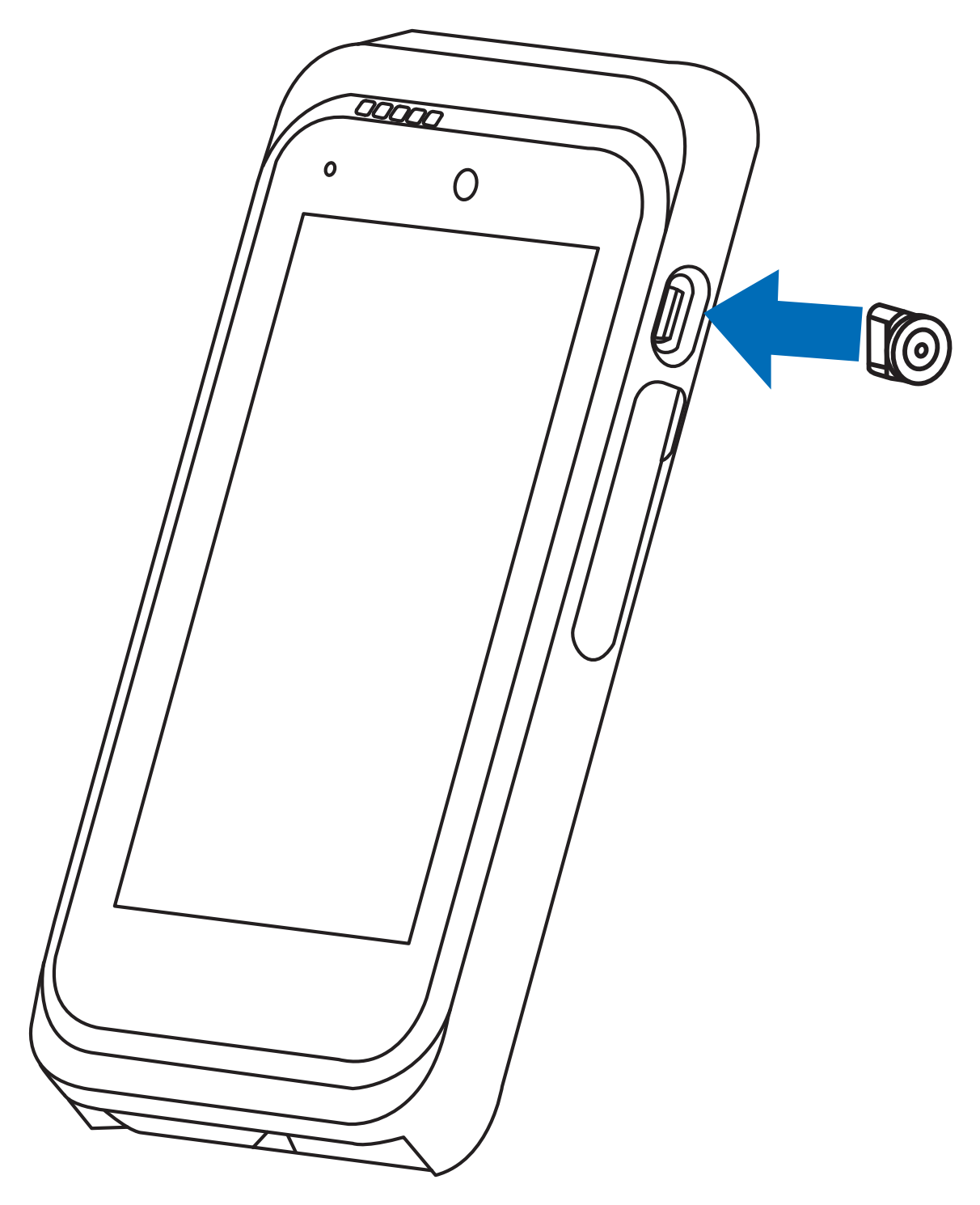

Figure 4: Attaching the connector to the device

5

Prepare the Device

The connector is now attached to the device.

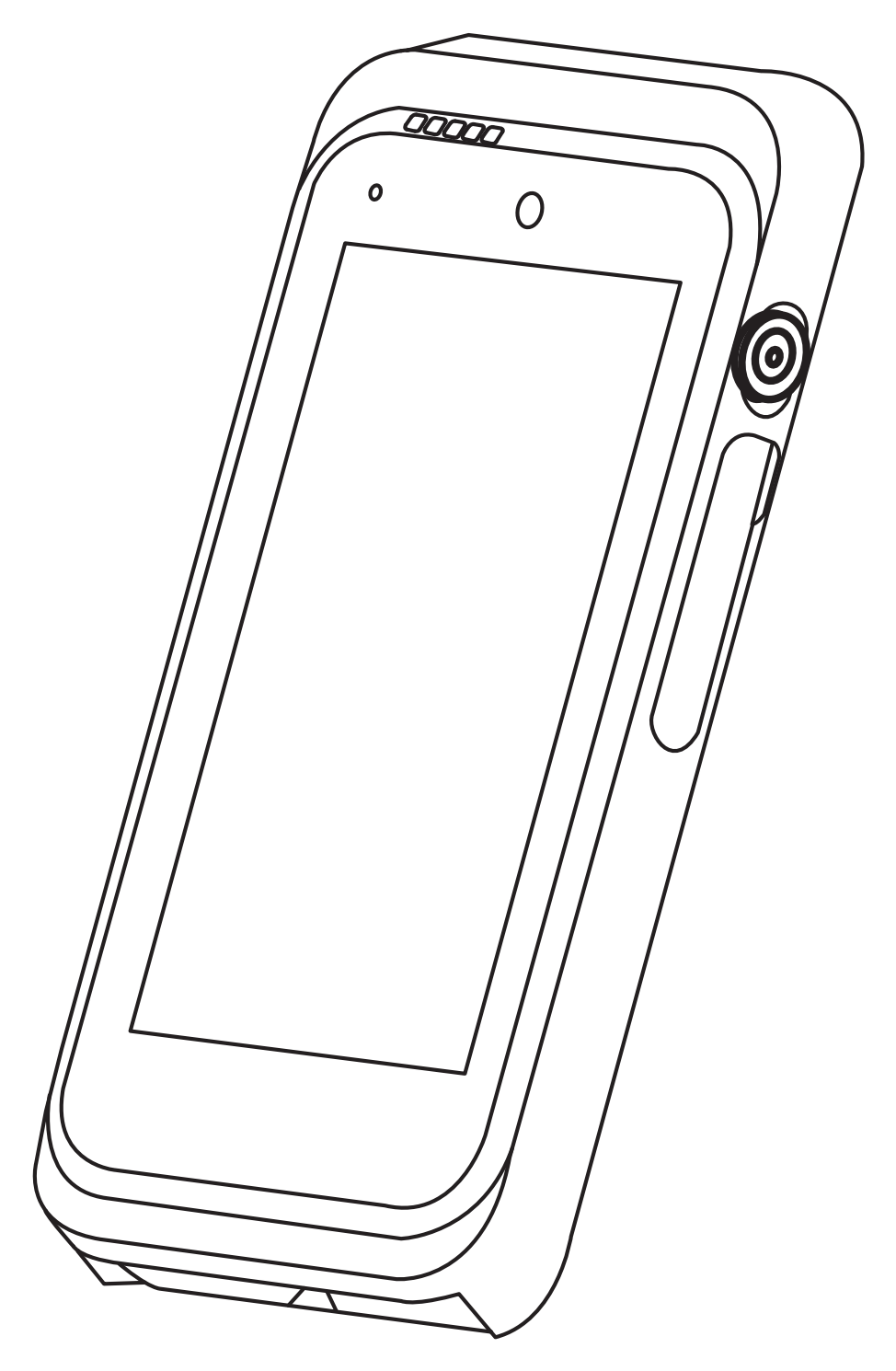

Figure 5: Device with connector attached

6

Insert the Device into the Charger

Align the connector with the port inside the charger, then insert the device into the cradle.

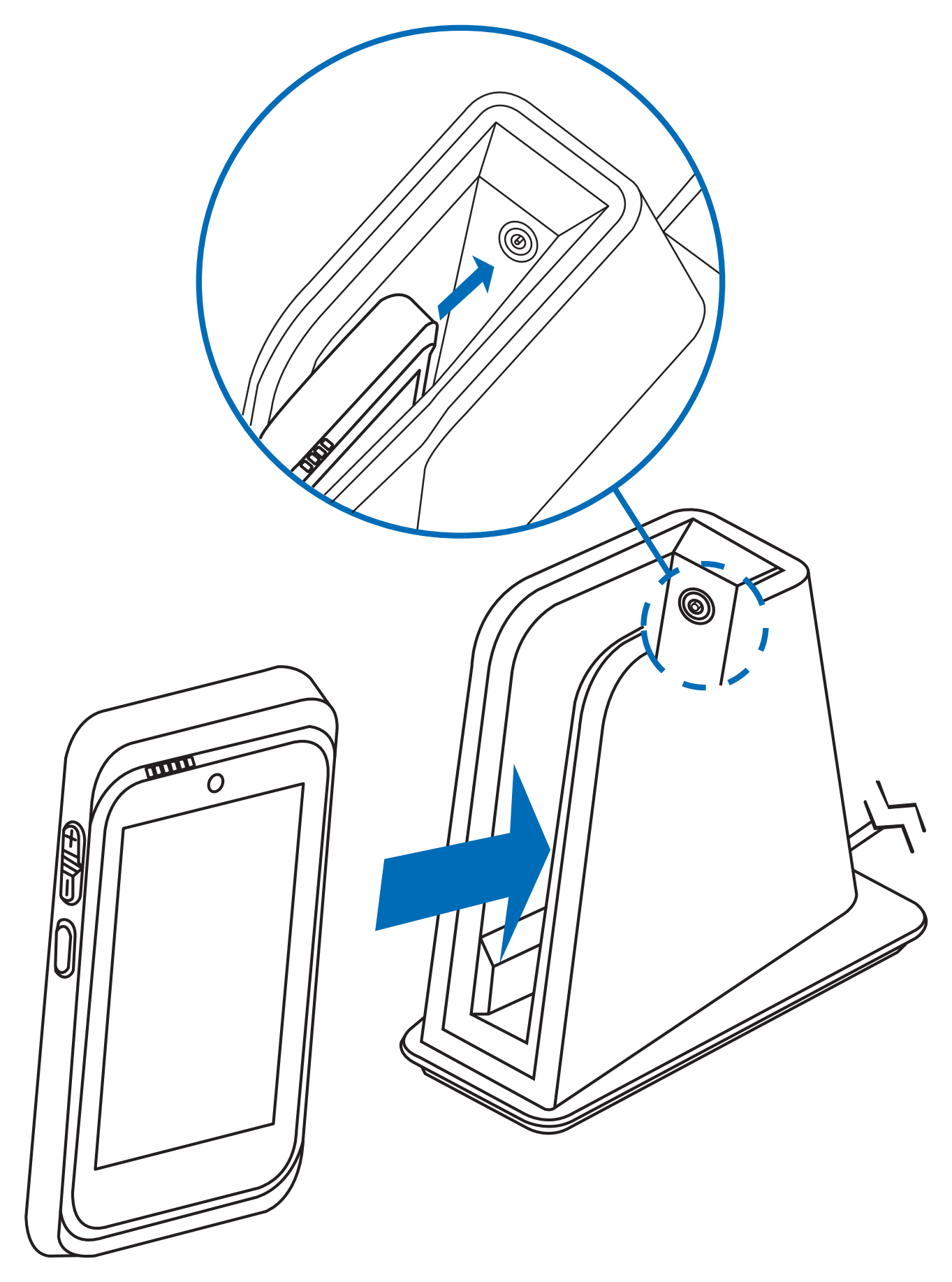

Figure 6: Inserting the device into the charger

7

Charge the Device

Once seated, the device is ready to charge in the charger.

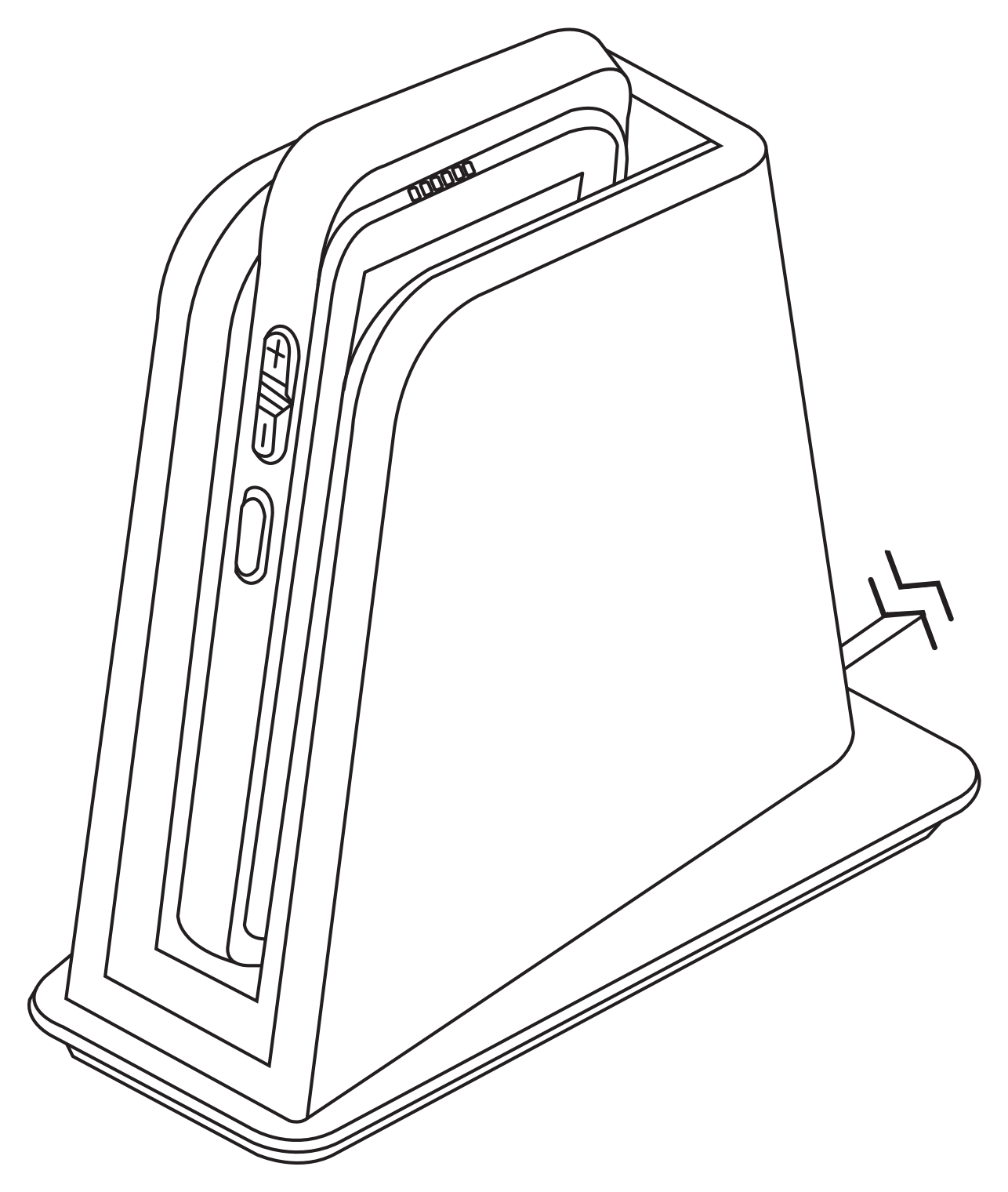

Figure 7: Device seated in the charger

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the product documentation on the Verifone website.
