e235 Charging Base Quick Installation Guide

Use this guide to unbox, identify, and set up the e235 Charging Base.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Cover

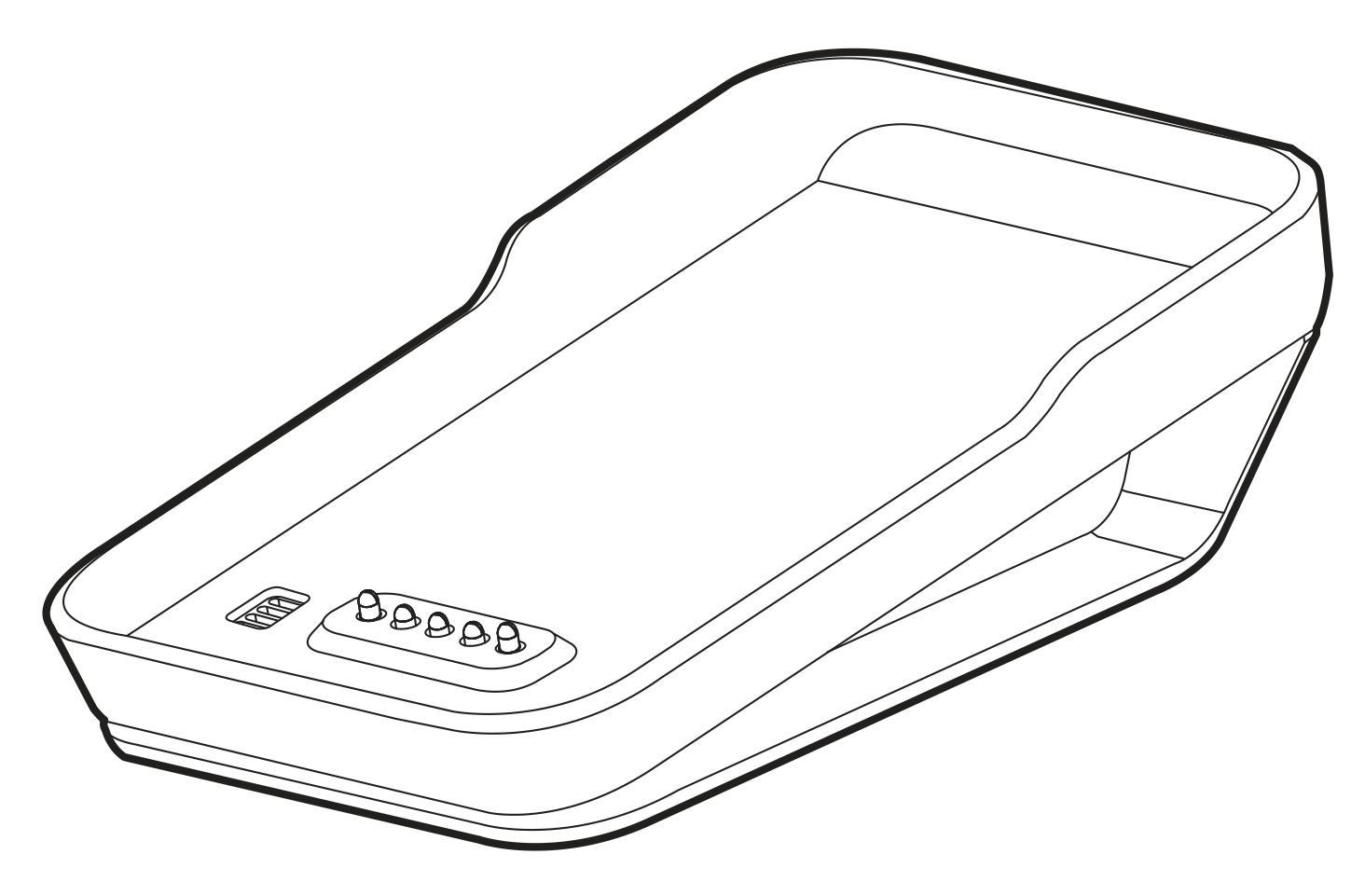

e235 Charging Base

Cover

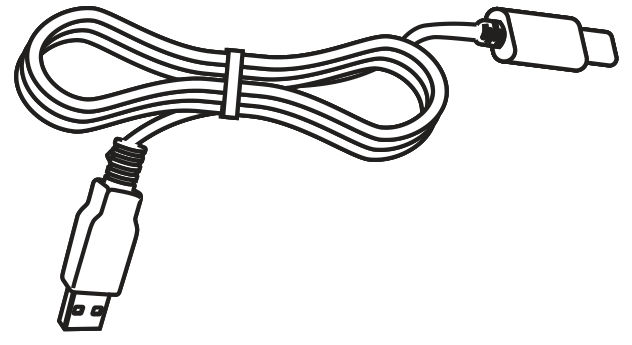

USB Cable

*power adapter varies by country

Quick Setup Guide

1

Fit the Rubber Feet

Turn the base upside down to reach the four recesses in its underside.

1

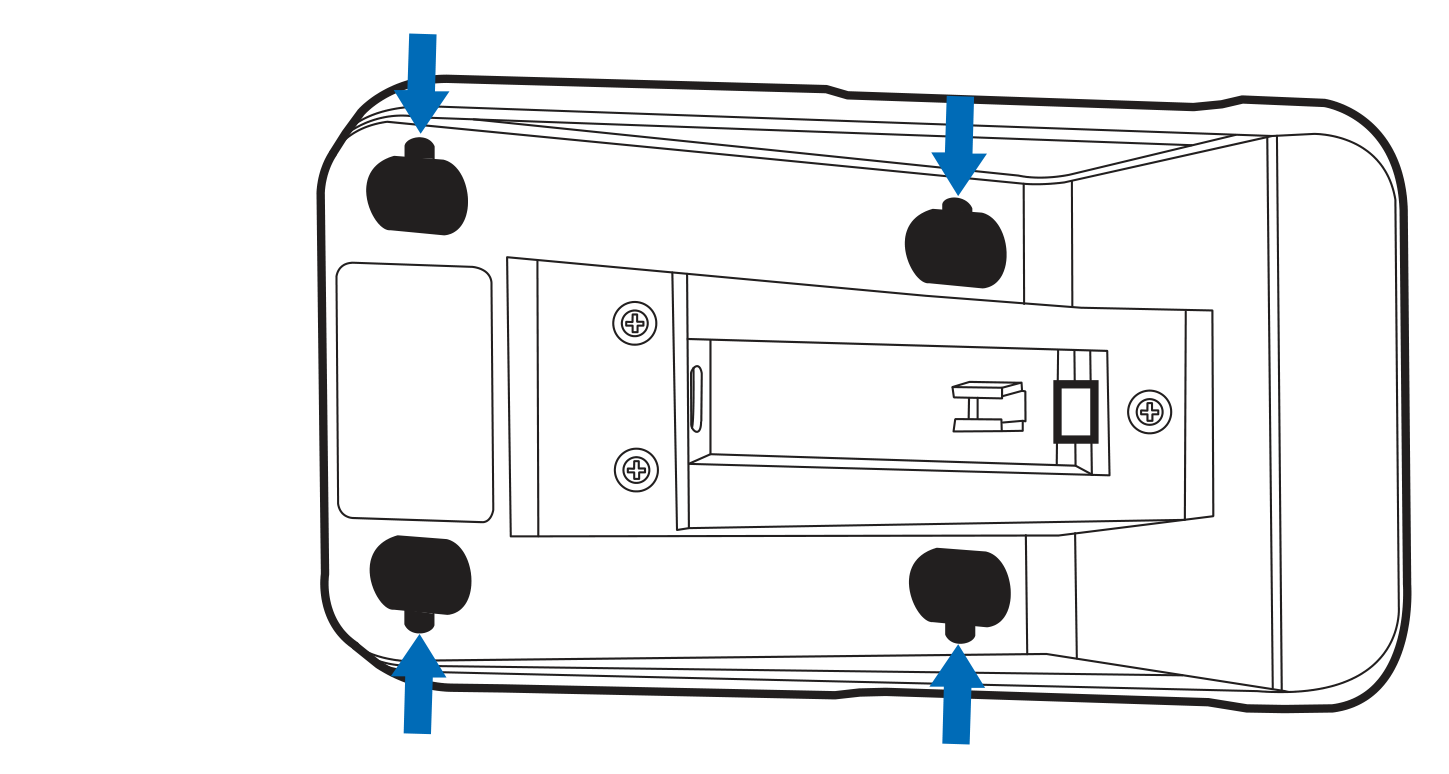

Press the feet into the underside

Press the four rubber feet into the recesses on the underside of the base.

2

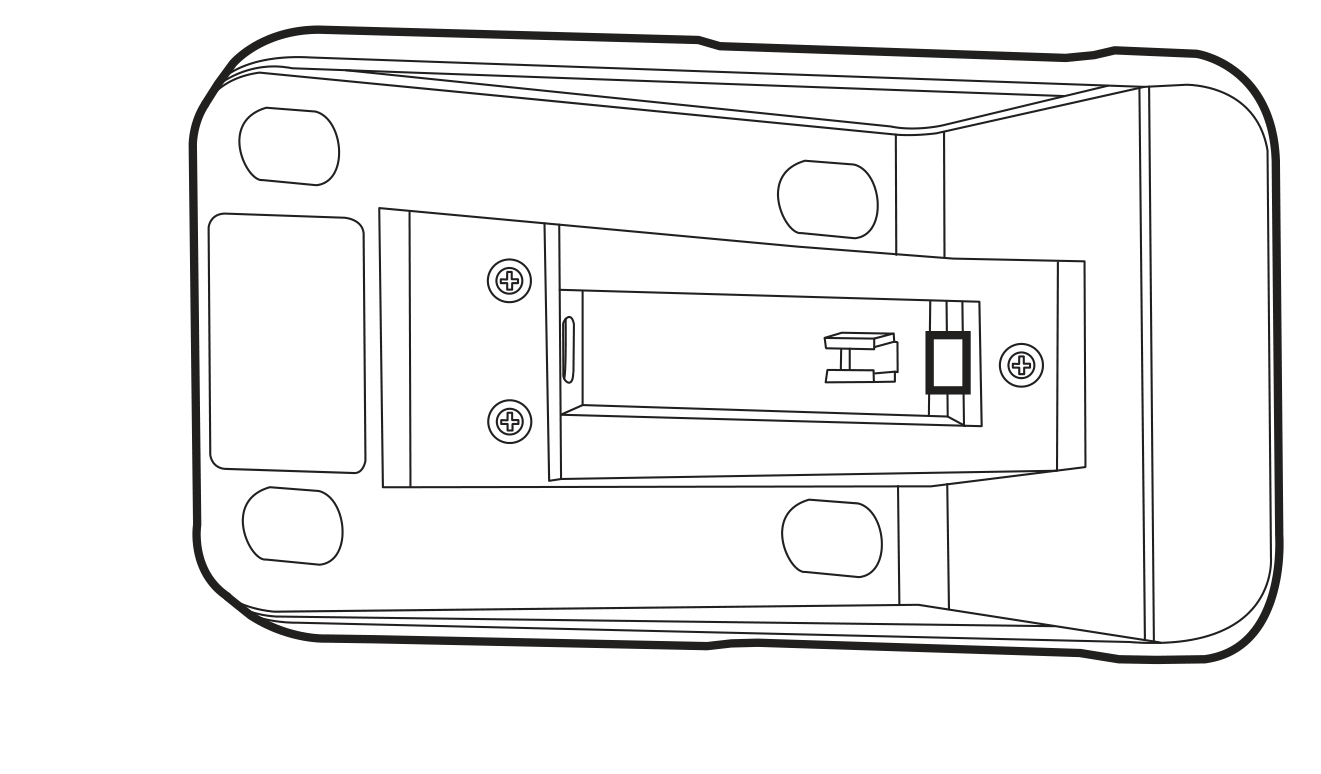

Underside without the feet

For reference, the underside of the base with the four recesses empty.

2

Fit the Terminal into the Case

1

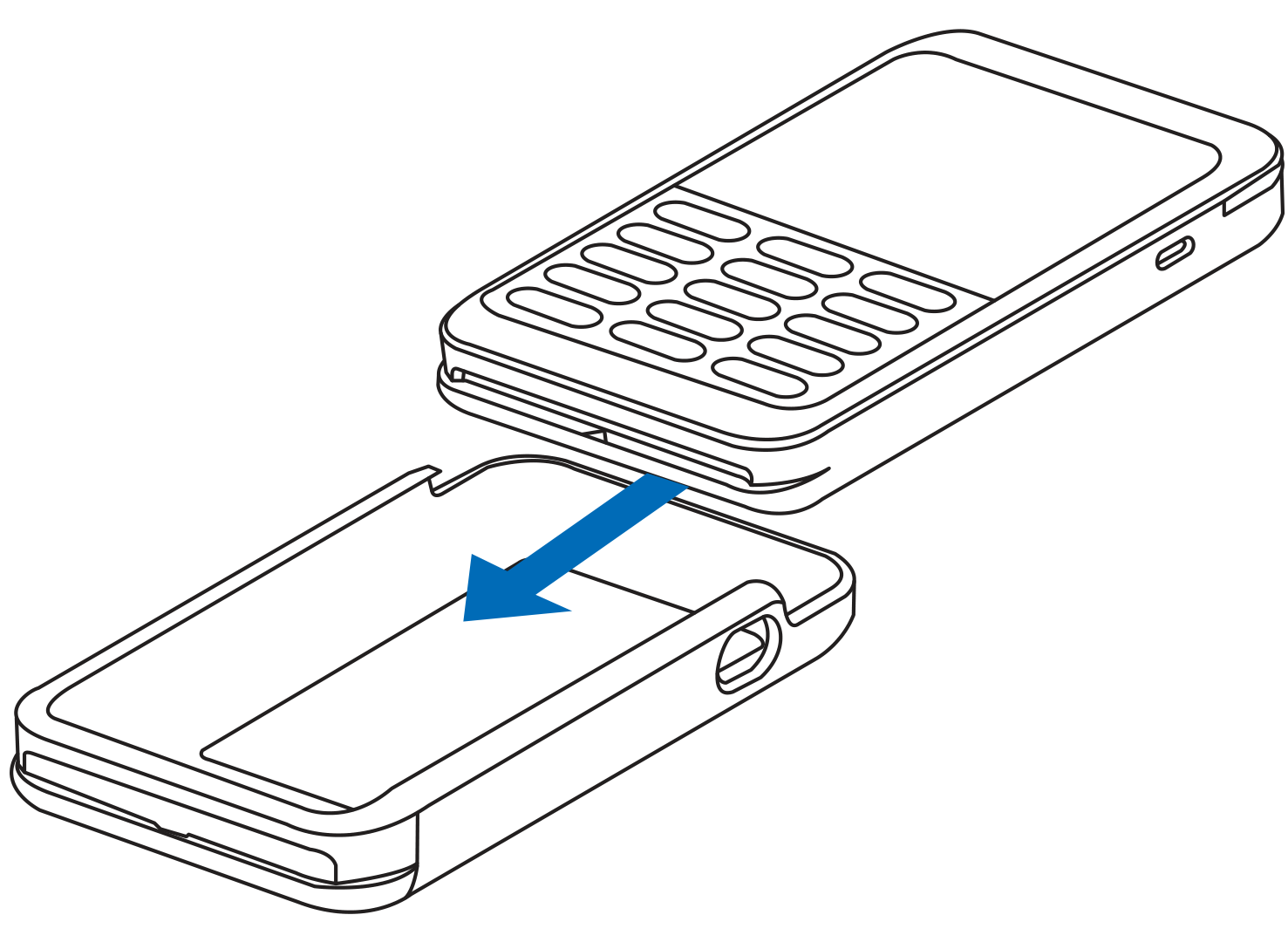

Lower the terminal into the case

Lower the terminal into the case so that the opening in the case lines up with the port on the side of the terminal.

2

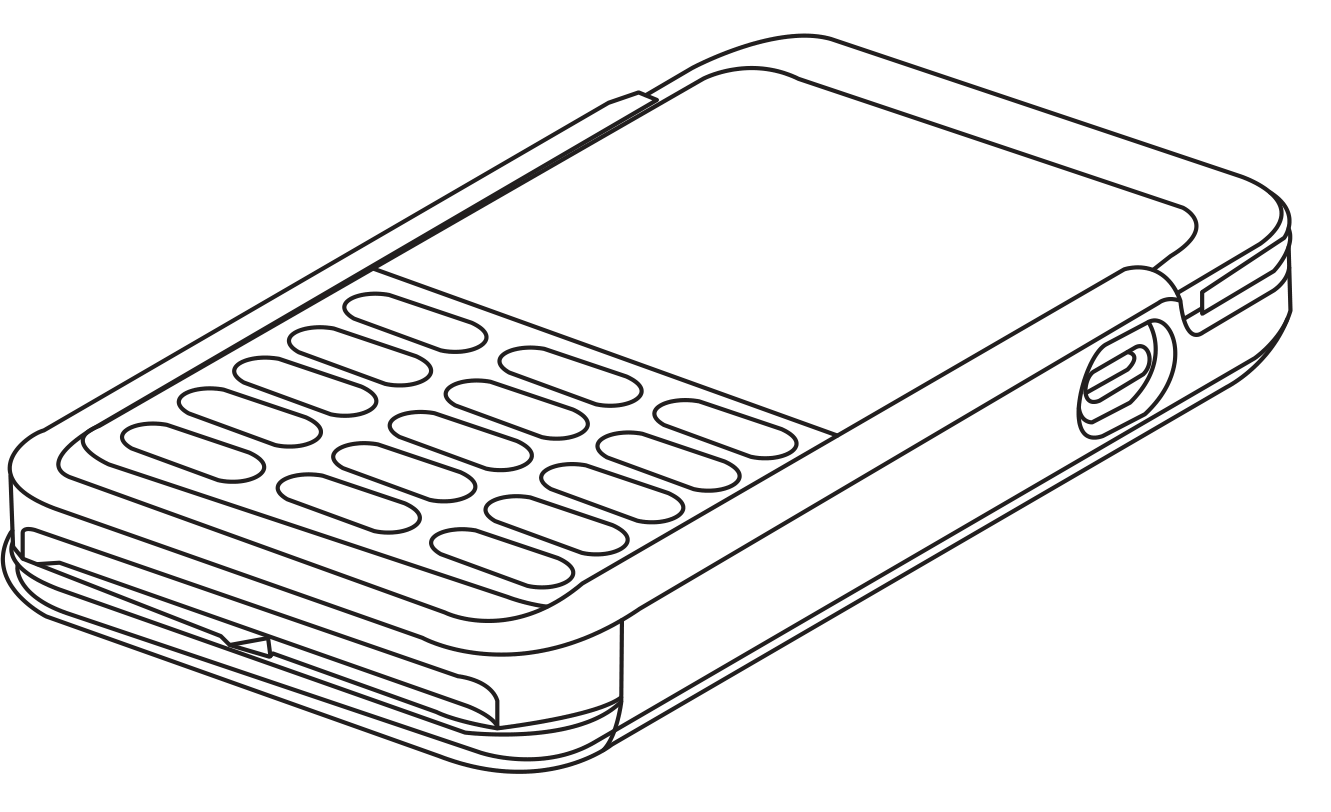

Terminal in the case

The terminal seated in the case, with its port accessible through the opening.

3

Connect the Base to Power

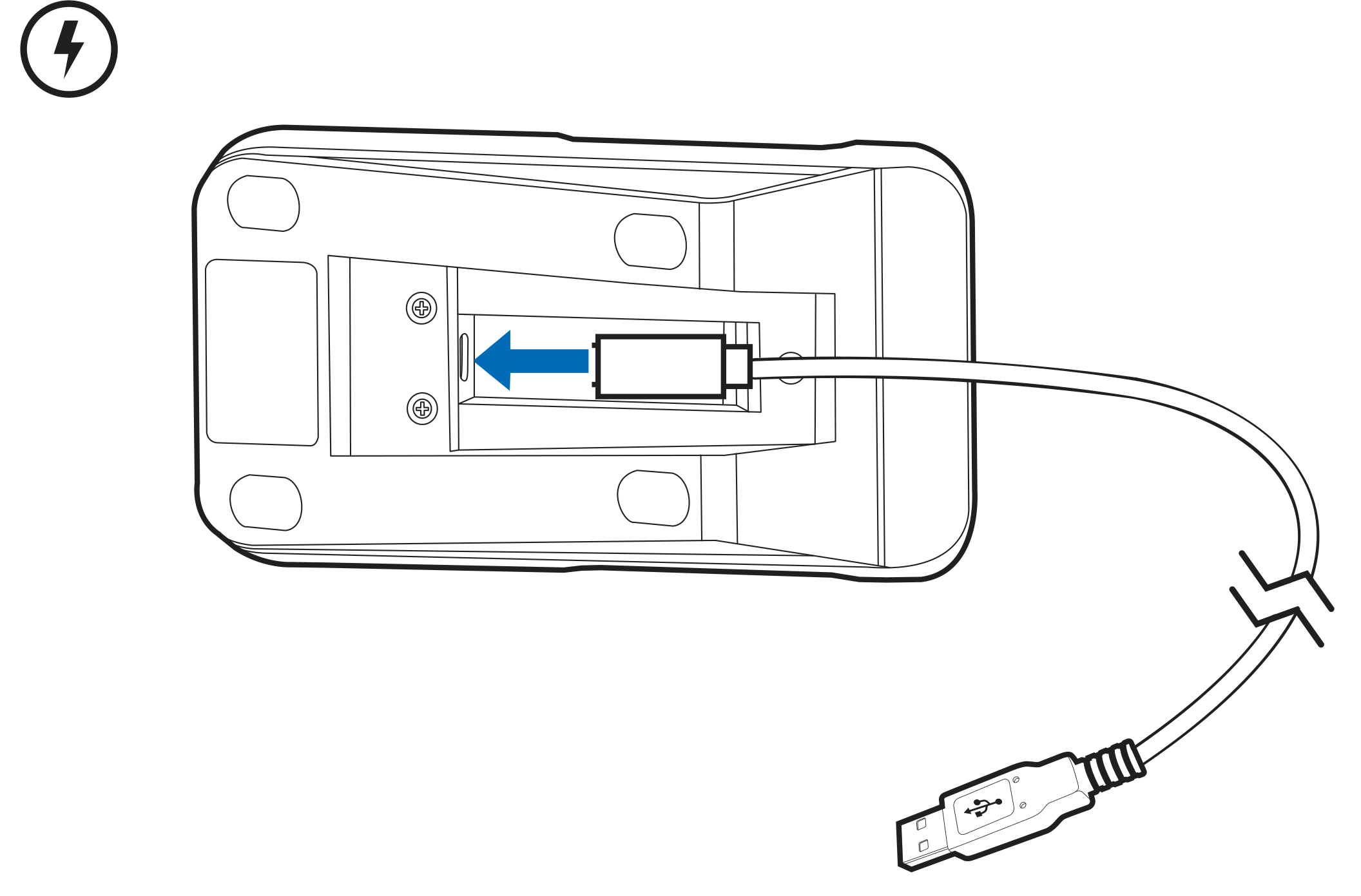

Connect the USB cable to the socket on the underside of the base and route the cable out through the channel, then connect the other end to a power source.

4

Dock the Terminal

1

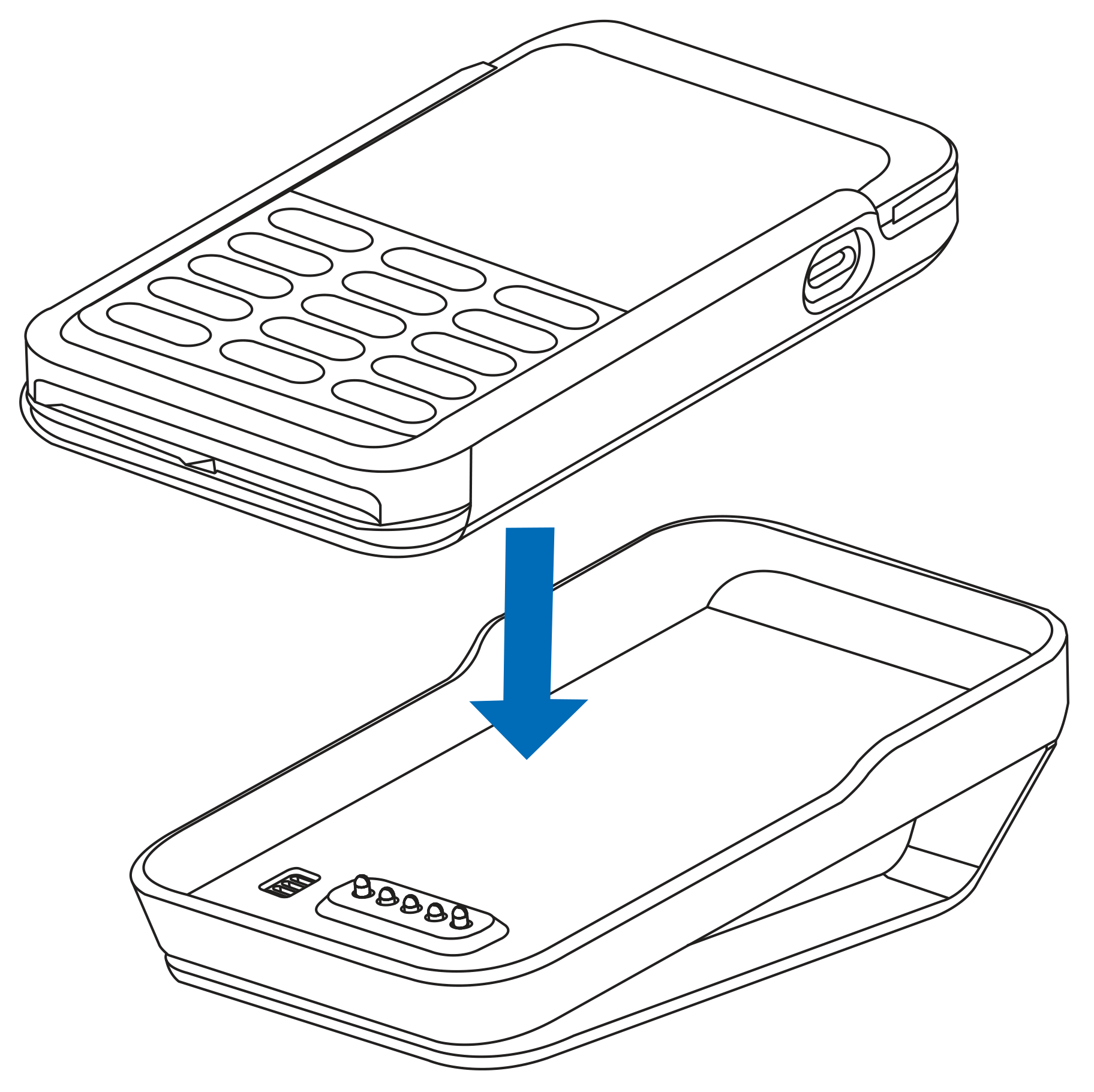

Lower the terminal onto the base

Lower the terminal into the base so that its contacts meet the charging pins in the cradle.

2

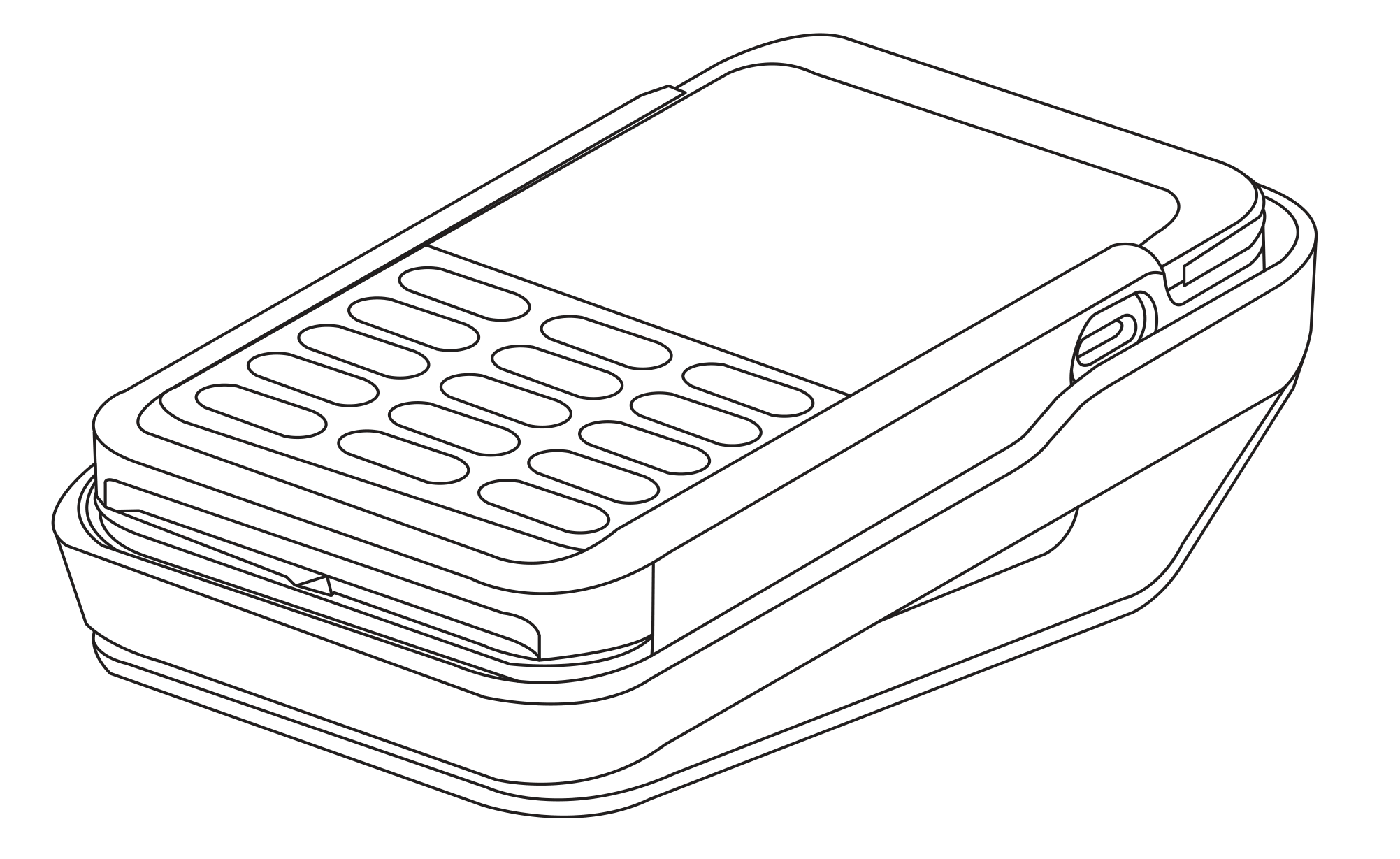

Terminal docked

The terminal seated in the base.

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the Installation Guide.
