# e235 Quick Installation Guide

Use this guide to unbox, identify, and set up the e235.

Before you begin, confirm you have all devices, cables, and accessories listed below.

## What's in the Box

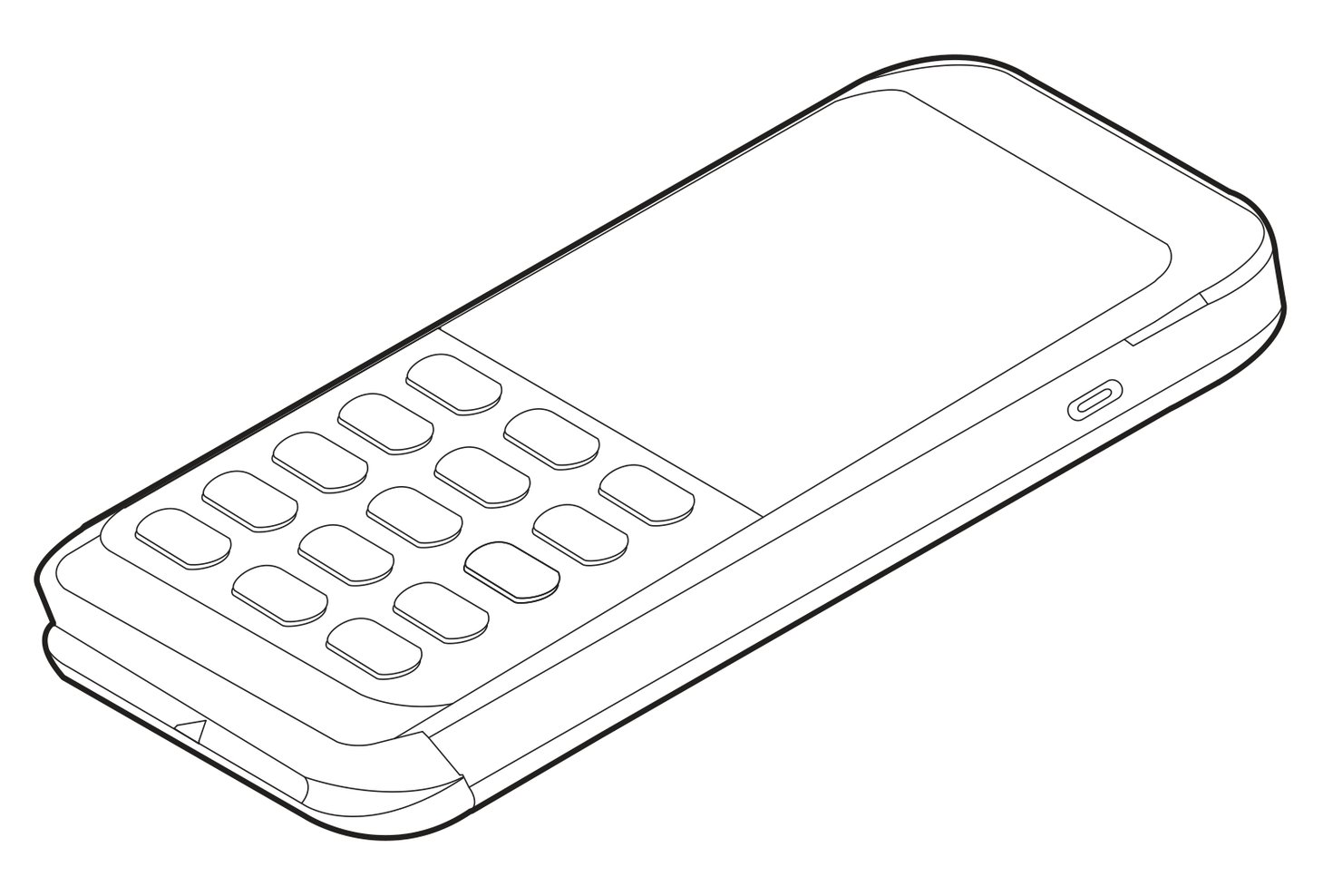

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="image">Cover image</th></tr></thead><tbody><tr><td><h3>e235 Device</h3></td><td></td><td data-object-fit="contain"><a href="/files/78eec684758fc9ddd42ea8395c6eb888ccd78211">/files/78eec684758fc9ddd42ea8395c6eb888ccd78211</a></td></tr><tr><td><h3>USB Cable</h3></td><td>*power adapter varies by country</td><td data-object-fit="contain"><a href="/files/85ff4cf878c6815e9e6961dd2fc8349f0820c4df">/files/85ff4cf878c6815e9e6961dd2fc8349f0820c4df</a></td></tr></tbody></table>

## Quick Setup Guide

{% stepper %}
{% step %}

### Insert the SIM and SAM Cards

Open the back of the terminal and remove the battery to reach the card slots.

{% stepper %}
{% step %}

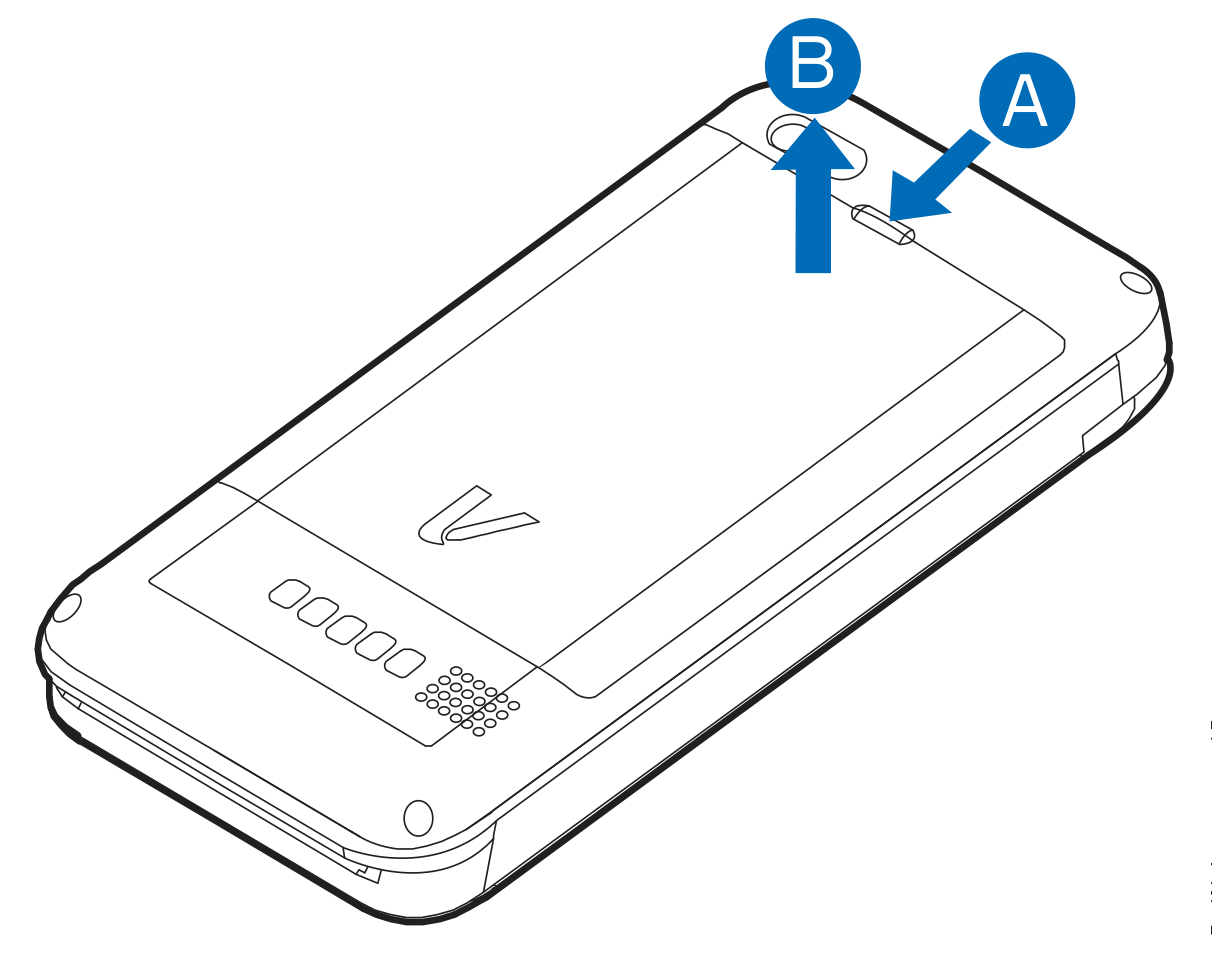

#### Release the back cover

Press the catch (A) and push the cover release upward (B).

<figure><img src="/files/499cd8b17e88021ae7e85366cee250f4646a3d93" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

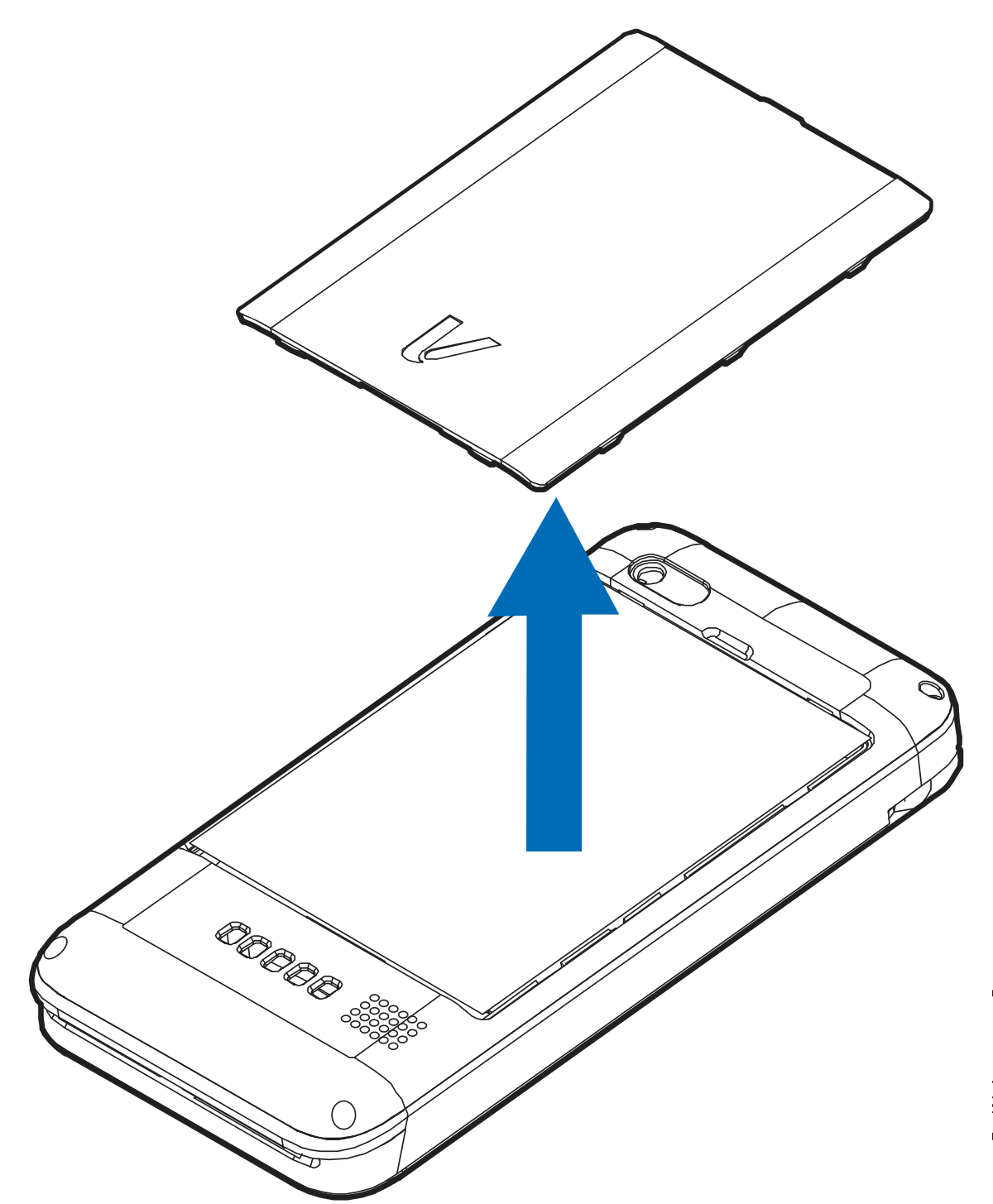

#### Remove the back cover

Lift the back cover away from the terminal.

<figure><img src="/files/1983f1a000dc45c9f1377921dce2f467991f5692" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

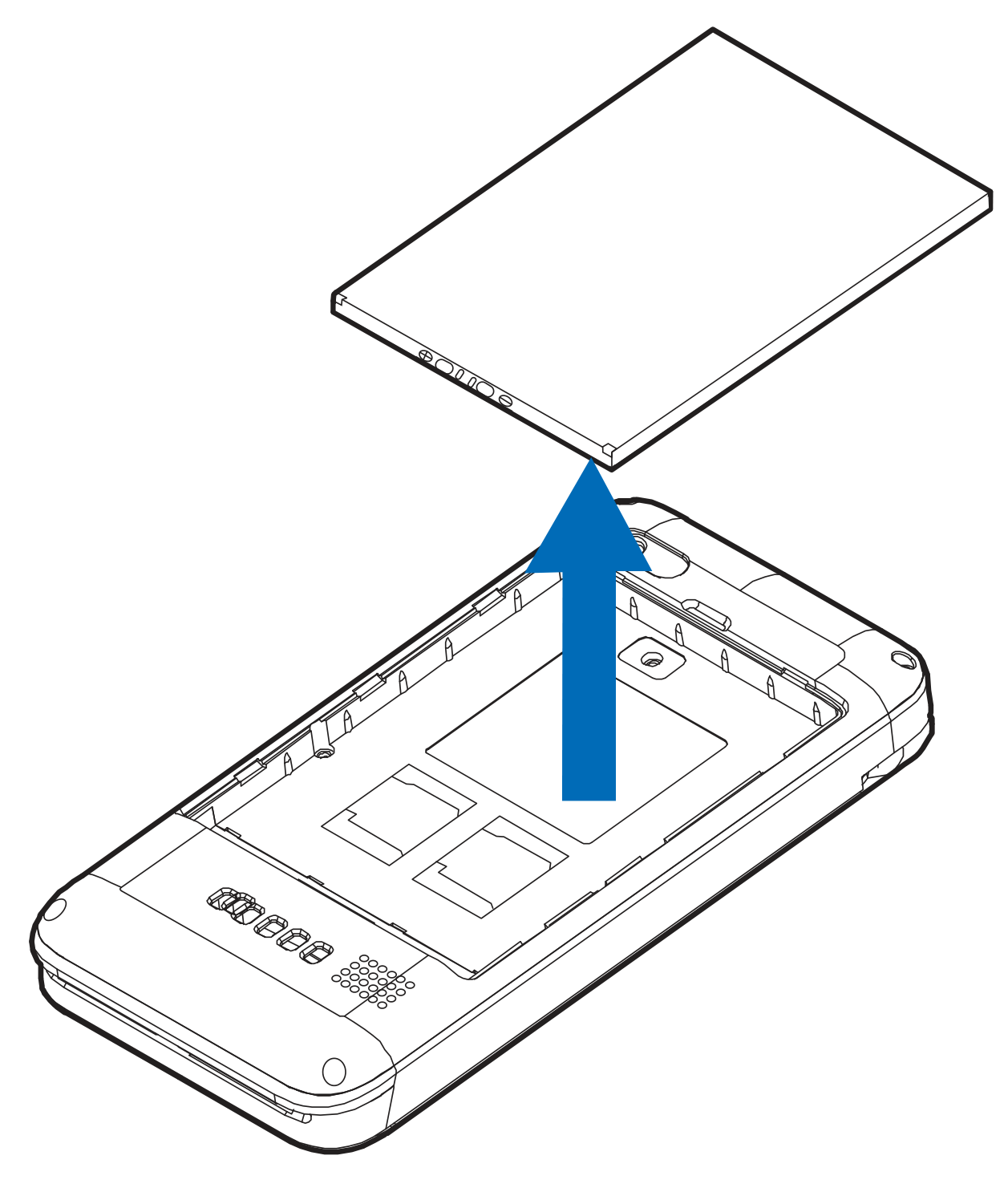

#### Remove the battery

Lift the battery out to expose the card slots.

<figure><img src="/files/c6771bfd4f0d7e262c9adb397e2ff6381818931f" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

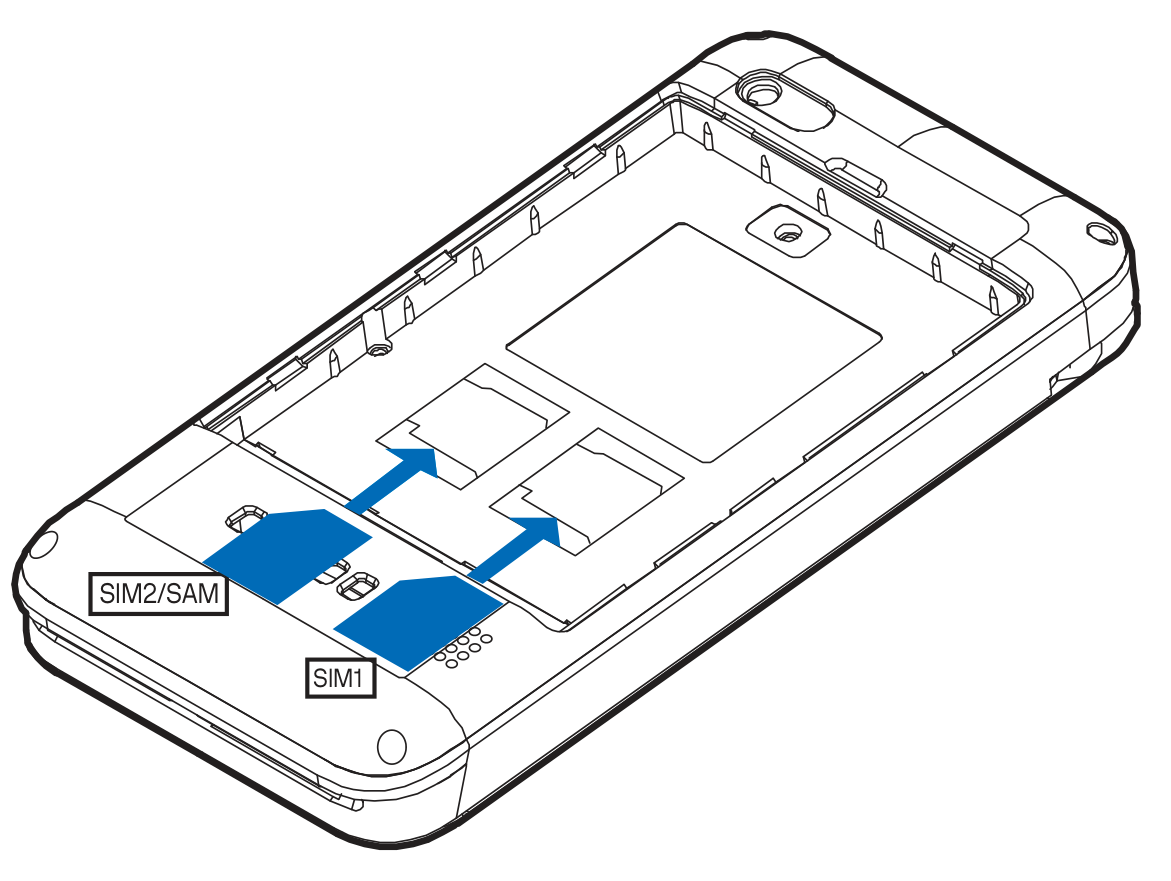

#### Insert the cards

Slide the cards into the slots marked SIM2/SAM and SIM1.

<figure><img src="/files/53a41f361d760325be669d1127b54a9cc24d45af" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Charge the Battery

{% stepper %}
{% step %}

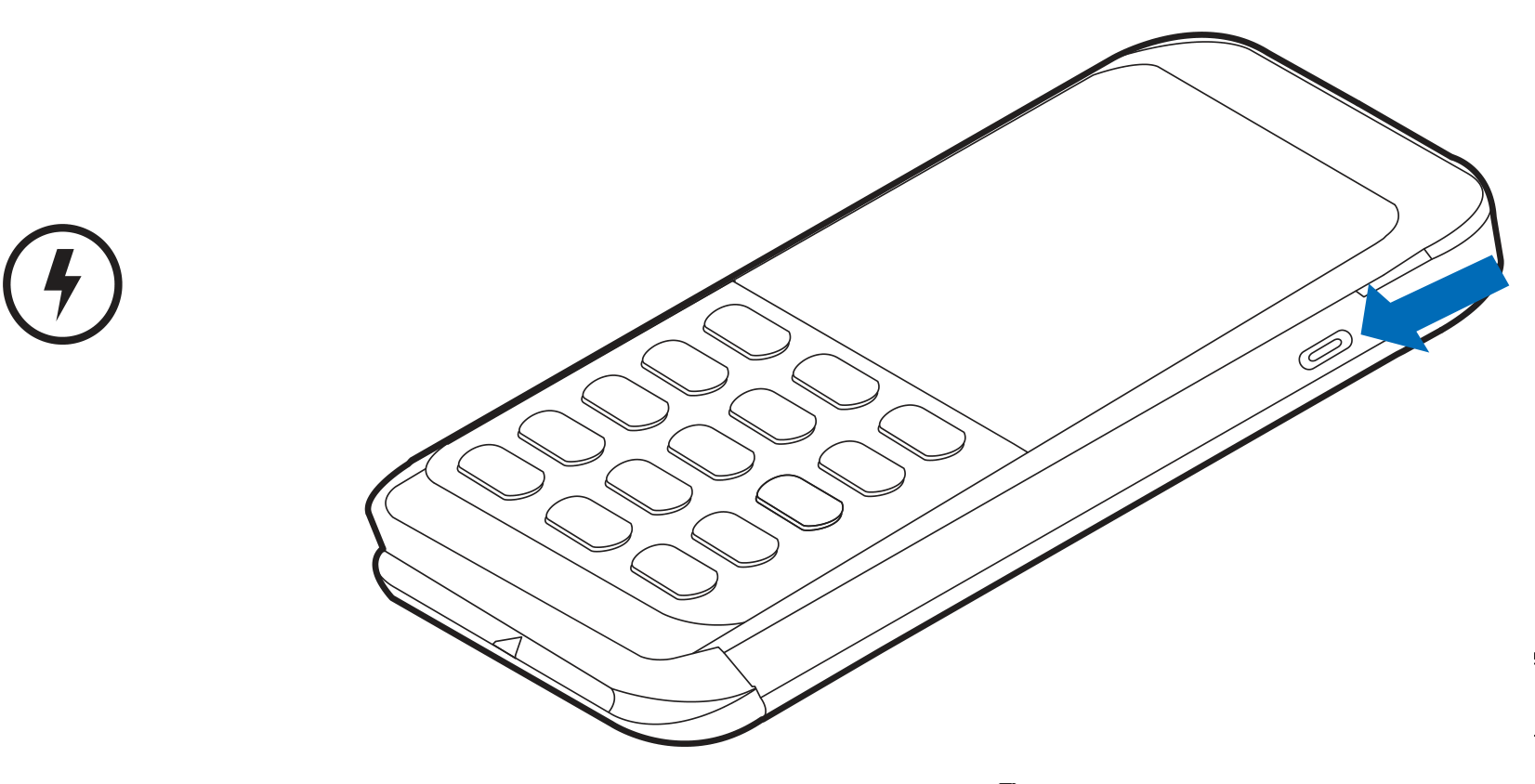

#### Connect the cable to the terminal

Connect the USB cable to the charging port on the top edge of the terminal.

<figure><img src="/files/a93667f5bfba08abe01b397d03808d934d4c56d0" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

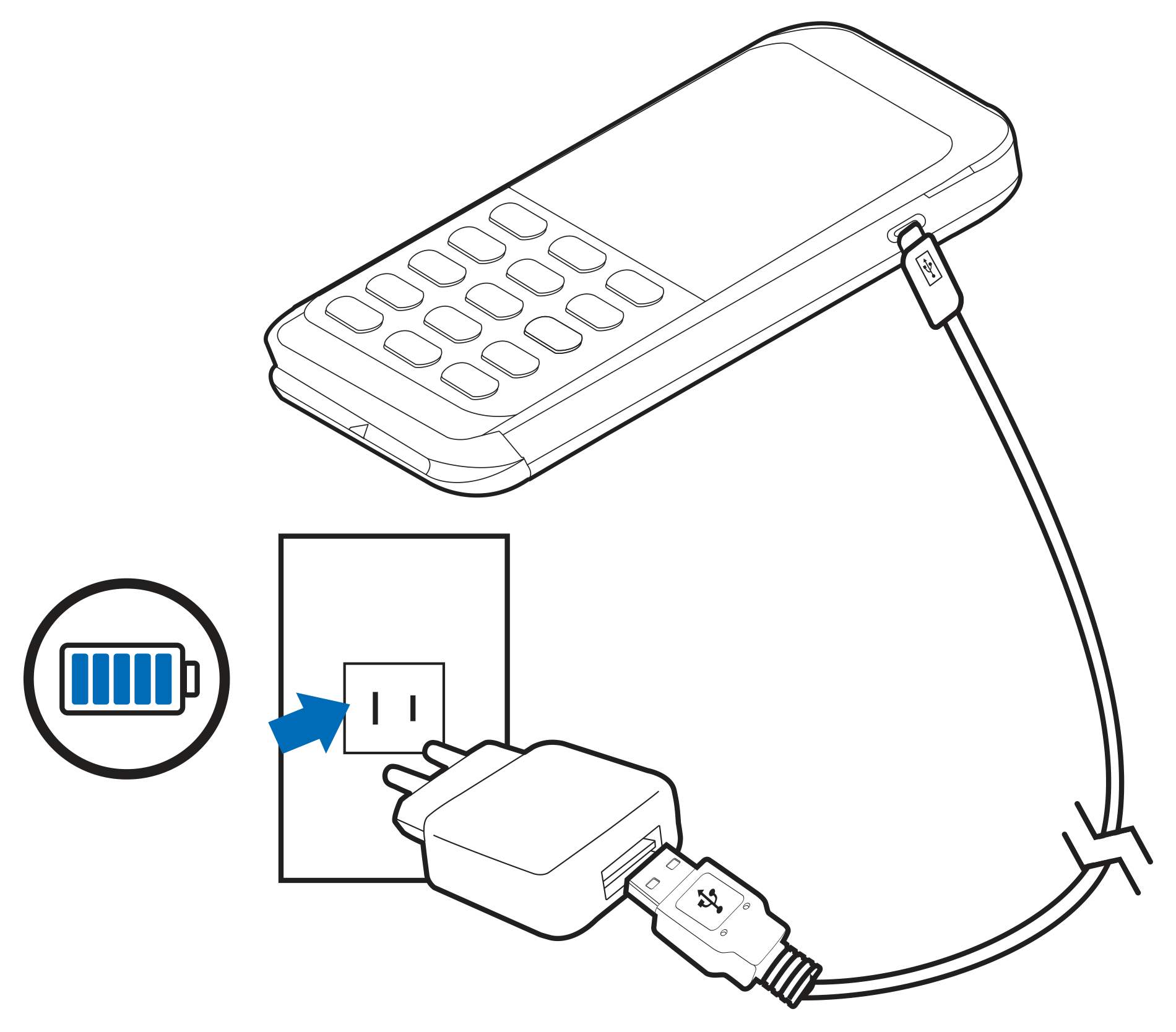

#### Connect to power

Plug the power adapter into a mains socket to begin charging.

<figure><img src="/files/783fbfe2c0075632030dfadc6e190ae9e07ff7d0" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Take a Payment

The terminal accepts three card payment methods.

{% stepper %}
{% step %}

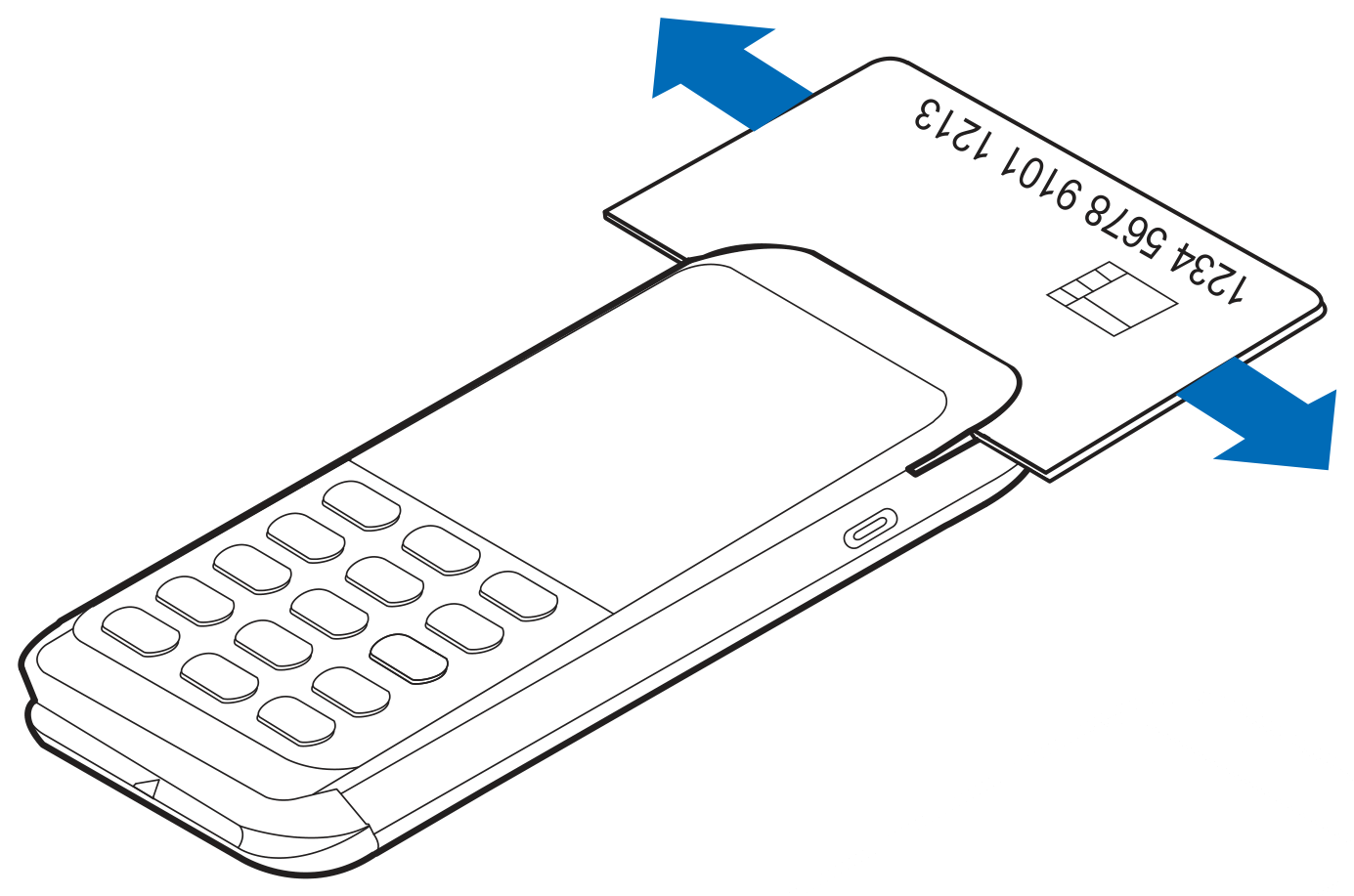

#### Swipe a magnetic-stripe card

Swipe the card through the magnetic-stripe reader slot on the top edge of the terminal.

<figure><img src="/files/ed21d3ac30baf5c834af470e61f3860f6e4c0244" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

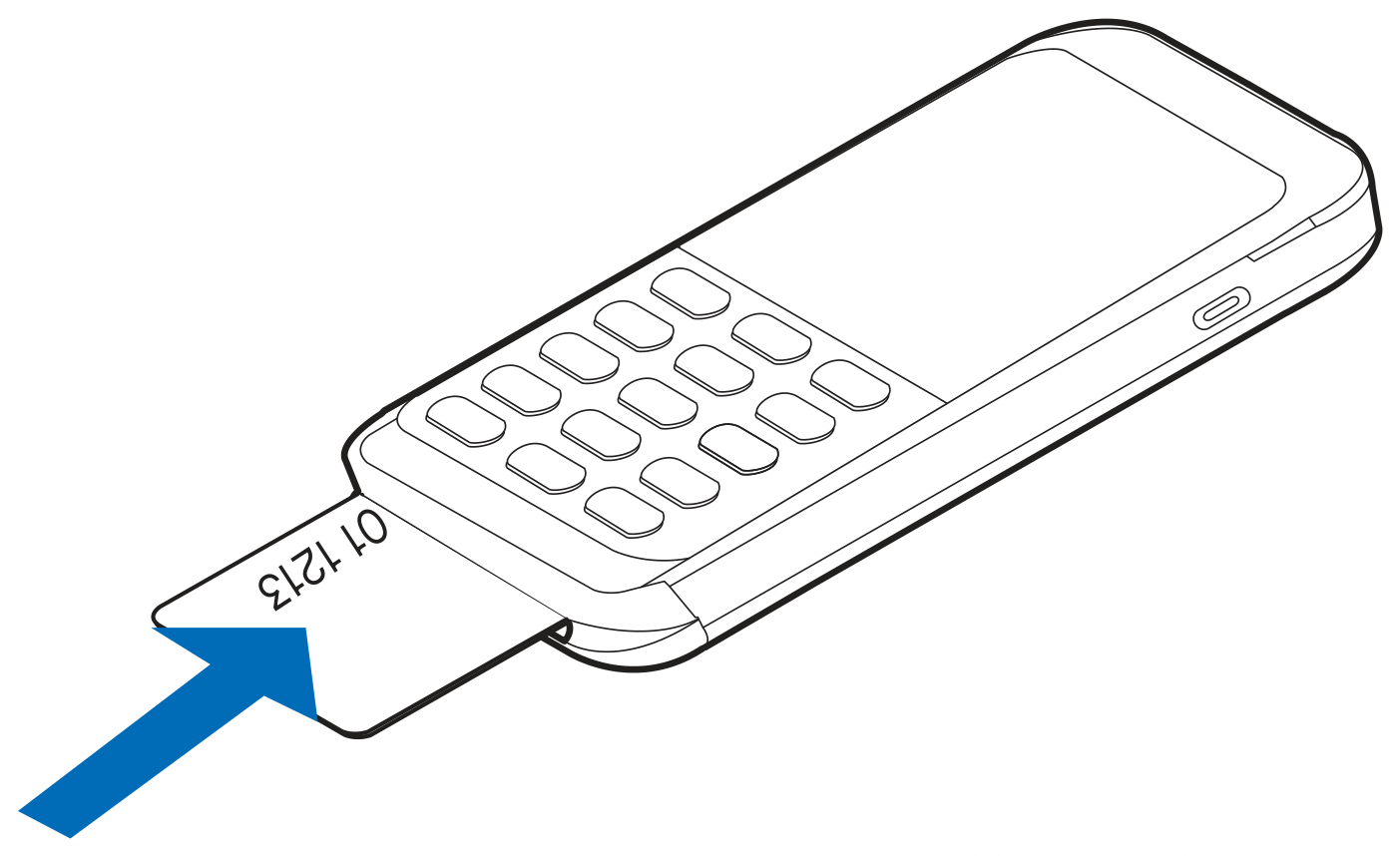

#### Insert a chip card

Insert the chip card into the card reader slot at the front of the terminal.

<figure><img src="/files/347a30388c0a7d7091fb4dfb9a561831aeb7b06d" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Tap a contactless card

Hold the contactless card flat against the display area of the terminal.

<figure><img src="/files/e08ce3a479431c1281a7942bc2b72c0c2bac627d" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}
{% endstepper %}

## Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the [Installation Guide](/hardware-products/hardware/engage-devices/exxx-series/e235/e235-installation-guide.md) (DOC194-003-EN-A).


---
