# e280 Quick Installation Guide

Set up the Verifone e280 handheld payment device and start accepting payments.

Before you begin, confirm you have all devices, cables, and accessories listed below.

## What's in the Box

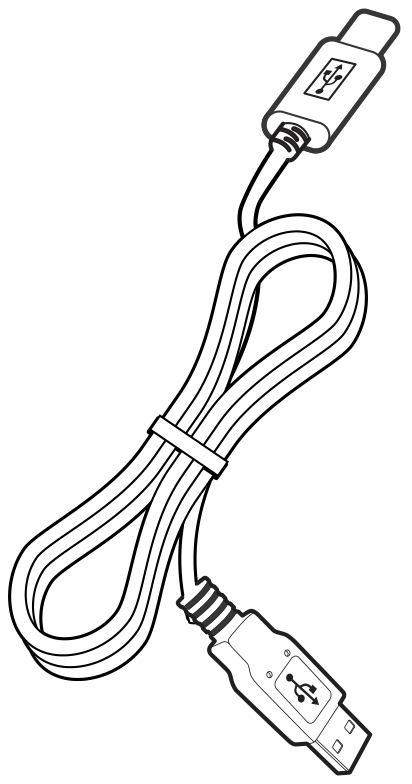

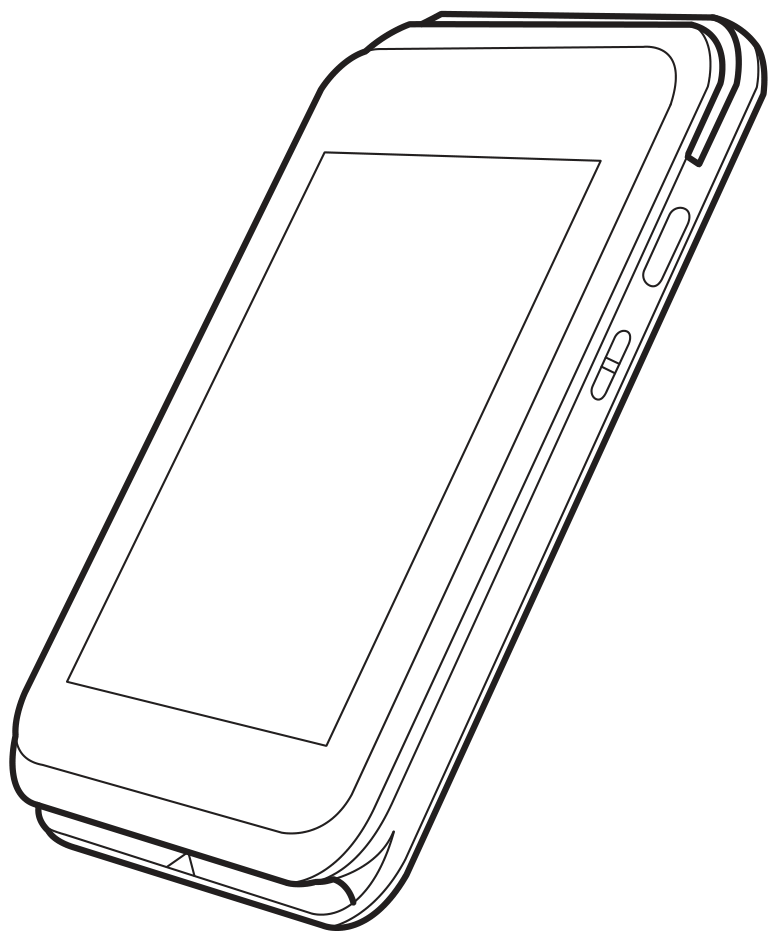

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="image">Cover image</th></tr></thead><tbody><tr><td><h3>e280 device</h3></td><td></td><td data-object-fit="contain"><a href="/files/b5d31df7cbf260bbe30c340f2bb299853f6a1c54">/files/b5d31df7cbf260bbe30c340f2bb299853f6a1c54</a></td></tr><tr><td><h3>USB-C to USB-A cable</h3></td><td></td><td data-object-fit="contain"><a href="/files/01037a41e9d74412cc773291653b19069d210b9c">/files/01037a41e9d74412cc773291653b19069d210b9c</a></td></tr></tbody></table>

## Quick Setup Guide

{% stepper %}
{% step %}

### Connect the Power

Connect the USB-C end of the cable to the device, then power it from either a wall outlet or a computer.

{% stepper %}
{% step %}

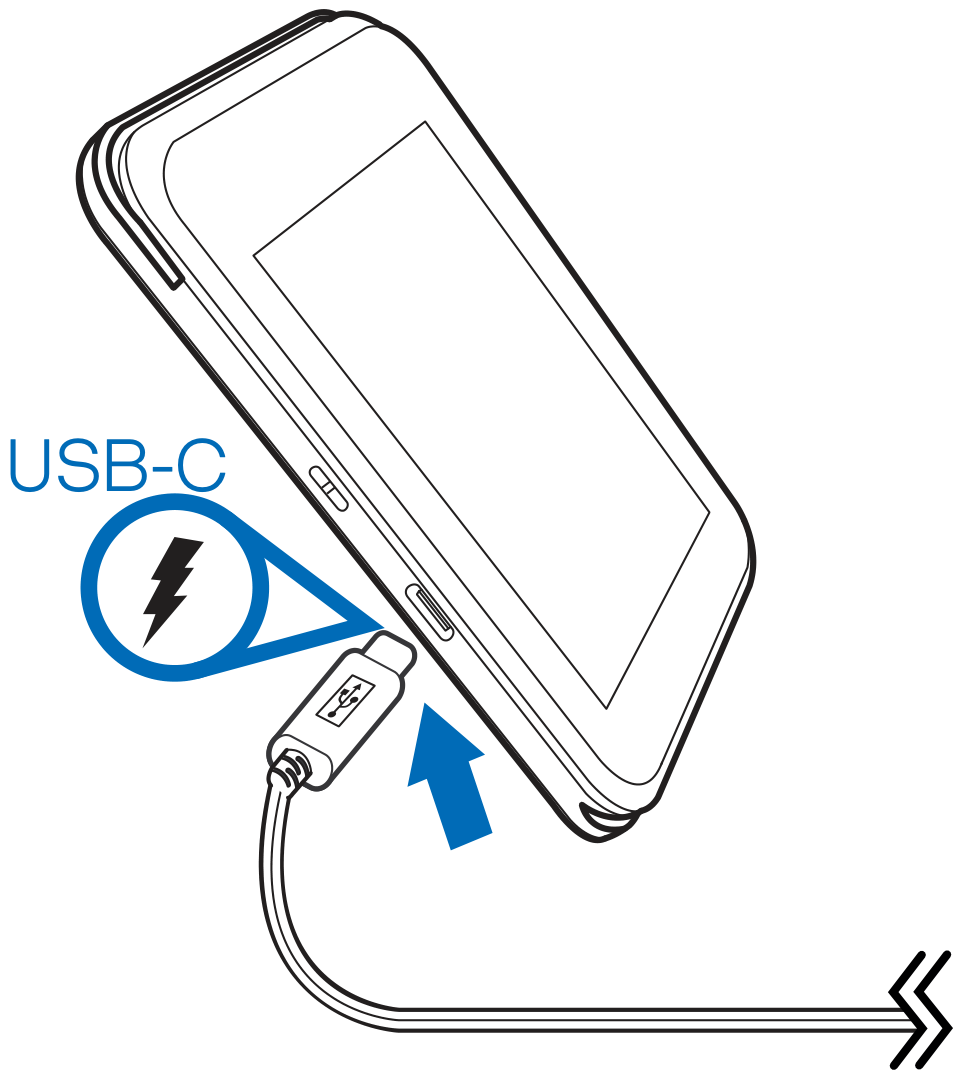

#### Connect the cable to the device

Plug the USB-C connector into the port on the left-hand side of the device.

<figure><img src="/files/b0e80b5648eeb094a2da5c1baf710d663d1dd052" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

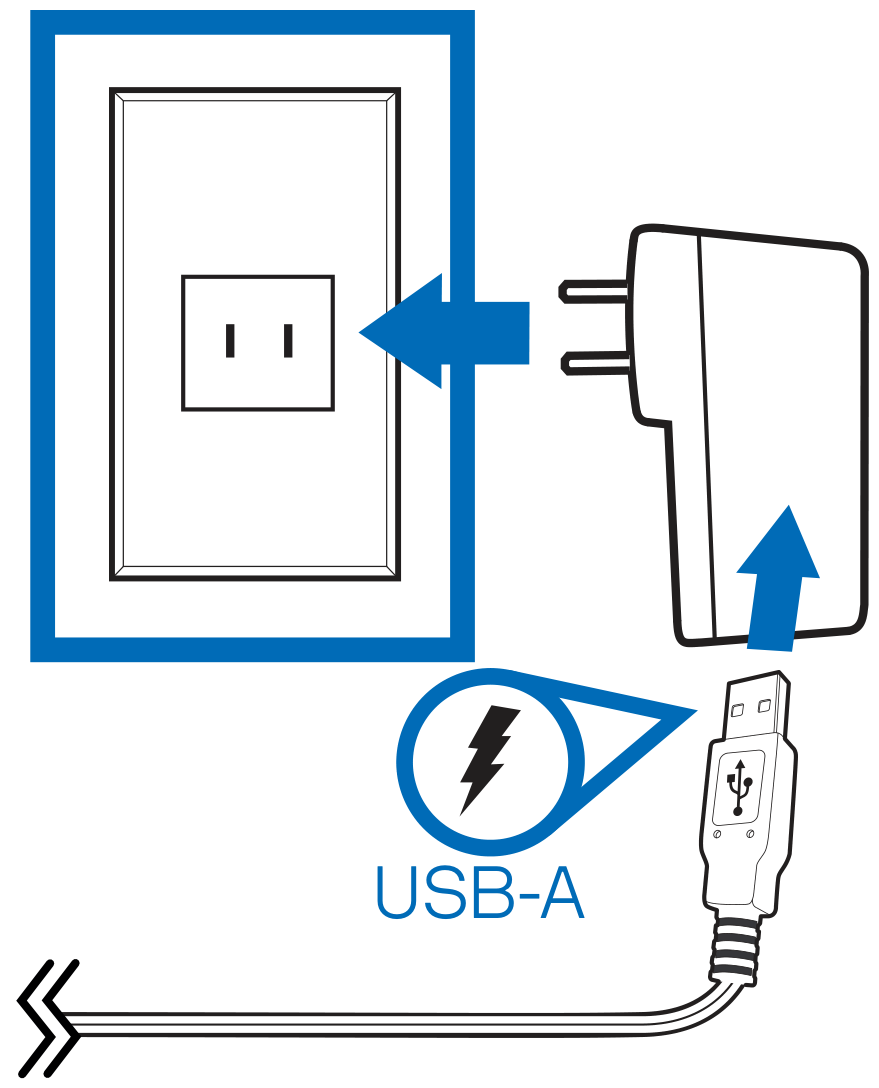

#### Power it from a wall outlet

Plug the USB-A end into a USB charger head, then plug the charger into a wall outlet.

<figure><img src="/files/7b8053468a474262be1ede12d843cd63008732ae" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

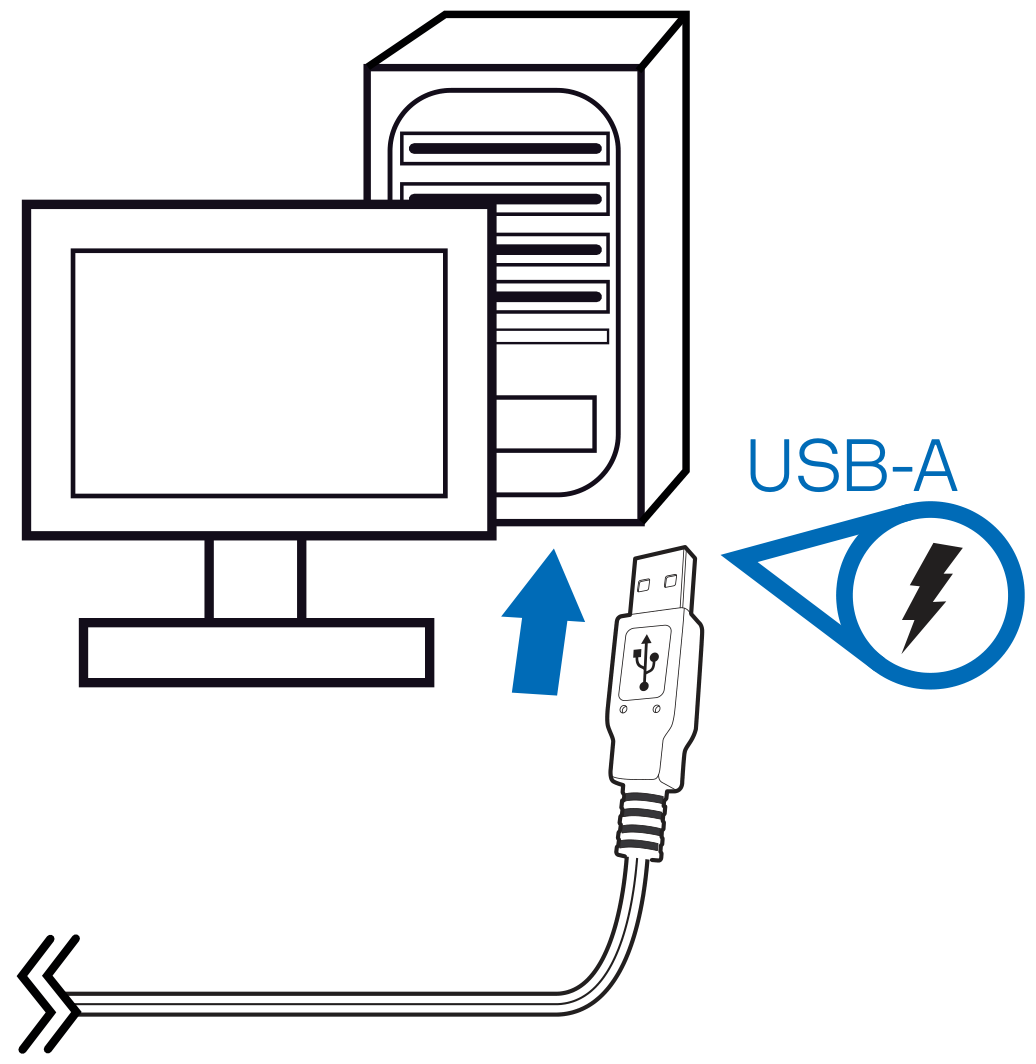

#### Or power it from a computer

Alternatively, plug the USB-A end into a USB-A port on a computer.

<figure><img src="/files/a68d3eceb8fa4195158b460aff50b17ab1fb3e61" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

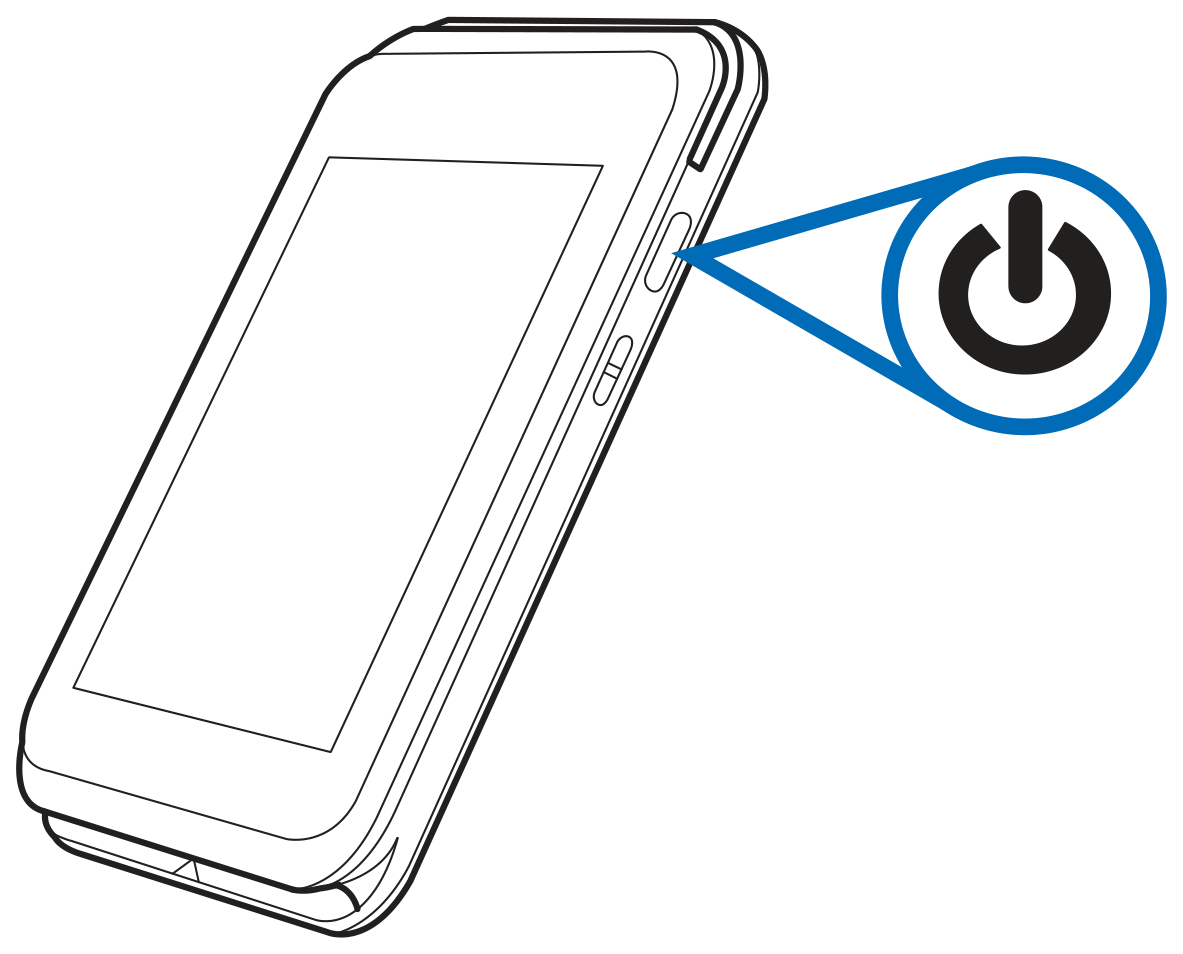

### Power On the Device

Hold the start button on the right-hand side of the device for about 10 seconds, until the startup screen appears.

<figure><img src="/files/dd136b910efc6b7408831730518a2dcb9364f612" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Connect the Device to a Host

Connect the device to a computer with the USB cable, or connect it wirelessly.

{% stepper %}
{% step %}

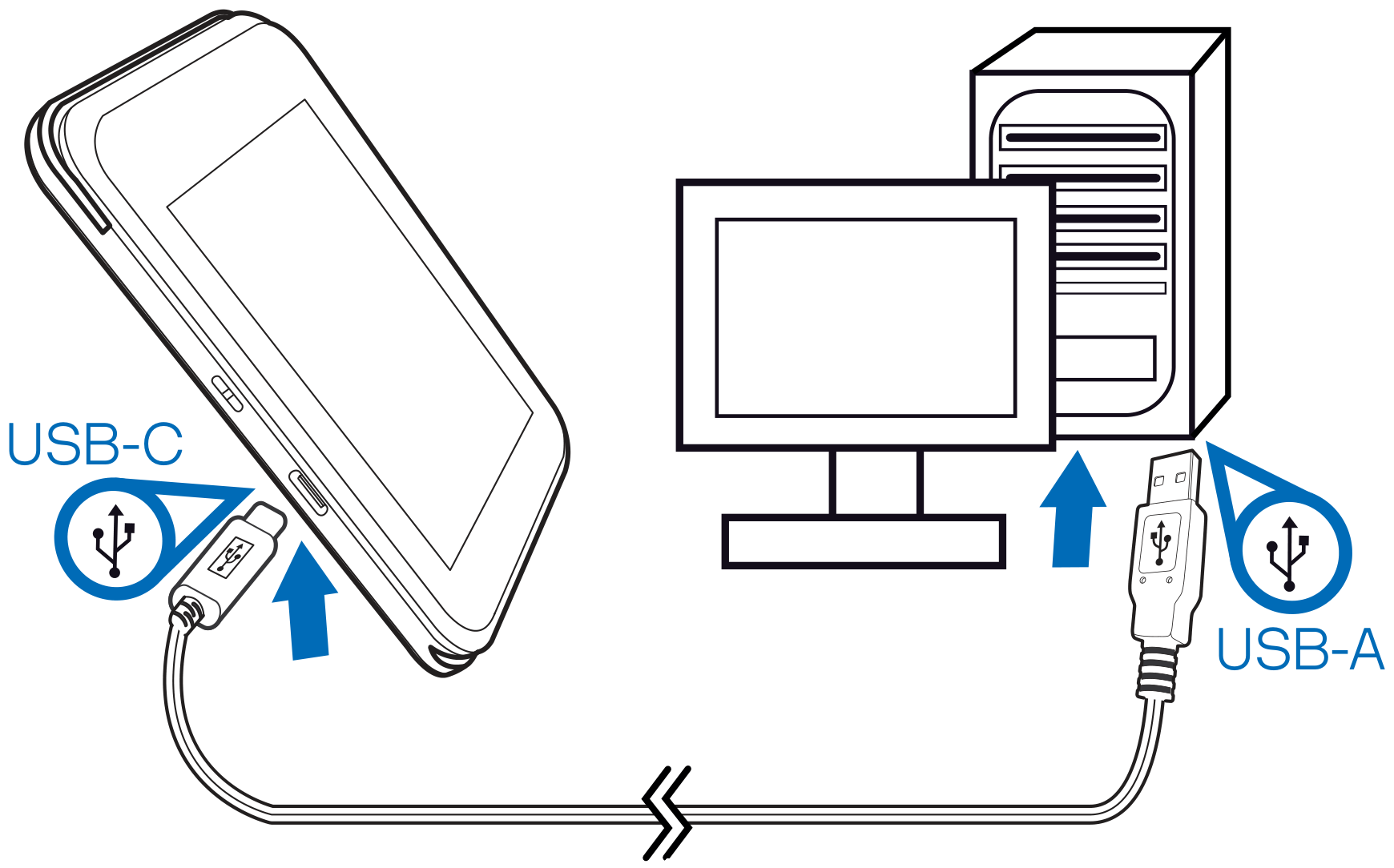

#### Connect over USB

Plug the USB-C end into the device and the USB-A end into the computer.

<figure><img src="/files/b860428229a57137b1a370a187ec205cd064e4be" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

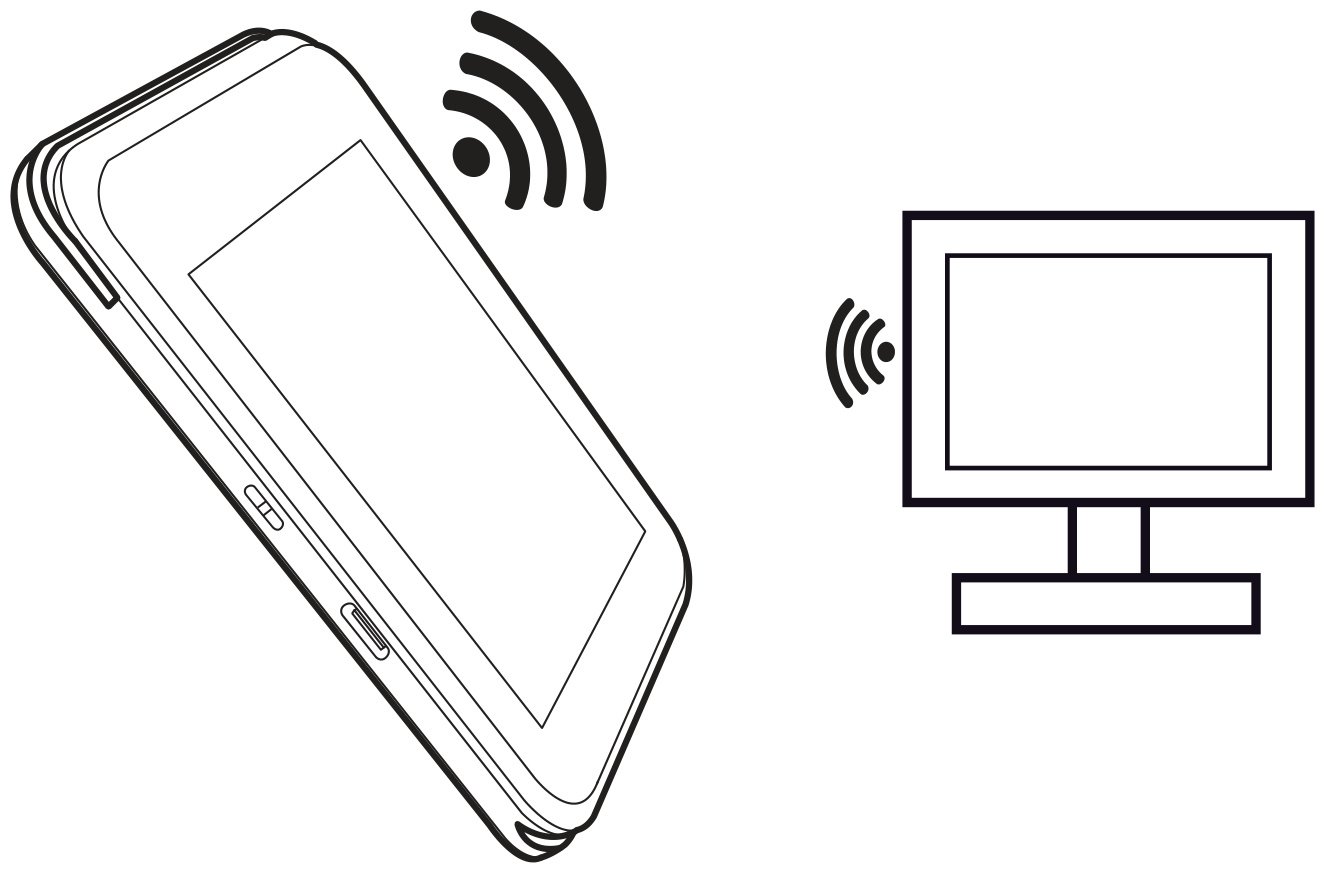

#### Or connect wirelessly

Connect the device to the host over Wi-Fi or Bluetooth.

<figure><img src="/files/475f1ba1b160a0c906da59c808abaa2741fa1c89" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Attach a Lanyard

Thread a wrist or neckband lanyard through the lanyard hole on the side of the device.

<figure><img src="/files/31a789539ca7f91d90e7034c26b2208cc4a02c70" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Take a Payment

The device accepts magnetic stripe, chip, and contactless cards.

{% stepper %}
{% step %}

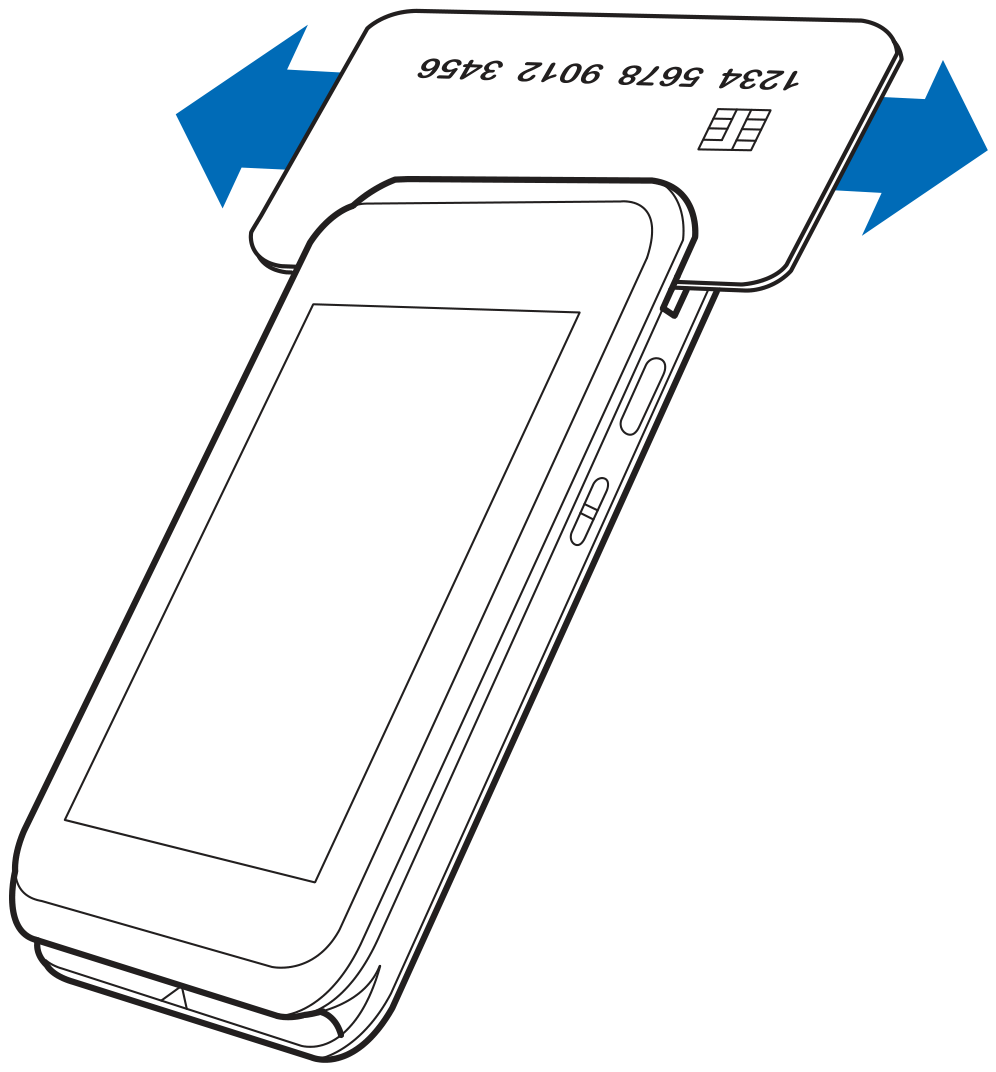

#### Swipe a magnetic stripe card

Swipe the card through the reader at the top of the device. The card can be swiped from either direction.

<figure><img src="/files/d40b6ceaa9c022813e359def59e1cc01b3aad832" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

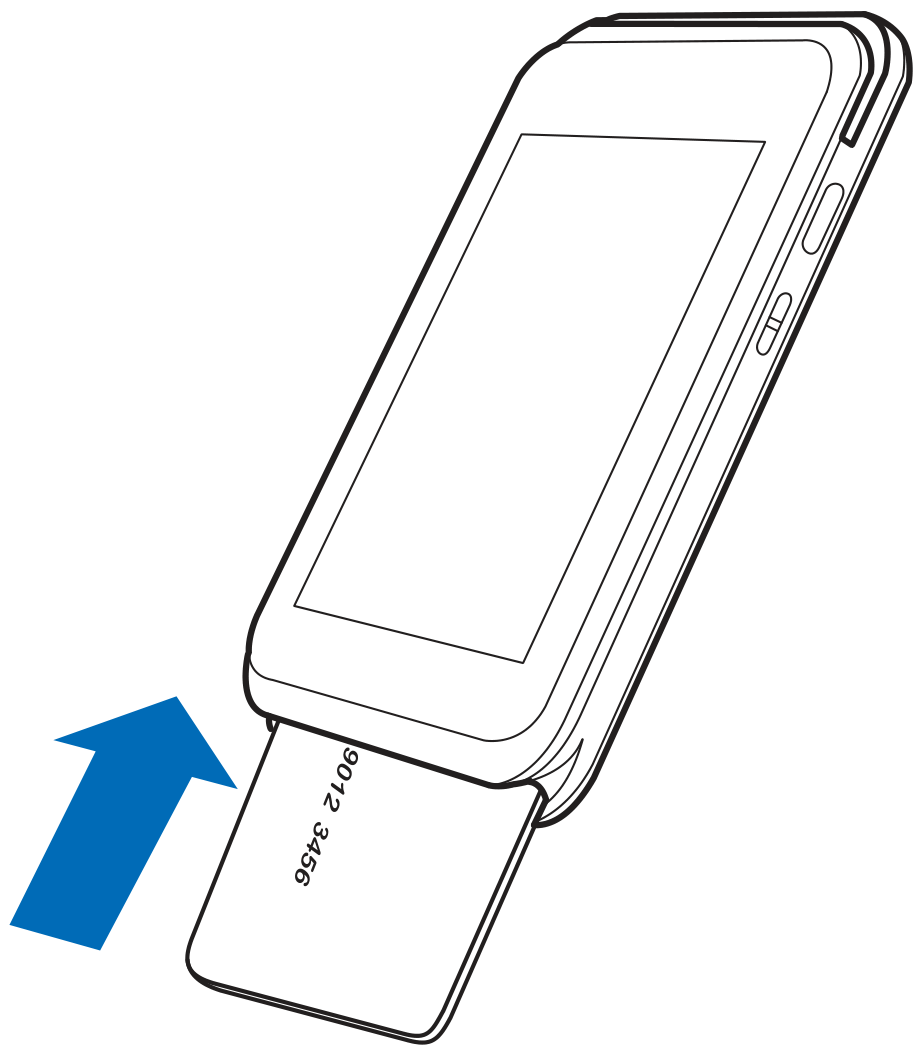

#### Insert a chip card

Insert the card into the smart card reader at the bottom of the device and leave it in place until the transaction finishes.

<figure><img src="/files/7b9621308898e46f0b401b7e1d0e2cc6ca2bca8a" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

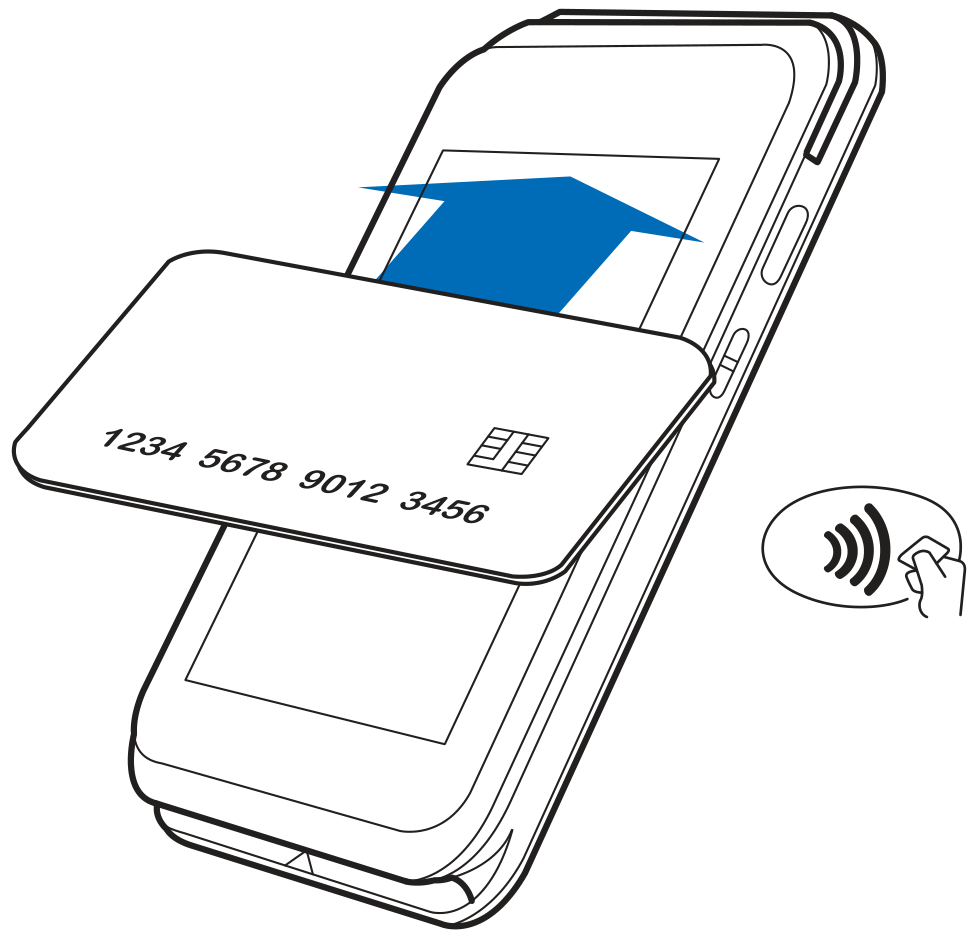

#### Tap a contactless card

Hold the card over the top of the display until the device confirms the read.

<figure><img src="/files/99410ac82e4052fc00fccb7c822f51bae3c7e38a" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}
{% endstepper %}

## Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the [Installation Guide](/hardware-products/hardware/engage-devices/exxx-series/e280-e280s/e280-e280s-installation-guide.md) (DOC087-603-EN).


---
