# e285 Folio Quick Installation Guide

This guide takes you from an unopened box to an e285 seated in its Folio.

Before you begin, confirm you have all devices, cables, and accessories listed below.

## What's in the Box

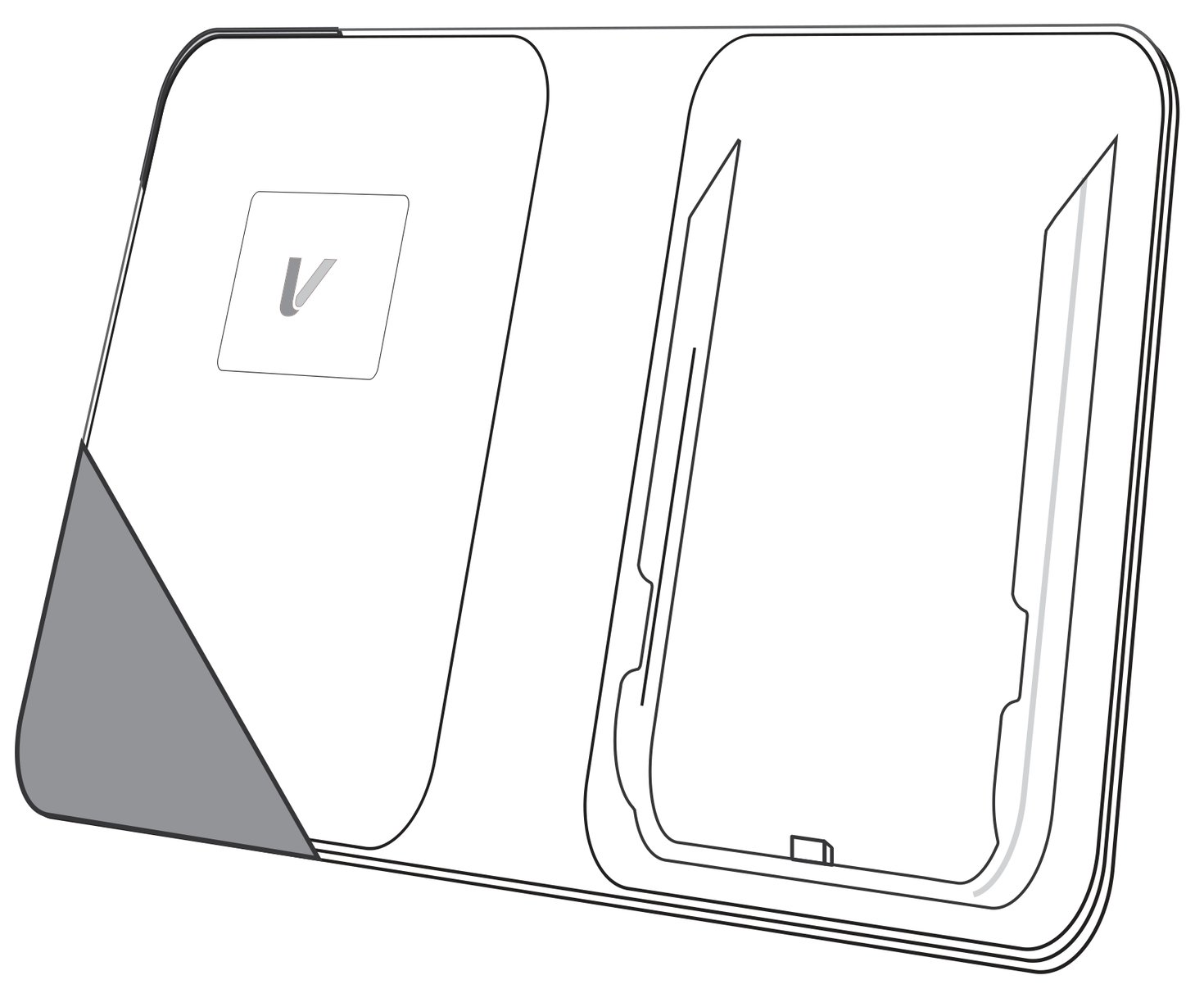

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="image">Cover image</th></tr></thead><tbody><tr><td><h3>e285 Folio</h3></td><td></td><td data-object-fit="contain"><a href="/files/a1b4030a5597781afa3b6026e9f43e7be9cc7438">/files/a1b4030a5597781afa3b6026e9f43e7be9cc7438</a></td></tr></tbody></table>

## Quick Setup Guide

{% stepper %}
{% step %}

### Remove the Battery Cover

Take the standard battery cover off the e285 before seating it in the Folio.

{% stepper %}
{% step %}

#### Place the device face down

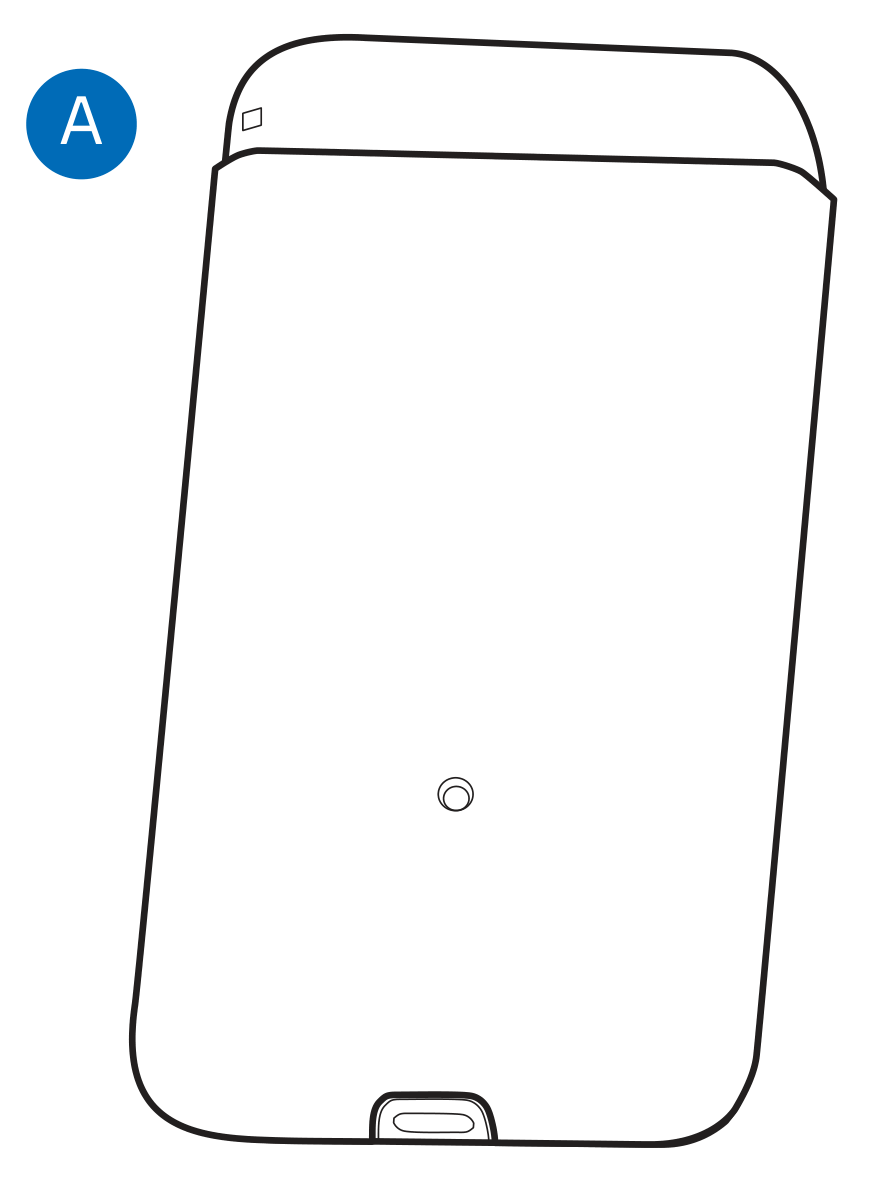

Turn the device off and lay it face down on a soft, clean surface so the display is protected (A).

<figure><img src="/files/705235b3d7a3a2d2f96b4232f2f5f6520a8b0bbd" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Slide the battery cover down

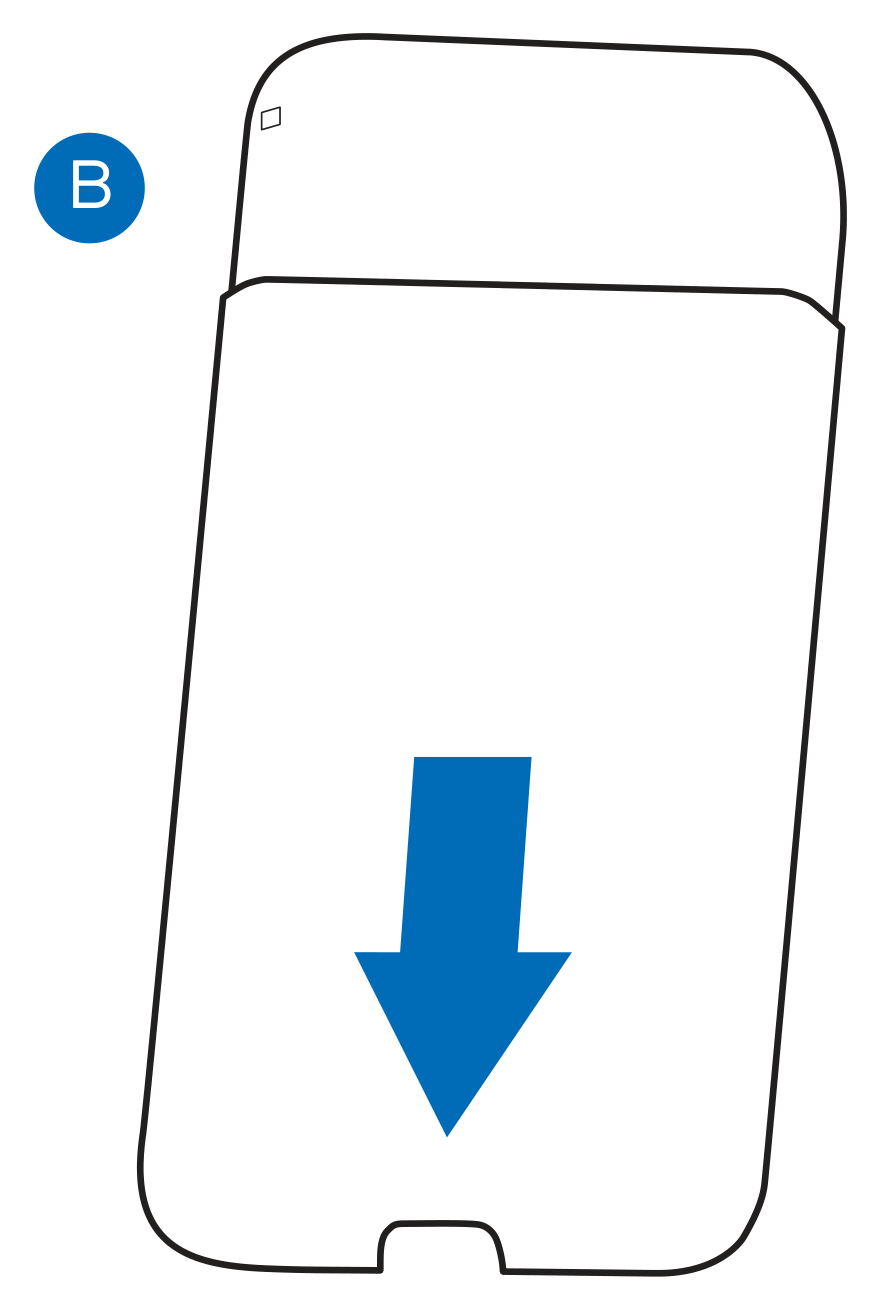

Slide the cover down, away from the magnetic card reader at the top of the device (B).

<figure><img src="/files/d0fe04c81db20eb88e9ac18025c9a5354d85d1c0" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Lift the cover away

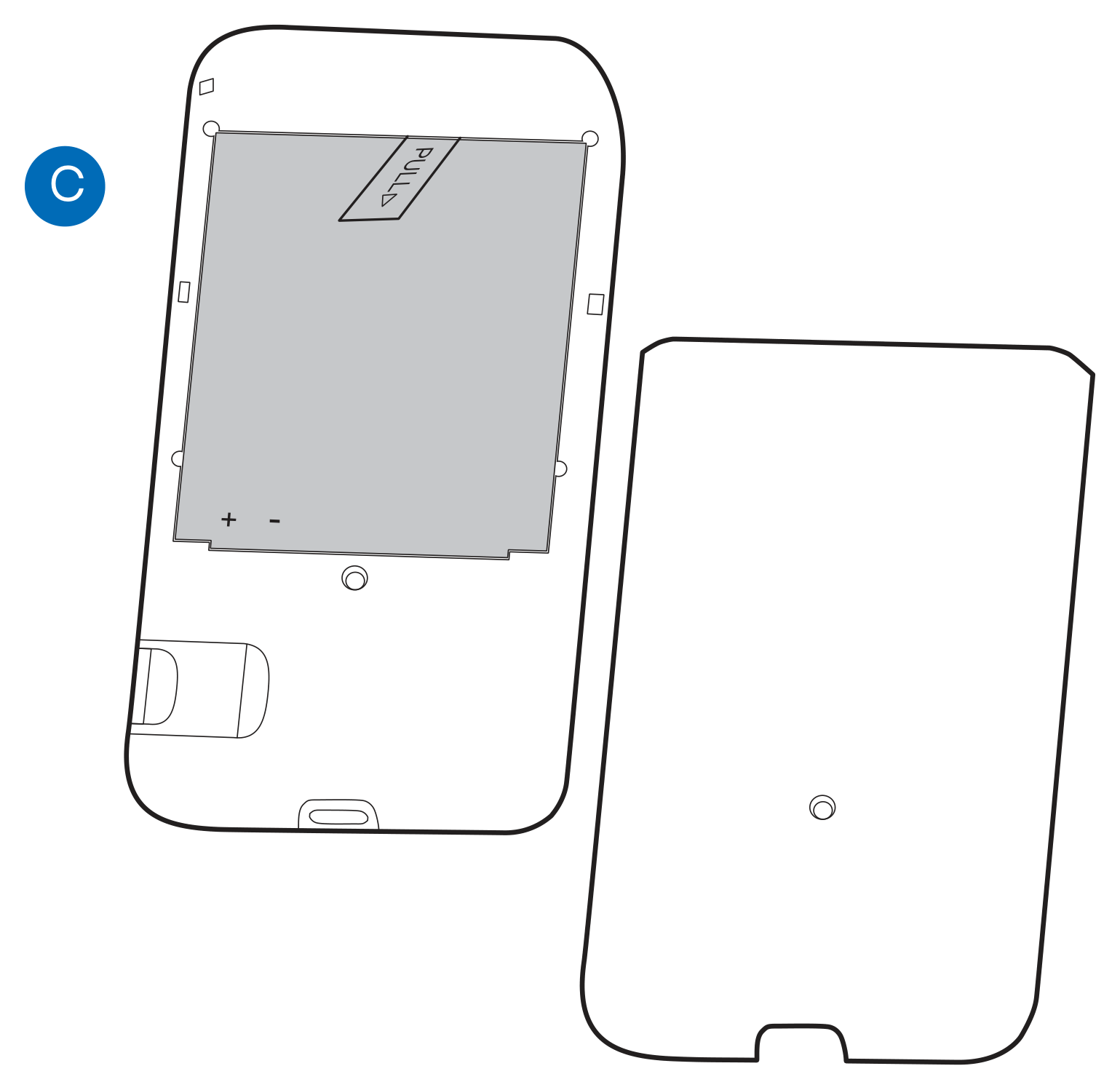

Lift the cover clear of the device and set it aside, leaving the battery in place (C).

<figure><img src="/files/8122c5a880a744576860a75a93d49caa50a8ce73" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
{% endstep %}

{% step %}

### Fit the Device into the Folio

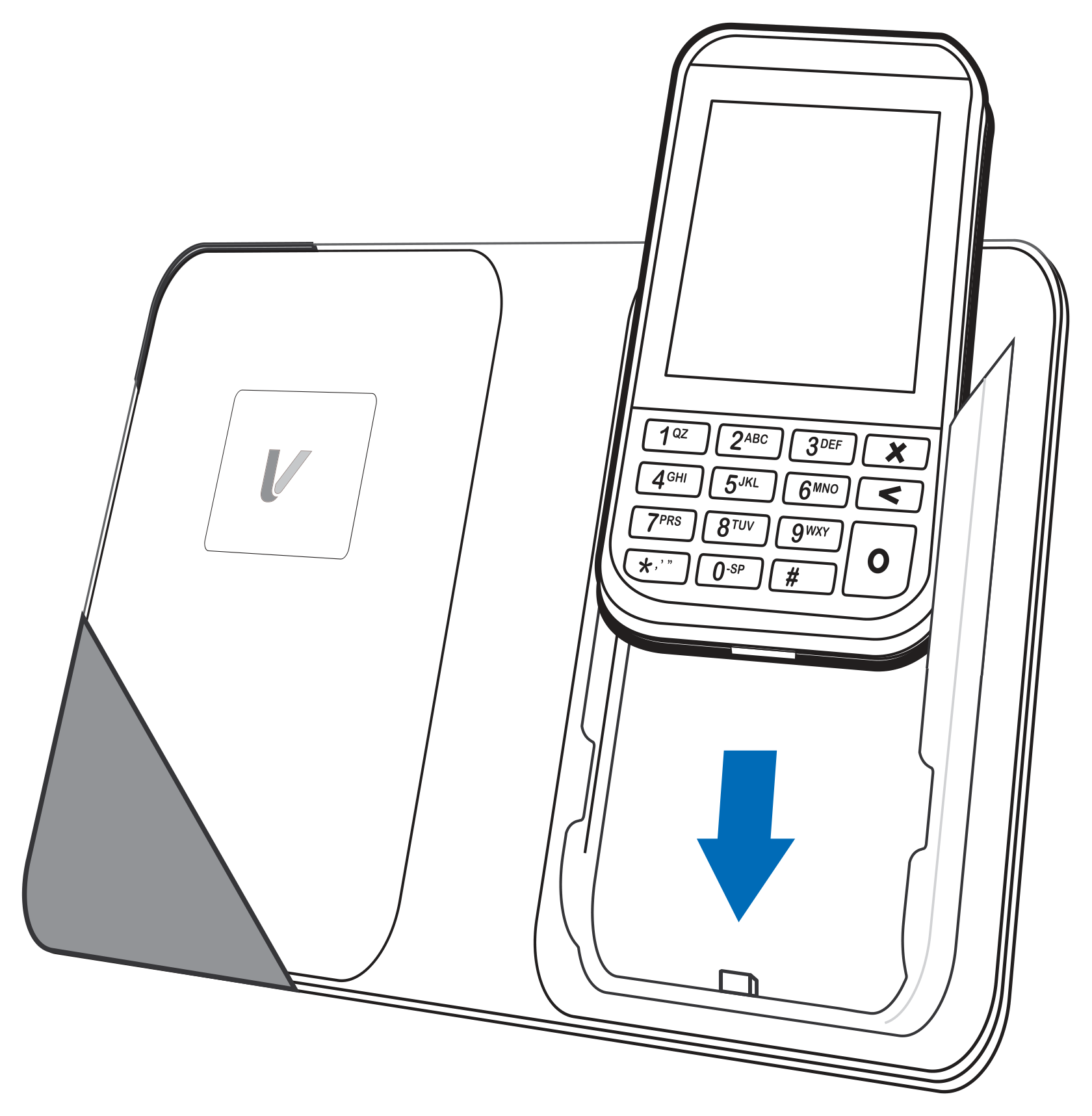

Open the Folio and slide the e285 down into the holder until it seats, with the display facing out.

<figure><img src="/files/e93846b97cb606853dadfa6afbc00ad82cb3d79a" alt="" width="563"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

## Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the [Installation Guide](/hardware-products/hardware/engage-devices/exxx-series/e285/e285-installation-guide.md) (DOC087-513-EN).


---
