e285 Folio Wireless Charging Cradle Quick Installation Guide

This guide takes you from an unopened box to a charging cradle fitted to the bulk charger and ready for a Folio-equipped e285.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Use a hand screwdriver for every screw on this cradle. Do not use a powered screwdriver.

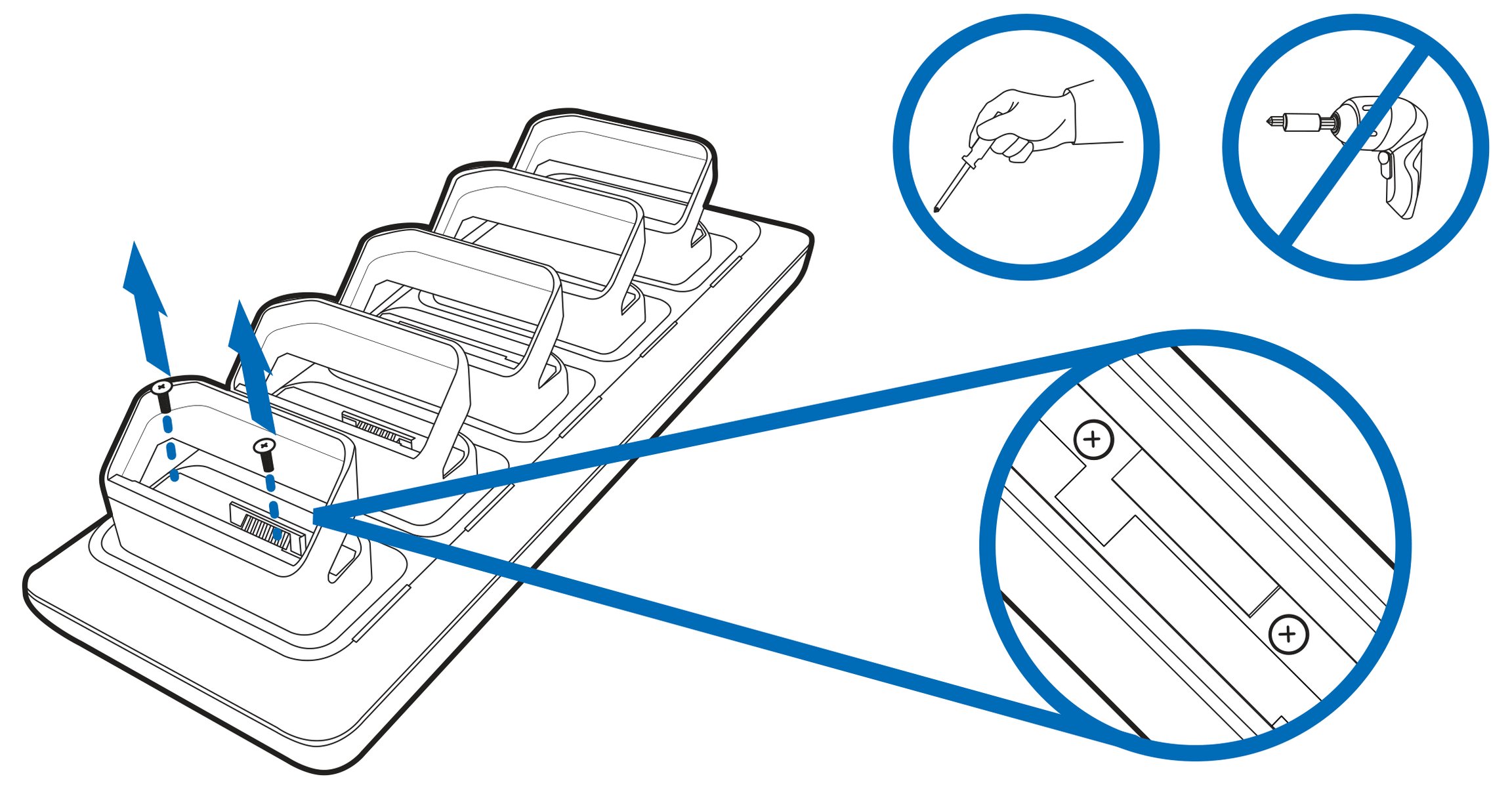

Undo the two screws in the charger position where the cradle will sit and lift them clear. The enlarged view shows where the two screws sit.

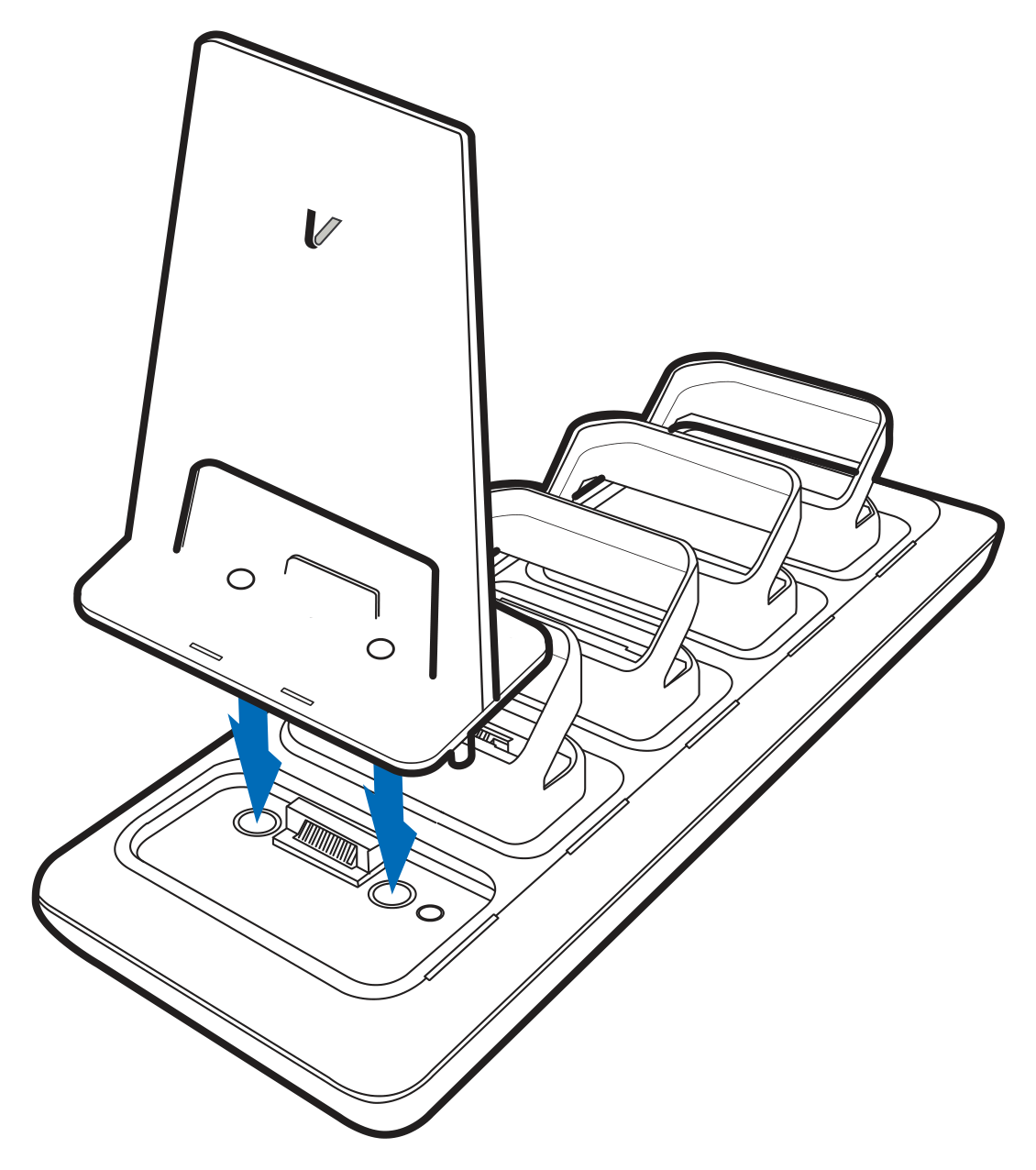

Lower the cradle onto the position so its two holes line up with the screw holes in the charger.

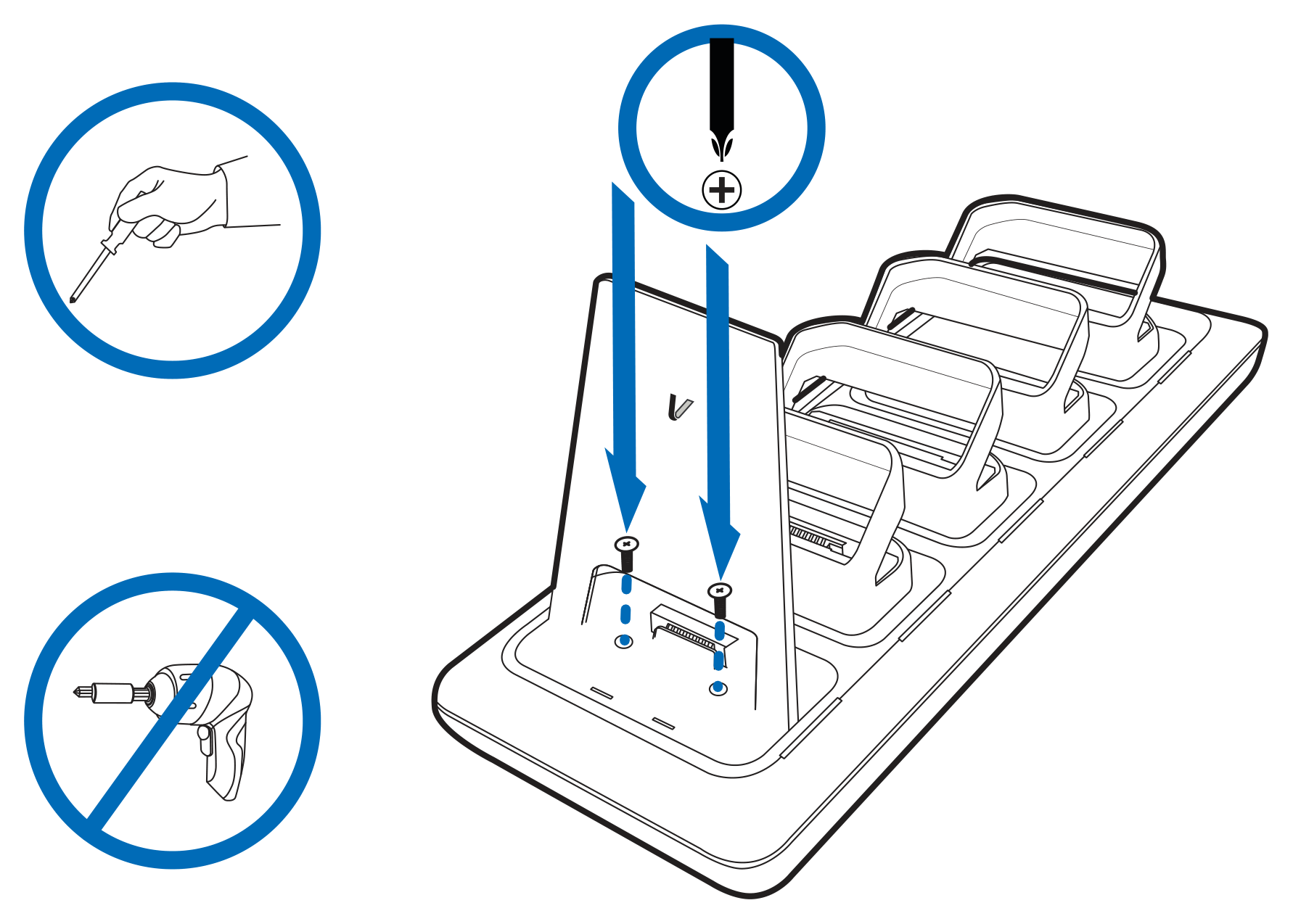

Drop the two screws back into the holes and tighten them by hand until the cradle is secure.

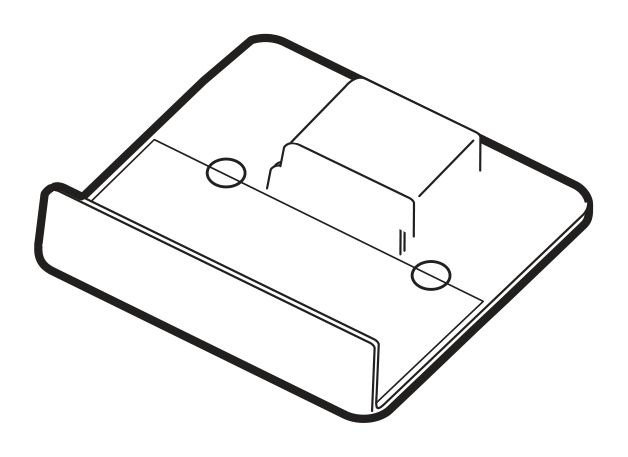

The holder is the tray that carries the Folio-equipped e285 in the cradle.

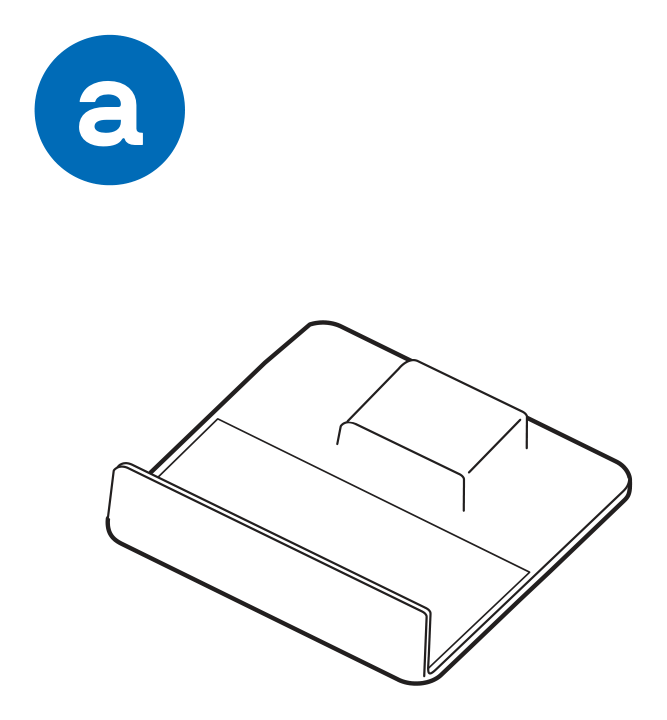

Unpack the Folio holder (a).

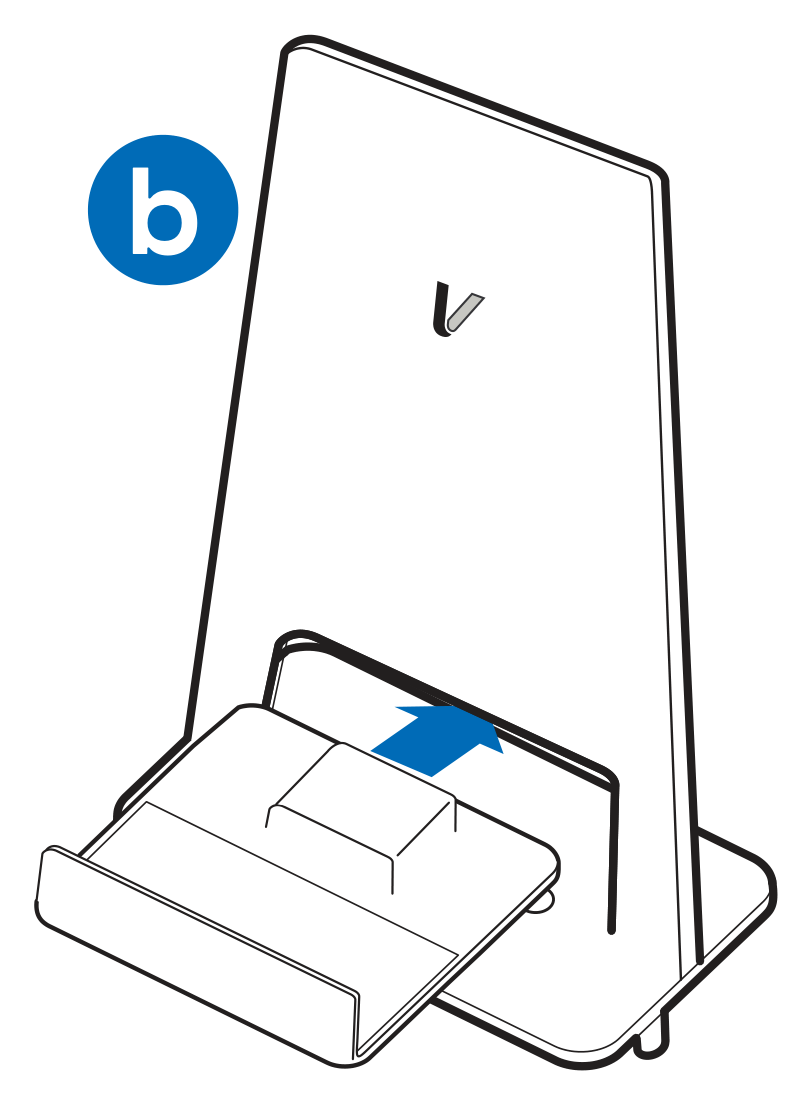

Rest the holder on the cradle base and slide it back toward the upright (b).

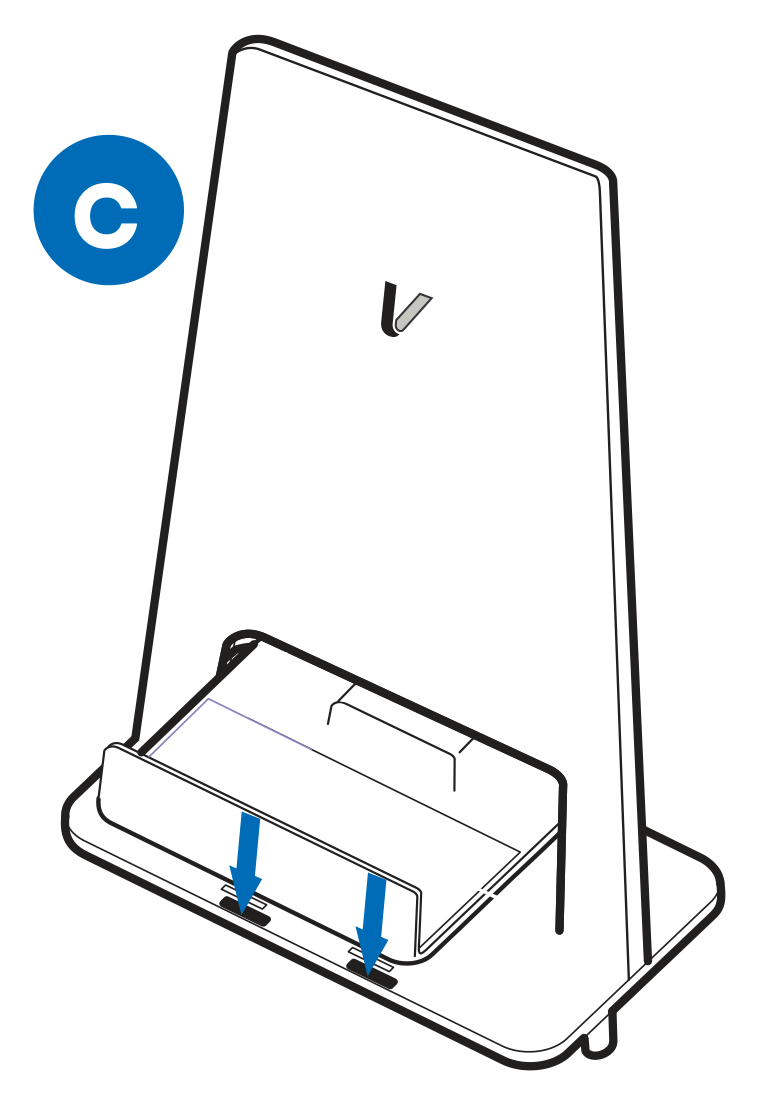

Press the front edge of the holder down onto the two tabs in the cradle base (c).

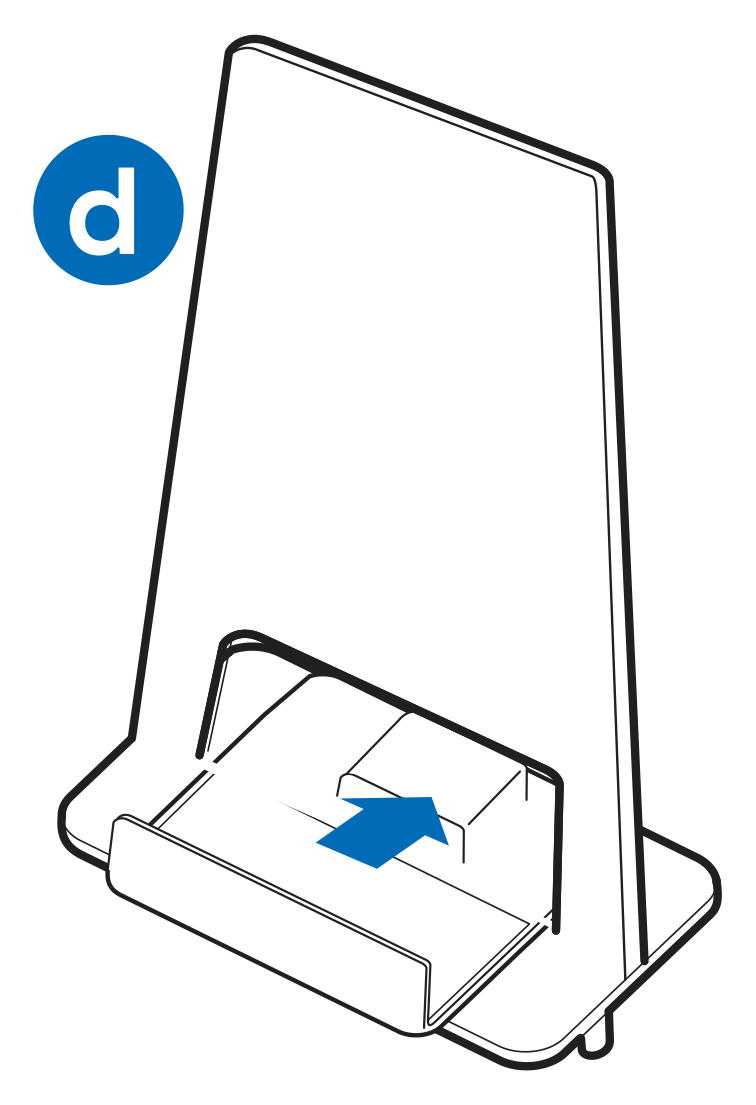

Push the holder back until it seats fully against the upright (d).

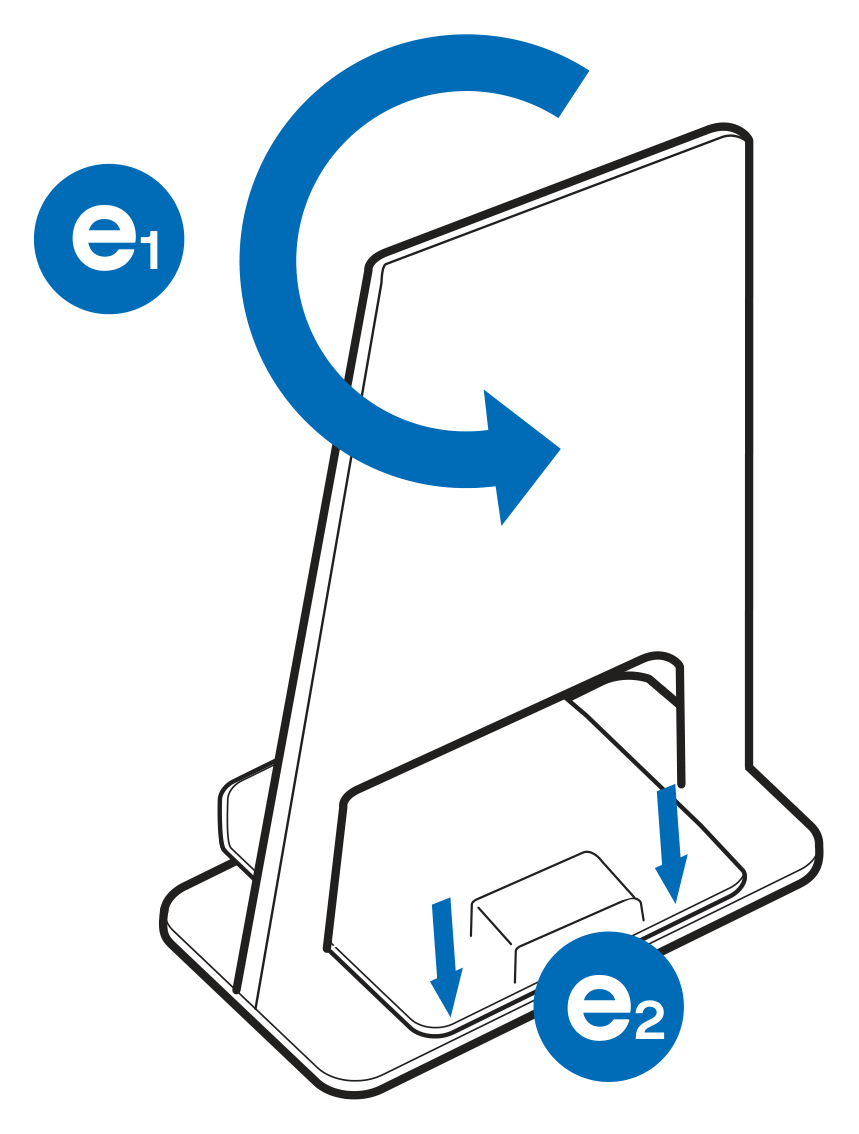

Turn the cradle around (e1) and press the rear edge of the holder down until it locks in place (e2).

For full device setup details, product information, and troubleshooting steps, refer to the Installation Guide (DOC087-513-EN).
