e355 Quick Installation Guide

This guide takes you from an unopened box to a first payment on the e355.

Before you begin, confirm you have all devices, cables, and accessories listed below.

What's in the Box

Cover

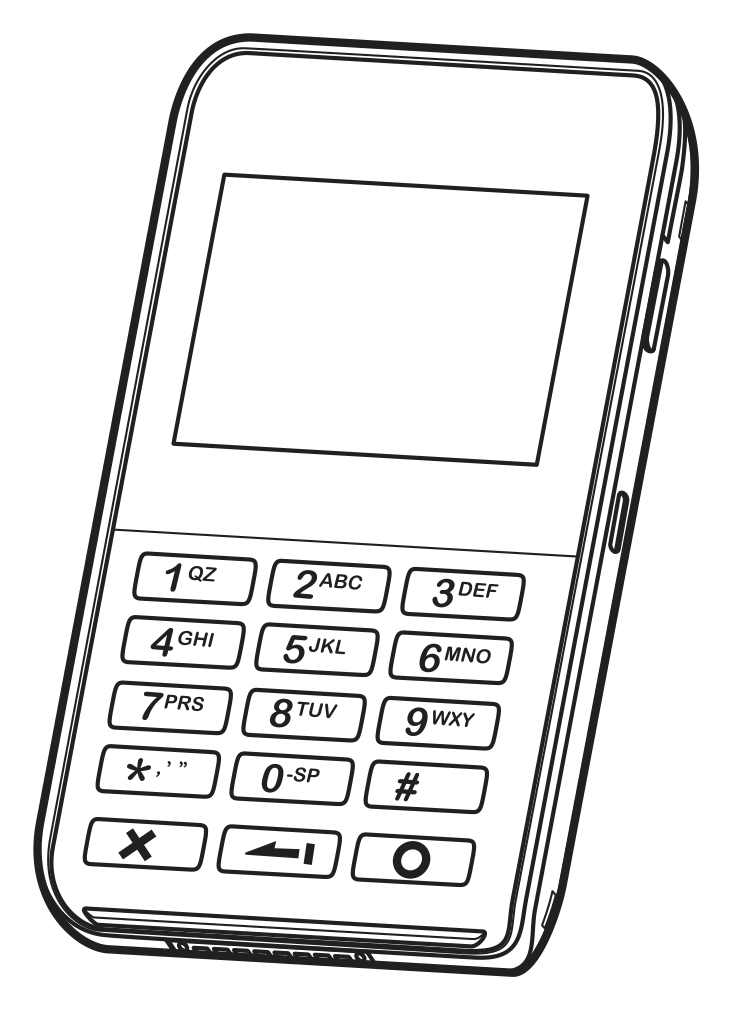

e355 device

Shipped with a USB to Micro-USB cable.

Quick Setup Guide

1

Install the MSAM Card

The MSAM compartment sits inside the battery compartment, so the cover and the battery come off first.

1

Slide the battery cover off

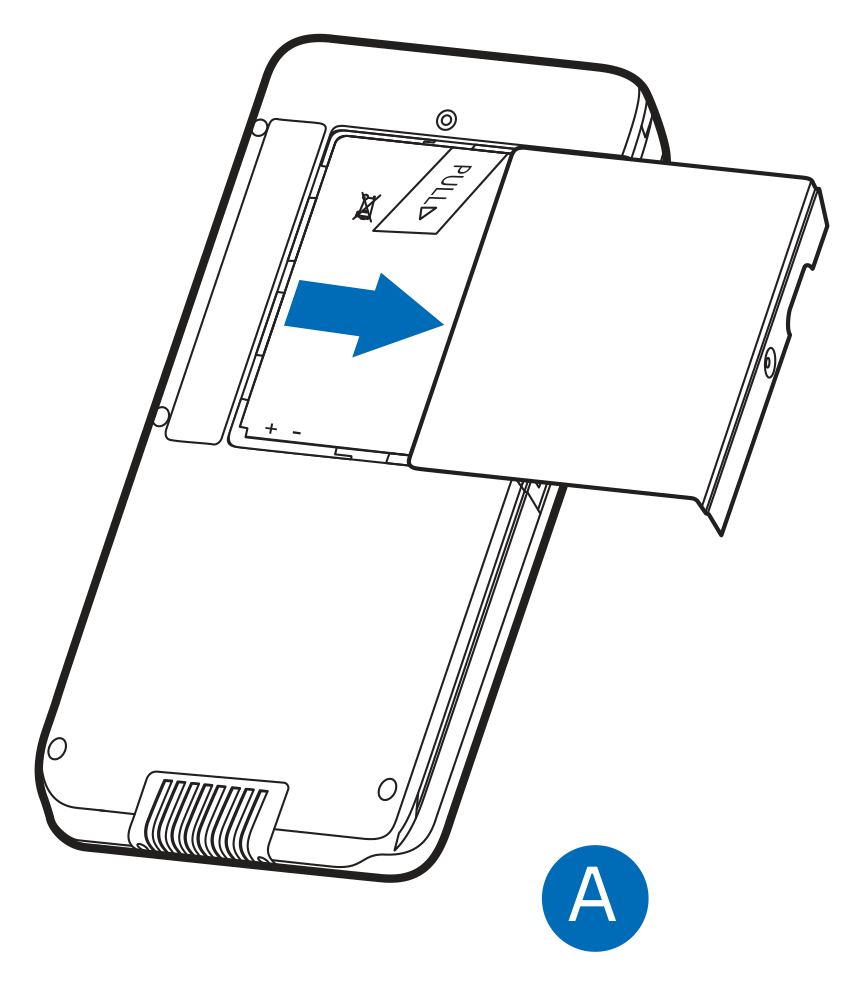

Unplug any cables, remove the screw from the battery cover and slide the cover outwards, away from the device (A).

2

Lift the battery out

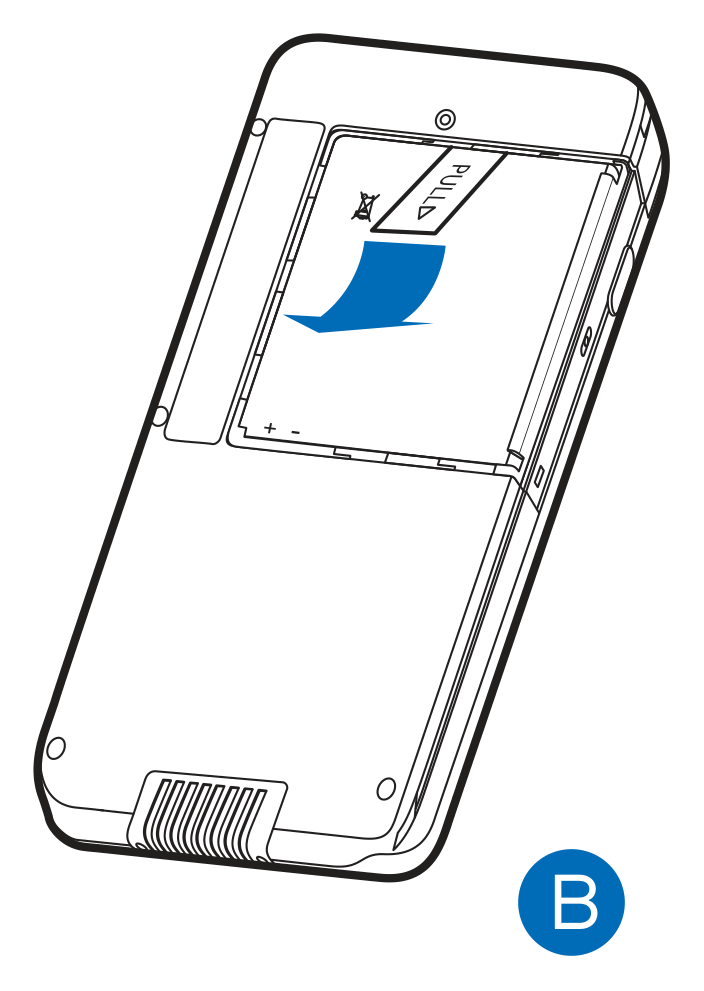

Pull the plastic tab gently to lift the battery out of its compartment (B).

3

Insert the MSAM card

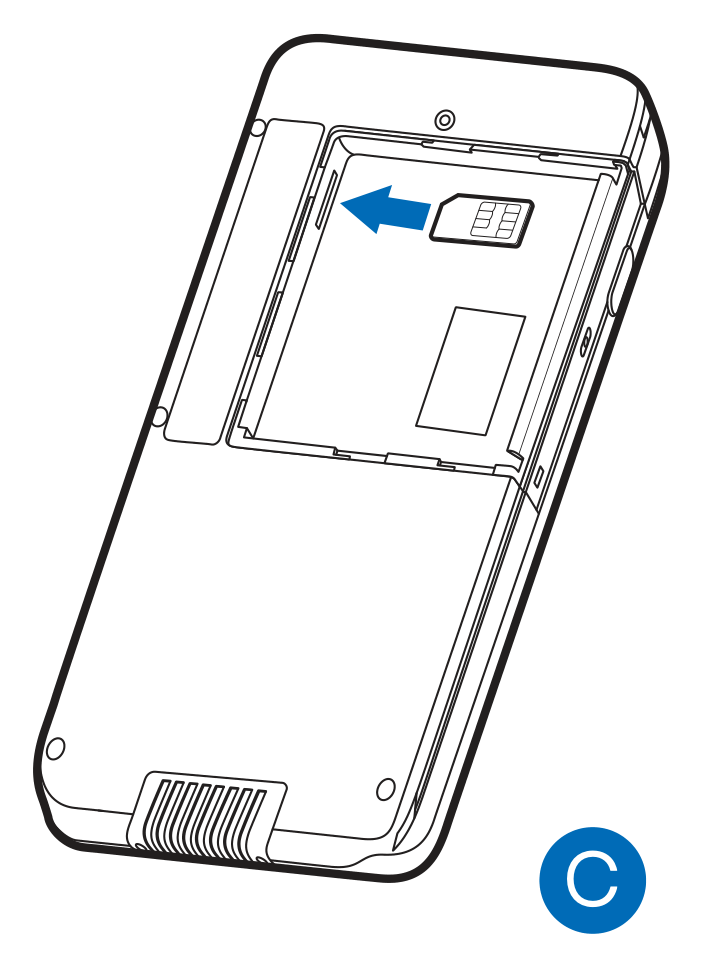

Slide the card into the slot on the left of the battery compartment with the gold contacts facing up, and push it fully home (C).

4

Refit the battery

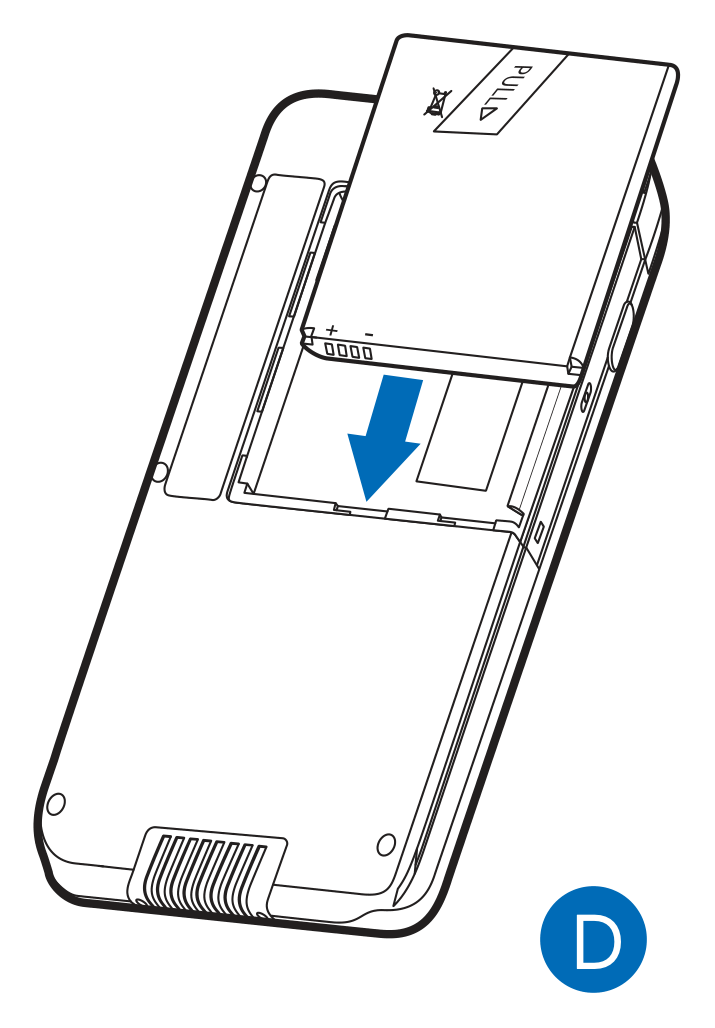

Seat the battery back in its compartment, aligning its gold contacts with the pins in the device, and leave the plastic tab visible (D).

5

Refit the battery cover

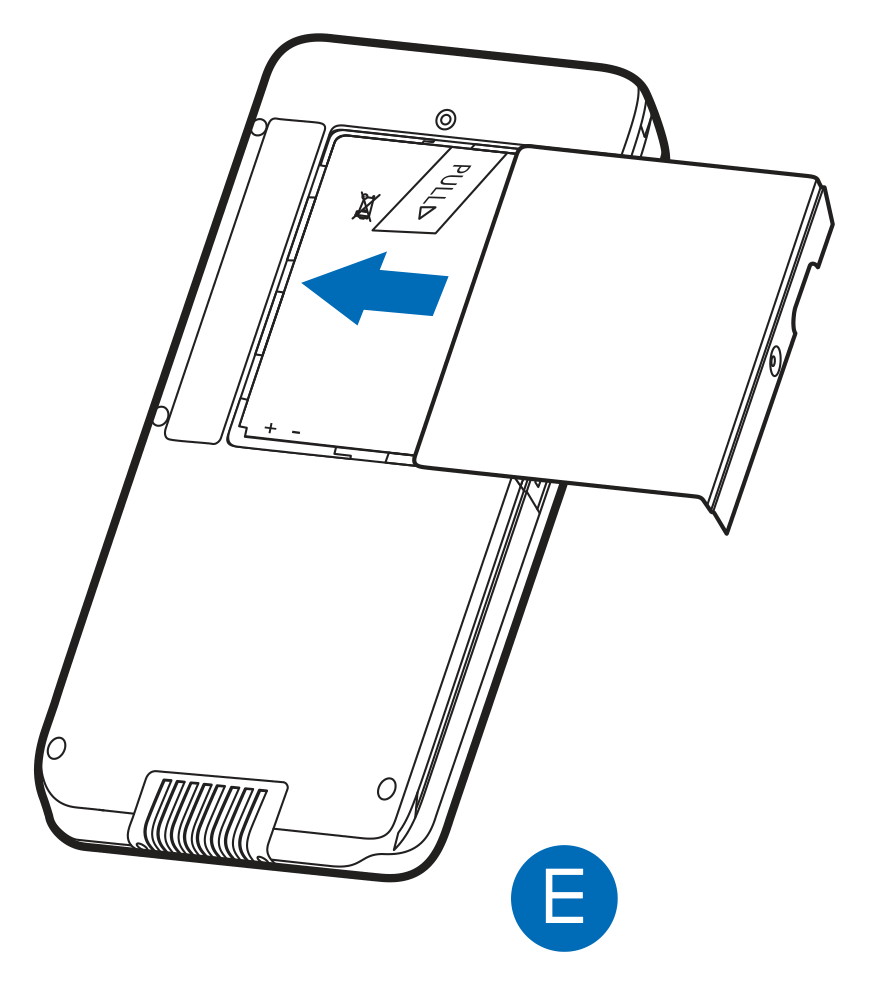

Slide the cover back on and tighten the screw (E).

2

Charge the Device

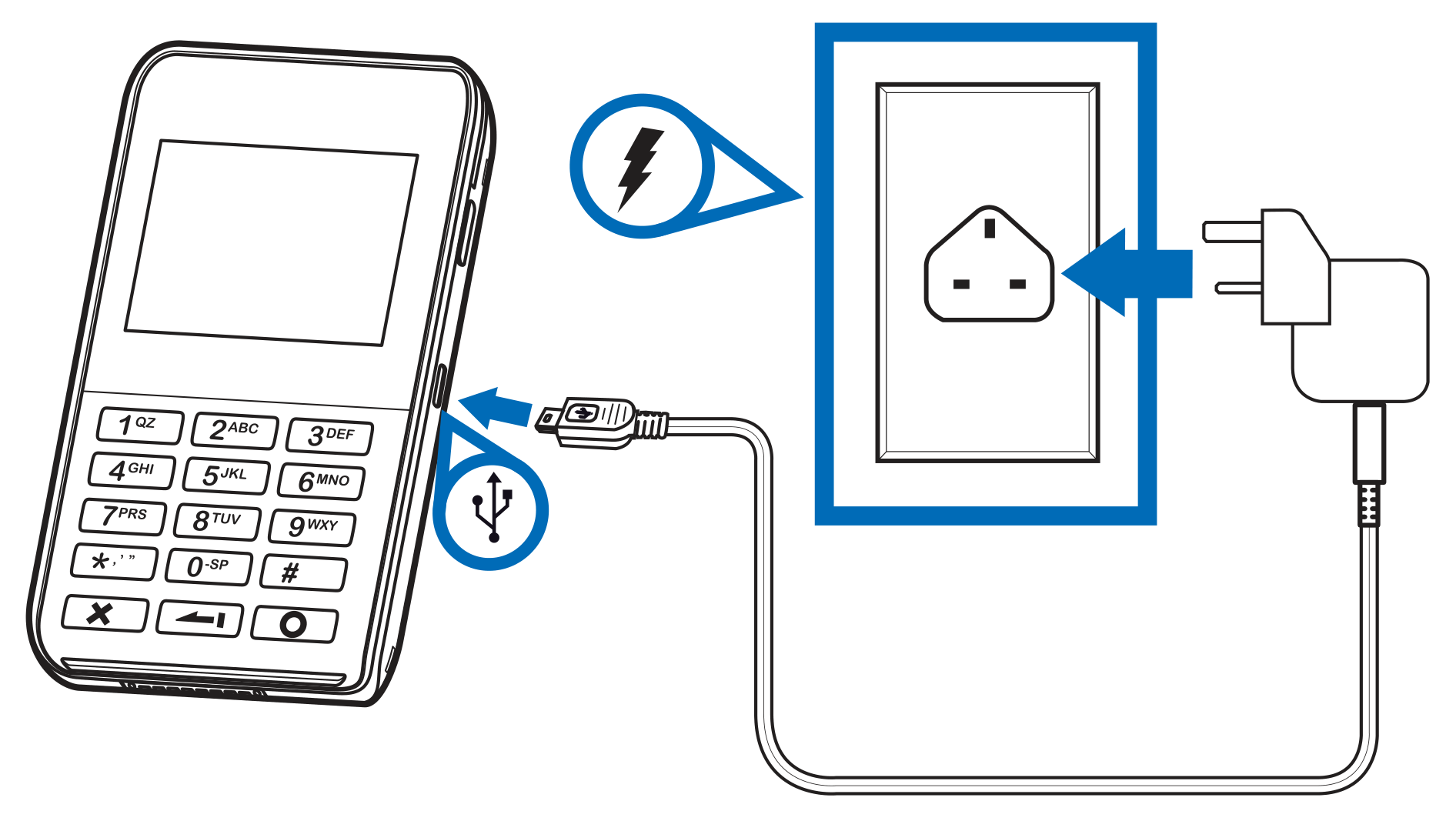

Insert the micro-USB plug into the port on the side of the device, then plug the charger into a wall outlet.

3

Connect the Device to a Computer

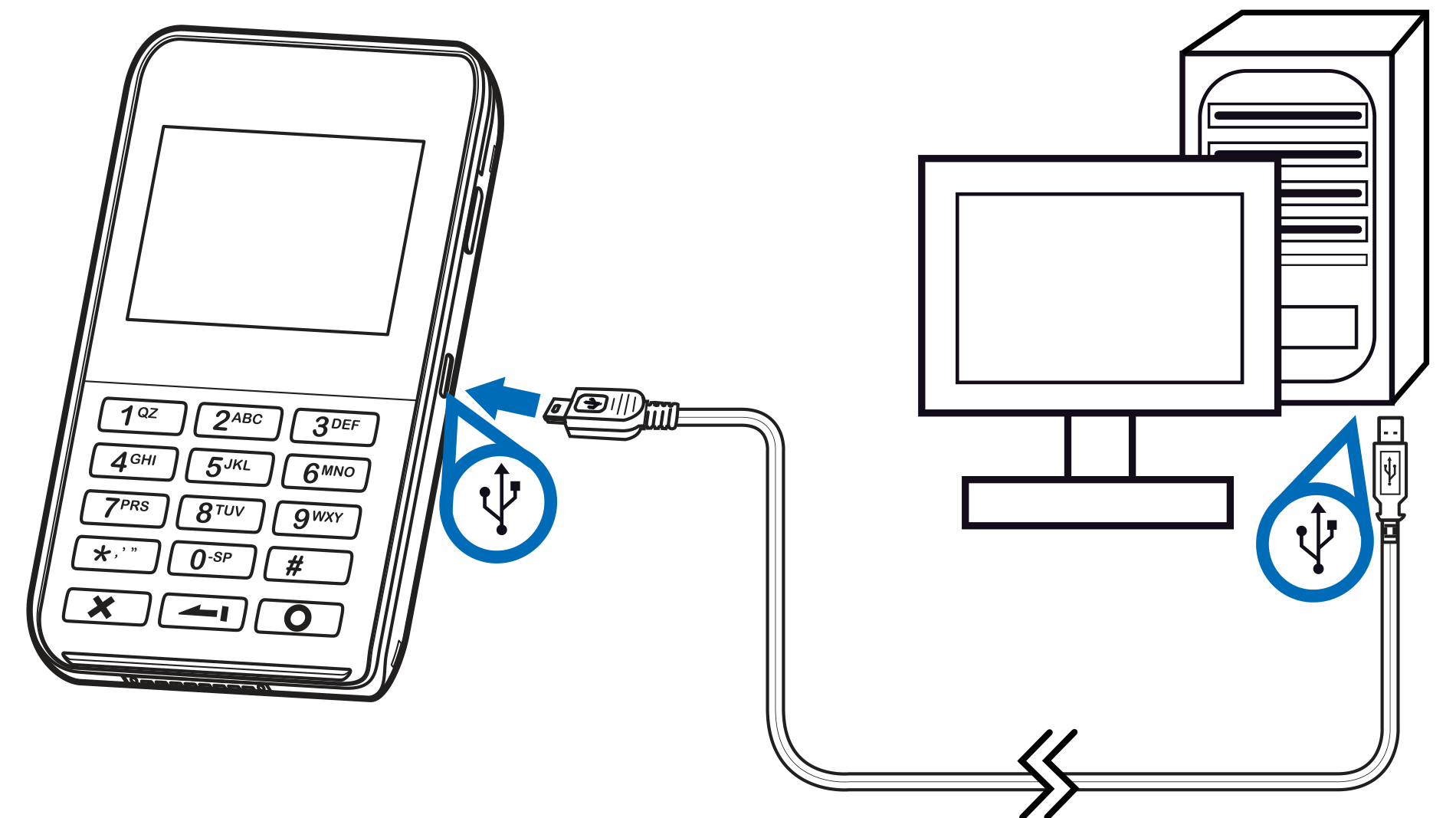

Insert the micro-USB plug into the device and connect the other end of the cable to a USB port on the computer.

4

Scan a Barcode

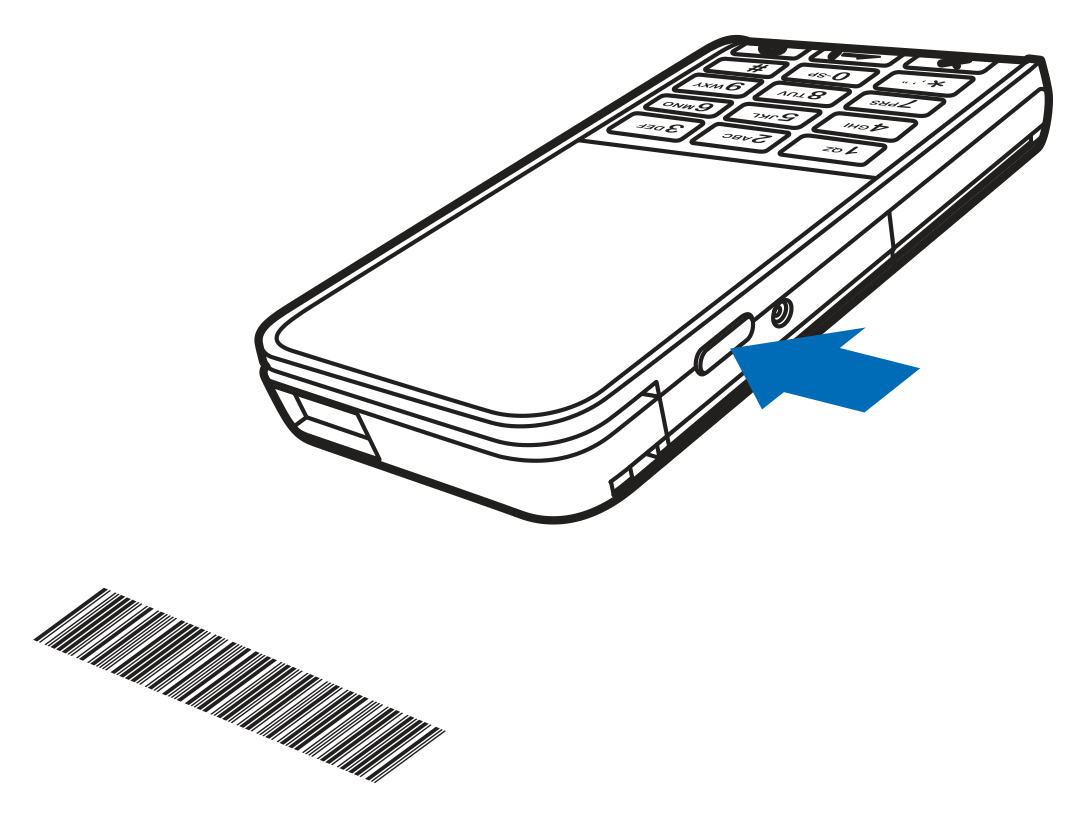

Press the barcode button on the side of the device to activate the 2D imager and aim it at the barcode; a beep confirms a successful scan.

5

Swipe a Magnetic Stripe Card

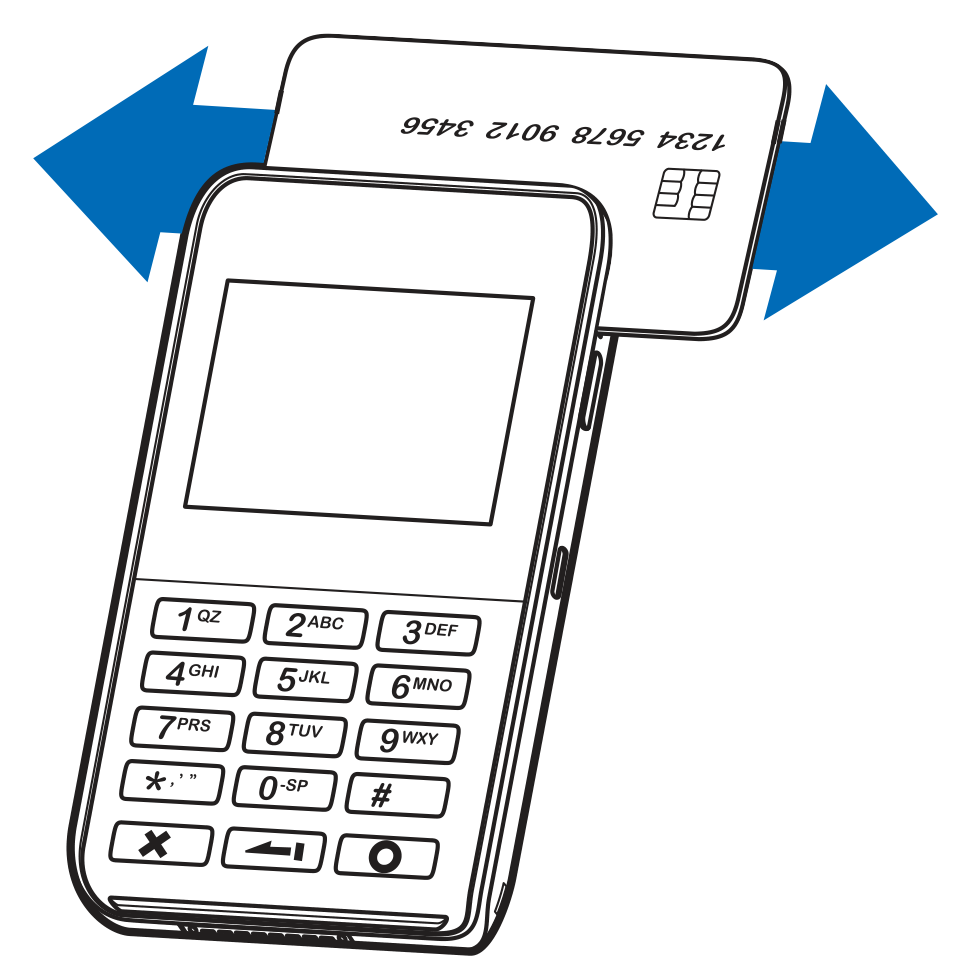

Position the card with the magnetic stripe facing backwards, insert it from the top of the device and swipe it through the reader.

6

Tap a Contactless Card

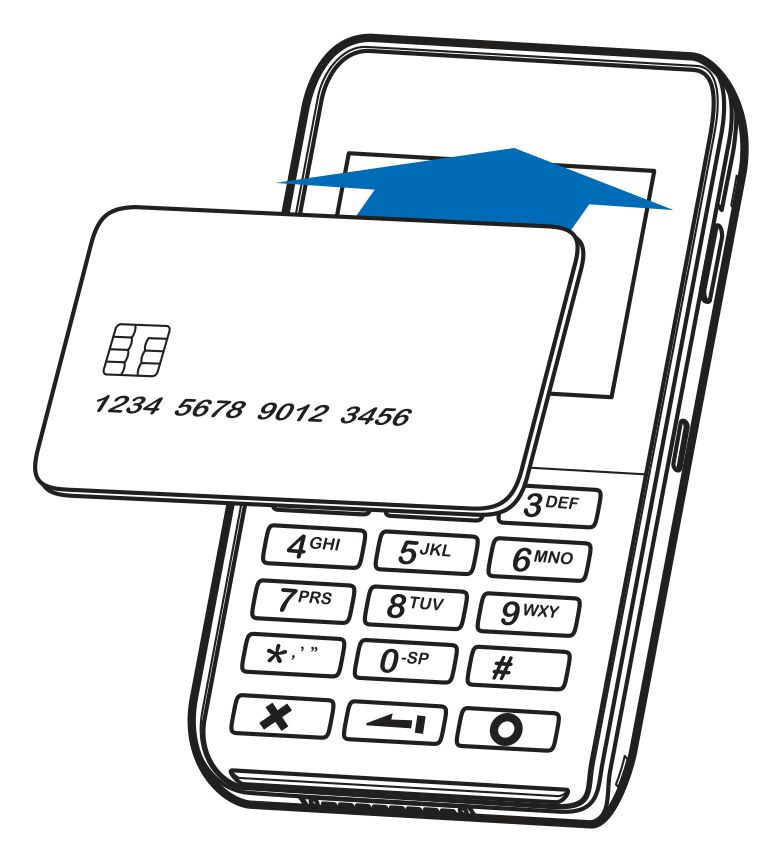

Gently tap the card, or hold it against the contactless antenna above the keypad and display, until the device reads it.

7

Insert a Chip Card

Position the card with the contacts facing the same way as the keypad, insert it into the slot at the bottom of the device in one smooth motion and leave it in place until the transaction finishes.

Full Installation Guide

For full device setup details, product information, and troubleshooting steps, refer to the Installation Guide (DOC087-063-EN).
