# V400m Base Full Function Quick Installation Guide
This guide shows you how to connect the V400m full function base to your devices and power, and dock the terminal.
Before you begin, confirm you have all devices, cables, and accessories listed below.

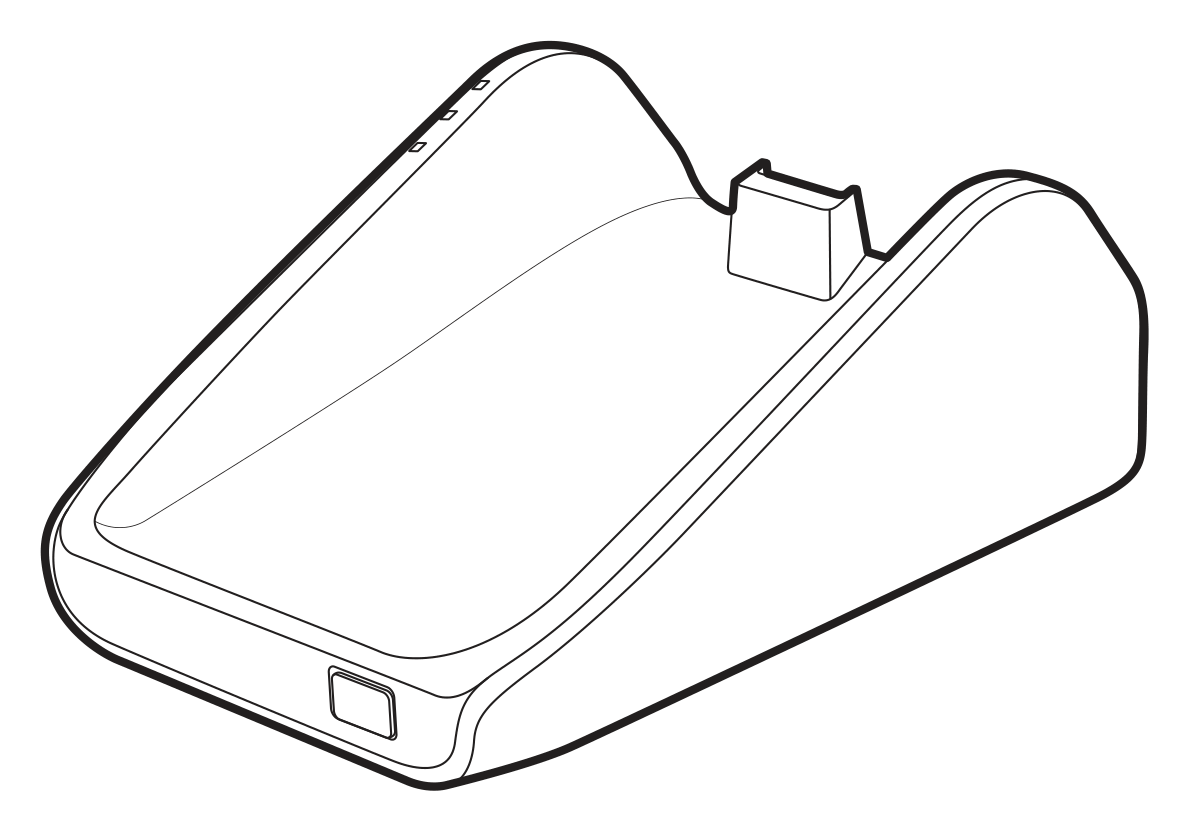

## What's in the Box
## Quick Setup Guide
{% stepper %}
{% step %}

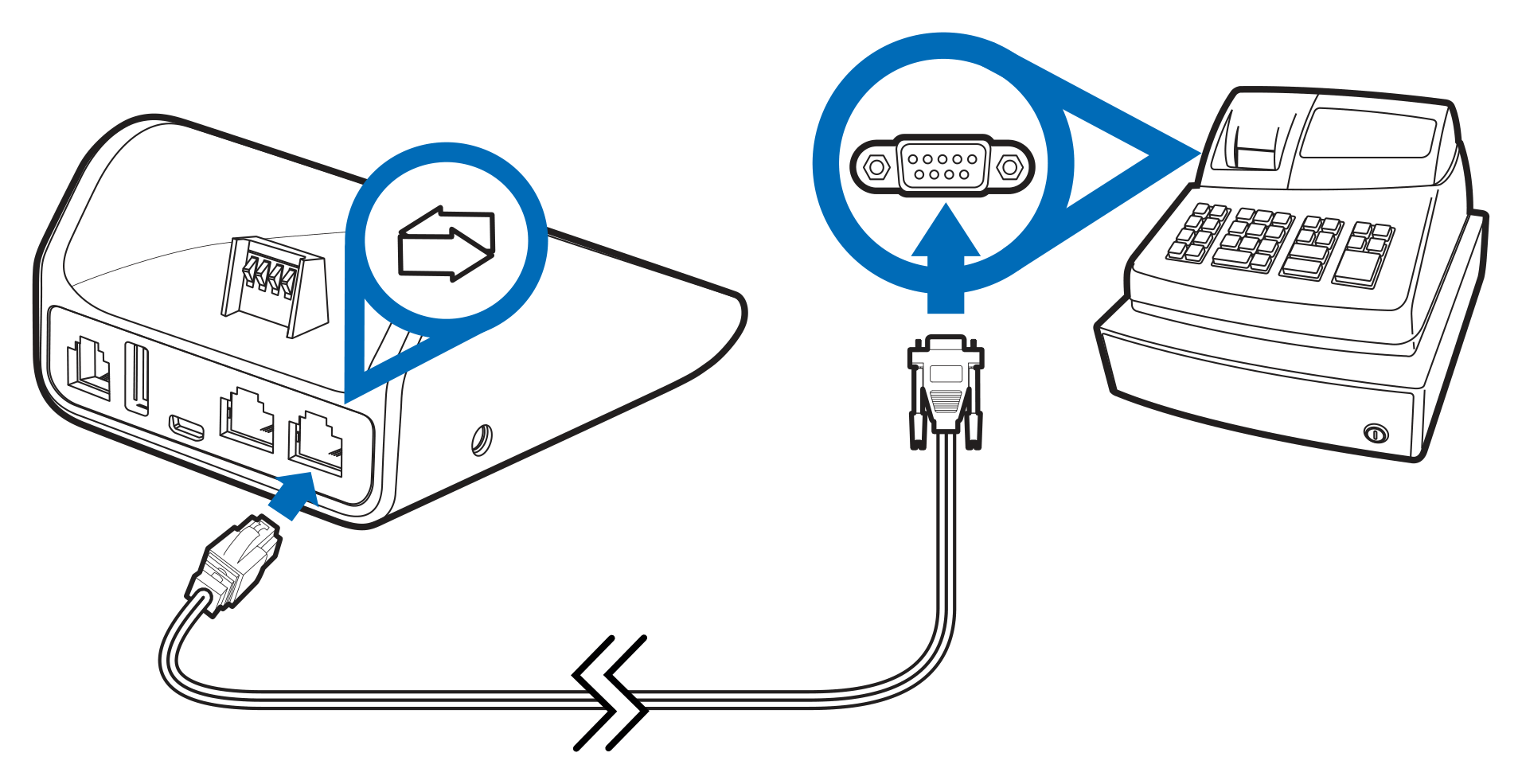

### Connect to a Cash Register
Plug the cable into the serial port on the back of the base, as shown by the arrow, and connect the other end to the serial port on the cash register.
{% endstep %}
{% step %}

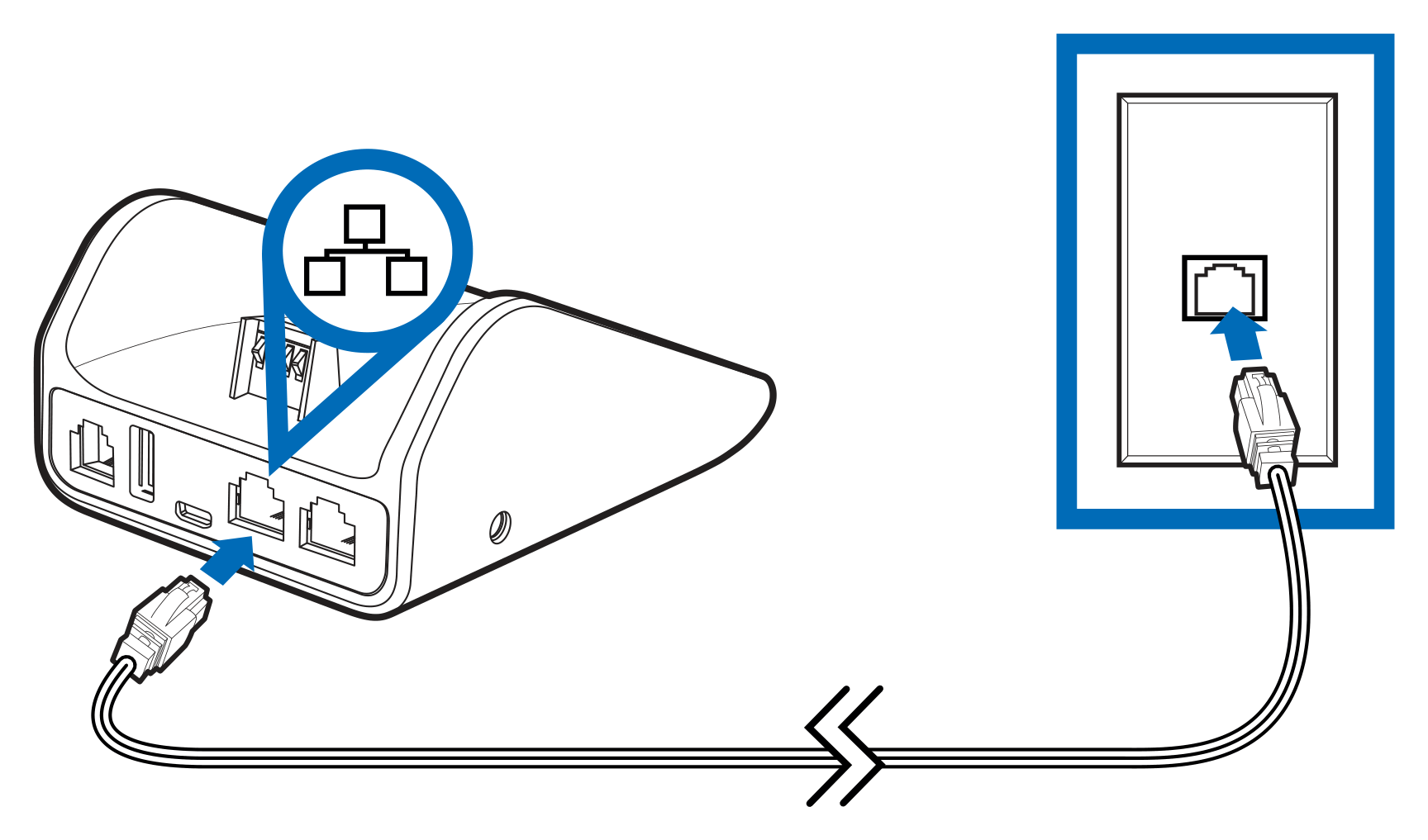

### Connect to a Network
Plug the Ethernet cable into the network port on the back of the base, as shown by the arrow, and connect the other end to the network wall socket.
{% endstep %}
{% step %}

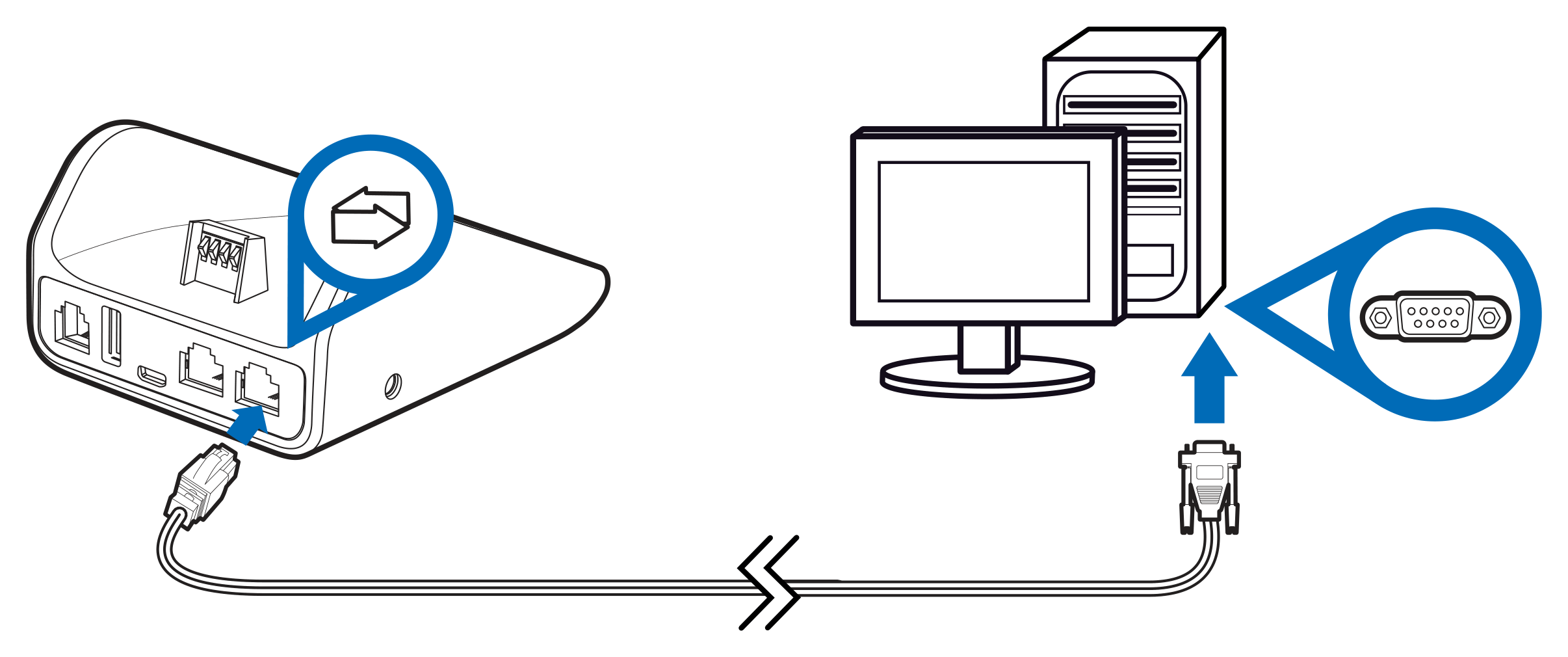

### Connect to a Computer
Plug the cable into the serial port on the back of the base, as shown by the arrow, and connect the other end to the serial port on the computer.
{% endstep %}
{% step %}

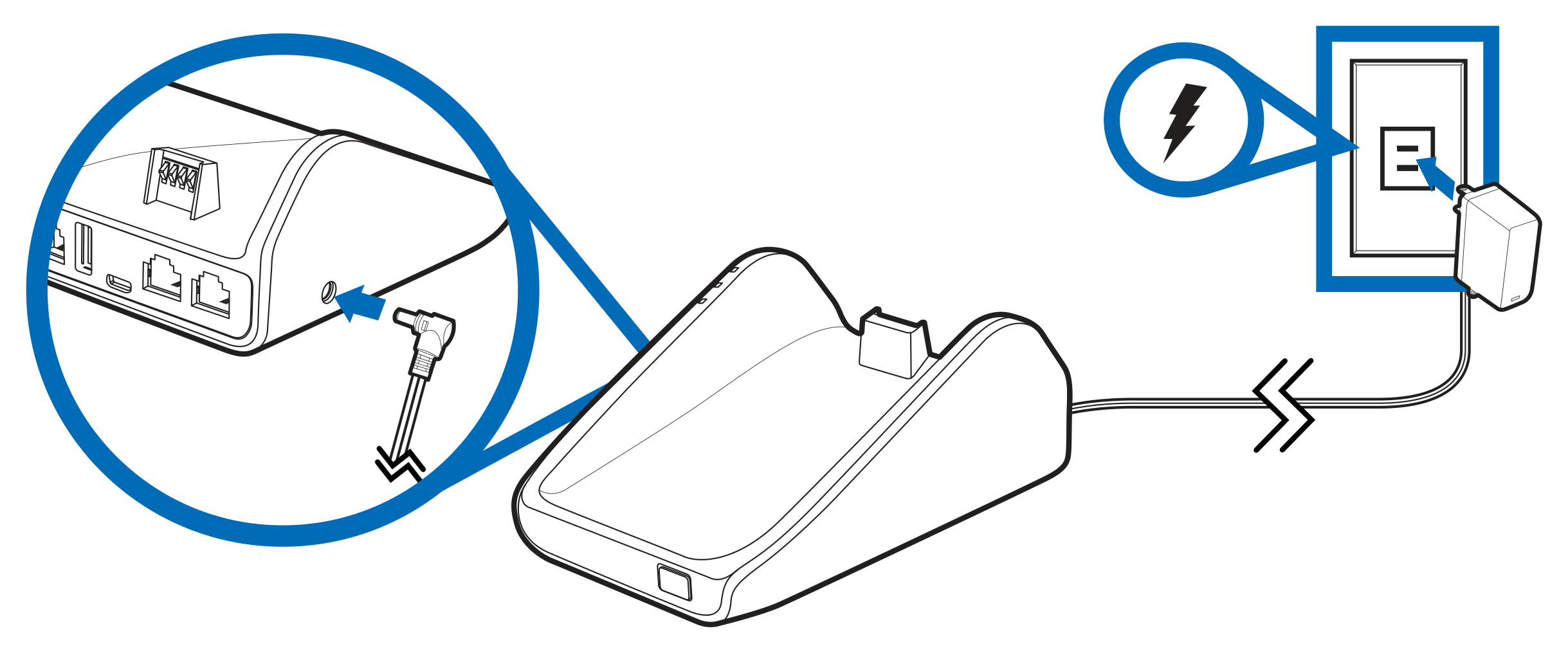

### Connect the Power
Plug the power cable into the power port on the side of the base, then plug the power adapter into the wall outlet.
{% endstep %}
{% step %}

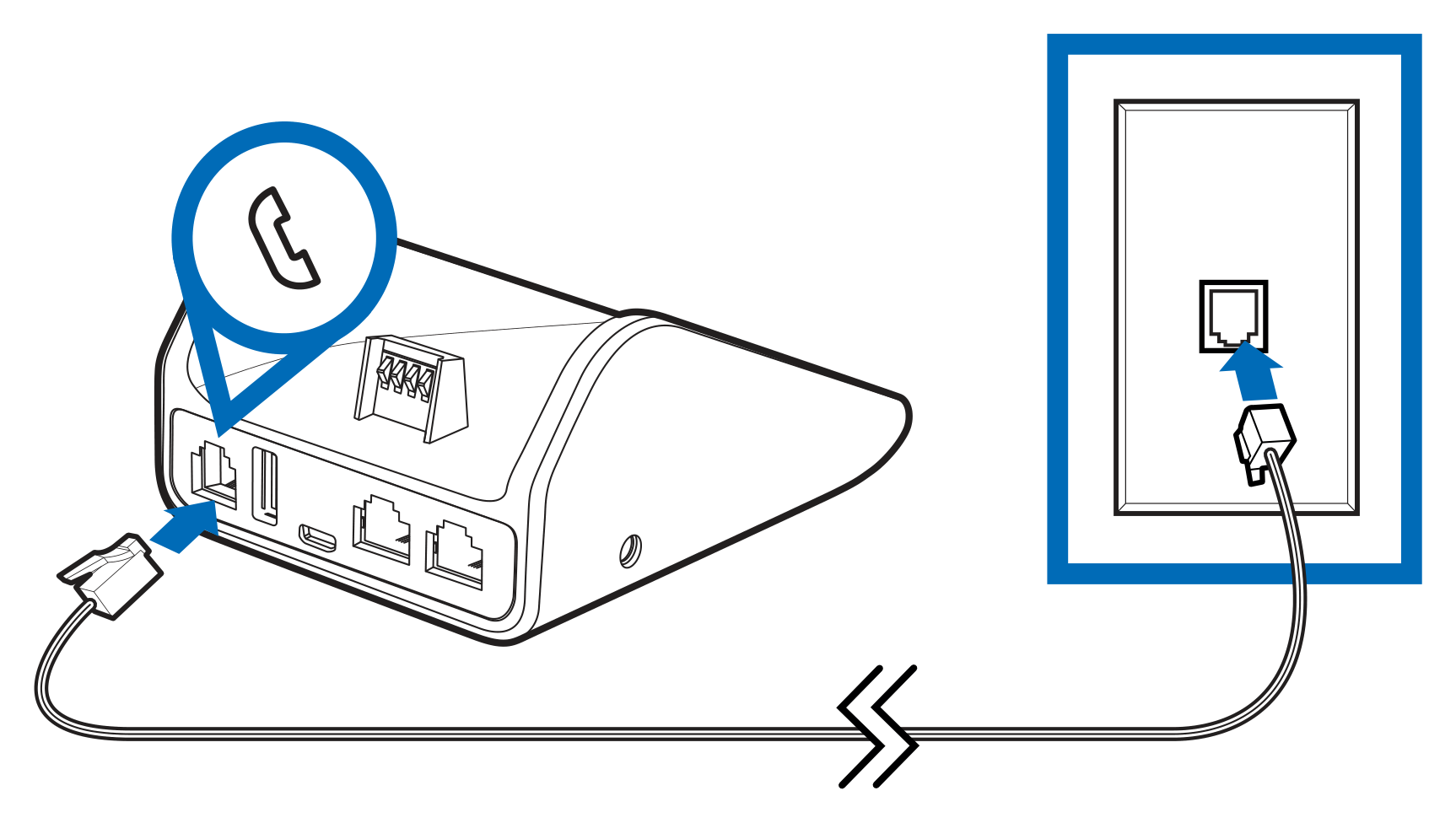

### Connect to a Telephone Line
Plug the cable into the telephone port on the back of the base, as shown by the arrow, and connect the other end to the telephone wall socket.
{% endstep %}
{% step %}

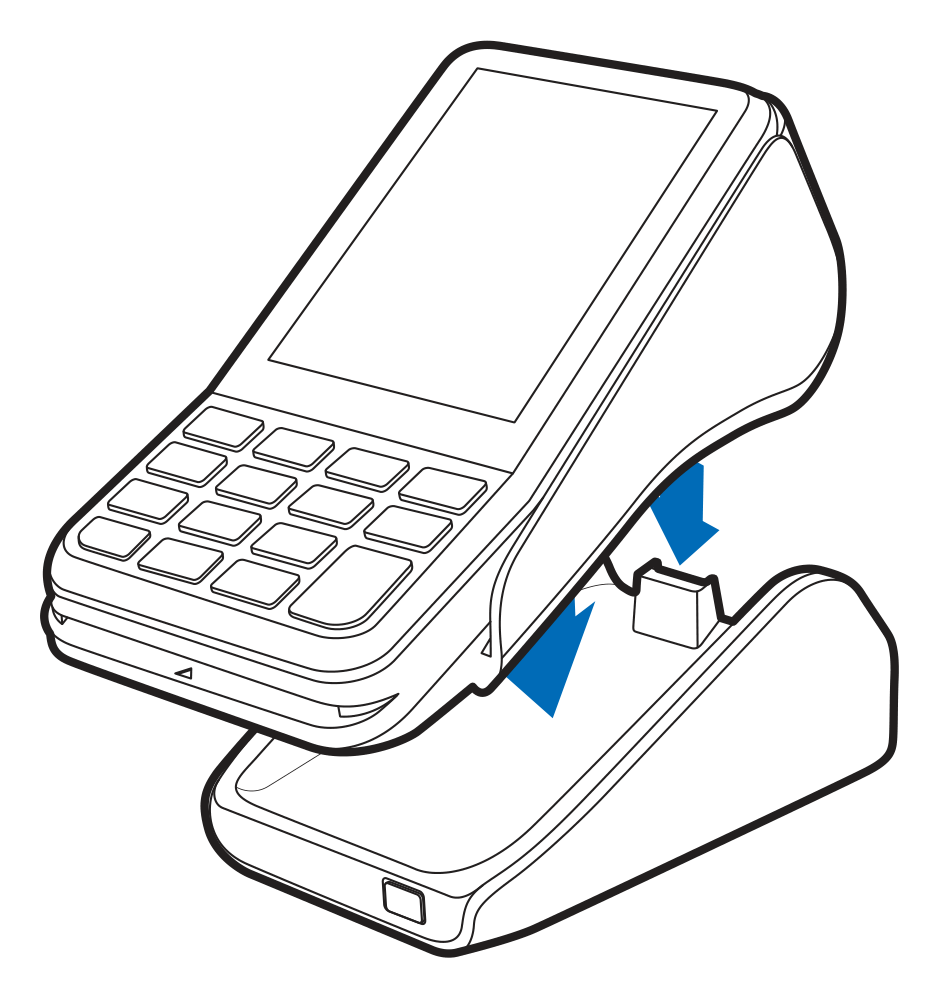

### Dock the Terminal
Lower the V400m onto the base, as shown by the arrows, until it sits on the connector.
{% endstep %}
{% endstepper %}
## Full Installation Guide
For full device setup details, product information, and troubleshooting steps, refer to the Installation Guide (DOC475-003-EN).
---
