# V400m Quick Installation Guide
This guide shows you how to set up the V400m and take your first payment.
Before you begin, confirm you have all devices, cables, and accessories listed below.

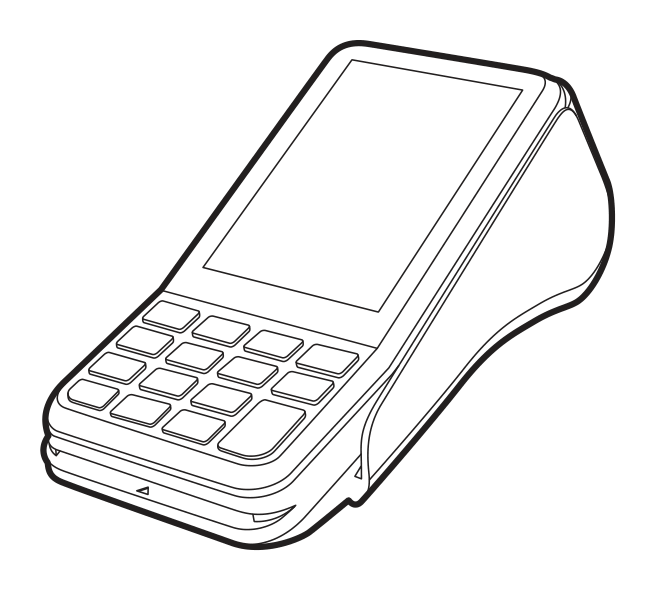

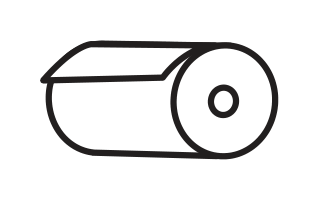

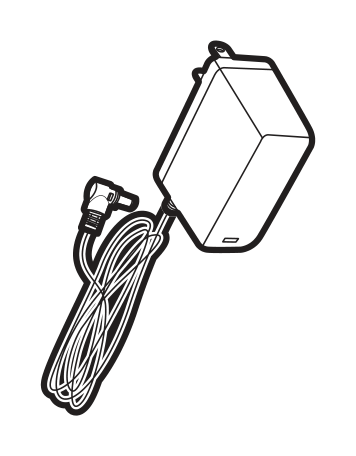

## What's in the Box
## Quick Setup Guide
{% stepper %}
{% step %}
### Remove the Battery
{% stepper %}
{% step %}
#### Remove the battery cover

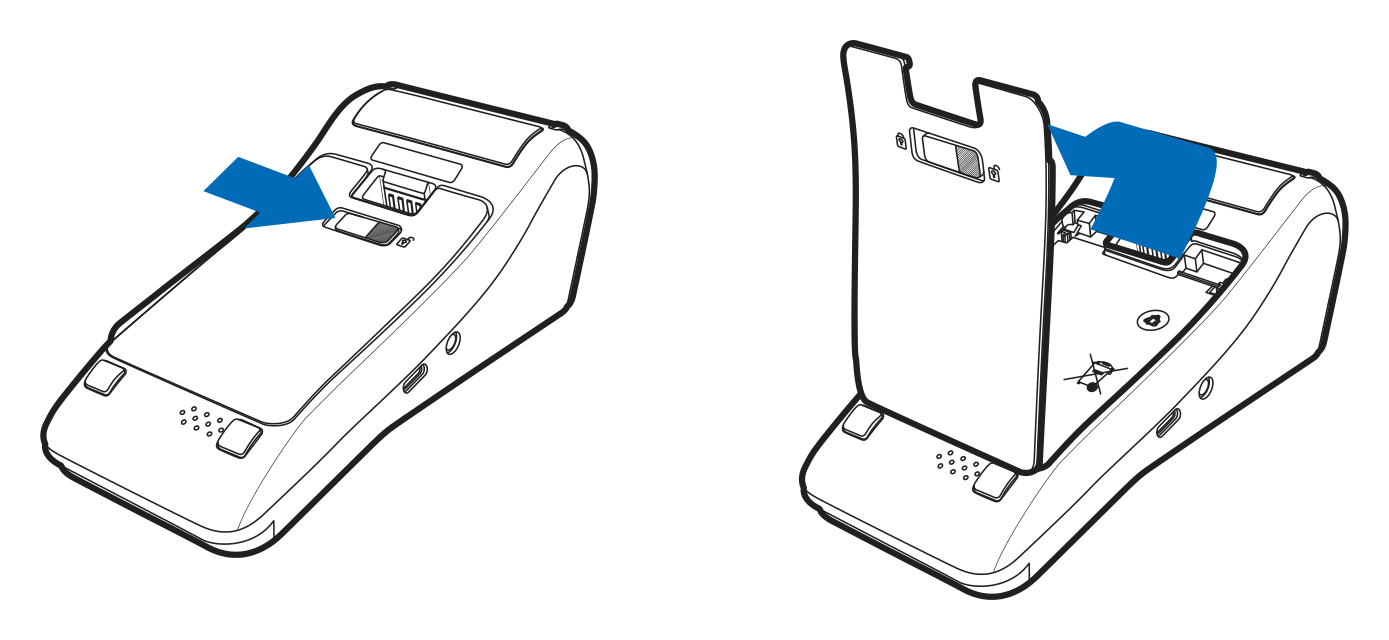

Slide the latch in the direction of the arrow to release the battery cover (left), then lift the cover off the terminal (right).
{% endstep %}
{% step %}

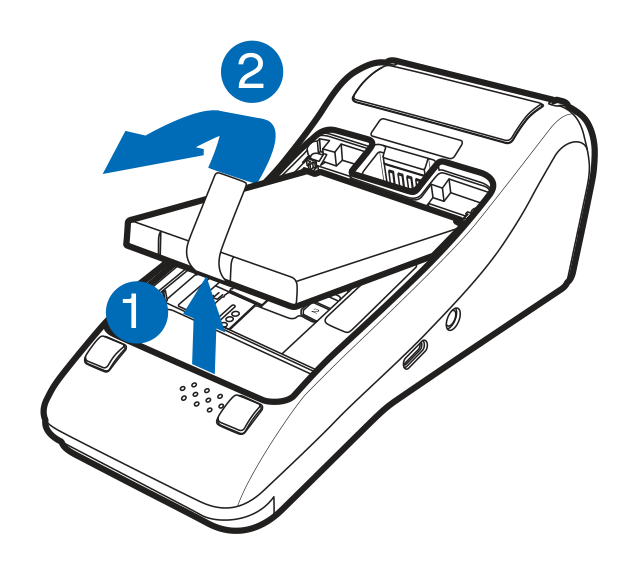

#### Take out the battery
Lift the battery (1), then pull it out of the compartment (2).
{% endstep %}
{% endstepper %}
{% endstep %}
{% step %}
### Insert the SIM Cards

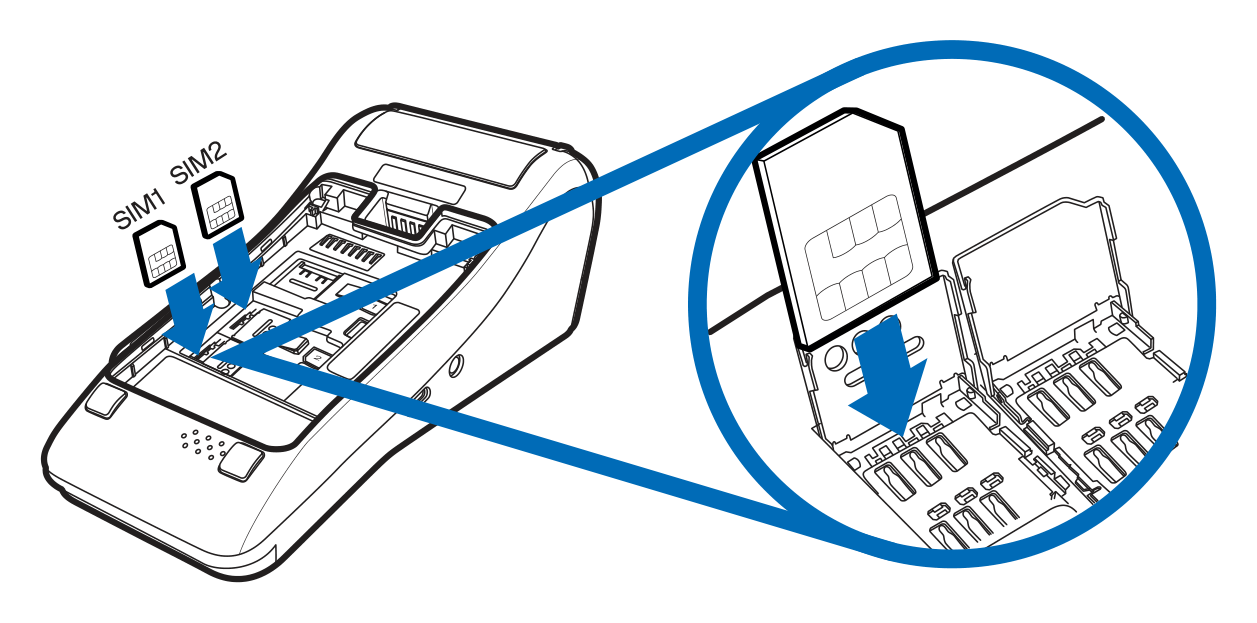

Open the SIM card holders and insert the SIM cards into the SIM1 and SIM2 slots, as shown by the arrows.
{% endstep %}
{% step %}

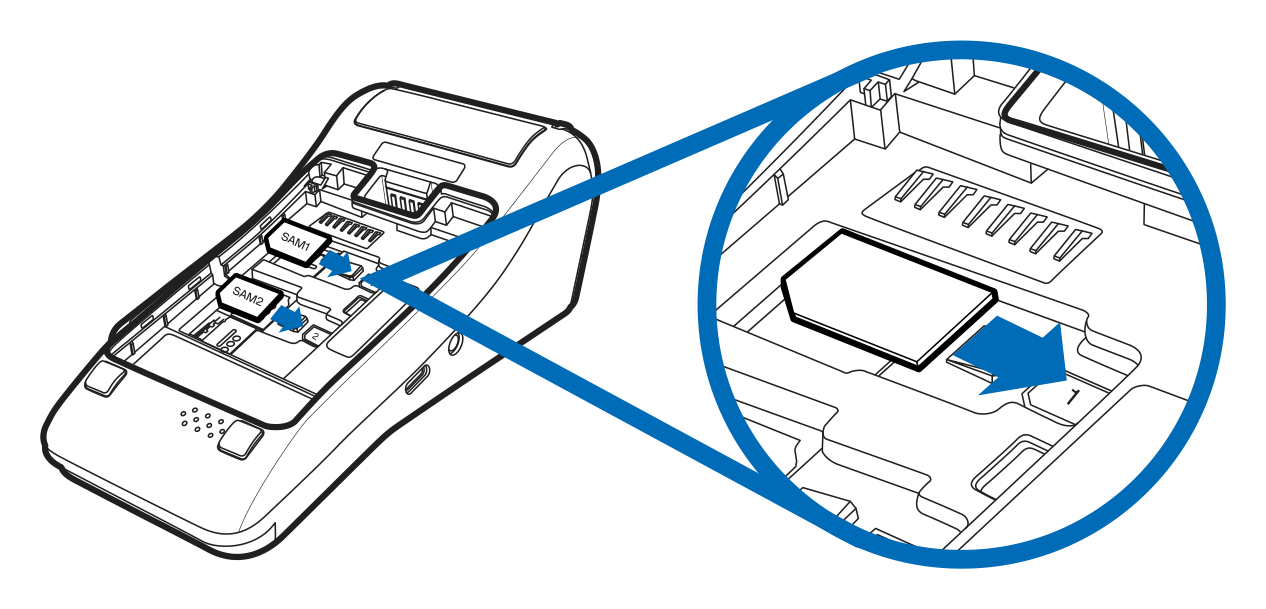

### Insert the SAM Cards
Slide the SAM cards into the SAM1 and SAM2 slots, in the direction of the arrows.
{% endstep %}
{% step %}

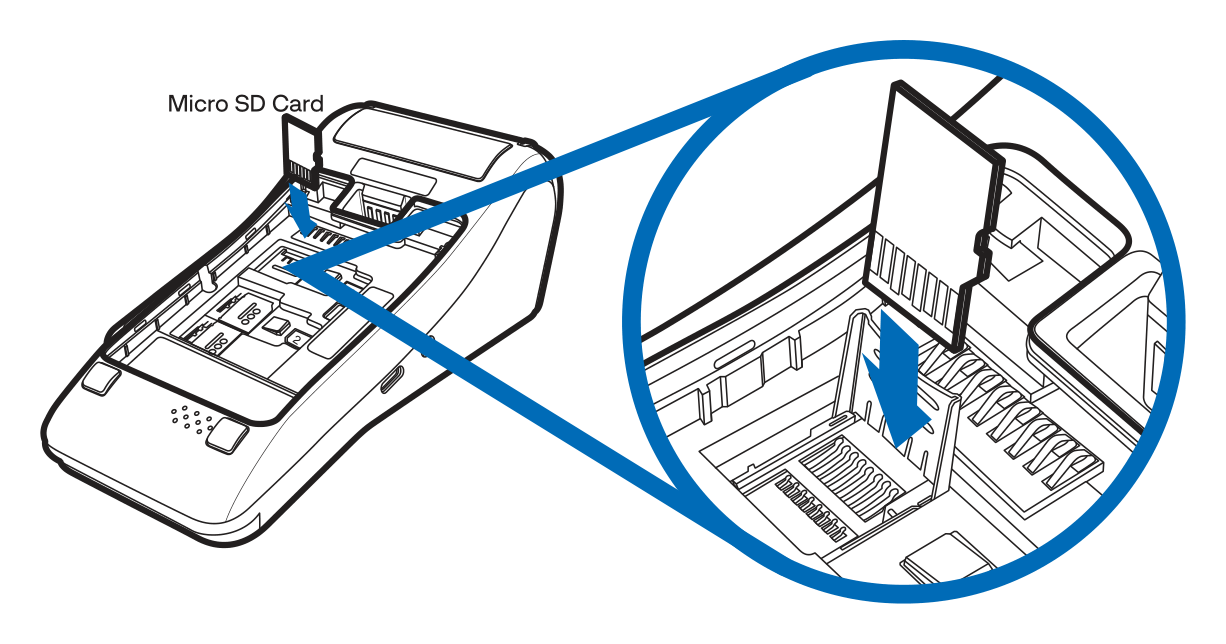

### Insert the Micro SD Card
Insert the micro SD card into the card slot, as shown by the arrow.
{% endstep %}
{% step %}
### Replace the Battery
{% stepper %}
{% step %}

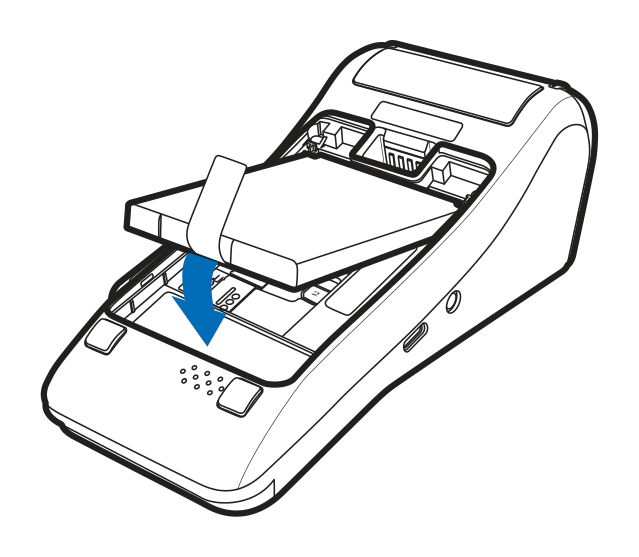

#### Insert the battery
Lower the battery into the compartment.
{% endstep %}
{% step %}
#### Replace the battery cover

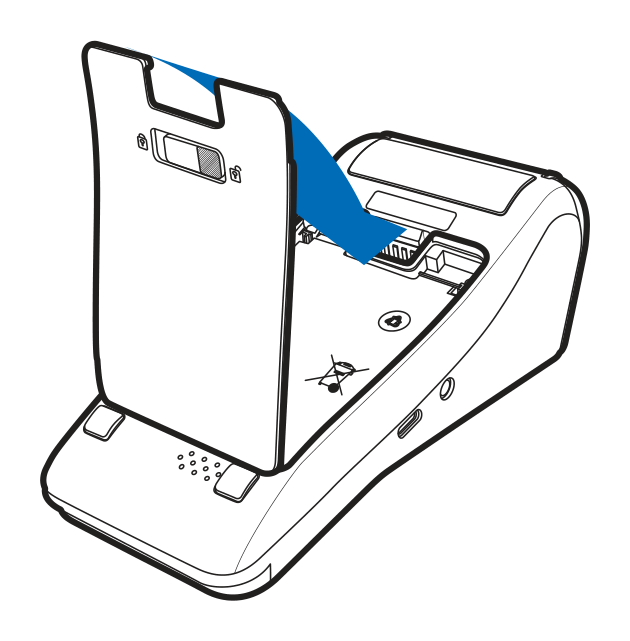

Fit the battery cover back onto the terminal.
{% endstep %}
{% step %}

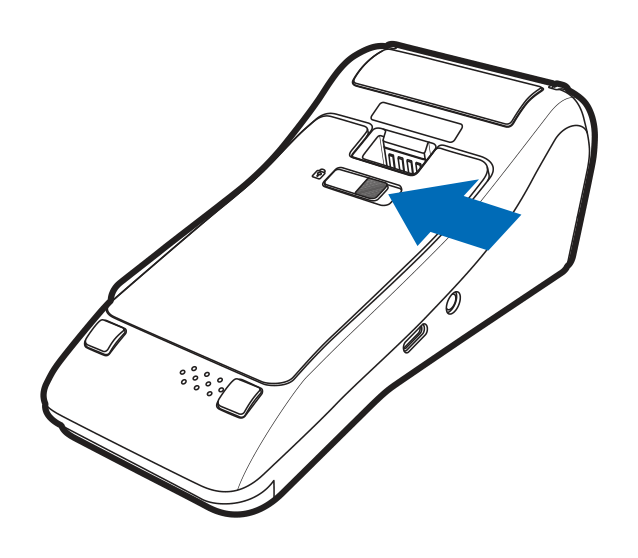

#### Lock the battery cover
Slide the latch in the direction of the arrow to lock the cover.
{% endstep %}
{% endstepper %}
{% endstep %}
{% step %}
### Load the Paper Roll
{% stepper %}
{% step %}
#### Release the printer cover

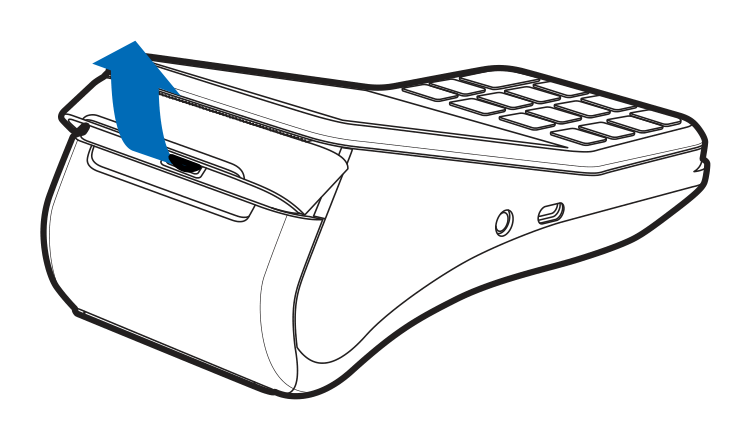

Lift the catch to release the printer cover.
{% endstep %}
{% step %}

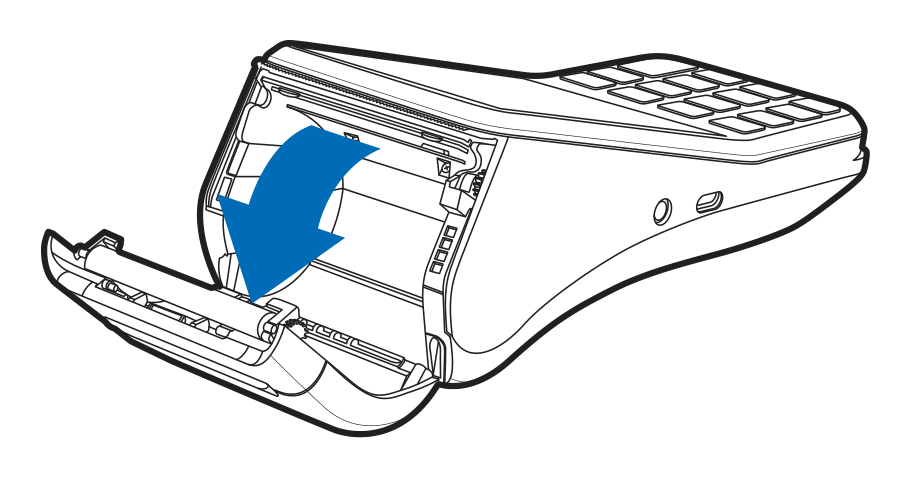

#### Open the printer cover
Fold the printer cover down, in the direction of the arrow.
{% endstep %}
{% step %}
#### Insert the paper roll

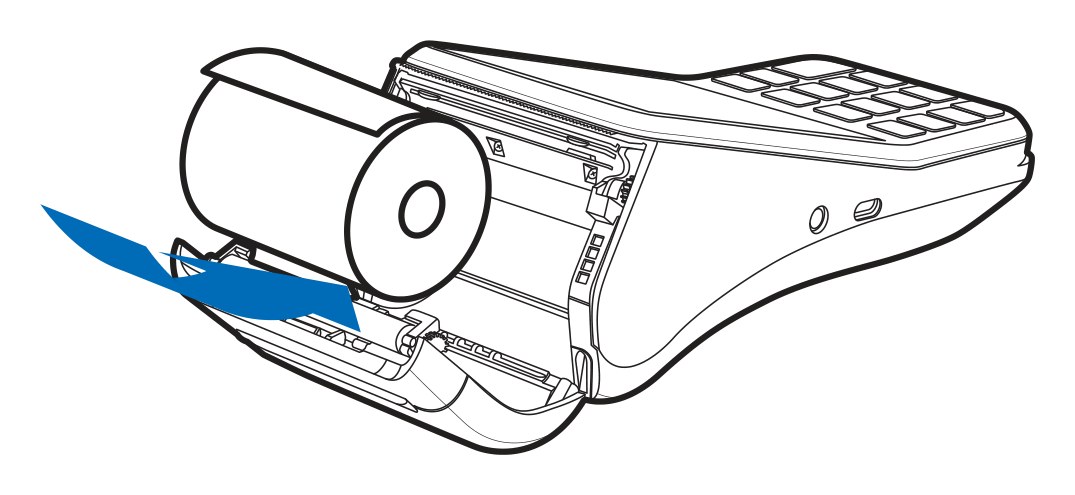

Place the paper roll in the printer and feed the end of the paper out, as shown by the arrow.
{% endstep %}
{% step %}

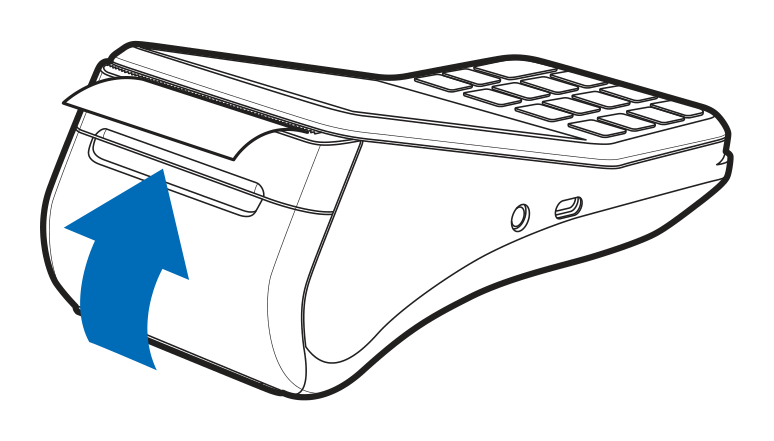

#### Close the printer cover
Press the printer cover up until it clicks shut, in the direction of the arrow.
{% endstep %}
{% endstepper %}
{% endstep %}
{% step %}
### Connect the Power

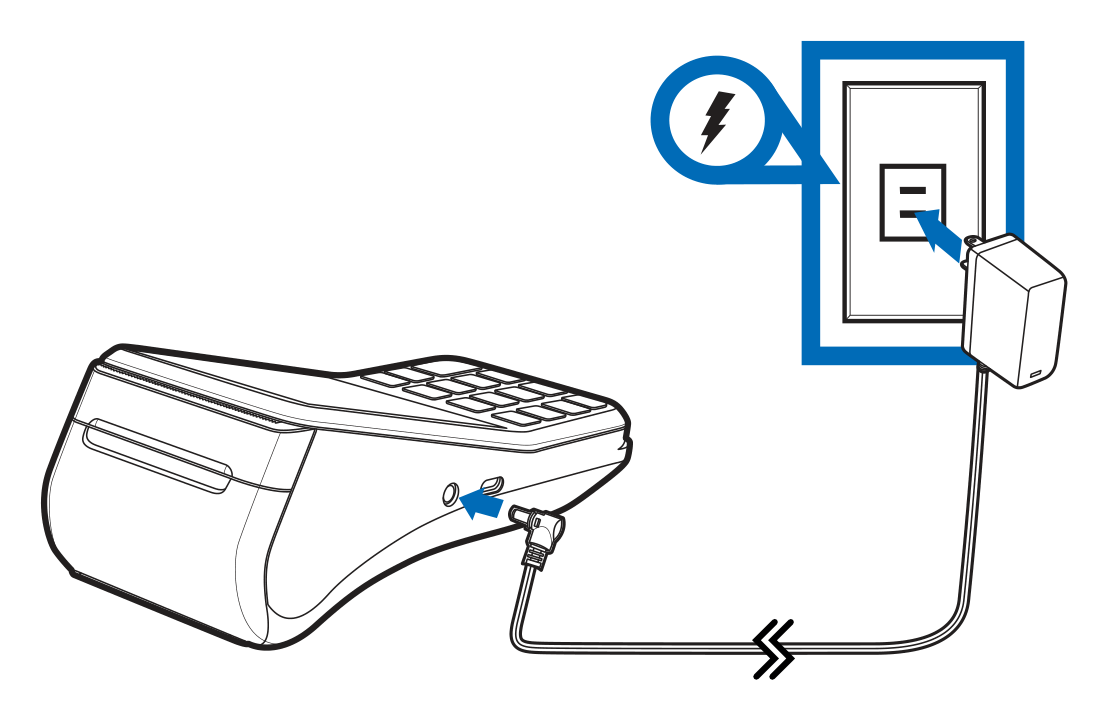

Plug the power adapter cable into the power port on the V400m, then plug the adapter into the wall outlet.
{% endstep %}
{% step %}
### Take a Payment
{% stepper %}
{% step %}

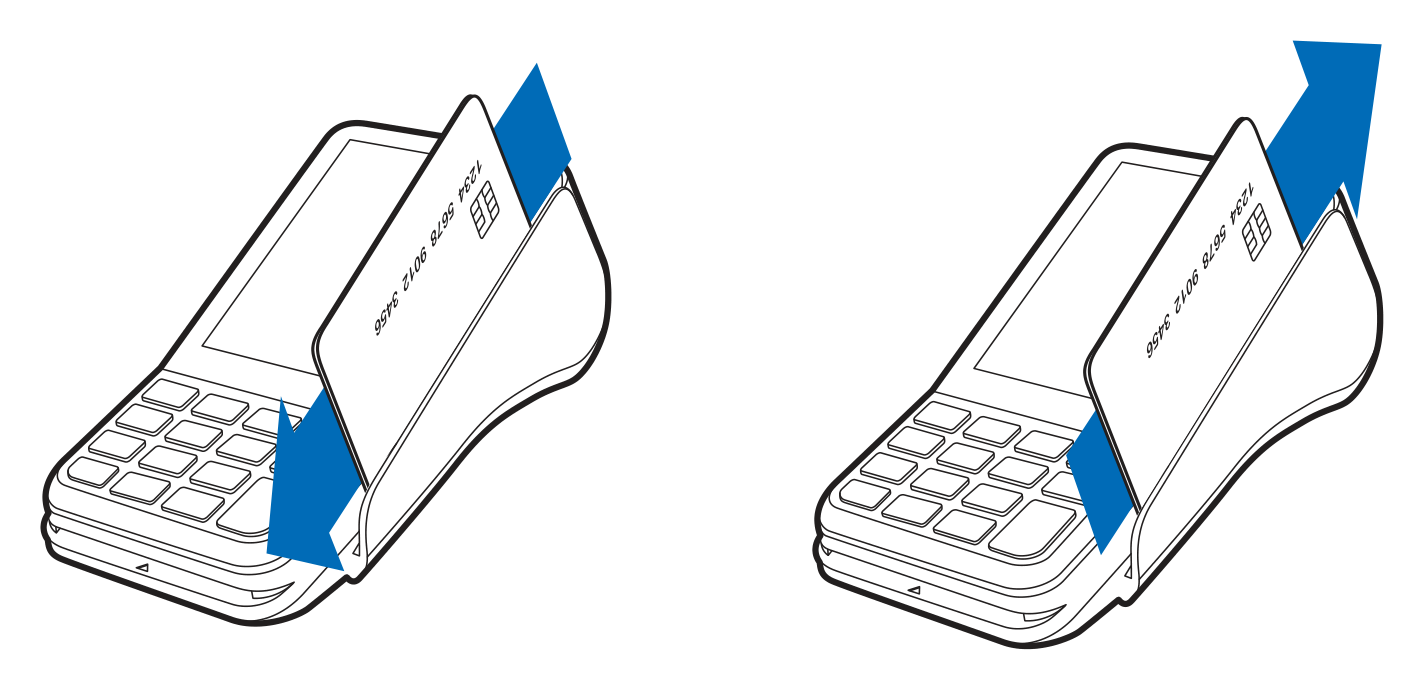

#### Swipe a card
Swipe the card through the slot on the side of the terminal, in either direction of the arrows.
{% endstep %}
{% step %}
#### Tap a contactless card

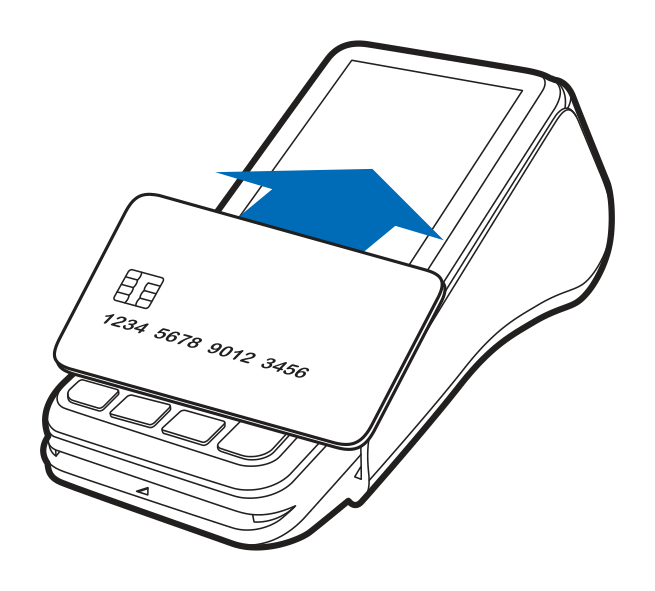

Hold the card over the terminal display.
{% endstep %}
{% step %}

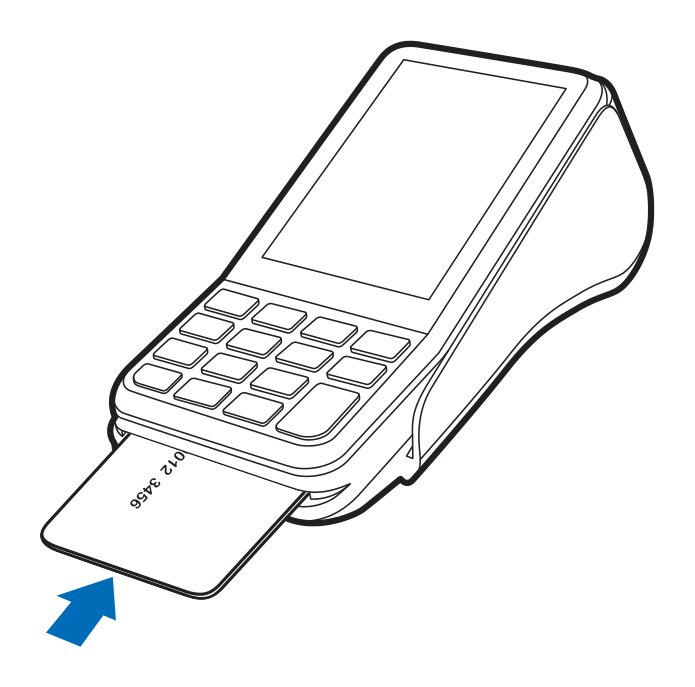

#### Insert a chip card
Insert the card into the slot at the bottom of the terminal, in the direction of the arrow.
{% endstep %}
{% endstepper %}
{% endstep %}
{% endstepper %}
## Full Installation Guide
For full device setup details, product information, and troubleshooting steps, refer to the Installation Guide (DOC475-003-EN).
---
