# How to Connect the Cables

Connect the network and power cables to your P400 Two-Piece customer unit and operator unit.

{% hint style="info" %}
**Use this when** you're setting up your P400 Two-Piece for the first time, or need to reconnect its cables.
{% endhint %}

Your P400 Two-Piece has two units, and each one needs its own network and power cables:

* **Customer unit (P400)** — the unit your customer uses to pay.
* **Operator unit (V400c)** — the unit at the till, with the receipt printer.

{% hint style="warning" %}
**Both units must be connected to the same network** — either directly to your router, or through your switch.
{% endhint %}

## Connect the customer unit

{% stepper %}
{% step %}

### Open the hatch

Turn the customer unit over and open the hatch on the back.

<figure><img src="https://content.gitbook.com/content/H3VBt0P9E0VJDk5TJ2jp/blobs/Shzt1FCGfcaSjashujYG/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Connect the adapter

Connect the adapter cable inside the hatch, then close the hatch.

<figure><img src="https://content.gitbook.com/content/H3VBt0P9E0VJDk5TJ2jp/blobs/4UxuFUS4L16lrHc35rhB/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

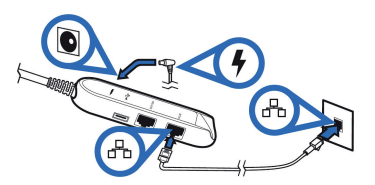

### Connect the network and power cables

1. Connect a network cable to the adapter's socket marked **ETH**.
2. Connect the other end of the network cable to your switch or router.
3. Connect the power cable to the adapter.

<figure><img src="https://content.gitbook.com/content/H3VBt0P9E0VJDk5TJ2jp/blobs/xBagnxdA4MdUMxhXeSdI/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

## Connect the operator unit

{% stepper %}
{% step %}

### Open the hatch

Turn the operator unit over and open the hatch on the back.

<figure><img src="https://content.gitbook.com/content/H3VBt0P9E0VJDk5TJ2jp/blobs/vuJ93ZzyS6wiigr7brrB/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Connect the network cable

Connect a network cable inside the hatch, then connect the other end to your switch or router.

<figure><img src="https://content.gitbook.com/content/H3VBt0P9E0VJDk5TJ2jp/blobs/GV5f8wINCmLjkmiLjCC0/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

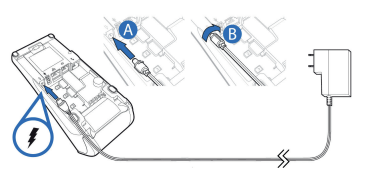

### Connect the power cable

1. Connect the power cable.
2. Lock the connector in place by turning it **clockwise**.
3. Close the hatch.

<figure><img src="https://content.gitbook.com/content/H3VBt0P9E0VJDk5TJ2jp/blobs/EpKPlDTMSyNeENQJLAS2/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

Once both units are connected, you're ready to set them up — see [Terminal Setup (Out of Box)](/support-nordics/p400-two-piece-sa/how-tos/terminal-setup-out-of-box.md).
