# How to Connect the Cables

Connect the P400 to the T650C, and connect the T650C to the mains and your network.

{% hint style="info" %}
**Use this when** you're setting up your T650 Two-Piece for the first time, or reconnecting the cables between the T650C and the P400.
{% endhint %}

Your T650 Two-Piece has two units: the **T650C** (the unit you use to start payments) and the **P400** (the PIN pad your customer uses). The T650C is powered by a **USB-C power cable plugged into the mains**. The P400 gets both its **power** and its **network connection** from the T650C.

## Connect the cables

{% stepper %}
{% step %}

### Connect the P400 to the T650C

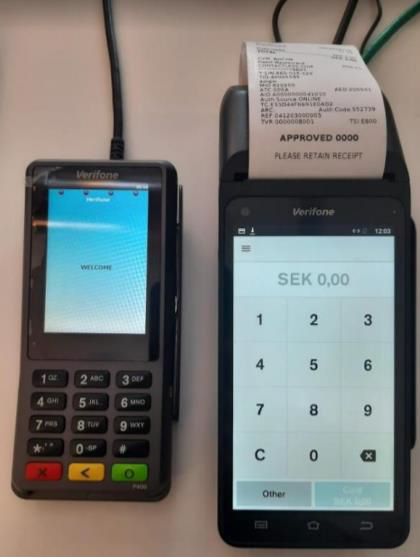

Connect the cable from the **P400** to the **T650C**. Push each connector in **firmly** — the connectors can be stiff.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2Faszfo87vC8Z1O16ycqQH%2Ft650tp-connect-cables-1.png?alt=media" alt="How to connect the T650C and P400" width="300"><figcaption></figcaption></figure>

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FGcONUd5Cvb0MZyNTGu0q%2Ft650tp-connect-cables-2.png?alt=media" alt="How to connect the T650C and P400 (continued)" width="300"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Connect the network cable (if you use one)

If you connect to your network with a cable (Ethernet), plug the **network cable** into the **T650C**. If you use Wi-Fi, you can skip this step — see [How to Set Up Wi-Fi](/support-nordics/t650-two-piece/how-tos/how-to-set-up-wi-fi.md).
{% endstep %}

{% step %}

### Connect the power

Connect the **USB-C power cable** to the **T650C**, then plug it into a **mains power socket**. The T650C and the P400 both power up.
{% endstep %}

{% step %}

### Check the connections

Compare your cables with the pictures below to make sure everything is connected correctly.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FMeoF99Z1o88YHTi6lvR6%2Ft650tp-cables-reference-p400.jpg?alt=media" alt="P400 cable connections" width="300"><figcaption><p>P400</p></figcaption></figure>

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FSUzsVqeILYPi1wV2WTiQ%2Ft650tp-cables-reference-t650c.jpg?alt=media" alt="T650C cable connections" width="300"><figcaption><p>T650C</p></figcaption></figure>
{% endstep %}
{% endstepper %}

Once everything is connected, set up the terminal — see [Terminal Setup (Out of Box)](/support-nordics/t650-two-piece/how-tos/terminal-setup-out-of-box.md).

{% hint style="warning" %}
**P400 shows "Waiting for connection for countertop USB"?** See [Waiting for Connection for Countertop USB](/support-nordics/t650-two-piece/errors/waiting-for-connection-for-countertop-usb.md).
{% endhint %}
