# How to Run the SAF Diagnostic

Run the SAF Diagnostic on a T650 Two-Piece (T650C) to view and clear pending reversals.

{% hint style="info" %}
**Use this when** you need to run the SAF Diagnostic on your T650C to check for and clear pending reversals.
{% endhint %}

You run the SAF Diagnostic on the **T650C**. It covers all payments taken on the P400 too.

## Run the SAF Diagnostic

{% stepper %}
{% step %}

### Open the App Launcher

On the T650C, slide down on the payment screen from the top, then tap the **9-box grid** symbol at the top next to the Wi-Fi icon.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FzRzdtEGUAPO5uK4jwFrb%2Fsaf-slide-down.png?alt=media" alt="Swipe down from the top" width="180"><figcaption></figcaption></figure>

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FdVZ5dggm3UomPOrGxWDG%2Fsaf-launcher.png?alt=media" alt="App Launcher" width="180"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

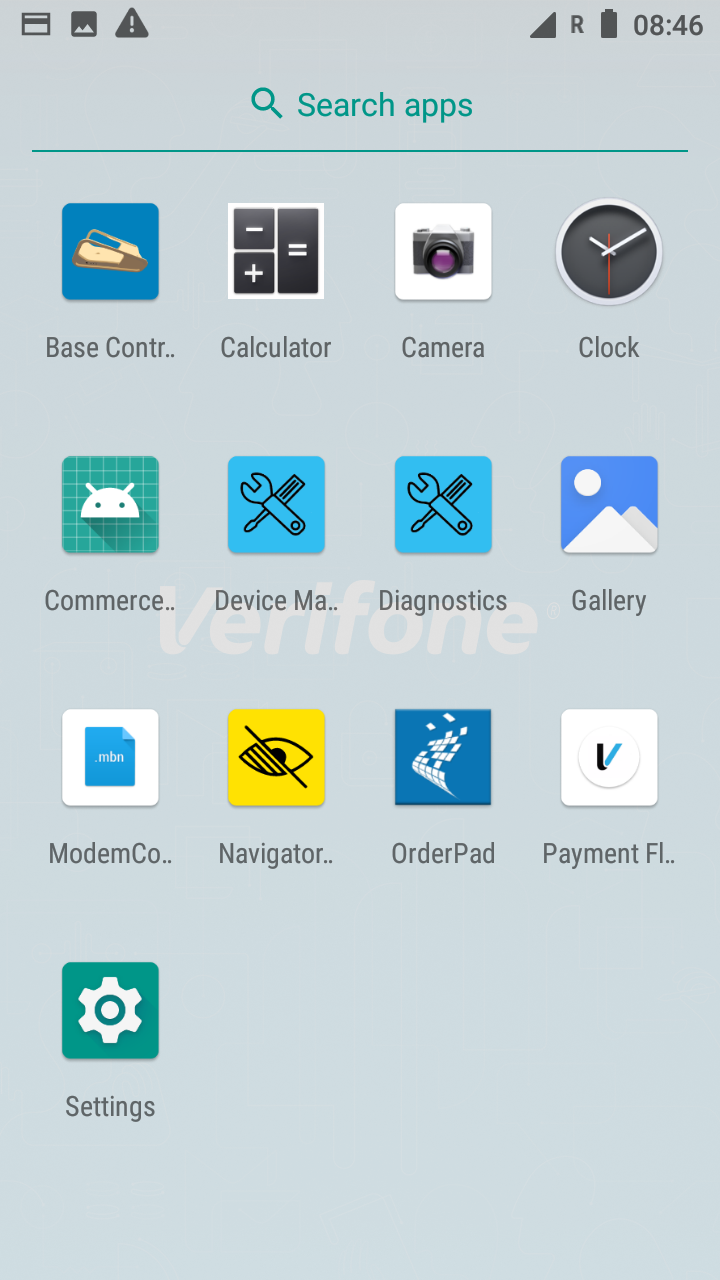

### Open Diagnostics

Select **Diagnostics**.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FbN2csfIprDoy35zH6P97%2Fsaf-diagnostics-menu.png?alt=media" alt="Diagnostics menu" width="180"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Open SAF Diagnostics

Select **SAF Diagnostics**.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FgYhTdvvK2wkydvg1EAQm%2Fsaf-diagnostics-option.png?alt=media" alt="SAF Diagnostics option" width="240"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Delete pending reversals

Select any pending reversals listed (shown by a pending value) and select **Delete**. You'll be prompted to enter the **Admin Code** — <mark style="color:red;">contact the Helpdesk</mark> to obtain this.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2F8svSsZvAgM7sIRi71LzW%2Fsaf-delete-reversals.png?alt=media" alt="Delete pending reversals" width="180"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

<details>

<summary>Keywords</summary>

Also called: SAF diagnostic, store and forward diagnostic, pending reversals, clear reversals, delete reversals. Search terms: SAF, store and forward, diagnostic, pending, reversals, delete, admin code.

</details>


---
