# How to Test the Onboard Printer

Run a test print on a T650 terminal to check the onboard printer is working.

{% hint style="info" %}
**Use this when** you need to check whether the onboard printer on a T650 terminal is working, by running a test print.
{% endhint %}

## Run a test print

{% stepper %}
{% step %}

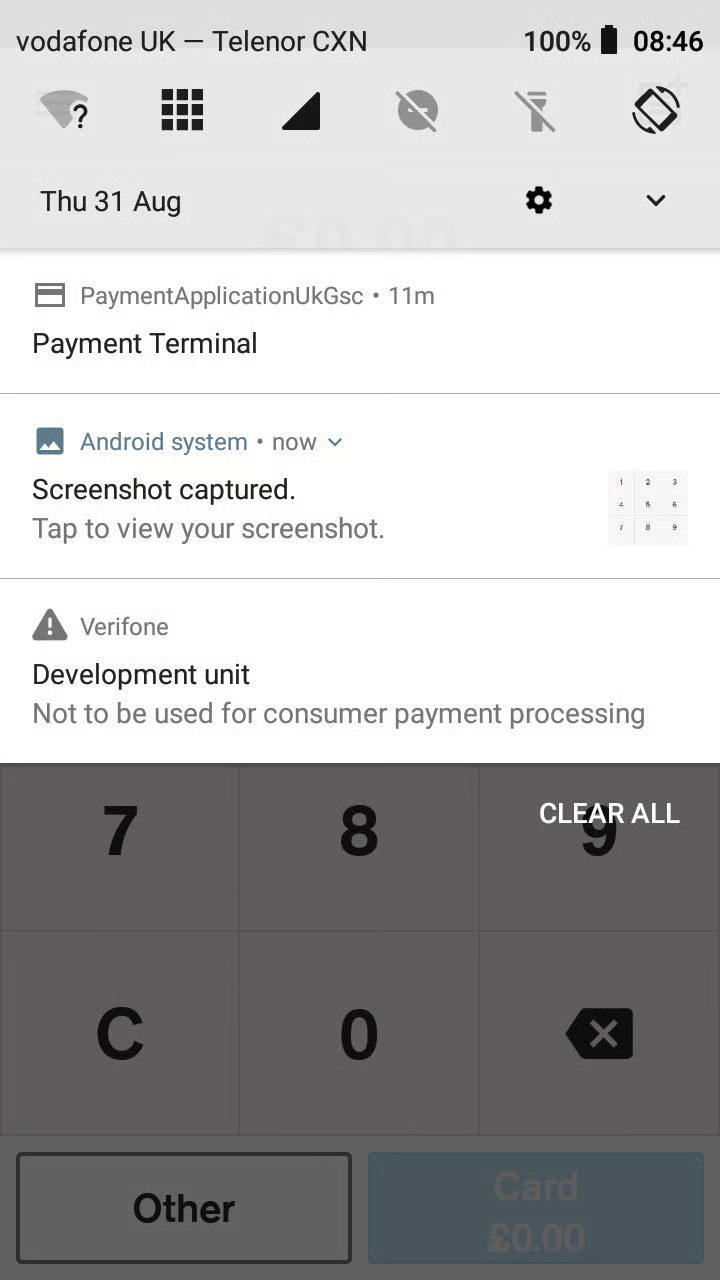

### Open the App Launcher

Slide down on the payment screen from the top, then tap the **9-box grid** symbol at the top next to the Wi-Fi icon.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FGHZxVKpo2k33zE3XmtID%2Fprinter-slide-down.png?alt=media" alt="Swipe down from the top" width="180"><figcaption></figcaption></figure>

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FHhwzXkiGvwEPgXmi0ZoN%2Fprinter-launcher.png?alt=media" alt="App Launcher" width="180"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

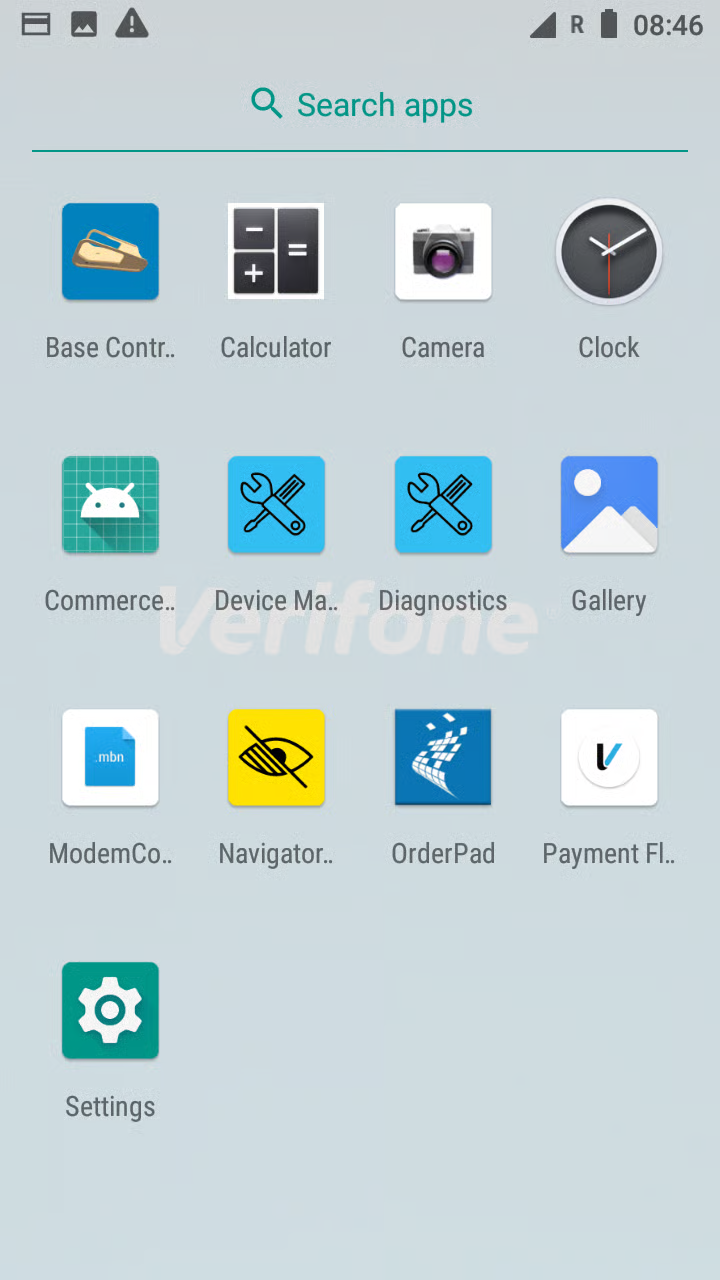

### Open Diagnostics

Select **Diagnostics**.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FJwGoXEbBuDoEiuZRVRfn%2Fprinter-diagnostics-menu.png?alt=media" alt="Diagnostics menu" width="180"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

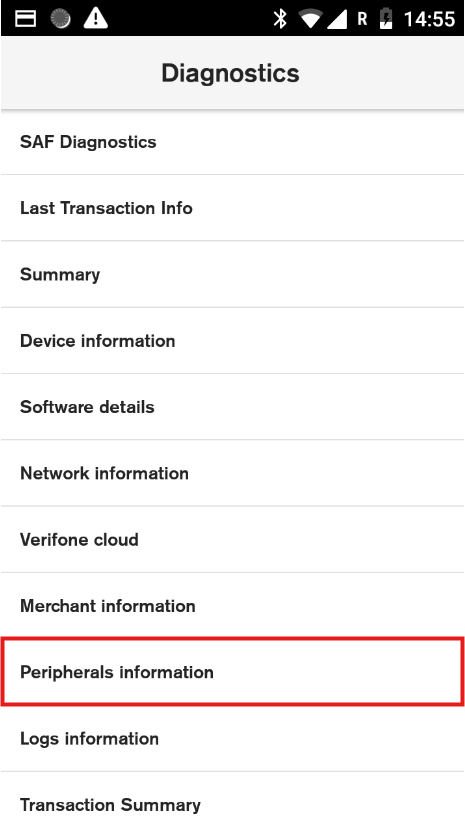

### Open Peripherals Information

Select **Peripherals Information**.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2FcvfDz9PDQB49arAqr8nx%2Fprinter-peripherals.png?alt=media" alt="Peripherals Information" width="233"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

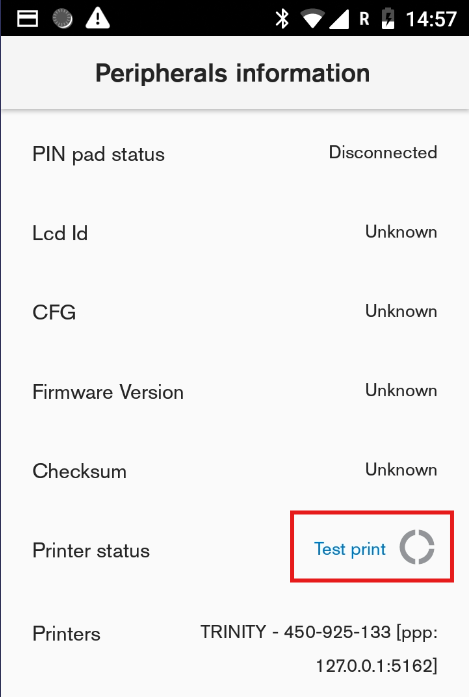

### Run the test print

Select **Test Print**. The terminal prints a test receipt to confirm the printer is working.

<figure><img src="https://2708971099-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fa0qV9Wx6LdSaDc8JrEef%2Fuploads%2F92HG6WNB0hbA7DPVJuwI%2Fprinter-test-print.png?alt=media" alt="Test Print option" width="235"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

<details>

<summary>Keywords</summary>

Also called: test print, printer test, testing printer settings, peripherals information, check printer, onboard printer. Search terms: printer, test print, printer test, peripherals, diagnostic, printing.

</details>


---
