# XPI Getting Started
CAM-XPI lets your host application control Verifone PIN pads and payment devices. It supports magnetic stripe, contactless, contact EMV, credit, debit, loyalty, and gift flows.
{% if visitor.isSet === false %}
{% columns %}
{% column %}
Please login or register to gain access to the detailed material on this page.
{% endcolumn %}
{% column %}
LoginRegister for an Account
{% endcolumn %}
{% endcolumns %}
{% endif %}
The host starts every action. The device stays in receiving mode and responds to commands.
{% hint style="warning" %}
Make sure the required keys are loaded before live testing.
Live PIN and card-data flows require the right keys on the device. Load debit and card-data encryption keys before production testing.
{% endhint %}
### Set up your first connection
{% stepper %}
{% step %}
### Confirm the device and package
| |
|---|

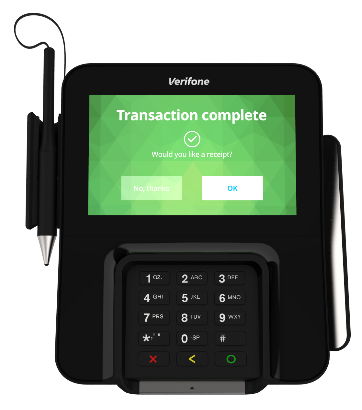

| Start with a supported Engage, Neo, or UX device. Load the CAM-XPI package before sending commands. |  |
{% if visitor.isSet === false %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Login
{% endcolumn %}
{% endcolumns %}
{% endif %}
{% if visitor.isSet === true %} Software Components
{% endif %}
{% endstep %}
{% step %}
### Configure communication
Pick one transport first. XPI supports RS232, USB, WiFi, Ethernet, Bluetooth, and WebSocket.
{% hint style="info" %}
For IP and WebSocket, the default port is `12345`. For Engage and UX serial communication, the default format is `8n1` at `115200`.
{% endhint %}
{% if visitor.isSet === false %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Login
{% endcolumn %}
{% endcolumns %}
{% endif %}
{% if visitor.isSet === true %} Communication Configuration
{% endif %}
{% endstep %}
{% step %}
### Choose packet framing
By default, XPI uses STX, ETX, and LRC framing. This is controlled by the `SAPF` parameter.
* `SAPF=1` uses framed packets with ACK and NAK.
* `SAPF=0` uses raw packets without ACK and NAK.
Keep at least `100ms` between requests and responses.
{% if visitor.isSet === false %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Login
{% endcolumn %}
{% endcolumns %}
{% endif %}
{% if visitor.isSet === true %} Communication Protocol
{% endif %}
{% endstep %}
{% step %}
### Verify the connection
Goal: validate transport and app readiness.
{% if visitor.isSet === false %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Login
{% endcolumn %}
{% endcolumns %}
{% endif %}
{% if visitor.isSet === true %}
1. Send [11 - PIN Pad Connection Test](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/292169fd2303c54538e16bfbffa01569bb16887b).
2. Send [M01 - Get Version Information](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/301a6dabd2f29ad95da7051a3dd78608d8828803).
3. Optionally initialize the idle prompt with [S01 - Query and Initialize Idle Prompt](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/9d96efb33e96bdccb9868ea6026e150d80077aab).
Interface Command Set
{% endif %}
{% endstep %}
{% step %}
### Run a first payment flow
{% if visitor.isSet === false %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Login
{% endcolumn %}
{% endcolumns %}
{% endif %}
{% if visitor.isSet === true %}
A common EMV path is:
1. Start a session with [X00 - Start Transaction Session Request](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/2ab67d8ee96a7d31ed1292cfb3a3d85c8f4693a9).
2. Enable card entry with [C30 - Enable Card Insertion](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/JTZ6MwhxRmUsPu6AgxDY).
3. Start the EMV transaction with [C32 - EMV Transaction Request](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/0abecc3eada3dc3c602f7e9d1b82db88bc612638).
4. Complete the online step with [C34 - Complete Online EMV Transaction](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/fa79be4356e2c0489382d0c852335d53c2b4bbc7).
5. Cancel or reset the flow with [S00 - Cancel Command](broken://spaces/Vv7hHfN7Cbqq6eTt7D6r/pages/3a8a64501485b10916980c06bc9e5a2c212240fe) when needed.
Interface Command Set
{% endif %}
{% endstep %}
{% step %}
### Review configuration and UI behaviour
Review runtime settings and device prompts before broader testing.
{% tabs %}
{% tab title="INI Settings" %}
Use INI settings to control runtime behaviour.
{% if visitor.isSet === false %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Login
{% endcolumn %}
{% endcolumns %}
{% endif %}
{% if visitor.isSet === true %} INI File Configuration
{% endif %}
{% endtab %}
{% tab title="Screen Templates" %}
Use screen templates to match standard prompts and UI flows on the device.
{% if visitor.isSet === false %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Login
{% endcolumn %}
{% endcolumns %}
{% endif %}
{% if visitor.isSet === true %} Screen Templates
{% endif %}
{% endtab %}
{% endtabs %}
{% endstep %}
{% endstepper %}
---
